Description

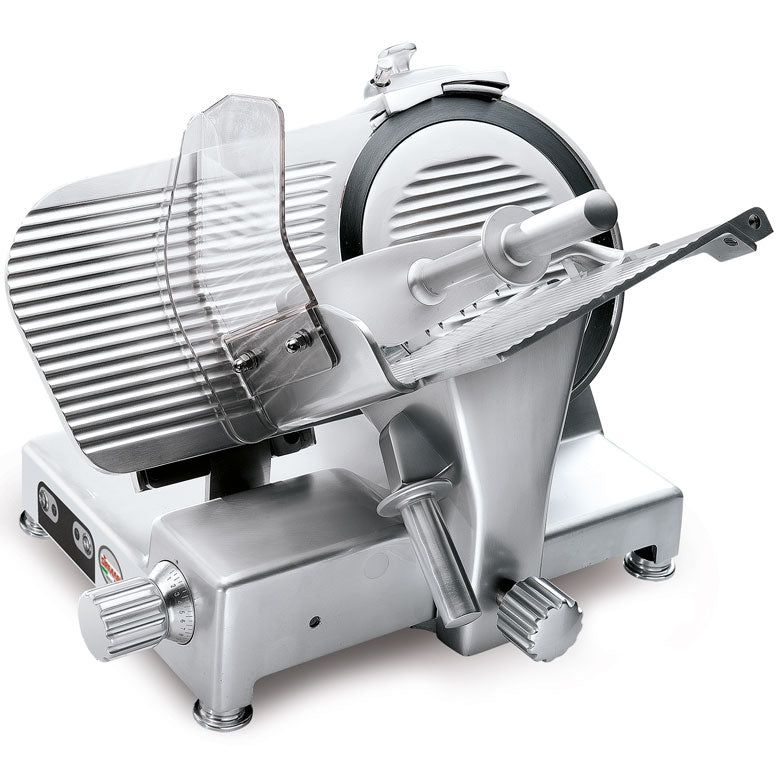

Sirman Slicers , model Palladio 300 Top :
- Rounded design, no sharp edges and visibile screws.
- Chrome plated and ground slide rod.
- Lapped cast iron slide rod bushing.
- Vulcanized rubber stops on carriage.
- Removable support cover for thickness gauge plate.
- Stainless steel slice deflector with bayonet fitting.
- Stainless steel screws and fittings.
- Enclosed and sealed belt pulley.
- 49,5 mm distance between blade and motor.
- Bottom cover.
- Changeover electronic circuit 110-220-380 V single and three phase.
- Built in sharpening tool with bottom protection.
- Standard blade removal tool.
- Aluminium knob.
- Aluminium telescopic feet with rubber base.
- Stainless steel pushbuttons with IP67 protection rating.
- Maintenance tool kit.
Optional Stonehenge:
- Cast aluminum alloy with special ceramic-teflon coating treatment
- Ideal for sticky products processing
- Excellent product gliding and easy to clean
- Highly resistant to acids and sanitizing chemicals
- Removable parts are dishwasher safe
- Aluminum-gray finish colour.
Available versions:
- Stonehenge: table, blade cover, carriage, end weight
- Stonehenge Plus: base, table, knife rim guard, blade cover, carriage, end weight, sharpener housing
|
Model |
PALLADIO 300 TOP |
|
ø Blade |
mm 300 - inch. 12 |
|
Motor |
watt 275 - Hp 0,37 |
|
Cut thickness |
mm 23 |
|
Run of carriage |
mm 310 |
|
Hopper |
mm 305x270 |
|
A |
mm 465 |
|
B |
mm 340 |
|
C |
mm 615 |
|
D |
mm 547 |
|
E |
mm 465 |
|
F |
mm 710 |
|
G |
mm 545 |
|
L |
mm 600 |
|
X |
mm 270 |
|
Y |
mm 190 |
|
H |
mm 240 |
|
W |
mm 220 |
|
Net weight |
kg 35 |
|
Shipping |
mm 760x640x700 |
|
Gross weight |
kg 44 |
|
HS-CODE |
84385000 |
Spec Sheet
