Astra 5 x 6 Walk-In Freezer with Floor FWF5X6

AstraSKU: FWF5X6

Astra 5 x 6 Walk-In Freezer with Floor FWF5X6


Price:
Sale price$3,117.00

Indoor / Outdoor

Door Size

Add-Ons

Refrigeration

Layout

Product Specifications

Brand Astra
Model FWF5X6
External Dimensions 4' 11"W x 6' 7"L x 7' 3"H
Panel Construction 4" thick foamed-in-place polyurethane insulation
Insulation Value R27 for coolers and R33 for freezers
Panel Warranty 10 year panel warranty
Top Mount Refrigeration Indoor: Turbo Air STI050LP2 Low Temperature Indoor Refrigeration System
Outdoor: Turbo Air STX050LP2 Low Temperature Outdoor Refrigeration System
Remote Refrigeration Turbo Air LED072BENC 2 Fan Low Profile Electric Defrost Evaporator Coil (Unit Cooler) +Turbo Air TS015XR404A2 1.5 HP Extra Low Temp Outdoor Condensing Unit

Resources & Documents

Product Certifications

Product certification
Product certification
Product certification
Product certification

Description

The Astra 5 x 6 Walk-In Freezer with Floor is a compact, commercial-grade freezer box designed for restaurants, cafés, delis, convenience stores, small markets, bakeries, and foodservice businesses that need reliable frozen storage in a limited space.

Built with 4" thick foamed-in-place polyurethane insulation and a durable cam-lock panel system, this walk-in freezer is engineered for strong temperature retention, easy assembly, and everyday commercial use. The included insulated floor makes it suitable for freezer applications where proper thermal separation and cold air retention are essential.

This 5' x 6' walk-in freezer is a practical choice for storing frozen meat, seafood, prepared foods, bakery products, ice cream, frozen ingredients, and backup inventory. Its compact footprint makes it ideal for kitchens or storage areas where space is limited but dependable frozen storage is still required.

The modular panel design helps simplify installation, while the pre-painted galvanized steel finish provides a clean, durable surface for commercial environments. Freezer-specific door features, including a heating wire and pressure relief vent, help support reliable operation in low-temperature conditions.

Whether you are upgrading from reach-in freezers or adding extra frozen storage capacity, the Astra 5 x 6 Walk-In Freezer with Floor offers a strong, space-efficient solution for commercial food storage.

Key Features

  • 5' x 6' compact walk-in freezer box
  • Insulated floor included for freezer applications
  • 4" thick foamed-in-place polyurethane insulation
  • R33 insulation value for freezer performance
  • Modular cam-lock panels with tongue and groove design
  • 24 gauge pre-painted white galvanized steel panels
  • Self-closing flush-mounted door
  • Keyed locking door handle
  • Freezer door heating wire and pressure relief vent
  • Heavy-duty hinges and durable door hardware
  • NSF, UL, DOE, ASTM Test 518, ASTM Test E84, and UL723 compliant
  • 10-year panel warranty
  • Quick-ship model, usually ships in 2 to 5 days

Best For

  • Restaurants and commercial kitchens
  • Delis and cafés
  • Bakeries
  • Small grocery stores and markets
  • Convenience stores
  • Ice cream and frozen dessert storage
  • Meat, seafood, and prepared food storage
  • Businesses that need compact frozen storage

Standart Features

Astra 5 x 6 Walk-In Freezer with Floor FWF5X6

Panels

  • 4" Thick Foamed-In-Place Polyurethane Insulation
  • Cam-Lock Panels, Tongue & Groove Design
  • 24 Gauge Pre-Painted White Galvanized Steel
  • R27 for Coolers and R33 for Freezers
  • CFC and HFC Free Materials
  • 10 Year Panel Warranty
Panels

Doors

  • 30" or 36" wide doors (left or right hinged)
  • Self-Closing, Flush-Mounted Doors
  • Keyed Locking Door Handle
  • 120V/1P/1A Heating Wire and Pressure Relief Vent on Freezers
  • Heavy-Duty Hinges and Durable Handles
Doors
  • 10-Year Panel Warranty
  • 2-Year Top Mount Refrigeration Parts
  • 1-Year Top Mount Refrigeration Labor
  • 1-Year Remote Refrigeration Parts
  • 1-Year Door Warranty

Payment & Security

Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Available Astra QuickShip Walk In Cooler Models

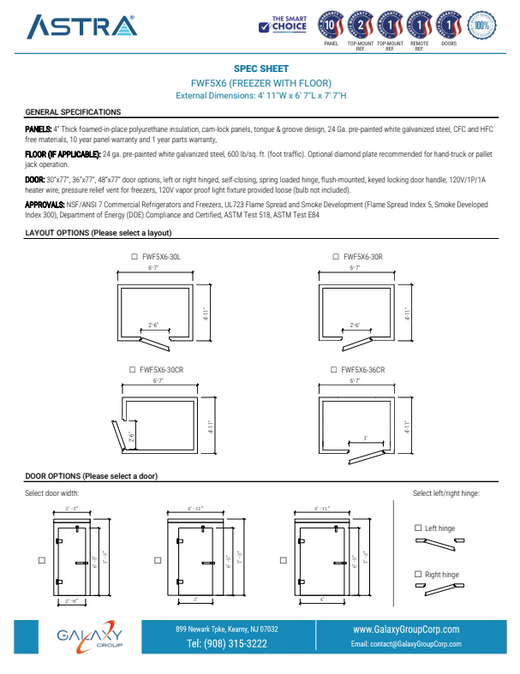

Model Number External Dimensions Spec Sheet
CNF5X6 4'11" L x 6'7" W x 7'3" H PDF
CNF5X8 4'11" L x 8'2" W x 7'3" H PDF
CNF5X10 4'11" L x 9'10" W x 7'3" H PDF
CNF6X6 6'7" L x 6'7" W x 7'3" H PDF
CNF6X8 6'7" L x 8'2" W x 7'3" H PDF
CNF6X10 6'7" L x 9'10" W x 7'3" H PDF
CNF6X12 6'7" L x 11'6" W x 7'3" H PDF
CNF8X8 8'2" L x 8'2" W x 7'3" H PDF
CNF8X10 8'2" L x 9'10" W x 7'3" H PDF
CNF8X12 8'2" L x 11'6" W x 7'3" H PDF
CNF8X13 8'2" L x 13'2" W x 7'3" H PDF
CNF8X15 8'2" L x 14'9" W x 7'3" H PDF
CNF8X17 8'2" L x 16'5" W x 7'3" H PDF
CNF8X18 8'2" L x 18'1" W x 7'3" H PDF
CNF8X20 8'2" L x 19'8" W x 7'3" H PDF
CNF10X10 9'10" L x 9'10" W x 7'3" H PDF
CNF10X12 9'10" L x 11'6" W x 7'3" H PDF
CNF10X13 9'10" L x 13'2" W x 7'3" H PDF
CNF10X15 9'10" L x 14'9" W x 7'3" H PDF
CNF10X17 9'10" L x 16'5" W x 7'3" H PDF
CNF10X18 9'10" L x 18'1" W x 7'3" H PDF
CNF10X20 9'10" L x 19'8" W x 7'3" H PDF
CWF5X6 4'11" L x 6'7" W x 7'7" H PDF
CWF5X8 4'11" L x 8'2" W x 7'7" H PDF
CWF5X10 4'11" L x 9'10" W x 7'7" H PDF
CWF6X6 6'7" L x 6'7" W x 7'7" H PDF
CWF6X8 6'7" L x 8'2" W x 7'7" H PDF
CWF6X10 6'7" L x 9'10" W x 7'7" H PDF
CWF6X12 6'7" L x 11'6" W x 7'7" H PDF
CWF8X8 8'2" L x 8'2" W x 7'7" H PDF
CWF8X10 8'2" L x 9'10" W x 7'7" H PDF
CWF8X12 8'2" L x 11'6" W x 7'7" H PDF
CWF8X13 8'2" L x 13'2" W x 7'7" H PDF
CWF8X15 8'2" L x 14'9" W x 7'7" H PDF
CWF8X17 8'2" L x 16'5" W x 7'7" H PDF
CWF8X18 8'2" L x 18'1" W x 7'7" H PDF
CWF8X20 8'2" L x 19'8" W x 7'7" H PDF
CWF10X10 9'10" L x 9'10" W x 7'7" H PDF
CWF10X12 9'10" L x 11'6" W x 7'7" H PDF
CWF10X13 9'10" L x 13'2" W x 7'7" H PDF
CWF10X15 9'10" L x 14'9" W x 7'7" H PDF
CWF10X17 9'10" L x 16'5" W x 7'7" H PDF
CWF10X18 9'10" L x 18'1" W x 7'7" H PDF
CWF10X20 9'10" L x 19'8" W x 7'7" H PDF
Model Number External Dimensions Spec Sheet
FWF5X6 4'11" L x 6'7" W x 7'7" H PDF
FWF5X8 4'11" L x 8'2" W x 7'7" H PDF
FWF5X10 4'11" L x 9'10" W x 7'7" H PDF
FWF6X6 6'7" L x 6'7" W x 7'7" H PDF
FWF6X8 6'7" L x 8'2" W x 7'7" H PDF
FWF6X10 6'7" L x 9'10" W x 7'7" H PDF
FWF6X12 6'7" L x 11'6" W x 7'7" H PDF
FWF8X8 8'2" L x 8'2" W x 7'7" H PDF
FWF8X10 8'2" L x 9'10" W x 7'7" H PDF
FWF8X12 8'2" L x 11'6" W x 7'7" H PDF
FWF8X13 8'2" L x 13'2" W x 7'7" H PDF
FWF8X15 8'2" L x 14'9" W x 7'7" H PDF
FWF8X17 8'2" L x 16'5" W x 7'7" H PDF
FWF8X18 8'2" L x 18'1" W x 7'7" H PDF
FWF8X20 8'2" L x 19'8" W x 7'7" H PDF
FWF10X10 9'10" L x 9'10" W x 7'7" H PDF
FWF10X12 9'10" L x 11'6" W x 7'7" H PDF
FWF10X13 9'10" L x 13'2" W x 7'7" H PDF
FWF10X15 9'10" L x 14'9" W x 7'7" H PDF
FWF10X17 9'10" L x 16'5" W x 7'7" H PDF
FWF10X18 9'10" L x 18'1" W x 7'7" H PDF
FWF10X20 9'10" L x 19'8" W x 7'7" H PDF
Model Number External Dimensions Spec Sheet
CMB5X12 4'11" L x 11'6" W x 7'7" H PDF
CMB5X13 4'11" L x 13'2" W x 7'7" H PDF
CMB5X15 4'11" L x 14'9" W x 7'7" H PDF
CMB6X8 6'7" L x 8'2" W x 7'7" H PDF
CMB6X10 6'7" L x 9'10" W x 7'7" H PDF
CMB6X12 6'7" L x 11'6" W x 7'7" H PDF
CMB6X13 6'7" L x 13'2" W x 7'7" H PDF
CMB6X15 6'7" L x 14'9" W x 7'7" H PDF
CMB6X17 6'7" L x 16'5" W x 7'7" H PDF
CMB6X18 6'7" L x 18'1" W x 7'7" H PDF
CMB6X20 6'7" L x 19'8" W x 7'7" H PDF
CMB8X8 8'2" L x 8'2" W x 7'7" H PDF
CMB8X10 8'2" L x 9'10" W x 7'7" H PDF
CMB8X12 8'2" L x 11'6" W x 7'7" H PDF
CMB8X13 8'2" L x 13'2" W x 7'7" H PDF
CMB8X15 8'2" L x 14'9" W x 7'7" H PDF
CMB8X17 8'2" L x 16'5" W x 7'7" H PDF
CMB8X18 8'2" L x 18'1" W x 7'7" H PDF
CMB8X20 8'2" L x 19'8" W x 7'7" H PDF
CMB10X10 9'10" L x 9'10" W x 7'7" H PDF
CMB10X12 9'10" L x 11'6" W x 7'7" H PDF
CMB10X13 9'10" L x 13'2" W x 7'7" H PDF
CMB10X15 9'10" L x 14'9" W x 7'7" H PDF
CMB10X17 9'10" L x 16'5" W x 7'7" H PDF
CMB10X18 9'10" L x 18'1" W x 7'7" H PDF
CMB10X20 9'10" L x 19'8" W x 7'7" H PDF

Astra QuickShip Walk-In Boxes

Find the right walk-in box size for your space

Review Astra QuickShip cooler, freezer, and combo models in one place. Use the tabs below to compare dimensions, spec sheets, and pricing as you plan your project.
