Astra 6 x 6 Walk-In Cooler No Floor CNF6X6

AstraSKU: CNF6X6

Astra 6 x 6 Walk-In Cooler No Floor CNF6X6


Price:
Sale price$2,903.00

Indoor / Outdoor

Door Size

Floor Type

Add-Ons

Refrigeration

Layout

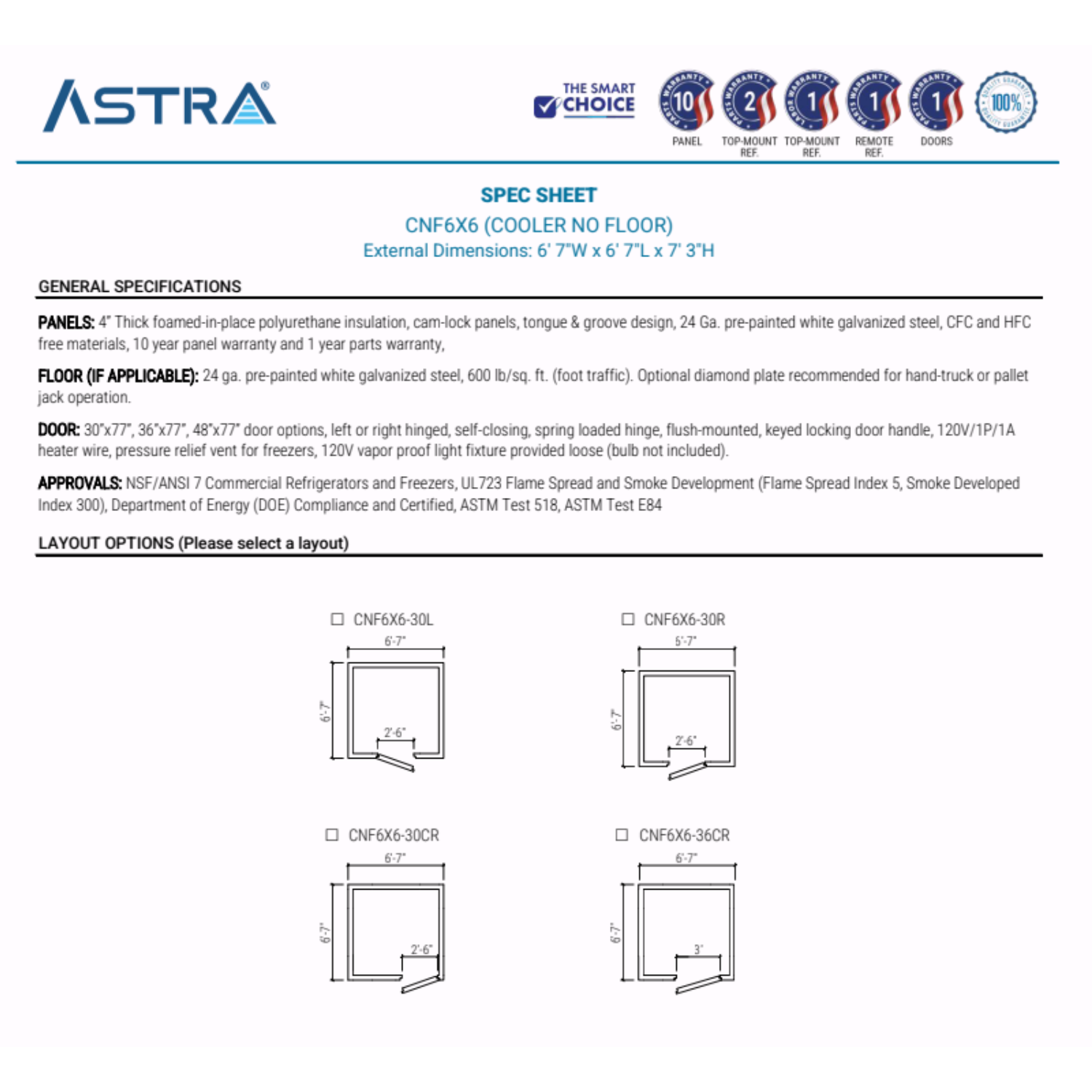

Product Specifications

Brand Astra
Model CNF6X6
External Dimensions 6' 7"W x 6' 7"L x 7' 3"H
Panel Construction 4" thick foamed-in-place polyurethane insulation
Insulation Value R27 for coolers and R33 for freezers
Panel Warranty 10 year panel warranty
Top Mount Refrigeration Indoor: Turbo Air Indoor Package Unit, Top-Mount, Smart 7, Medium Temp, 6,800 BTU, 208-230V/60Hz/1Ph, R290
Outdoor: Turbo Air Outdoor Package Unit, Top-Mount, Smart 7, Medium Temp, 5,000 BTU, 208-230V/60Hz/1Ph, R290
Remote Refrigeration Turbo Air Evaporator, Air Defrost, EC Motor, Pre-Assembled (R448A, R449A TXV, Solenoid Valve, Digital Temperature Controller), 1 Fan, 6,000 BTU,115V/60Hz/1Ph +Turbo Air Outdoor Condensing Unit, 1/2 HP, Medium Temp, Air Cooled, 208-230V/60Hz/1PhC28:C64ll Compressor, R404A, R407C, R448A / R449A

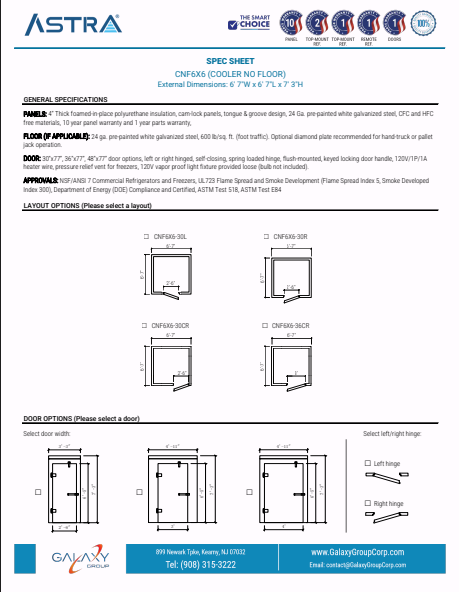

Resources & Documents

Product Certifications

Product certification
Product certification
Product certification
Product certification

Description

The Astra CNF6X6 is a 6' x 6' commercial walk-in cooler box designed for restaurants, delis, supermarkets, convenience stores, cafés, ghost kitchens, and foodservice operations that need compact, reliable cold storage without a built-in insulated floor. This floorless walk-in cooler is ideal for indoor installations where the existing floor is suitable for commercial refrigeration use.

This listing is for the walk-in cooler box only. Refrigeration is not included in the listed price. If you need a complete walk-in cooler system, this box can be paired with compatible remote or top-mount refrigeration depending on your space, installation requirements, and cooling needs. Atlantic’s walk-in cooler team can help you choose the right refrigeration setup before you buy.

Built with 4" foamed-in-place polyurethane insulated panels, cam-lock tongue-and-groove construction, 24-gauge pre-painted white galvanized steel, and a self-closing flush-mounted door with a keyed locking handle, the Astra CNF6X6 is made for dependable commercial use. Its compact footprint makes it a practical choice for businesses that need professional cold storage but have limited space.

With quick-ship availability, nationwide shipping, and support from Atlantic’s Kearny, NJ showroom and warehouse team, this 6' x 6' Astra walk-in cooler box gives food businesses a faster and more flexible way to expand refrigerated storage.

Standart Features

Astra 6 x 6 Walk-In Cooler No Floor CNF6X6

Panels

  • 4" Thick Foamed-In-Place Polyurethane Insulation
  • Cam-Lock Panels, Tongue & Groove Design
  • 24 Gauge Pre-Painted White Galvanized Steel
  • R27 for Coolers and R33 for Freezers
  • CFC and HFC Free Materials
  • 10 Year Panel Warranty
Panels

Doors

  • 30" or 36" wide doors (left or right hinged)
  • Self-Closing, Flush-Mounted Doors
  • Keyed Locking Door Handle
  • 120V/1P/1A Heating Wire and Pressure Relief Vent on Freezers
  • Heavy-Duty Hinges and Durable Handles
Doors
  • 10-Year Panel Warranty
  • 2-Year Top Mount Refrigeration Parts
  • 1-Year Top Mount Refrigeration Labor
  • 1-Year Remote Refrigeration Parts
  • 1-Year Door Warranty
