Description
Features
- Blue anti-corrosion-fin increases the life span of the coil.
- Air-pass guard is located at the bottom of the coil to improve heat exchange rate.
- Easy to replace defrost heater.
- Corrugated fin is used to increase heat exchange rate by expanding the surface area.
- Even in confined space, all parts can be reached easily by opening the front cover.
- Location of power connector makes replacement of motor convenient.
- Seamless inner groove copper tube increases the heat exchange rate by reducing the space between the fin and copper tube.
- Venturi type distributor and precise orifice hole are used to minimize the pressure drop and maximize the freezing capacity respectively.
- Thermostat is installed to prevent over temperature on heater.
- Circuit opens automatically over 70°F.
- Parts available:
- Expansion Valve (Sporlan) (Factory Pre-mounted)
- Solenoid Valve (Sporlan) (Factory Pre-mounted)
- Thermostat (Johnson Control) (Shipped Loose)
- The spiral fan guard enables cold air to be delivered efficiently and thoroughly.
- The protruding fan and motor placement substantially reduce vibration and noise.
- EC Motor (Dual Speed) for high energy efficiency.
- Anti-oxidizing stainless steel mounting and bolts.
Key Features
27,300 BTU, Low Profile Unit Cooler, Electric Defrost with EC Motor (Dual Speed & Voltage), 208-230V/1Ph/60Hz
Warranty
1 Year Fan Motor and Parts Warranty

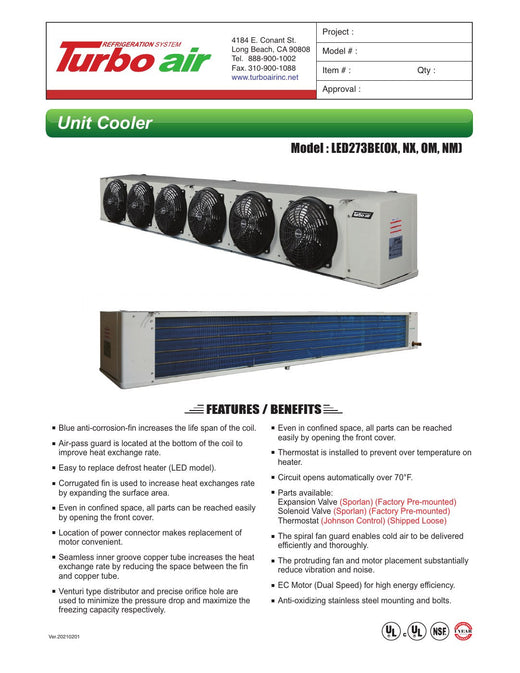

Documents
