Coldline CDD-1-3T 24" Black 3 Tap Refrigerated Direct Draw Beer Dispenser
Coldline CDD-1-3T 24" Black 3 Tap Refrigerated Direct Draw Beer Dispenser
Coldline CDD-1-3T 24" Black 3 Tap Refrigerated Direct Draw Beer Dispenser
Coldline CDD-1-3T 24" Black 3 Tap Refrigerated Direct Draw Beer Dispenser
Roll over image to zoom in Click on image to zoom
Coldline CDD-1-3T 24" Black 3 Tap Refrigerated Direct Draw Beer DispenserColdline CDD-1-3T 24" Black 3 Tap Refrigerated Direct Draw Beer DispenserColdline CDD-1-3T 24" Black 3 Tap Refrigerated Direct Draw Beer DispenserColdline CDD-1-3T 24" Black 3 Tap Refrigerated Direct Draw Beer Dispenser

Coldline CDD-1-3T 24" Black 3 Tap Refrigerated Direct Draw Beer Dispenser

ColdlineSKU: CDD-1-3T
Price:
$1,009.00

Key Features

  • 7 cu. ft. capacity
  • Temperature range: 33 F to 41 F
  • Exterior: 23.50″ L Ă— 30.4″ D Ă— 38.8″ H
  • 115V / 1 phase / 60 Hz
  • Coated Steel exterior in black
  • Refrigerant: R290

Specifications

ManufacturerColdline
ModelCDD-1-3T
Length (in.)23.50
Depth (in.)30.4
Height (in.)38.8
Horsepower1/6 HP
Volts115
Hertz60
Phase1
Amps1.92
Nema Plug5-15P
Cubic Feet7
Exterior MaterialCoated Steel
Exterior ColorBlack
Interior MaterialStainless Steel
RefrigerantR290
Temperature Range33 F to 41 F
Door Material TypeSolid Door(s)
Number of Sections1 Section

Resources & Documents

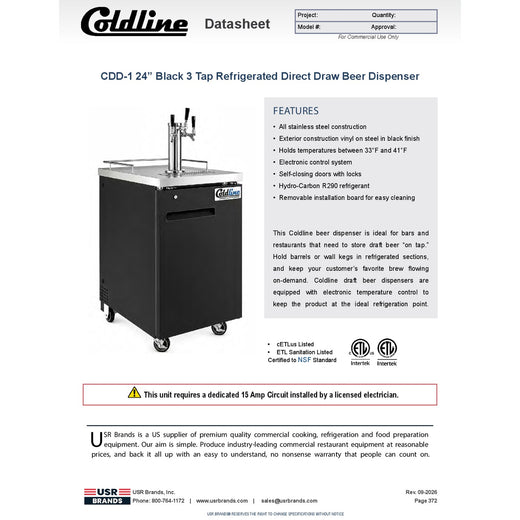

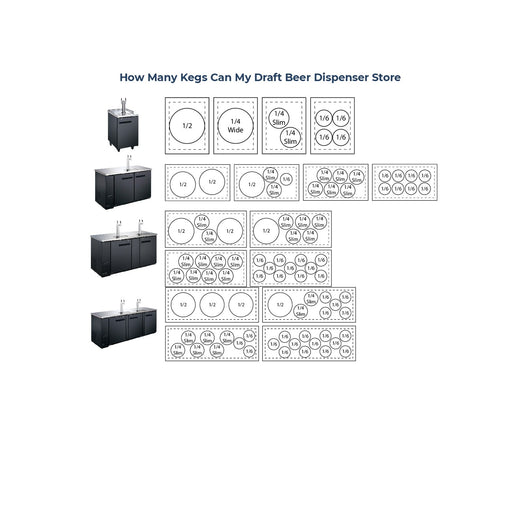

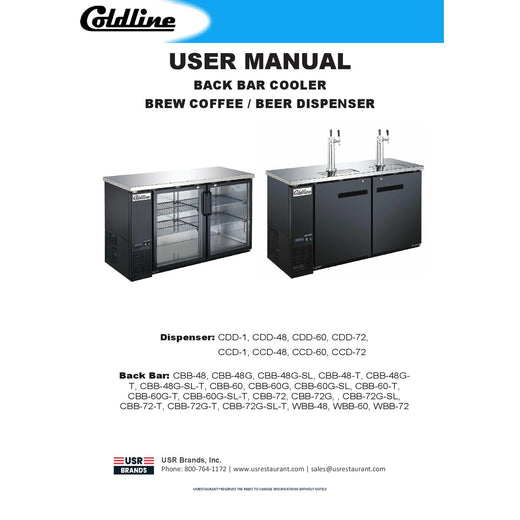

Spec Sheet PDF Spec Sheet Manual PDF Manual Warranty PDF Warranty Extended Warranty PDF Extended Warranty Technical Drawing PDF Technical Drawing

Description

Coldline CDD-1-3T 24" Black 3 Tap Refrigerated Direct Draw Beer Dispenser. Its 7 cu. ft. capacity helps you plan refrigerated storage for your operation.

Construction and configuration

Model details include exterior construction: Coated Steel; interior construction: Stainless Steel; exterior finish: Black.

Operating requirements

This model specifies a listed operating temperature range of 33 F to 41 F, a 115V electrical supply at 60 Hz, a 5-15P plug configuration. Check the specification sheet and installation manual for the complete electrical and setup requirements.
