Description

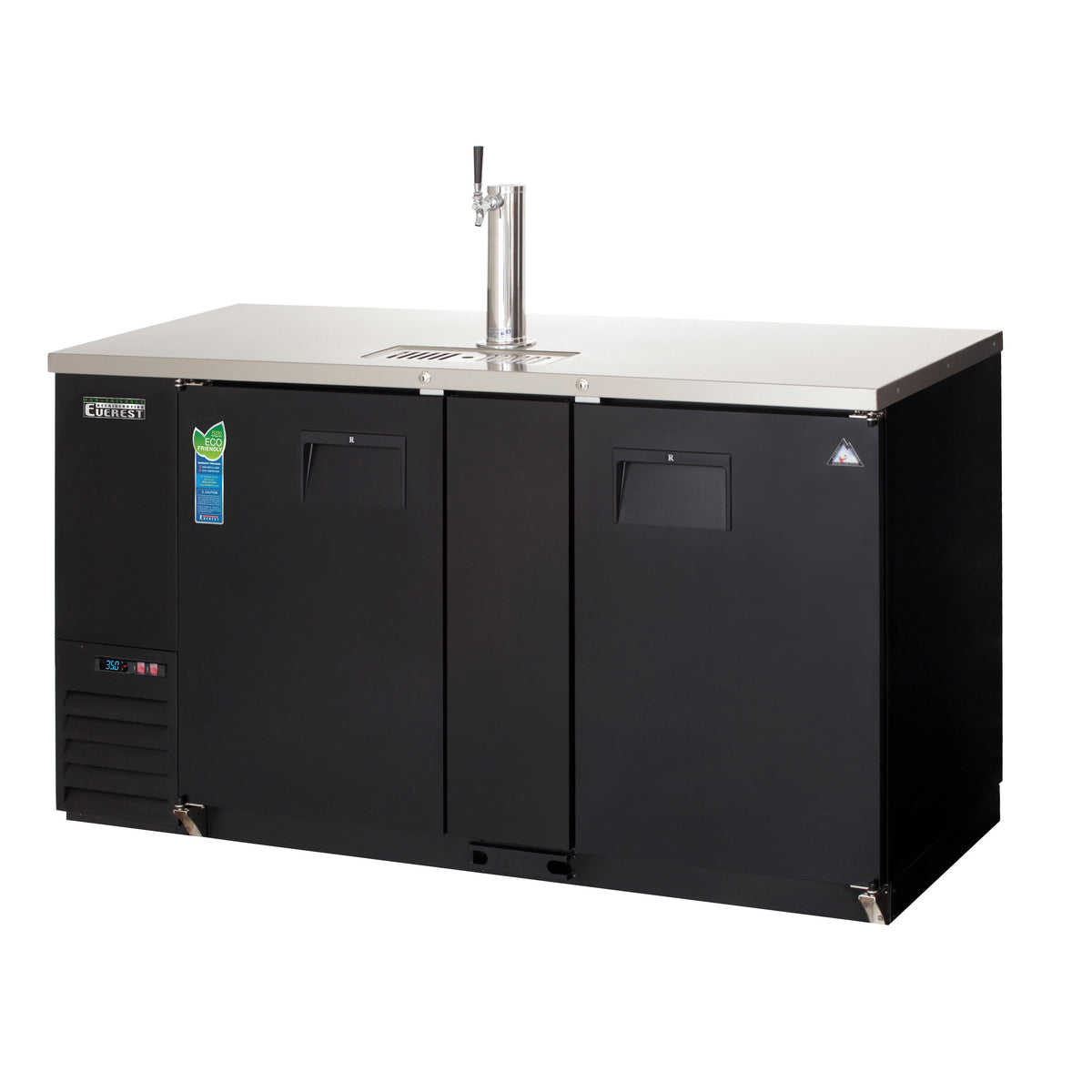

Everest EBD3-BB-24 Back Bar & Direct Draw Keg Refrigerator Combo, Two Solid Swing Doors, Black
The Everest EBD3-BB-24 is a back bar and direct draw keg refrigerator combo with 20 cu. ft. behind two solid swing doors, both locking. It holds one 1/2 barrel keg and one 1/4 slim barrel along with up to 315 12 oz. cans or 210 12 oz. bottles, and measures 68 in. wide, 24 1/2 in. deep and 37 1/4 in. high. This keg cooler suits bars, restaurants, brewery taprooms and hotel lounges.
Draft System and Countertop
The single-faucet draft arm is fully insulated, NSF certified and paired with a matching air distributor. The countertop and rails are heavy-duty stainless steel, and an exterior T-shaped drain port carries moisture from the top tray; the drain hose isn't included, and a floor drain is required.
Blizzard R290 Refrigeration and Temperature Control
The side-mounted Blizzard R290 condensing unit is self-contained and fully detachable, so it can be replaced without on-site brazing. It runs on R290 refrigerant with zero ozone depletion potential and a global warming potential of 3. ECM fan motors and a full-length air duct circulate cold air, defrost runs automatically, and the condensate pan needs no drain or heater. A digital controller with an LED display is factory set to 35°F, adjusts from 33°F to 54°F and sounds an alarm if the compressor or condenser coil overheats.
Cabinet, Doors and Shelving
The cabinet has a textured black vinyl exterior, galvanized steel interior walls, a stainless steel floor and 1 3/4 in. of polyurethane insulation, with no walls between compartments. The solid doors have recessed handles and snap-in magnetic gaskets. Two epoxy-coated wire shelves sit on height-adjustable stainless steel clips. Shielded LED bar lighting with an on/off switch lights the interior. Four 5 in. swivel casters come pre-installed, with locks on the front set.
Key Specs
- Capacity: 20 cu. ft.; one 1/2 barrel keg and one 1/4 slim barrel, plus 315 12 oz. cans or 210 12 oz. bottles
- Cabinet dimensions: 68 in. W x 24 1/2 in. D x 37 1/4 in. H
- Temperature range: 33°F to 54°F (factory set at 35°F)
- Electrical: 115V/60Hz/1-phase, 3.5 amps, 1/4+ HP, NEMA 5-15P plug
- Certifications: NSF, ETL Sanitation and cETLus
- Warranty: 3 years parts and labor, 5 years electrical, 10 years compressor

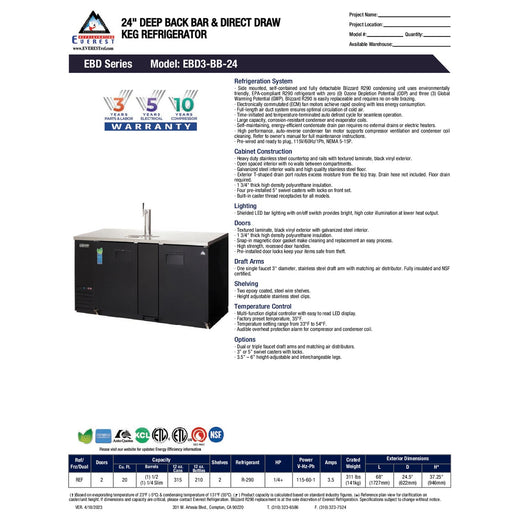

See the attached spec sheet for plan and airflow views and optional accessory part numbers.
