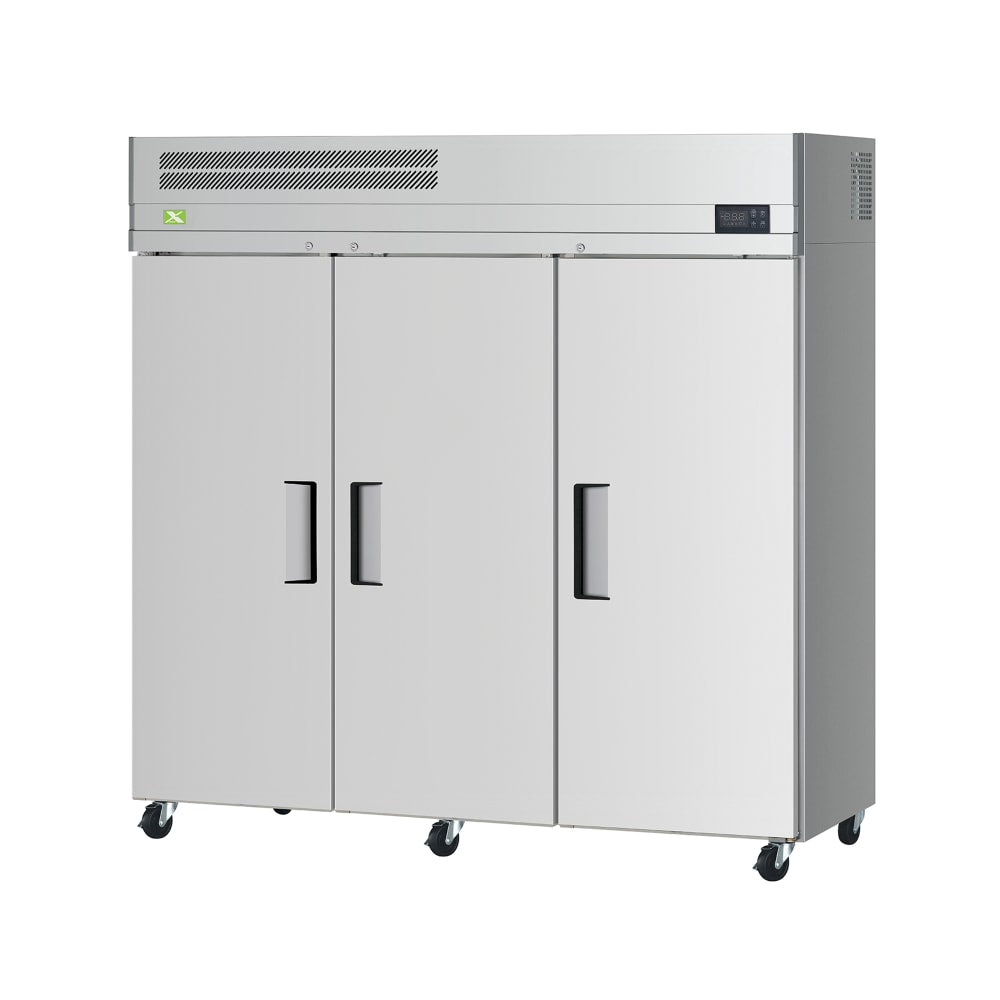

Refrigeration-X XR72-3-N6 Three Section Commercial Reach-In Refrigerator, Left/Right Hinge Solid Doors
The Refrigeration-X XR72-3-N6 is a three-section commercial reach-in refrigerator with three left/right-hinged solid doors, 65.8 cubic feet of storage, and a 77 3/4-inch-wide footprint. Part of the RefrigerationX X-Line series, this self-contained reach-in cooler is built for high-volume restaurants and institutional kitchens that need maximum cold storage in a single cabinet.
Temperature Control & Monitoring
The digital temperature control keeps the cabinet between 33°F and 38°F and puts the reading on an easy-to-see display. If a door is left unsealed, an alarm sounds, and an early warning program catches refrigeration problems before they turn into a breakdown. Turbo cooling brings the cabinet back to temperature quickly after a rush of door openings, and an automatic evaporator fan delay is built in.
Efficient, Eco-Friendly Refrigeration
The top-mount compressor runs on a natural hydrocarbon refrigerant with zero ozone depletion potential. The system is designed to meet DOE energy conservation standards, and an anti-corrosion coated evaporator comes standard. A corrosion-resistant hot gas condensate system prevents condensate water from overflowing.
Durable Construction
The cabinet pairs stainless steel doors with aluminum exterior sides and a galvanized steel top, bottom, and back. Inside, a stainless steel floor, aluminum walls, LED lighting, and nine adjustable PE-coated wire shelves keep product visible and organized. CFC-free, high-density polyurethane insulation is foamed in place throughout the cabinet and doors. Door locks and 4-inch swivel casters, with locks on the front set, round out this ETL Sanitation and cETLus listed commercial fridge, which plugs into a standard 115V outlet.
Options & Accessories
Optional accessories include a half-door bun tray rack (RX-TSP-2224-T), a full-door bun tray rack (RX-TSP-2250-T), 6-inch stainless steel legs (30221M0600), and 5-inch casters (M726500100, M726500200).
Key Specs
- Model: Refrigeration-X XR72-3-N6 (X-Line)
- Configuration: 3 section, 3 left/right-hinged solid doors, top-mount, self-contained
- Capacity: 65.8 cu. ft.
- Shelves: 9 adjustable PE-coated wire shelves (23" x 23 1/2" (L/R), 25 3/8" x 23 1/2" (M))
- Temperature range: 33°F to 38°F
- Cabinet dimensions (W x D x H): 77 3/4" x 30 7/8" x 78"
- Overall with casters and rear condensate housing: 77 3/4" W x 33 1/4" D x 82 3/4" H
- Interior dimensions (W x D x H): 73 7/8" x 26 5/8" x 54 1/8"
- Electrical: 115V/60Hz/1-phase, 5.6 amps, NEMA 5-15P plug, 9 ft. cord
- Compressor: 1/2 HP
- Refrigerant: Natural hydrocarbon
- Certifications: ETL Sanitation listed, cETLus listed
- Weight: 505 lbs. net, 599 lbs. crated
- Warranty: 2-year parts and labor, plus an additional 3 years on the compressor (U.S.A. only)

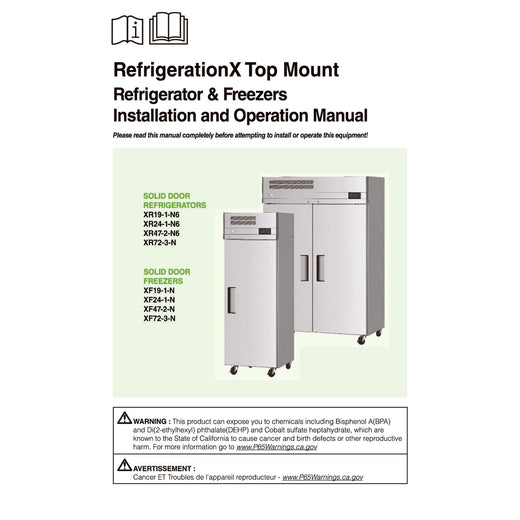

See the attached owner's manual for full dimensions, installation requirements, and operating instructions.
| Manufacturer | Refrigeration-X |
| Model | XR72-3-N6 |
| Series | X-Line |
| Configuration | 3 section, 3 left/right-hinged solid doors, top-mount, self-contained |
| Capacity | 65.8 cu. ft. |
| Shelves | 9 adjustable PE-coated wire shelves (23 in. x 23 1/2 in. (L/R), 25 3/8 in. x 23 1/2 in. (M)) |
| Temperature range | 33°F to 38°F |
| Cabinet dimensions (W x D x H) | 77 3/4 in. x 30 7/8 in. x 78 in. |
| Overall with casters and rear condensate housing | 77 3/4 in. W x 33 1/4 in. D x 82 3/4 in. H |
| Interior dimensions (W x D x H) | 73 7/8 in. x 26 5/8 in. x 54 1/8 in. |
| Electrical | 115V/60Hz/1-phase, 5.6 amps, NEMA 5-15P plug, 9 ft. cord |
| Compressor | 1/2 HP |
| Refrigerant | Natural hydrocarbon |
| Certifications | ETL Sanitation listed, cETLus listed |
| Weight | 505 lbs. net, 599 lbs. crated |
| Warranty | 2-year parts and labor, plus an additional 3 years on the compressor (U.S.A. only) |
| Exterior | Stainless steel doors; aluminum sides; galvanized steel top, bottom and back |
| Interior | Stainless steel floor; aluminum walls, door liners and top duct |
| Lighting | LED interior |
| Insulation | High-density, CFC-free foamed-in-place polyurethane |
| Casters | 4 in. swivel, locking front set |
