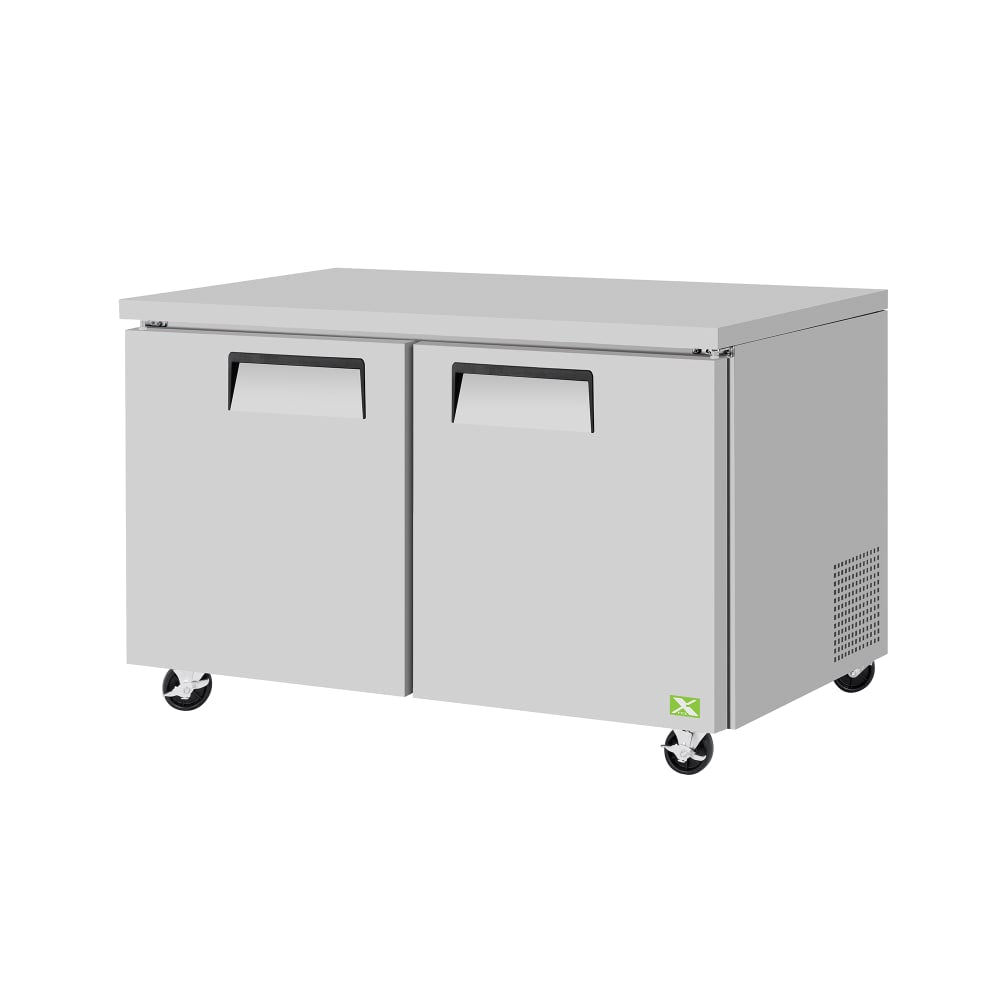

Refrigeration-X XUF-60-N 60 1/4" Commercial Undercounter Freezer, 2 Solid Doors
The Refrigeration-X XUF-60-N is a 60 1/4-inch commercial undercounter freezer with two solid doors and 16.86 cubic feet of storage. Part of the RefrigerationX X-Line series, this self-contained undercounter freezer gives you line-side frozen storage for restaurants, burger and fry stations, and cafes, with a 30 3/8-inch cabinet height (35 1/8 inches on its casters).
Easy Access, Steady Temperatures
The cabinet holds -10°F to 0°F for safe food storage. Easy-grip handles and self-closing doors cut down on fatigue during a busy shift and help keep cold air in, while ABS door liners resist condensation and add thermal efficiency.
Efficient, Eco-Friendly Refrigeration
This unit runs on R-290, a natural hydrocarbon refrigerant with zero ozone depletion potential. It is designed to meet DOE energy conservation standards, with a self-contained system that only needs a standard 115V outlet.
Durable Construction
Stainless steel doors are paired with aluminum exterior sides and a galvanized steel back and bottom. The interior has a stainless steel floor and back with aluminum sides for easy cleaning and long product life. CFC-free, high-density polyurethane insulation is foamed in place throughout the cabinet and doors. Inside, two adjustable PE-coated wire shelves organize product, and 4-inch swivel casters with locks on the front set make cleaning underneath simple. It is ETL Sanitation and cETLus listed for commercial foodservice use.
Options & Accessories
Optional accessories include a single stainless steel overshelf (RX-TSOS-5S), a double stainless steel overshelf (RX-TSOS-5R-T), a backsplash guard (RX-TU-60B), and 6-inch stainless steel legs (30221M0600).
Key Specs
- Model: Refrigeration-X XUF-60-N (X-Line)
- Configuration: 2 solid doors, self-closing, self-contained
- Capacity: 16.86 cu. ft.
- Shelves: 2 adjustable PE-coated wire shelves (27" x 17")
- Temperature range: -10°F to 0°F
- Cabinet dimensions (W x D x H): 60 1/4" x 30" x 30 3/8"
- Overall with casters and rear spacers: 60 1/4" W x 31 1/4" D x 35 1/8" H
- Electrical: 115V/60Hz/1-phase, 3.1 amps, NEMA 5-15P plug, 9 ft. cord
- Compressor: 2/5 HP
- Refrigerant: R-290 (natural hydrocarbon)
- Certifications: ETL Sanitation listed, cETLus listed
- Weight: 304 lbs. net, 331 lbs. crated
- Warranty: 2-year parts and labor, plus an additional 3 years on the compressor (U.S.A. only)

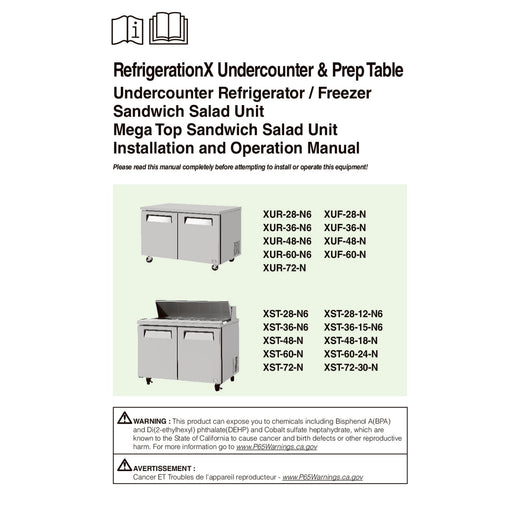

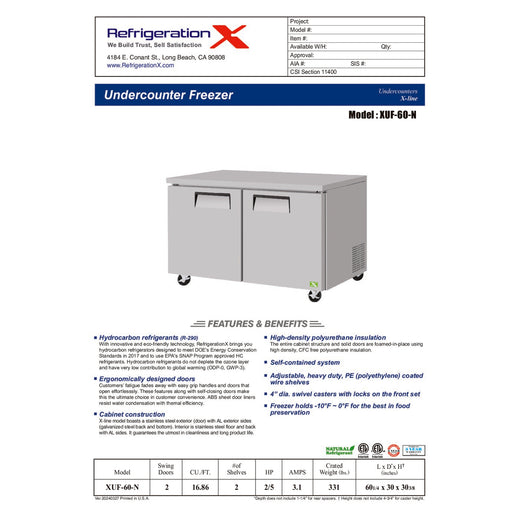

See the attached spec sheet and owner's manual for full dimensions, installation requirements, and operating instructions.
| Manufacturer | Refrigeration-X |
| Model | XUF-60-N |
| Series | X-Line |
| Configuration | 2 solid doors, self-closing, self-contained |
| Capacity | 16.86 cu. ft. |
| Shelves | 2 adjustable PE-coated wire shelves (27 in. x 17 in.) |
| Temperature range | -10°F to 0°F |
| Cabinet dimensions (W x D x H) | 60 1/4 in. x 30 in. x 30 3/8 in. |
| Overall with casters and rear spacers | 60 1/4 in. W x 31 1/4 in. D x 35 1/8 in. H |
| Electrical | 115V/60Hz/1-phase, 3.1 amps, NEMA 5-15P plug, 9 ft. cord |
| Compressor | 2/5 HP |
| Refrigerant | R-290 (natural hydrocarbon) |
| Certifications | ETL Sanitation listed, cETLus listed |
| Weight | 304 lbs. net, 331 lbs. crated |
| Warranty | 2-year parts and labor, plus an additional 3 years on the compressor (U.S.A. only) |
| Exterior | Stainless steel doors; aluminum sides; galvanized steel back and bottom |
| Interior | Stainless steel floor and back; aluminum sides; ABS door liners |
| Insulation | High-density, CFC-free foamed-in-place polyurethane |
| Casters | 4 in. swivel, locking front set |
