Description

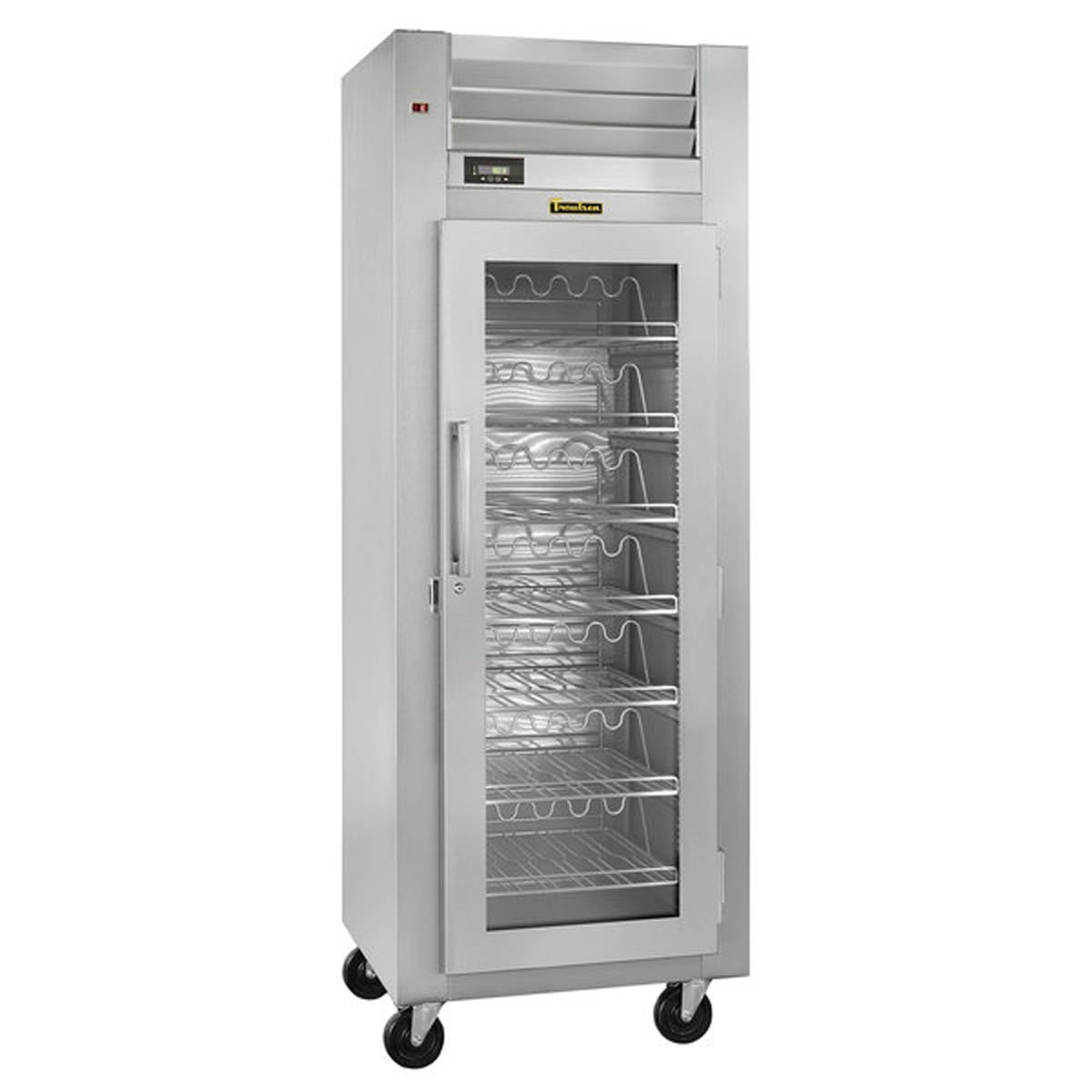

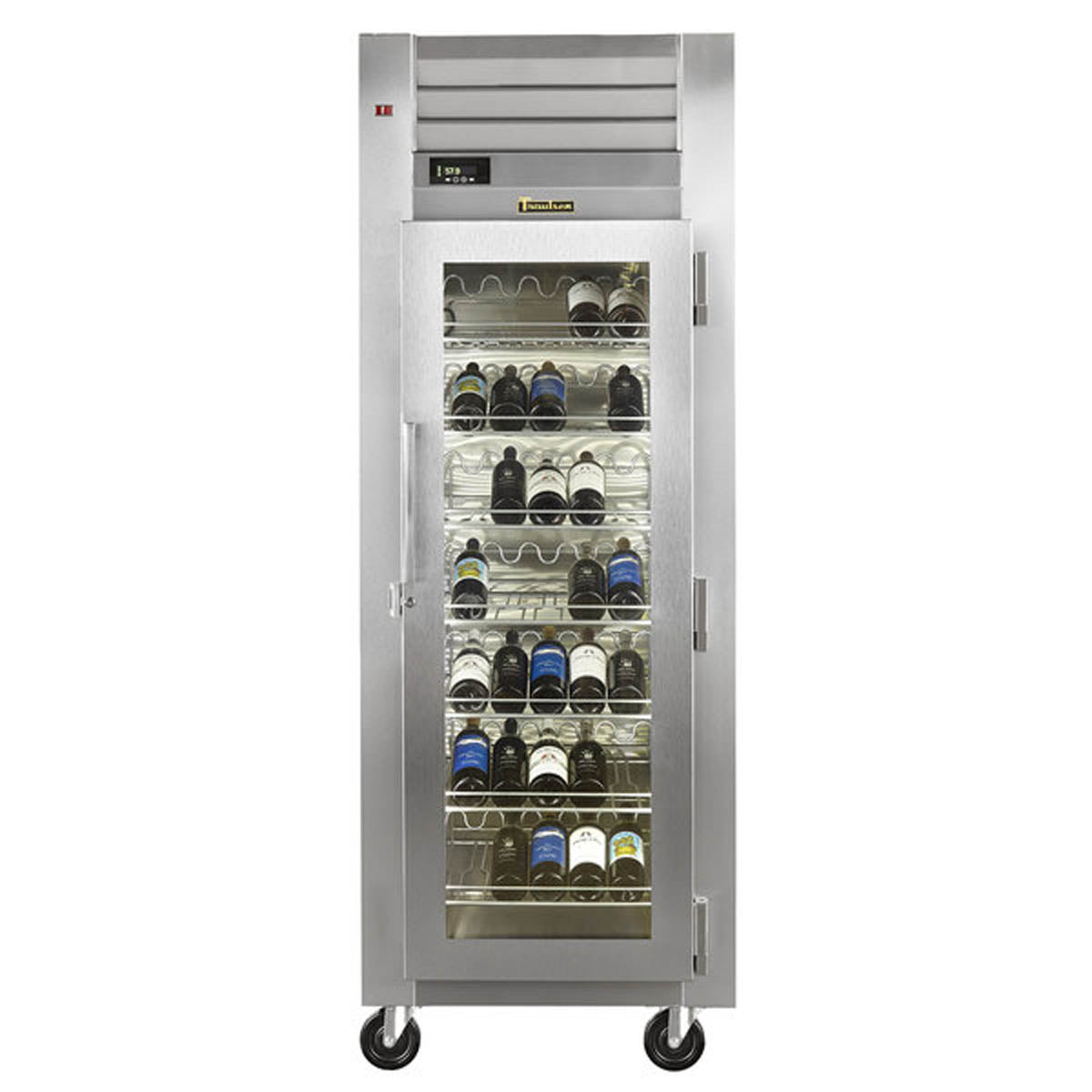

The Traulsen RH126W-WR02 is a one-section, self-contained commercial wine refrigerator for displaying and holding wine at adjustable serving temperatures. Its full-height glass door, interior LED lighting, and stainless steel cabinet help keep the selection visible in bar, dining-room, and front-of-house settings.
This exact RH126W-WR02 configuration has a right-hinged door, seven standard wine racks, and capacity for up to 77 bottles. The factory temperature setting is 53–57°F, while the Smart Control with LED display allows adjustment for different wine temperatures.
Applications and Workflow
Suitable for restaurants, bars, hotels, tasting rooms, and other commercial front-of-house locations that need a dedicated single-temperature wine display refrigerator. This is a self-contained cabinet, not a dual-zone wine cooler; allow for its right-hand door swing and top clearance when selecting its location.
Features and Practical Benefits
Right-hinged glass access
The full-height glass door is right-hinged on this exact model, so it can be selected for an opening or counter layout that needs a right-side hinge.
Organized bottle presentation
Seven standard wine racks hold up to 77 bottles, helping staff organize wine for visible selection and service. Actual capacity can vary with bottle dimensions.
Adjustable wine temperature control
The Smart Control has an LED display and is factory preset for 53–57°F, with adjustment available for different wine temperatures.
Self-contained refrigeration
A top-mounted refrigeration system is built into the cabinet, eliminating the need for a separately located remote condenser.
Service-friendly door operation

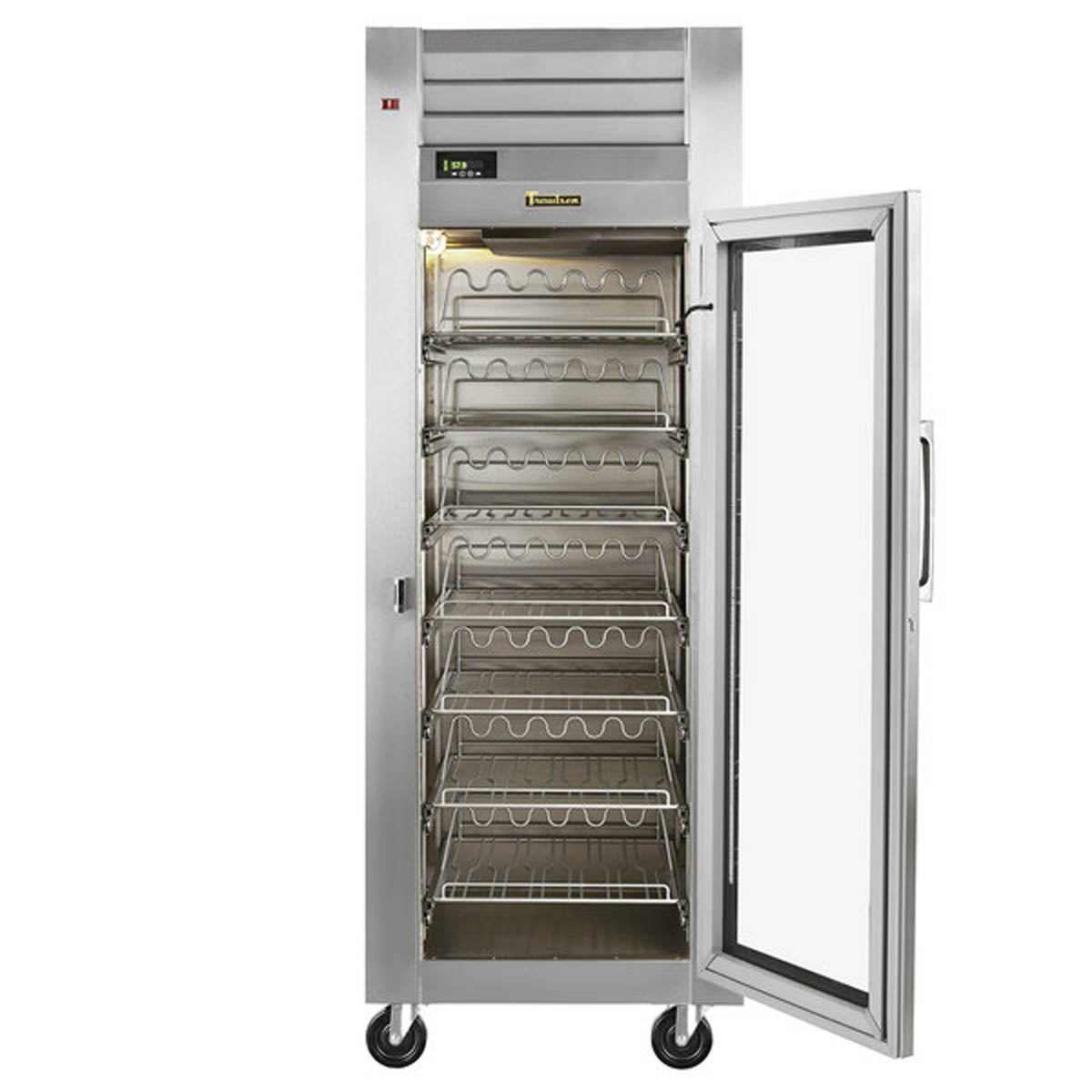

The lockable, self-closing door stays open at 120°, providing access during stocking while returning to a closed position afterward.
Technical Specifications
| Manufacturer model | RH126W-WR02 |
|---|---|
| Cabinet configuration | One-section, 26 in. deep, glass-door, self-contained wine refrigerator |
| Door handing | Right-hinged full-height glass door |
| Overall width | 29 7/8 in. (75.9 cm) |
| Overall depth | 29 9/16 in. (75 cm) |
| Overall height | 83 7/16 in. (211.9 cm) on 6 in. legs |
| Depth with door open 90° | 50 13/16 in. (129.1 cm) |
| Clear door width | 20 15/16 in. (53.2 cm) |
| Net capacity | 18.79 cu. ft. (532.1 L) |
| Bottle capacity | Up to 77 bottles |
| Standard wine racks | 7 |
| Factory temperature setting | 53–57°F |
| Electrical requirement | 115/60/1, NEMA 5-15P |
| Full-load amperage | 9.2 A |
| Power cord | 9 ft. cord and plug attached |
| Refrigeration system location | Top-mounted |
| Included legs | Four adjustable 6 in. stainless steel legs |
Installation and Purchasing Considerations
- Plan a footprint of 29 7/8 in. W × 29 9/16 in. D, with an overall height of 83 7/16 in. on the supplied 6 in. legs.
- Allow up to 50 13/16 in. overall depth when the door is open 90°; the door hinges on the right.
- Connect to 115/60/1 power using the supplied 9 ft. cord with NEMA 5-15P plug.
- The manufacturer prefers 12 in. of clearance above the cabinet for performance and service access.
- This is a self-contained, top-mounted refrigeration cabinet. Confirm the installation location does not obstruct the top-mounted louver area.
Choosing This Configuration
RH126W-WR02 is the right-hinged version with one full-height glass door. Door handing should be confirmed before ordering because it affects aisle and wall clearance.
This model is a one-section cabinet with seven standard wine racks and up to 77-bottle capacity; bottle size and shape affect actual capacity.
Casters, alternate bases, rear-louvered back panels, and exterior laminate décor are listed as options or accessories and should not be assumed to be included.
Frequently Asked Questions
Which way does the door hinge on the RH126W-WR02?
The RH126W-WR02 has a right-hinged, full-height glass door. Plan for its 90° open-door depth of 50 13/16 in.
How many bottles does this wine refrigerator hold?
It holds up to 77 wine bottles on seven standard racks. Capacity varies based on the dimensions of the bottles being stored.
What electrical connection does it need?
It operates on 115/60/1 power and is equipped with a NEMA 5-15P plug and a 9 ft. cord.
What temperature is it set to from the factory?
The cabinet is factory preset to operate at 53–57°F. Its Smart Control can be adjusted for different wine temperatures.
