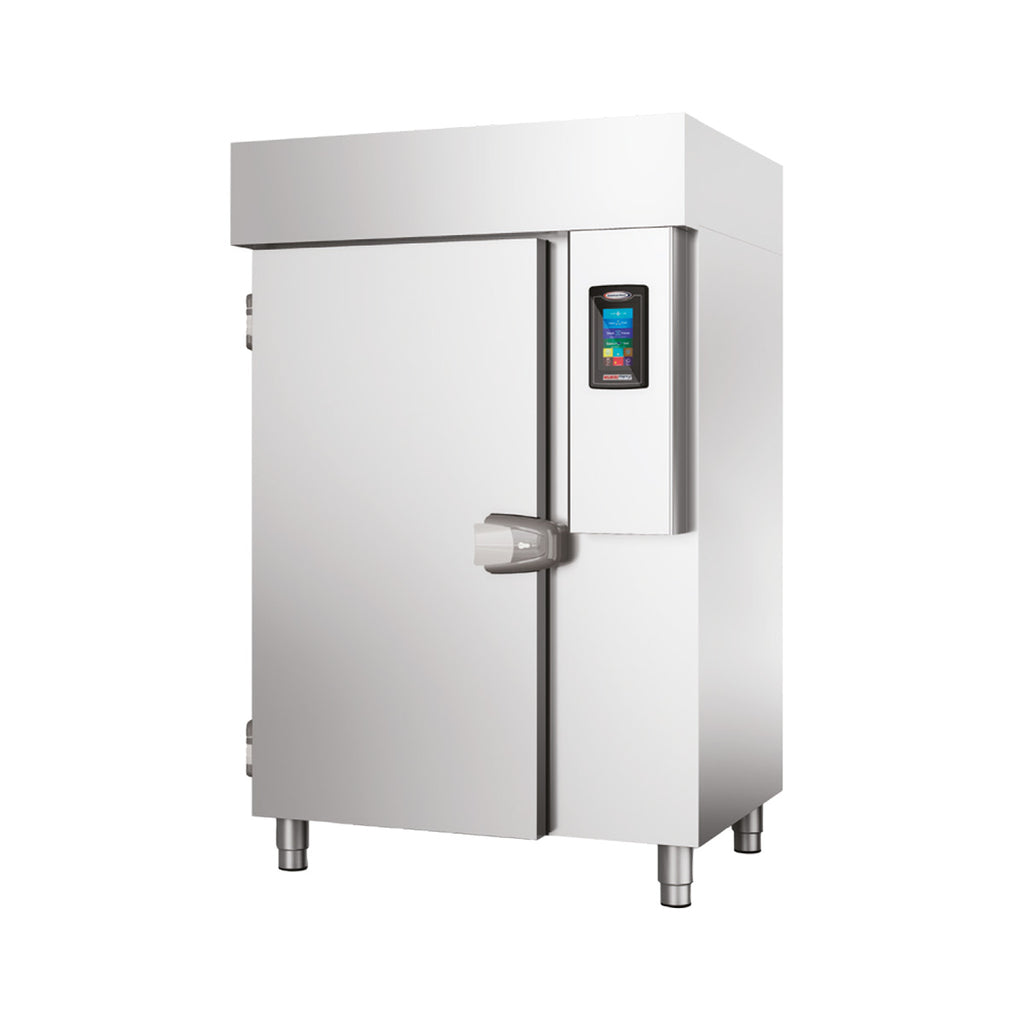

American Panel AP24BCF300-3-R-RHH Remote Roll-In Blast Chiller / Shock Freezer
The American Panel AP24BCF300-3-R-RHH is a HURRiCHiLL remote roll-in blast chiller / shock freezer for commercial batch cooling and freezing. Match its roll-in loading arrangement to the pans, racks and production batches used in your kitchen.
This configuration requires a separately selected remote condensing system. Size the system to the applicable manufacturer refrigeration requirements and plan the refrigerant piping, utilities and field installation before ordering. Cabinet electrical requirements do not describe the complete remote refrigeration installation.
These are rated performance conditions. Food density, moisture, starting temperature, portion size, container depth and the way a batch is loaded affect the time needed to cool the food core. Use the manufacturer operating instructions to select cycles and position the product probe.
Check rack height, depth, width and door clearance against the model drawing. The listed rack capacity does not establish that racks or pans are supplied. Specify compatible mobile racks and accessories separately when required.
This ordering configuration is cataloged with right-hand door hinging. Read shared family documents together with the exact hinge configuration on the order.
The manufacturer rates this configuration for 300 lb chilled from 160°F to 38°F in 90 minutes, or 360 lb in 120 minutes. Its freezing rating is 180 lb from 160°F to 0°F in 240 minutes. These ratings depend on the stated loading and operating conditions.
Technical specifications
| Manufacturer | American Panel |
|---|---|
| Model / ordering code | AP24BCF300-3-R-RHH |
| Installation Type | free standing |
| Type | Blast Chiller / Freezer |
| Style | Roll-In |
| Refrigeration | remote (refrigeration not included) |
| Rack/Trolley Capacity | 1 |
| Special Features | for combi-oven trolleys |
| Hinge Location | right |
| Chill Capacity (lbs) | 300 lb |
| Freeze Capacity (lbs) | 180 lb |
| Height | 85.25 in. |
| Width | 54.75 in. |
| Depth | 46.25 in. |
| Rated Chill Cycle | 300 lb from 160°F to 38°F in 90 minutes |
| Alternative Chill Rating | 360 lb from 160°F to 38°F in 120 minutes |
| Rated Freeze Cycle | 180 lb from 160°F to 0°F in 240 minutes |
Installation and purchasing considerations
Verify the delivery route, assembled dimensions, condenser clearances and utility access. For modular or roll-in installations, also check panel assembly space, the rack route and the floor transition. Use the applicable manufacturer drawing and installation instructions for final site planning.
Frequently asked questions
What does the published batch capacity mean?
It is a rating for the stated food temperature change and cycle time. Match the actual food load and containers to the operating instructions, and verify the food core temperature during use.
Are racks and pans included?
Confirm the supplied accessory package for this ordering code. Pan or rack capacity alone does not establish that the corresponding containers or mobile racks are included.
