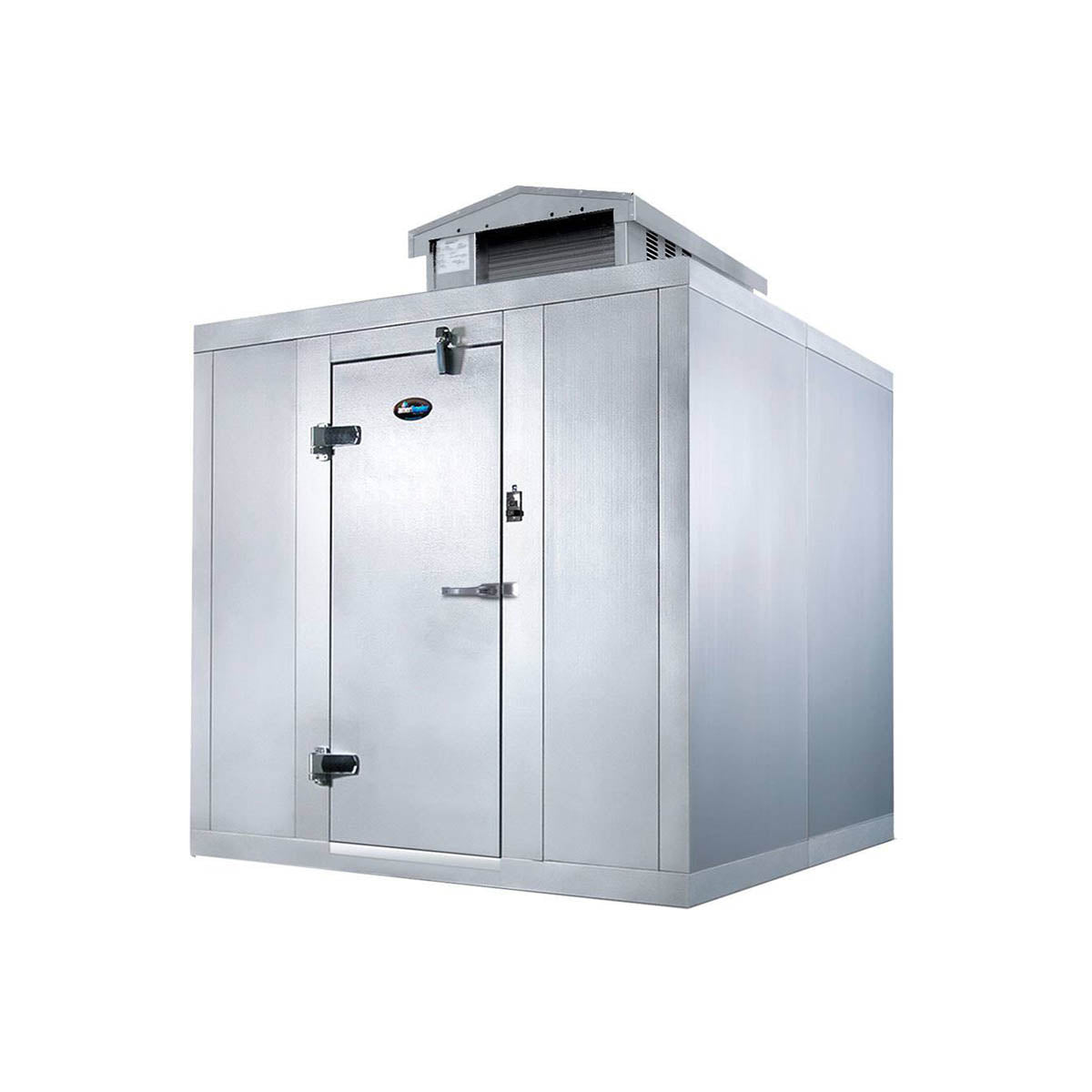

Amerikooler QC061077FBSC-O 6' x 10' x 7' 7" Outdoor Walk-In Cooler, Aluminum Floor, Top Mount Self-Contained Refrigeration
6' x 10' outdoor walk-in cooler with top mounted self-contained refrigeration, aluminum floor
The Amerikooler QC061077FBSC-O is an AK Series 3 Quick Ship walk-in cooler that measures 6' x 10' x 7' 7" on the outside and gives you 6' 11" of inside height. It comes with a smooth aluminum floor rated at 600 lb per square foot for foot traffic. A top mounted self-contained system with mounted components runs on 208-230V single phase and holds 35°F. Panels are 4" AK-XPS insulation (R-29), and you pick the door: 30" or 36" wide, left or right hinge, centered on the 6' or 10' side. The outdoor version adds a rain roof membrane, exterior floor angles and a door hood.
Leave at least 2" between the walk-in and the building walls, and check that the floor is level within 1/8" before setup, as the Amerikooler installation guide requires. The condensing unit sits on the roof, so plan clearance above the 7' 7" box. Outdoor self-contained units need a drain nearby.
Outside it measures 6' x 10' x 7' 7". Inside height is 6' 11" above the floor. The door gives a 76" high clear opening, 30" or 36" wide.
Wall and ceiling panels use 4" AK-XPS extruded polystyrene insulation rated R-29, backed by a 50-year DuPont thermal warranty. Both faces are stucco embossed Acrylume coated Galvalume for corrosion resistance.
Pick a 30" or 36" wide flush door, hinged on the left or right, centered on the 6' or 10' side. It has 2 Kason Performer lift-off cam-rise spring assisted hinges, a spring door closer and a keyed, padlock-capable deadbolt latch with an inside safety release.
A vapor-proof LED light is centered on the inside door jamb. A digital LED thermometer with an on/off pilot light switch is mounted on the door jamb, so staff can read the temperature at a glance.
The smooth aluminum floor is rated at 600 lb per square foot of evenly spread load and is meant for foot traffic, not rolling carts. Per the warranty, do not hose or wet mop the floor panels.
The self-contained system comes with mounted components on the roof and runs on 208-230V single phase power. It is set up to hold 35°F. Refrigeration parts carry the original equipment maker's warranty, plus a 5-year compressor limited warranty. Outdoor package: rain roof membrane, exterior floor angles and door hood.
The outside size is 6' x 10' x 7' 7" (72" x 120" x 91"). Inside height is 6' 11". Leave at least 2" to the building walls, and allow room above for the top mounted condensing unit.
This model includes an insulated smooth aluminum floor rated at 600 lb per square foot for foot traffic only. If you need to roll carts in, ask us about the floorless version.
The top mounted self-contained system runs on 208-230V, single phase, 60 Hz and holds 35°F. The door light and thermometer circuit is 115V, 1.0 amp. A licensed electrician should make the final connection.
Pick a 30" or 36" wide by 76" high flush door, hinged on the left or right, and centered on the 6' or 10' side. Choose them in the options above before you add to cart.
Yes. This is the outdoor model. It includes a rain roof membrane, exterior floor angles and a door hood.
50-year DuPont thermal warranty on the insulation, 15-year limited panel warranty, 5-year limited door and floor warranty, 1-year limited panel labor and 1-year original parts warranty. The compressor has a 5-year limited warranty; other refrigeration parts follow the maker's terms.
Amerikooler lists NSF International (Standard 7) and UL (ASTM E84 and UL 723 panel burn ratings) approvals for its walk-ins, and the door uses UL approved components.
Yes. Amerikooler walk-ins carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Amerikooler |
|---|---|
| Model Number | QC061077FBSC-O |
| Series | AK Series 3 Quick Ship |
| Type | Walk-In Cooler |
| Location | Outdoor |
| Width | 6 Feet |
| Depth | 10 Feet |
| Height | 7 Feet 7 Inches |
| Interior Height | 6 Feet 11 Inches |
| Door Opening | 30 or 36 Inches Wide x 76 Inches High |
| Floor | Smooth aluminum, 600 lb per sq ft uniformly distributed load, foot traffic only |
| Insulation | 4 inch AK-XPS extruded polystyrene |
| R-Value | R-29 |
| Panel Finish | 26 gauge stucco embossed Acrylume coated Galvalume, interior and exterior |
| Panel Joints | Cam-action locks with NSF compression gaskets |
| Outdoor Package | Rain roof membrane, exterior floor angles, door hood |
| Refrigeration | Top mounted self-contained, mounted components |
| Temperature Range | 35°F |
| Voltage | 208-230 Volts |
| Electrical | 208-230V/1/60 |
| Door Electrical | 115V/1/60, 1.0 amp |
| Door | Single flush swing door, 30 or 36 inches wide x 76 inches high |
| Door Options | Left or right hinge; centered on the 6 ft or 10 ft side |
| Hinges | 2 Kason Performer lift-off adjustable cam-rise spring assisted hinges |
| Door Hardware | Kason Safeguard deadbolt keyed, padlock capable pull handle latch with interior safety release; spring actuated door closer |
| Lighting | Vapor-proof LED light fixture centered on interior door jamb |
| Thermometer | Digital LED thermometer with on/off pilot light switch |
| Certifications | NSF Standard 7, UL ASTM E84 and UL 723, DOE compliant |
| Warranty | 15 year limited panel warranty |
| Thermal Warranty | 50 year DuPont thermal warranty |
| Doors and Floors Warranty | 5 year limited |
| Panel Labor Warranty | 1 year limited |
| Parts Warranty | 1 year original parts |
| Compressor Warranty | 5 year limited |
| Refrigeration Components | Per original equipment manufacturer's warranty terms |
