Description
Charbroil burgers, steaks and vegetables without a gas line, on a 48" countertop broiler.
The Pegasus CB-48E is a 48" electric charbroiler for restaurants, cafes and kitchens that have no gas line or want to add a broiler to the line. It runs on 13.75 kW at 208V, either 3-phase (38 A) or 1-phase (72 A) after a field conversion, with infinite temperature controls. The heating elements lift up for cleaning, and grease collects in a stainless steel drawer.
Will it fit · Will it plug in
- Outside size
- 48.0" W × 34.9" D × 16.9" H, on 4" legs
- Crated size
- 62.4" W × 19.7" H × 37.8" D, 176 lb
- Power
- 208V, 60 Hz, 13.75 kW: 38 A on 3-phase or 72 A on 1-phase
- Clearances
- Non-combustible walls: 0" left, 0" right, 2" back. Combustible walls: 1" left, 3" right, 3" back
The spec sheet lists no cord or plug, so plan for an electrician to connect it to a 208V circuit sized for the phase you use. Your local code may require it under a ventilation hood.
No gas line needed
Runs on 208V electric power at 13.75 kW, so it works where gas is not available.
Works on 1 or 3 phase
Ships set for 3-phase and can be converted in the field to 1-phase.

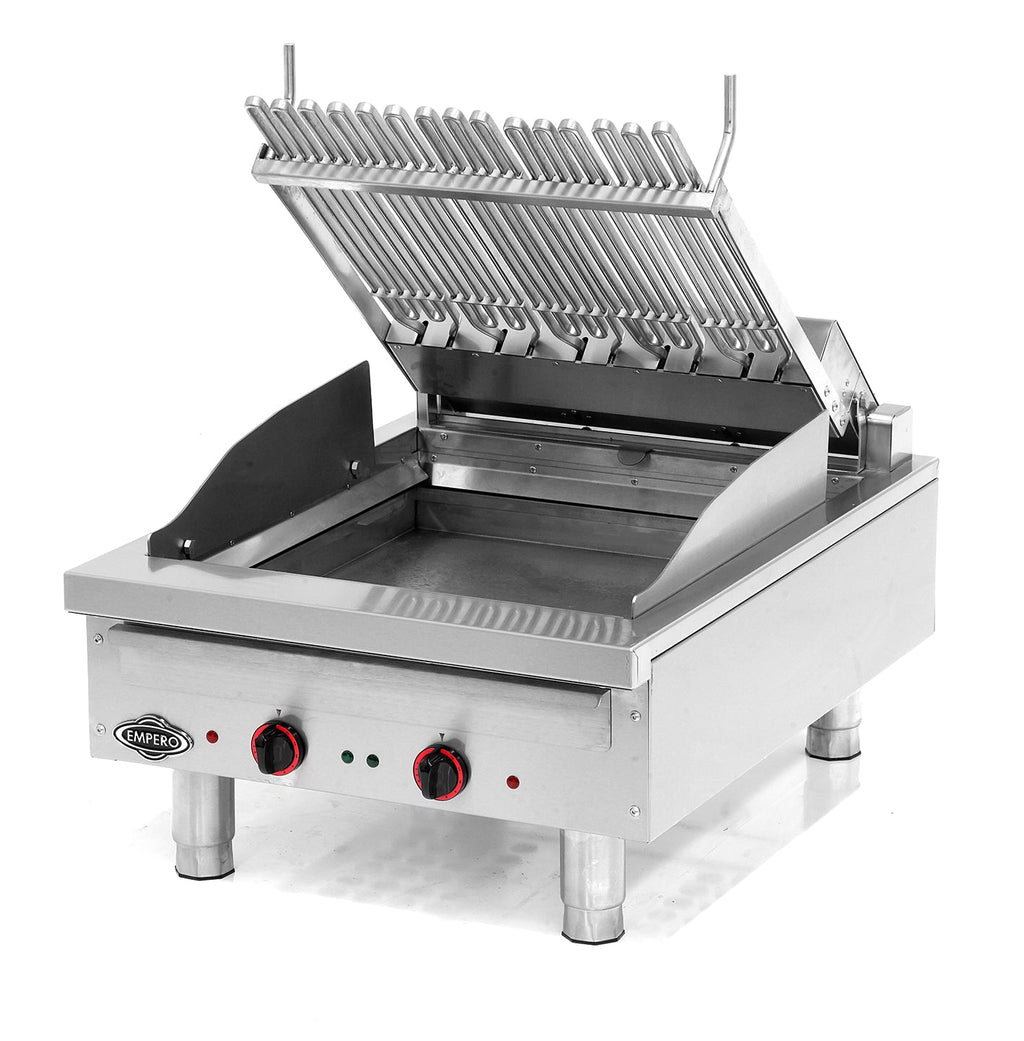

Lift-up elements
The broiler elements lift up so you can clean underneath them.
Easy grease cleanup
A stainless steel grease drawer catches drippings and pulls out to empty.
Counter-ready
Heavy duty 4" legs are included and the body is stainless steel.
Delivery and setup
- Ships by freight carrier at 176 lb. Inspect it for damage before you sign for it.
- Have a licensed electrician connect it to 208V power, 3-phase or 1-phase.
- See our shipping policy for delivery options, including pickup at our Kearny, NJ warehouse.
Questions buyers ask
What power does it need?
208V, 60 Hz. It draws 38 A on 3-phase or 72 A on 1-phase, and it is field convertible from 3-phase to 1-phase.
Does it come with a plug?
The spec sheet lists no cord or plug type. Plan for an electrician to connect it.
Can I use it on 240V?
Pegasus lists it for 208V only. Call us before ordering if your building has 240V.
How do I clean it?
Lift up the heating elements to clean underneath, and empty the stainless steel grease drawer.
How close can it go to a wall?
Against non-combustible walls it needs 0" on the sides and 2" at the back. Against combustible walls it needs 1" on the left and 3" on the right and back.
What other sizes are there?
Pegasus makes the same electric charbroiler as the 12" CB-12E, 24" CB-24E, 36" CB-36E.
What does the warranty cover?
Pegasus gives a one-year limited parts and labor warranty in the USA and Canada.
