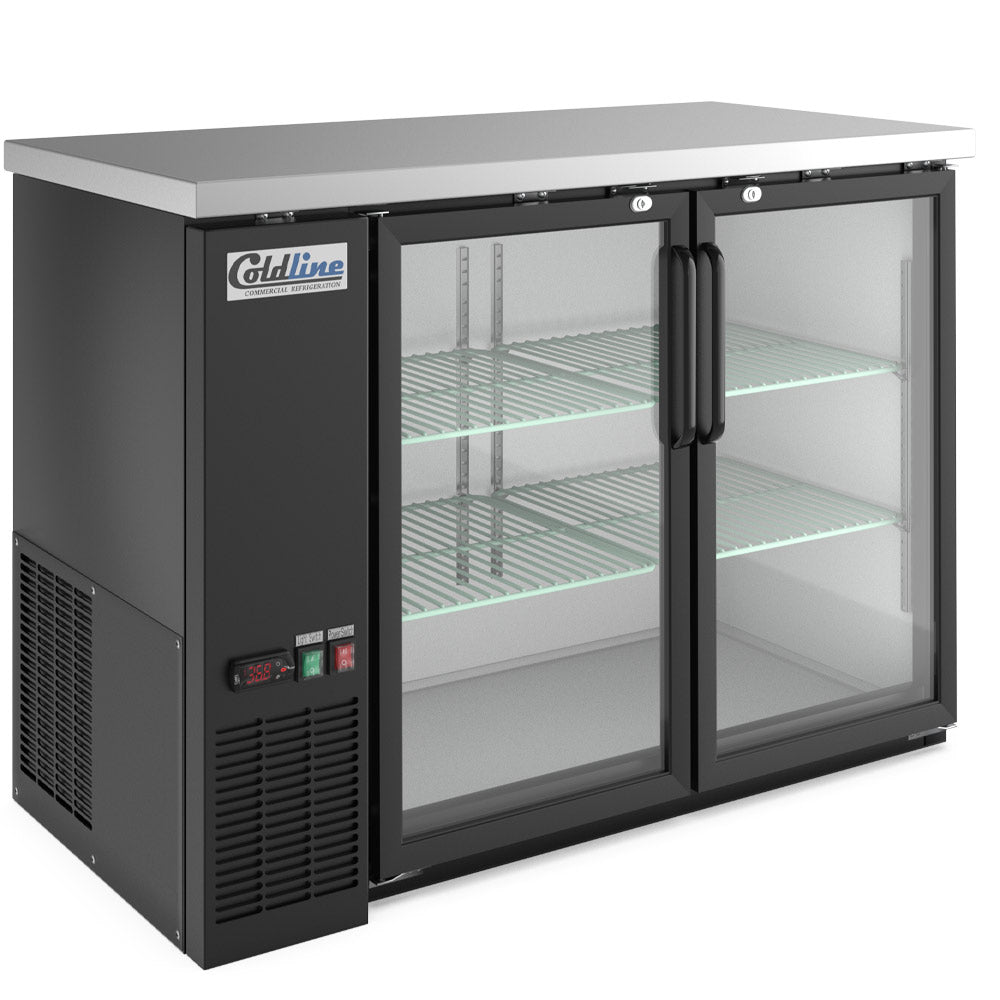

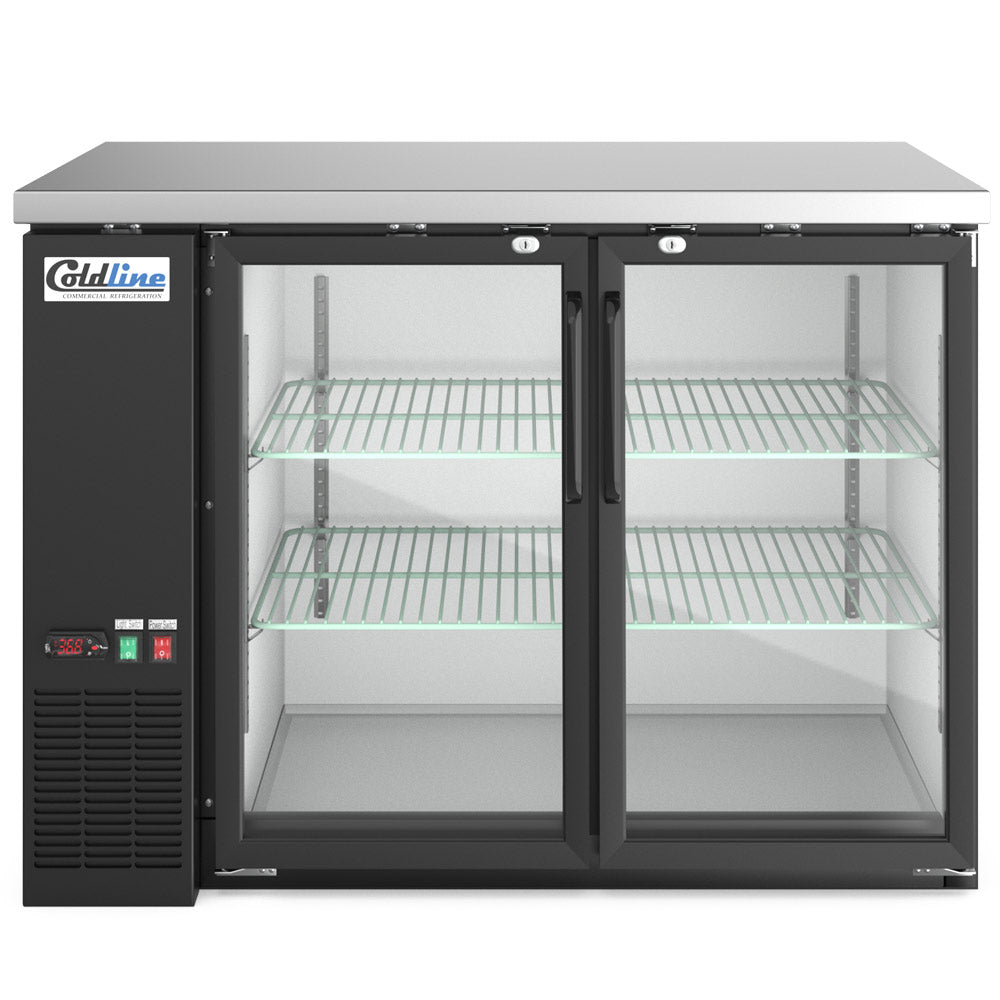

Coldline CBB-48G 48" Narrow Depth 2-Door Swing Glass Door Back Bar Cooler, Black, 11.8 cu. ft., 33-41°F, 115V

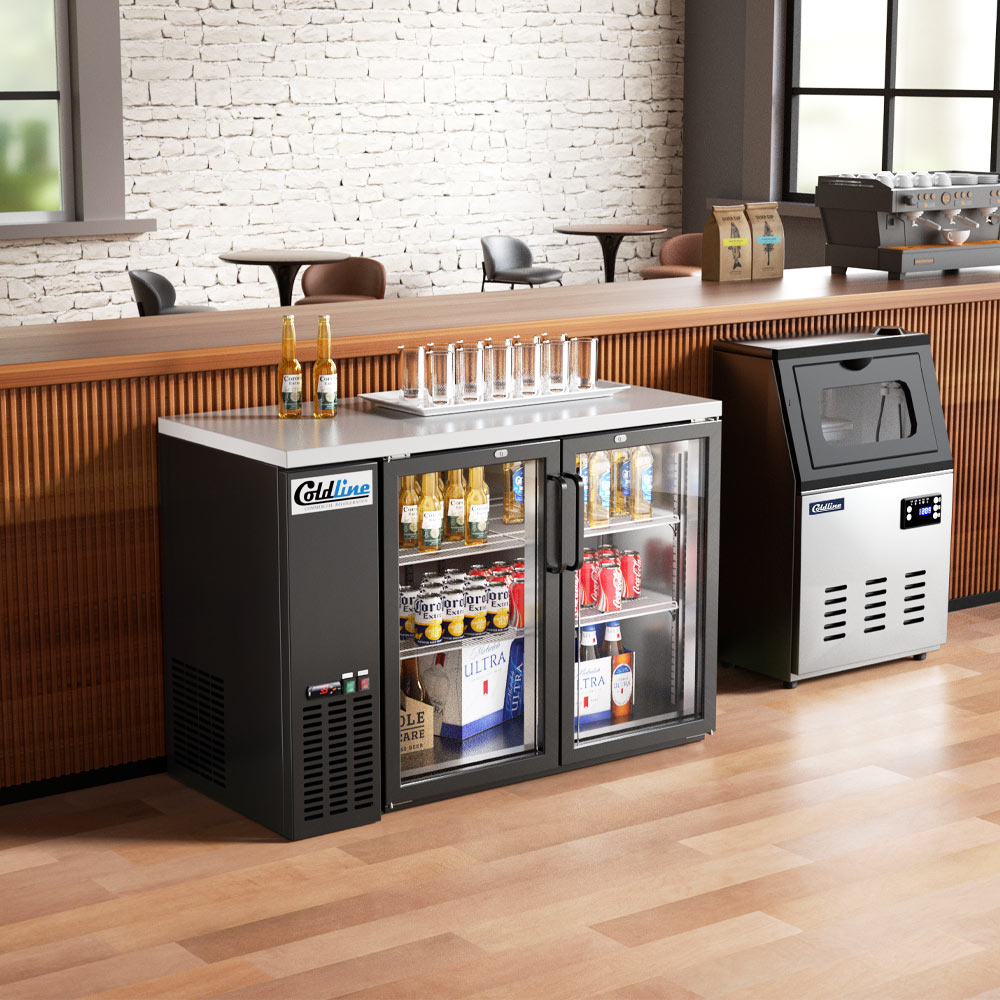

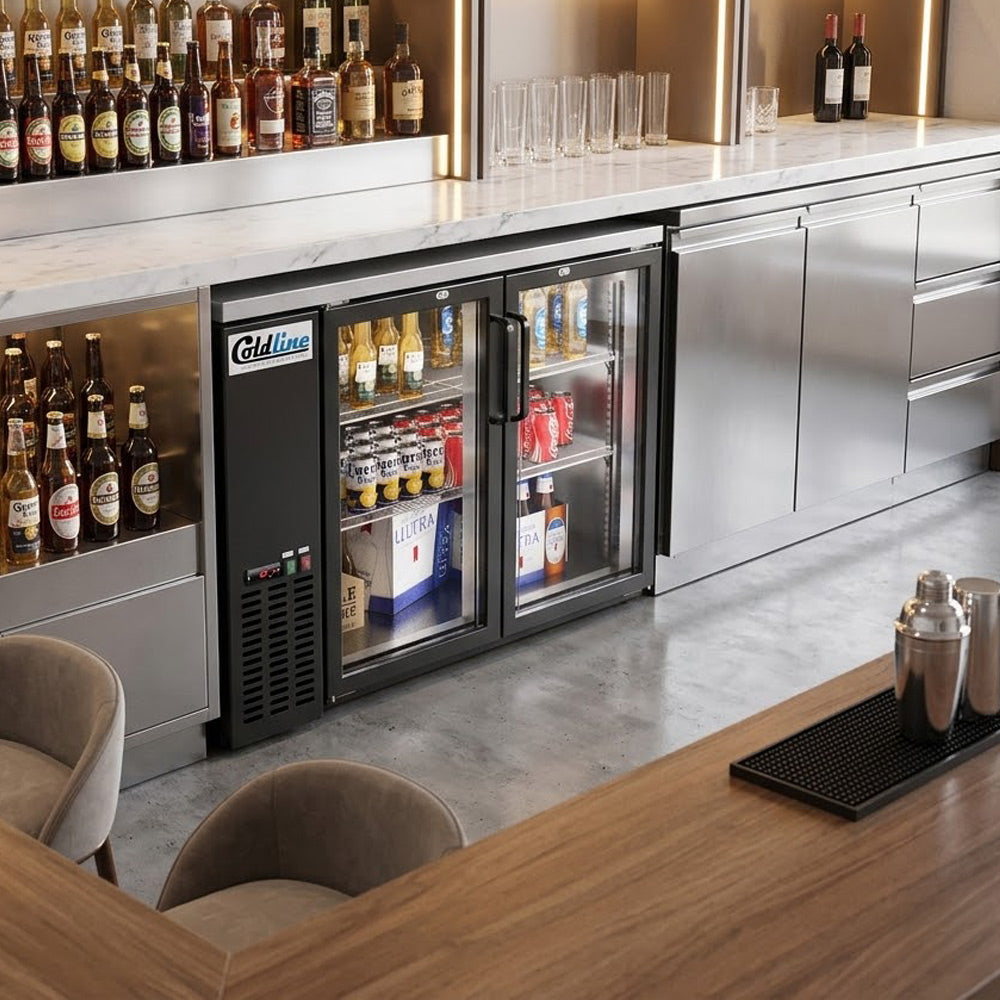

A 48" black back bar cooler with 2 swing glass doors that shows off bottles and cans behind the bar.
The Coldline CBB-48G is a narrow depth glass door back bar refrigerator for bars, restaurants, breweries and cafes. It holds 11.8 cu. ft. at 33°F to 41°F behind 2 self-closing swing glass doors with locks, with 4 adjustable shelves under LED lighting and room for (2) 1/2 kegs. At 24.4" deep and 35.6" high it fits behind a bar, and it plugs into a 115V NEMA 5-15P outlet on a dedicated 15 A circuit.
Measure every doorway and turn on the delivery path; the 24.4" depth is its smallest outside dimension.

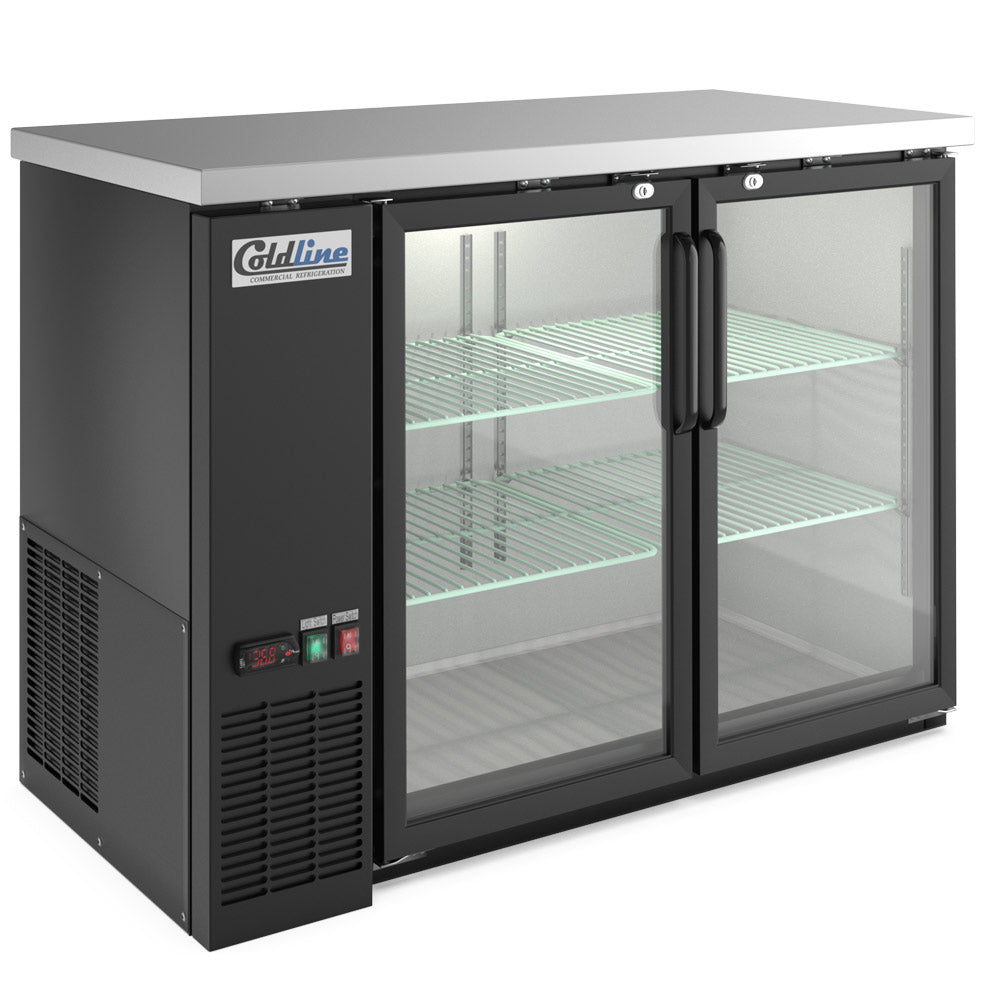

2 self-closing swing glass doors and LED lighting put drinks on display.

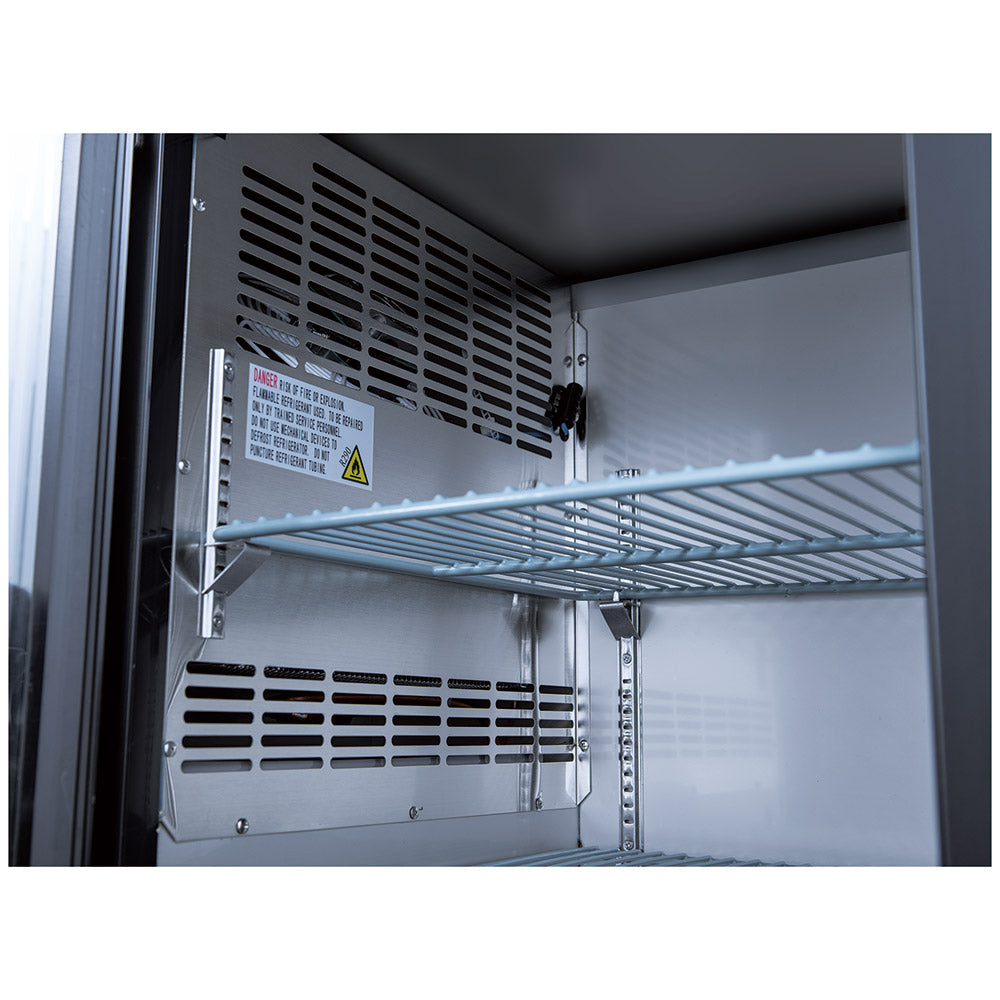

4 epoxy coated steel shelves hold 90 lb. each and move to fit bottles or kegs.
304 stainless steel walls, floor and ceiling inside a black vinyl-on-steel cabinet.

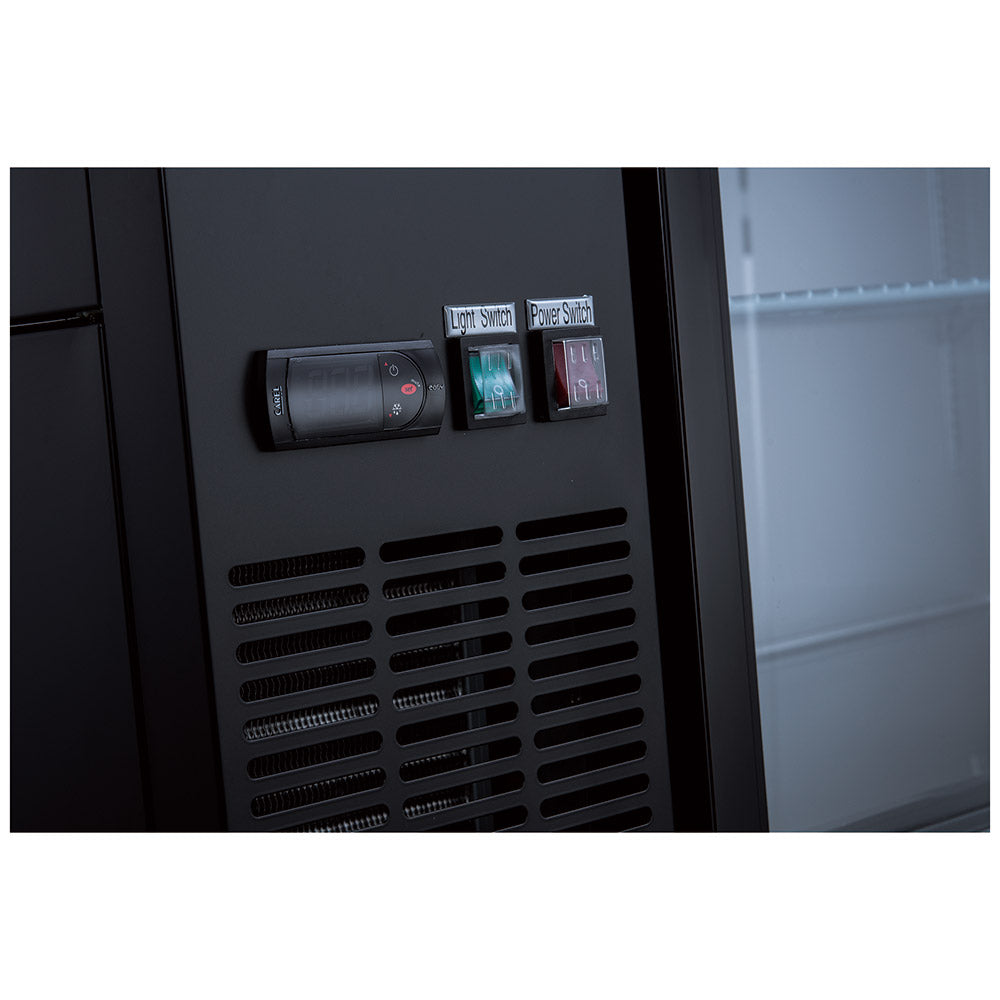

An electronic controller holds 33°F to 41°F with automatic defrost and R290 refrigerant.
It runs on 115V, 60 Hz, single phase and draws 2.88 A. It has a NEMA 5-15P plug on an 84" cord. Coldline requires a dedicated 15 A circuit installed by a licensed electrician, and the manual says not to use extension cords.
It is 35.6" high with a 35.3" working height, 48.8" wide and 24.4" deep. Coldline also makes a lower underbar height version (CBB-48G-T).

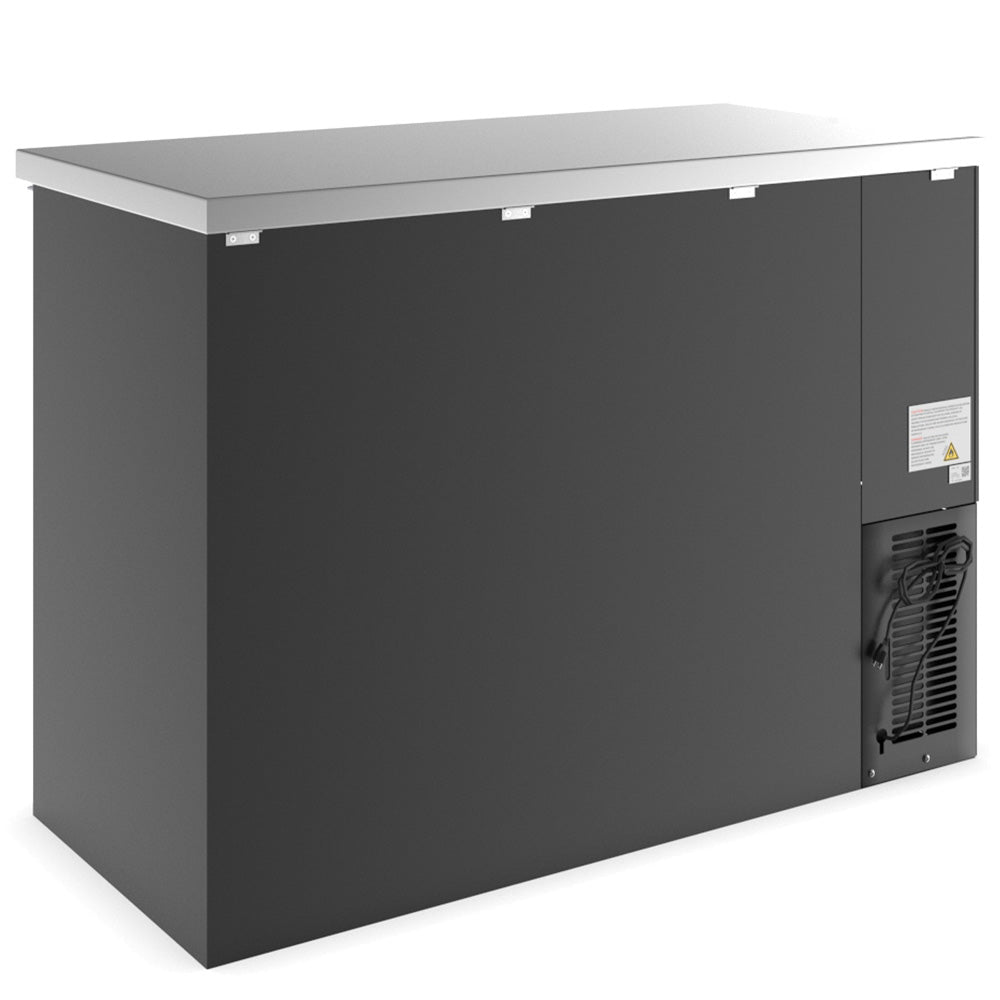

The manual asks for good ventilation with about 4" between the cabinet and surrounding walls (its installation steps allow 1" behind the cooler), and a level floor. Installing it without proper ventilation voids the warranty. The sheet rates it for rooms up to 90°F.
The Coldline sheet lists a product capacity of (2) 1/2 kegs. The 36" × 20" × 31" interior also takes bottles and cans on the 4 adjustable shelves.

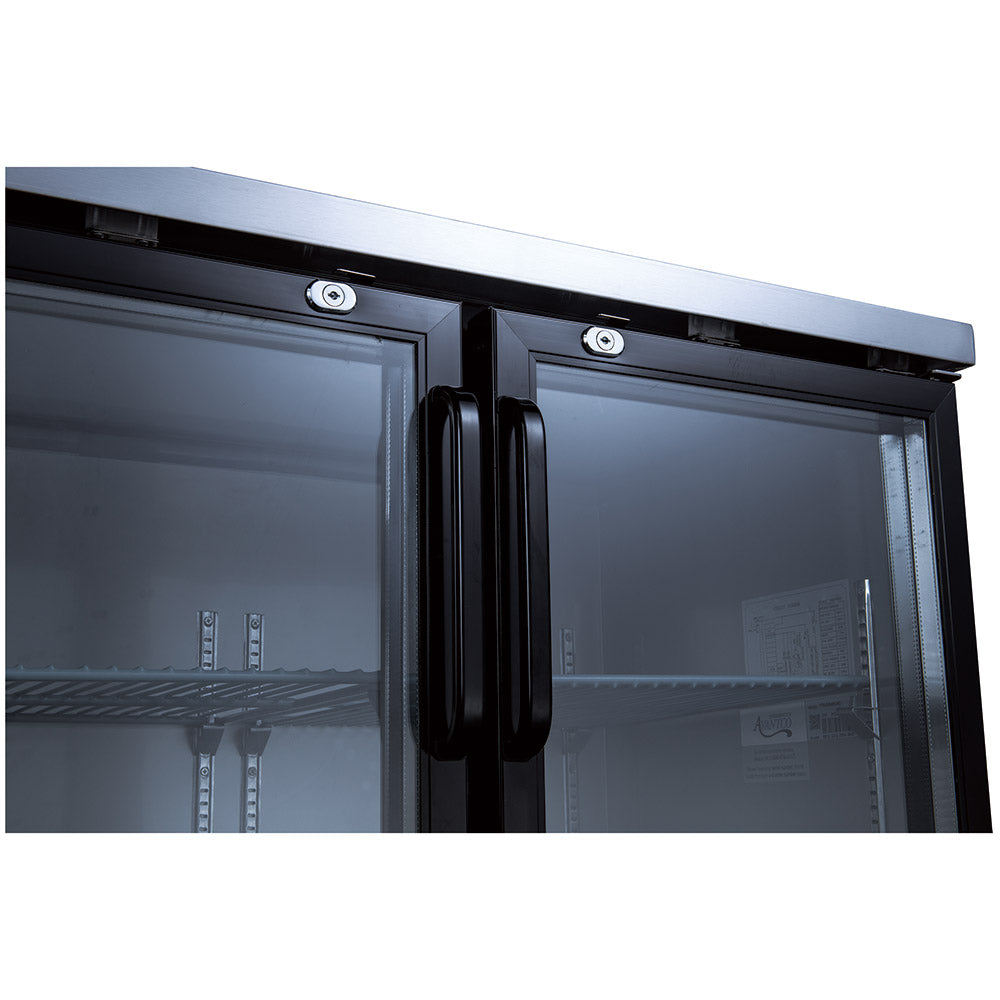

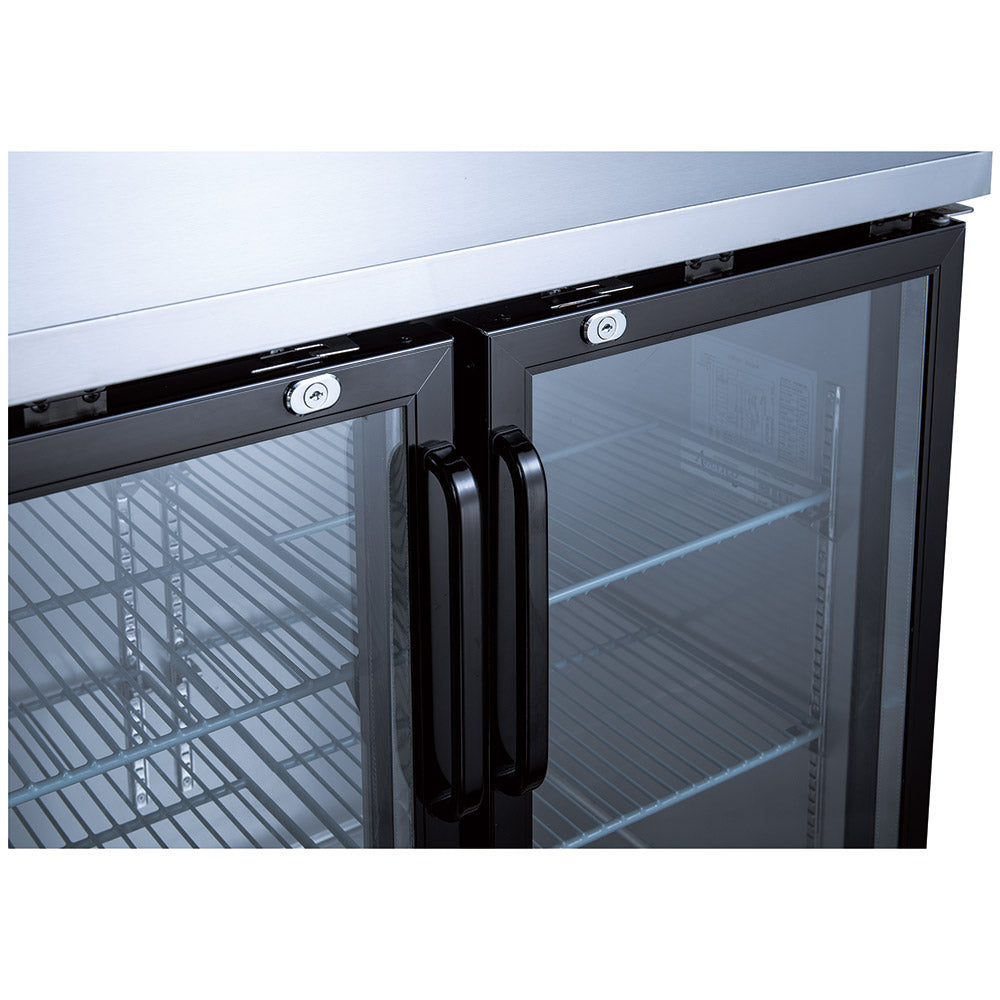

Yes. The 2 self-closing swing glass doors have locks.
USR Brands covers the Coldline CBB-Series for 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor), in the contiguous US. Glass is not covered; food truck and farm installs are parts only, and residential use is not covered.
The Coldline refrigeration warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | CBB-48G |
| Quantity | 1/Each |
| Shipping Weight | 230 lb. |
| Net Weight | 187 lb. |
| Width | 48.8 Inches |
| Depth | 24.4 Inches |
| Height | 35.6 Inches |
| Working Height | 35.3 Inches |
| Interior Dimensions | 36" W x 20" D x 31" H |
| Packaging Dimensions | 51" W x 27.5" D x 41.75" H |
| Voltage | 115 Volts |
| Amps | 2.88 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 84 Inches |
| Circuit | Dedicated 15 Amp, Installed by a Licensed Electrician |
| Capacity | 11.8 cu. ft.(2) 1/2 Kegs |
| Temperature Range | 33 - 41 Degrees F |
| Refrigerant | R290 |
| Horsepower | 1/5 HP |
| Defrost | Automatic |
| Controls | Digital |
| Max. Ambient Temperature | 90 Degrees F |
| Number of Doors | 2 |
| Door Type | GlassSwingSelf-ClosingLocks |
| Depth Style | Narrow |
| Handle | Pull Out |
| Shelves | 4 Adjustable Epoxy Coated Steel4 at 17.6" W x 18.1" D |
| Shelf Load Capacity | 90 lb. |
| Interior Lighting | LED |
| Exterior | Black Vinyl on Coated SteelStainless Steel Top |
| Interior | 304 Stainless Steel Walls, Floor and Ceiling |
| Insulation | Foamed-in-Place Polyurethane |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
