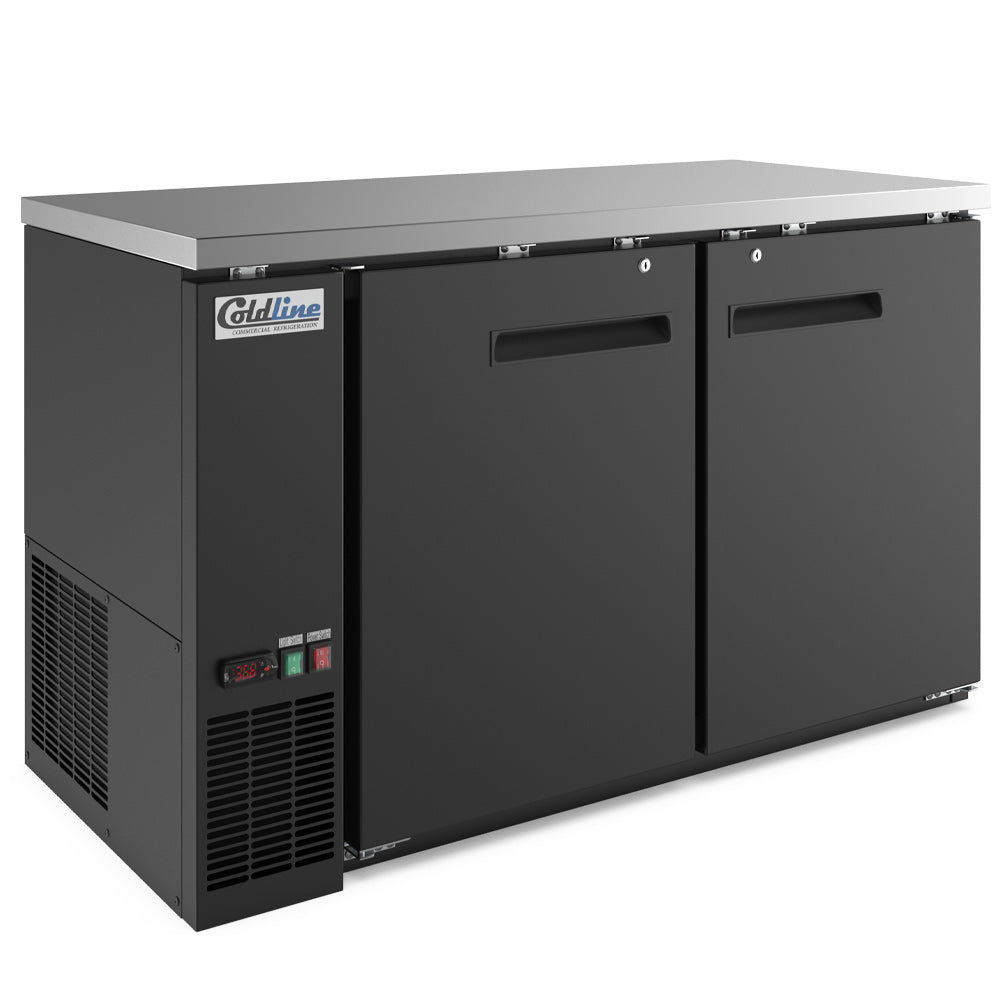

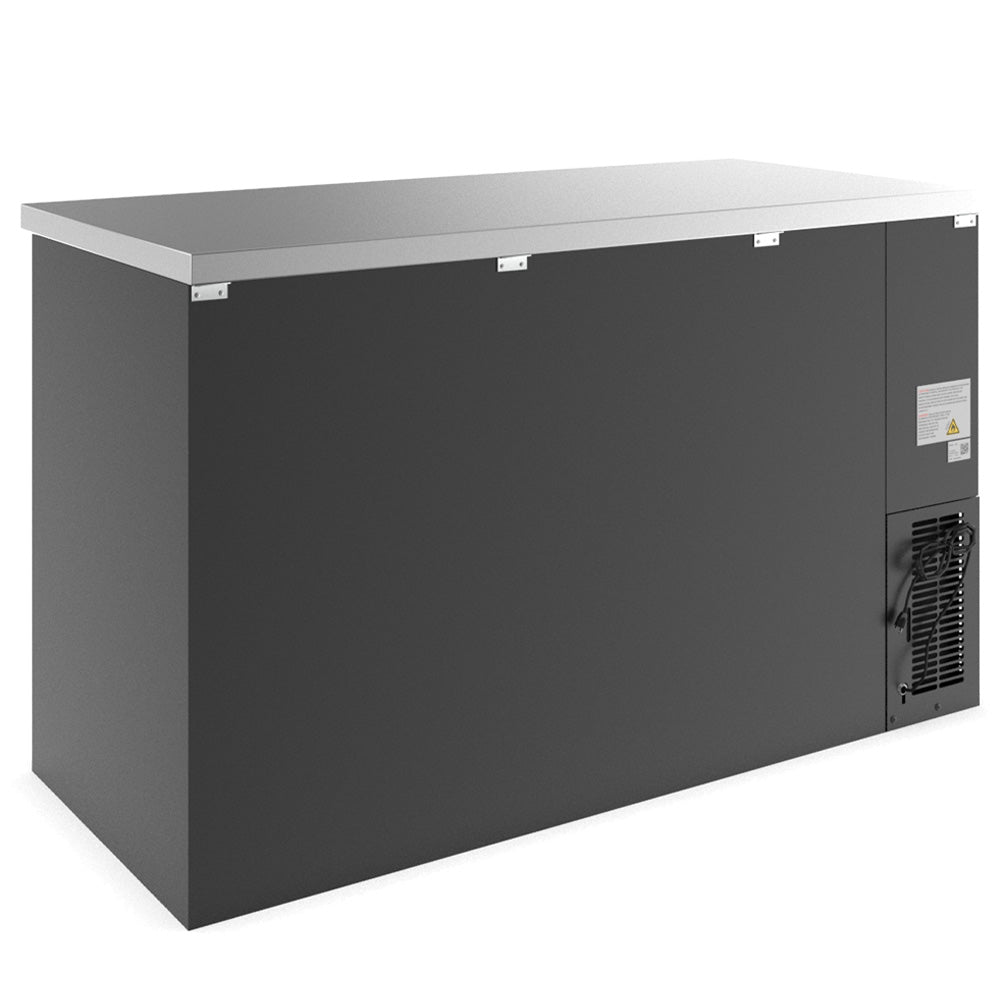

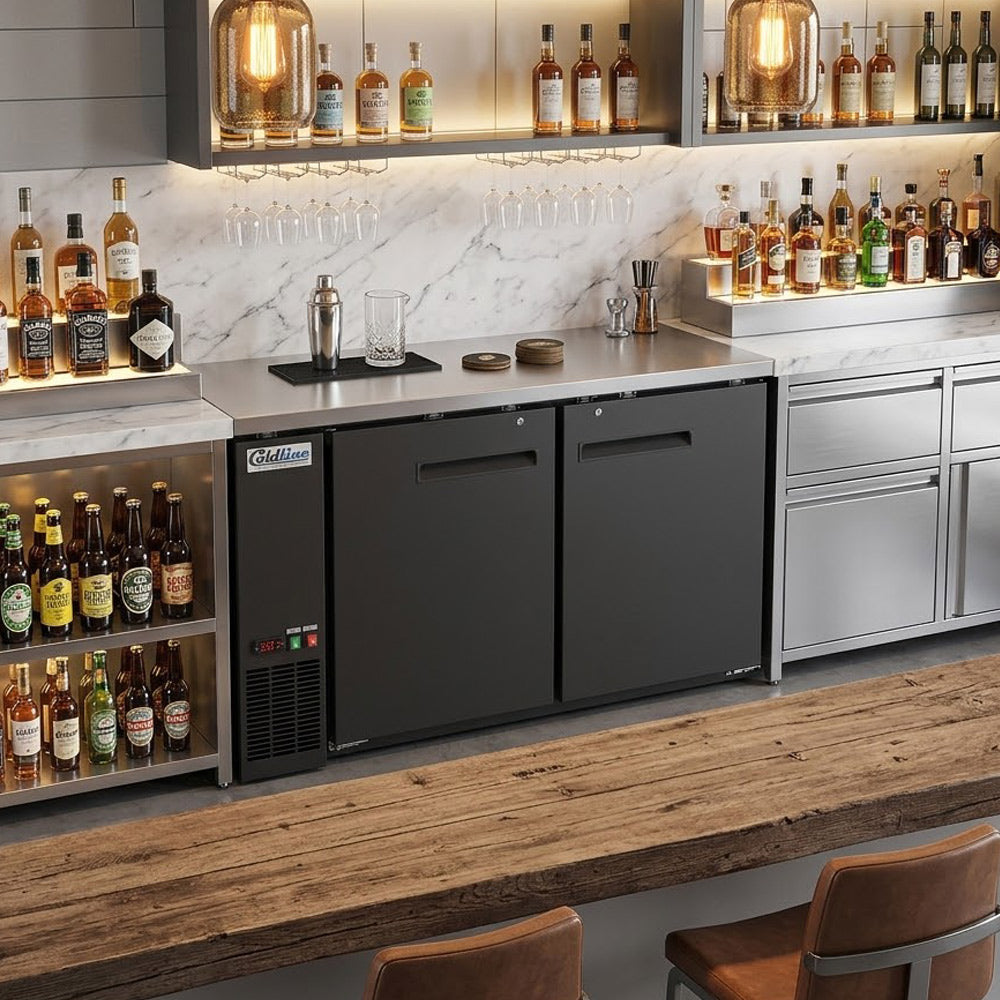

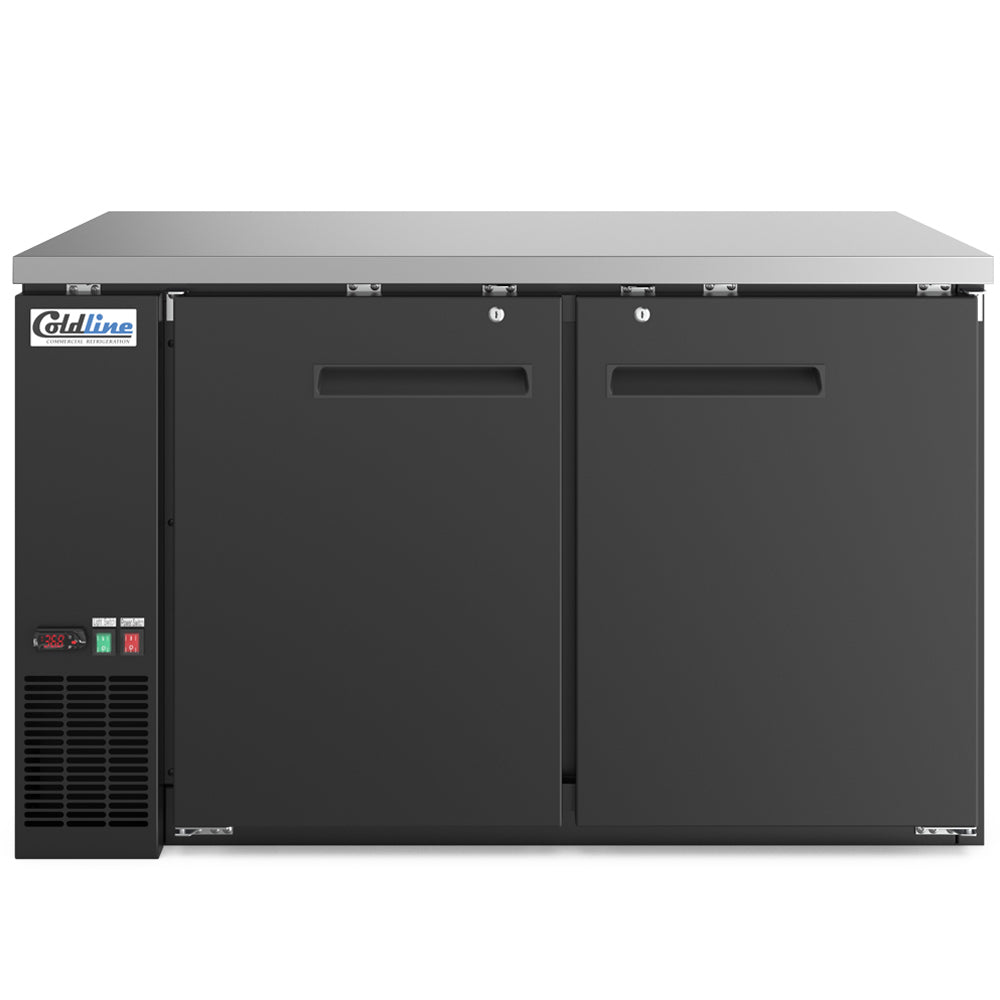

Coldline CBB-60 60" Narrow Depth 2-Door Back Bar Cooler, Black, Solid Swing Doors, 15.8 cu. ft., 33-41°F, 115V
A 60" black back bar cooler with 2 locking solid doors that keeps bottles, cans and kegs cold under the bar.
The Coldline CBB-60 is a narrow depth back bar refrigerator for bars, restaurants, delis and cafes. It holds 15.8 cu. ft. at 33°F to 41°F behind 2 self-closing solid swing doors with locks, with 4 adjustable shelves and room for (2) 1/2 kegs. At 24.4" deep and 35.6" high it fits behind a bar, and it plugs into a 115V NEMA 5-15P outlet on a dedicated 15 A circuit.
Measure every doorway and turn on the delivery path; the 24.4" depth is its smallest outside dimension.
2 self-closing swing doors with locks and pull out handles keep stock secure.
4 epoxy coated steel shelves hold 90 lb. each and move to fit bottles or kegs.
304 stainless steel walls, floor and ceiling, lit by LED lighting.
An electronic controller holds 33°F to 41°F with automatic defrost and R290 refrigerant.
It runs on 115V, 60 Hz, single phase and draws 2.88 A. It has a NEMA 5-15P plug on an 84" cord. Coldline requires a dedicated 15 A circuit installed by a licensed electrician, and the manual says extension cords void the warranty.

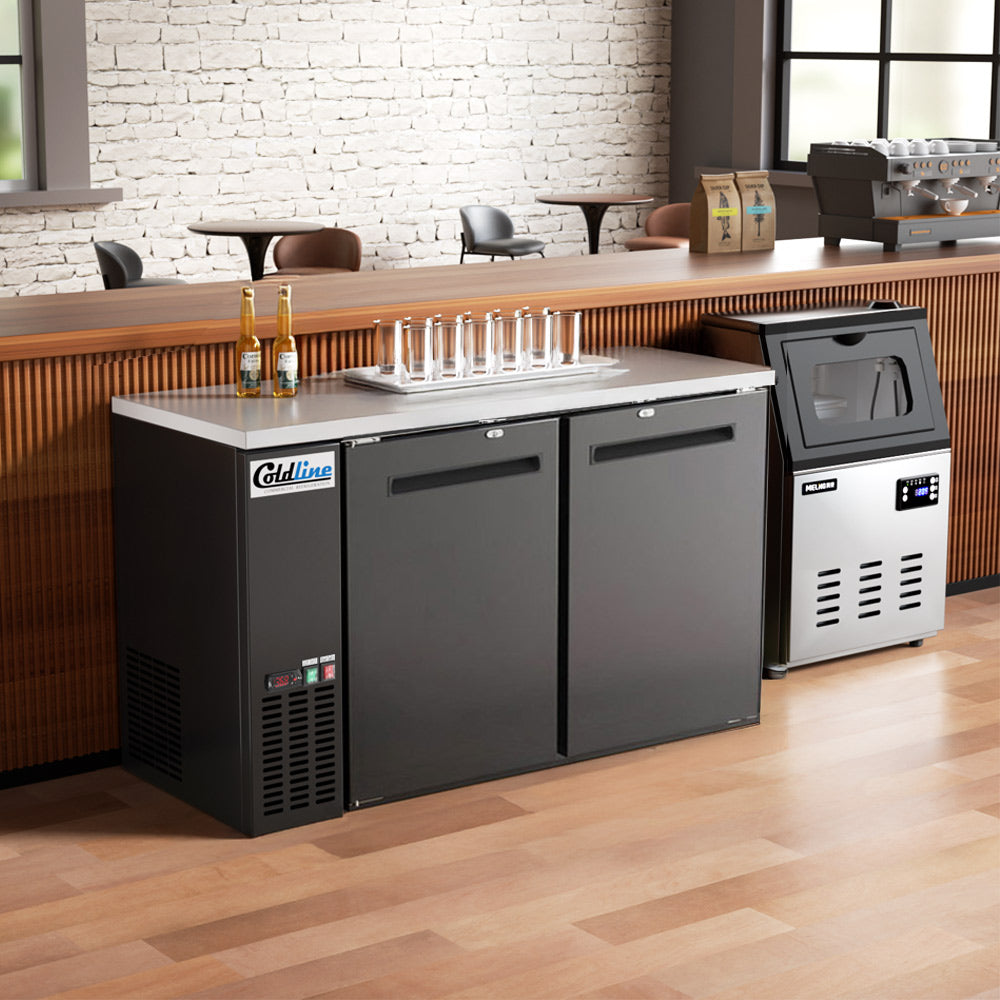

It is 35.6" high with a 35.3" working height, 60.8" wide and 24.4" deep. For a lower bar top, the CBB-60-T underbar height version is 34.25" high.
The manual asks for 1" between the wall and the back of the cooler, a level floor, and good ventilation; under extreme heat (100°F and up) an exhaust fan may be needed. Installation without proper ventilation voids the warranty. The maximum ambient temperature on the sheet is 90°F.
Yes. The Coldline sheet lists a product capacity of (2) 1/2 kegs. The 48" L × 20" D × 31" H interior also takes bottles and cans on the 4 adjustable shelves.
Yes. The 2 solid swing doors are self-closing and have locks.
USR Brands covers the Coldline CBB-Series for 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor), in the contiguous US. Food truck and farm installs are covered for parts only, and residential use is not covered.
The Coldline refrigeration warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | CBB-60 |
| Quantity | 1/Each |
| Shipping Weight | 253 lb. |
| Net Weight | 212 lb. |
| Width | 60.8 Inches |
| Depth | 24.4 Inches |
| Height | 35.6 Inches |
| Working Height | 35.3 Inches |
| Interior Dimensions | 48" L x 20" D x 31" H |
| Packaging Dimensions | 63" L x 27.5" D x 41.75" H |
| Voltage | 115 Volts |
| Amps | 2.88 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 84 Inches |
| Circuit | Dedicated 15 Amp, Installed by a Licensed Electrician |
| Capacity | 15.8 cu. ft.(2) 1/2 Kegs |
| Temperature Range | 33 - 41 Degrees F |
| Refrigerant | R290 |
| Horsepower | 1/5 HP |
| Defrost | Automatic |
| Controls | Digital |
| Max. Ambient Temperature | 90 Degrees F |
| Number of Doors | 2 |
| Door Type | SolidSwingSelf-Closing with Locks |
| Depth Style | Narrow |
| Shelves | 4 Adjustable Epoxy Coated Steel4 at 23.6" L x 18" D |
| Shelf Load Capacity | 90 lb. |
| Interior Lighting | LED |
| Exterior | Black Vinyl on Coated SteelStainless Steel Top |
| Interior | 304 Stainless Steel Walls, Floor and Ceiling |
| Insulation | Foamed-in-Place Polyurethane |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
