Coldline HDL48 48" Slanted Glass Refrigerated Deli Display Case with Rear Storage, 22.5 cu. ft., 32-40°F, 110-120V
A 48" slanted glass deli case that shows deli meats, cheeses, salads and prepared foods up front and keeps back-up stock cold behind it.
The Coldline HDL48 is a full-service refrigerated display case for delis, butcher counters, grocery stores and cafes. It shows 22.5 cu. ft. of product behind slanted front glass at 32°F to 40°F, with 2 adjustable LED-lit shelves, and adds a 4.6 cu. ft. refrigerated rear storage compartment. Automatic defrost and a digital controller keep daily care simple, and it plugs into a 110-120V outlet with a NEMA 5-15P plug on a dedicated 15 A circuit.
Measure every doorway and turn on the delivery path; its smallest outside dimension is the 33.66" depth. Plan for a 396 lb. freight delivery.
The deck plus 2 adjustable shelves, each with its own LED light, give 22.5 cu. ft. of display.

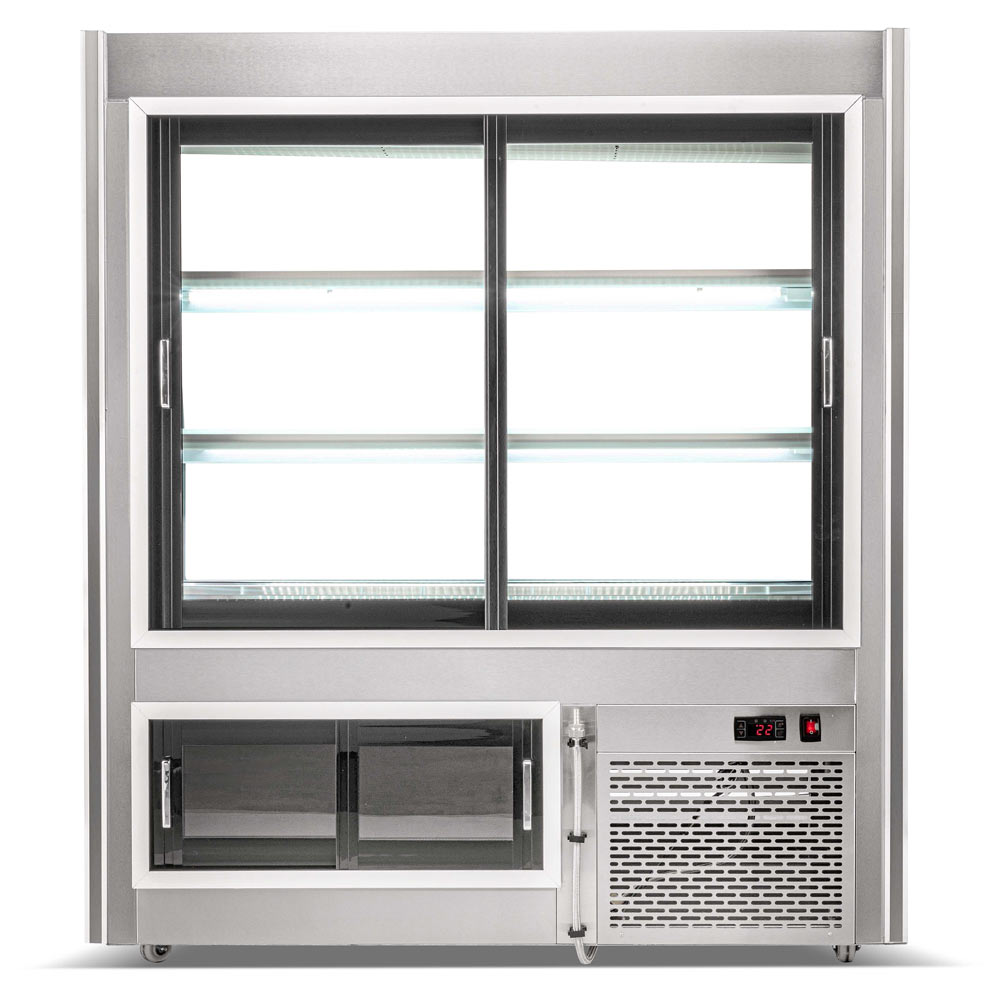

A 4.6 cu. ft. refrigerated compartment behind the display keeps refill stock within reach.
A double gravity coil system and finned evaporator hold 32°F to 40°F in the display area.
A digital controller runs the case, and defrost runs automatically.
It runs on 110-120V, 60 Hz, single phase and draws 3.9 A (350 W). It has a NEMA 5-15P plug on a 65" cord. Coldline requires a dedicated 15 A circuit installed by a licensed electrician.
The case is 48.15" wide, 33.66" deep and 55.35" high, and ships at 396 lb. in a 50.59" x 36.02" x 61.42" crate. Measure every doorway and turn on the delivery path; its smallest outside dimension is the 33.66" depth.
The display area has 22.5 cu. ft. on the deck and 2 adjustable shelves (44.21" x 12.28" upper, 44.21" x 14.25" lower). Behind it, a 4.6 cu. ft. refrigerated rear compartment holds back-up stock.
A double gravity coil system with a finned evaporator holds the display area at 32°F to 40°F. A digital controller runs it and defrost is automatic.
USR Brands covers the Coldline HDL-Series for 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor), in the contiguous US. Glass is not covered, so refuse a delivery with broken glass. Food truck and farm installs are covered for parts only.
The Coldline refrigeration warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | HDL48 |
| Quantity | 1/Each |
| Shipping Weight | 396 lb. |
| Net Weight | 334 lb. |
| Width | 48.15 Inches |
| Depth | 33.66 Inches |
| Height | 55.35 Inches |
| Interior Dimensions | 46.45" W x 28.74" D x 29.92" H |
| Packaging Dimensions | 50.59" W x 36.02" D x 61.42" H |
| Voltage | 110-120 Volts |
| Amps | 3.9 Amps |
| Hertz | 60 |
| Phase | 1 |
| Wattage | 350 Watts |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 65 Inches |
| Circuit | Dedicated 15 Amp, Installed by a Licensed Electrician |
| Capacity | 22.5 cu. ft. Display4.6 cu. ft. Rear Storage |
| Temperature Range | 32 - 40 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 3/7 HP |
| Defrost | Automatic |
| Controls | Digital Controller |
| Cooling | Double Gravity CoilFinned Evaporator |
| Rear Storage | Refrigerated |
| Front Glass | Slanted |
| Shelves | 2 AdjustableUpper 44.21" x 12.28"Lower 44.21" x 14.25" |
| Interior Lighting | 3 LED |
| Exterior | Stainless SteelGlass |
| Interior | Stainless SteelMetalGlass |
| Insulation | Foamed-in-Place Polyurethane |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
