Coldline SDC72 72" Curved Glass Refrigerated Meat Deli Display Case with Rear Storage, 10 sq. ft., 33-40°F, 115V
A 72" refrigerated curved glass deli case that shows meat at the counter and keeps back-up stock cold underneath.

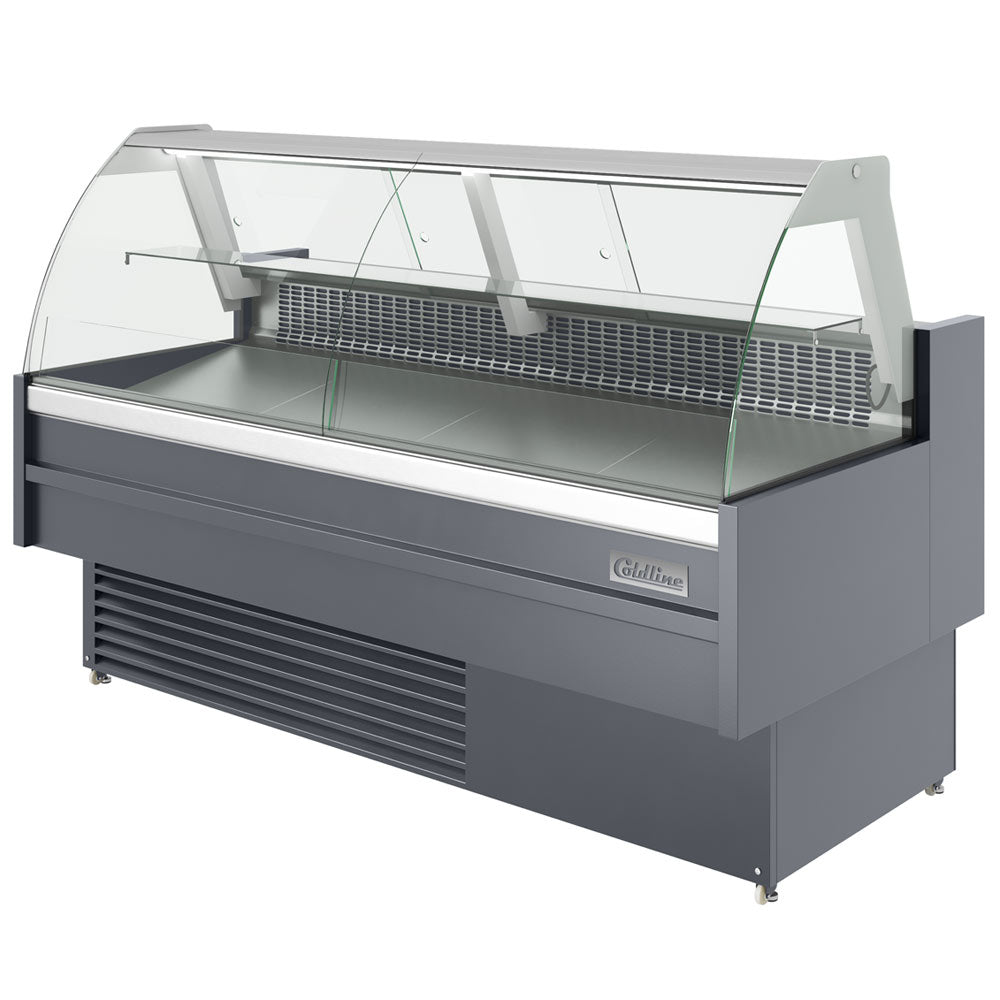

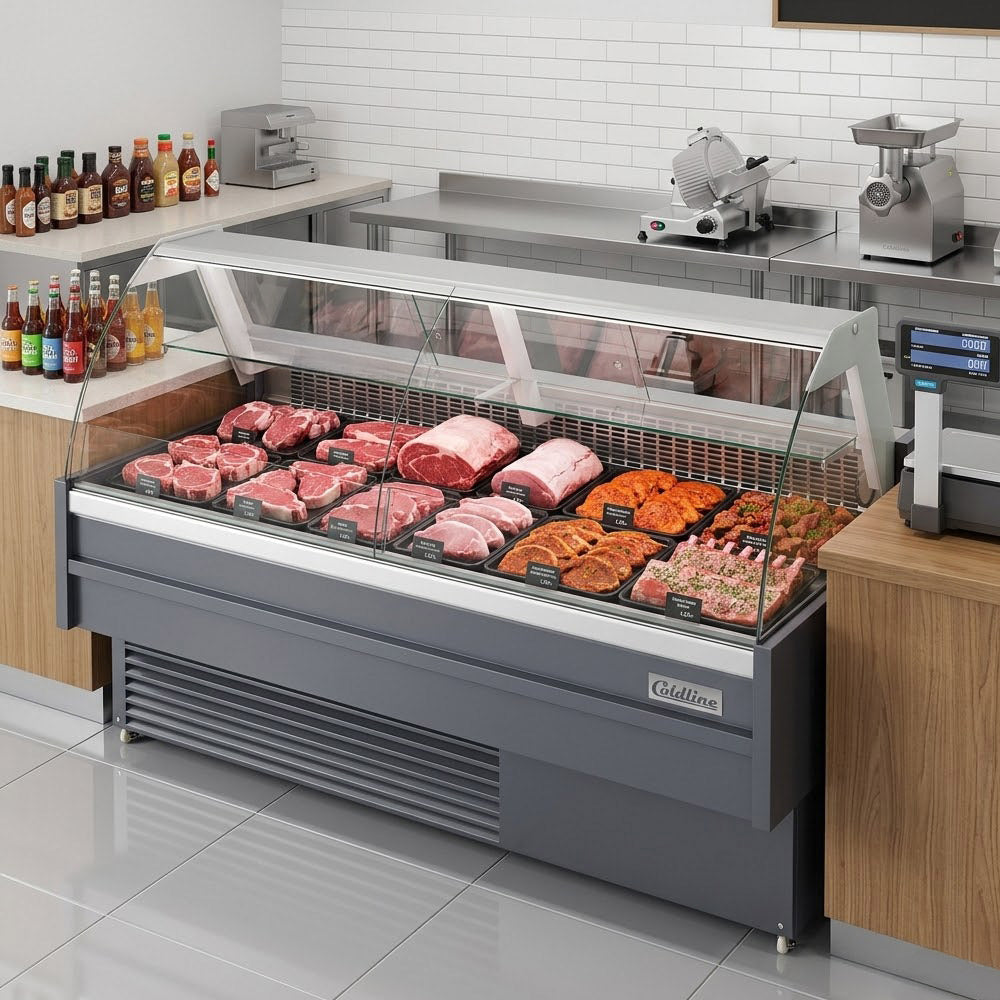

The Coldline SDC72 is a self-contained meat and deli display case for butcher shops, delis, markets and restaurants. It shows 10 sq. ft. of product behind lift-up curved tempered glass at 33°F to 40°F, with LED lighting and a digital controller, and adds 4.3 cu. ft. of refrigerated storage at the back under a 7.2" stainless work surface. It plugs into a 115V NEMA 5-15P outlet (6.1 A) on a dedicated 15 A circuit.
Measure every doorway and turn on the delivery path; its smallest outside dimension is the 33.5" depth.

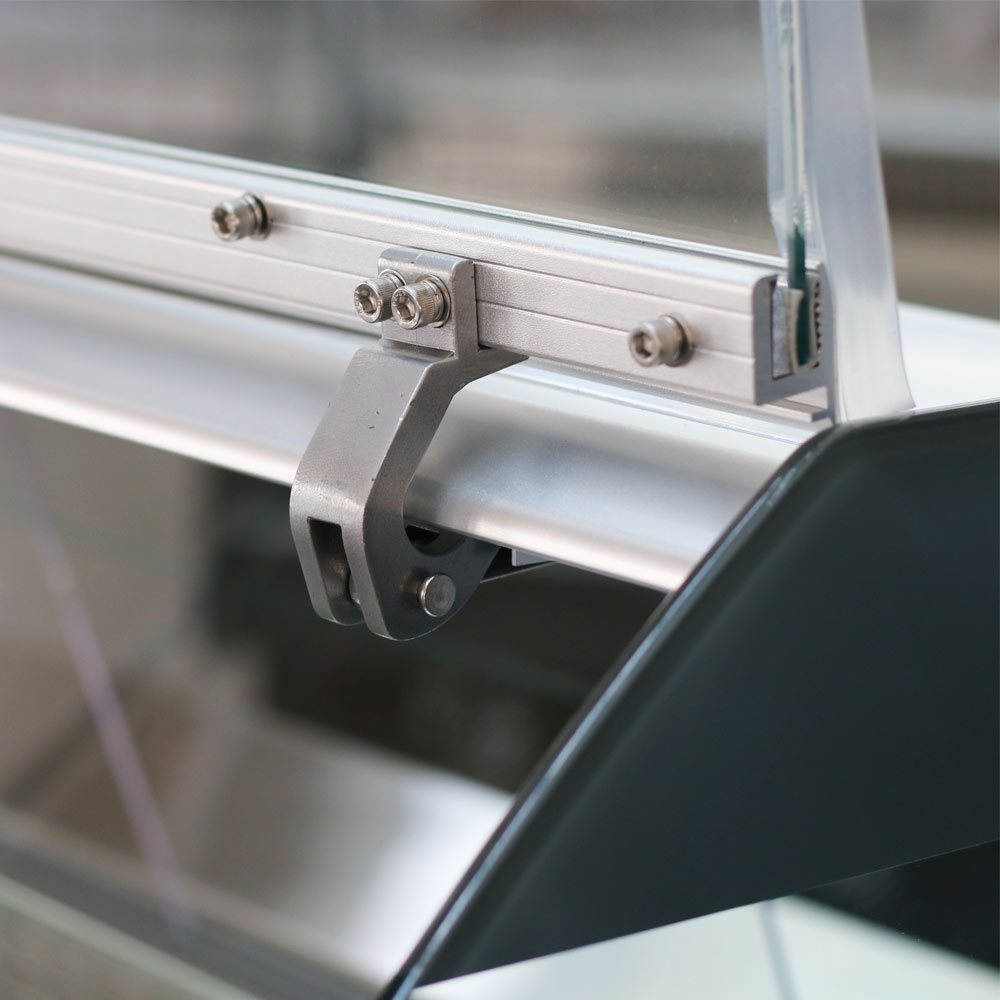

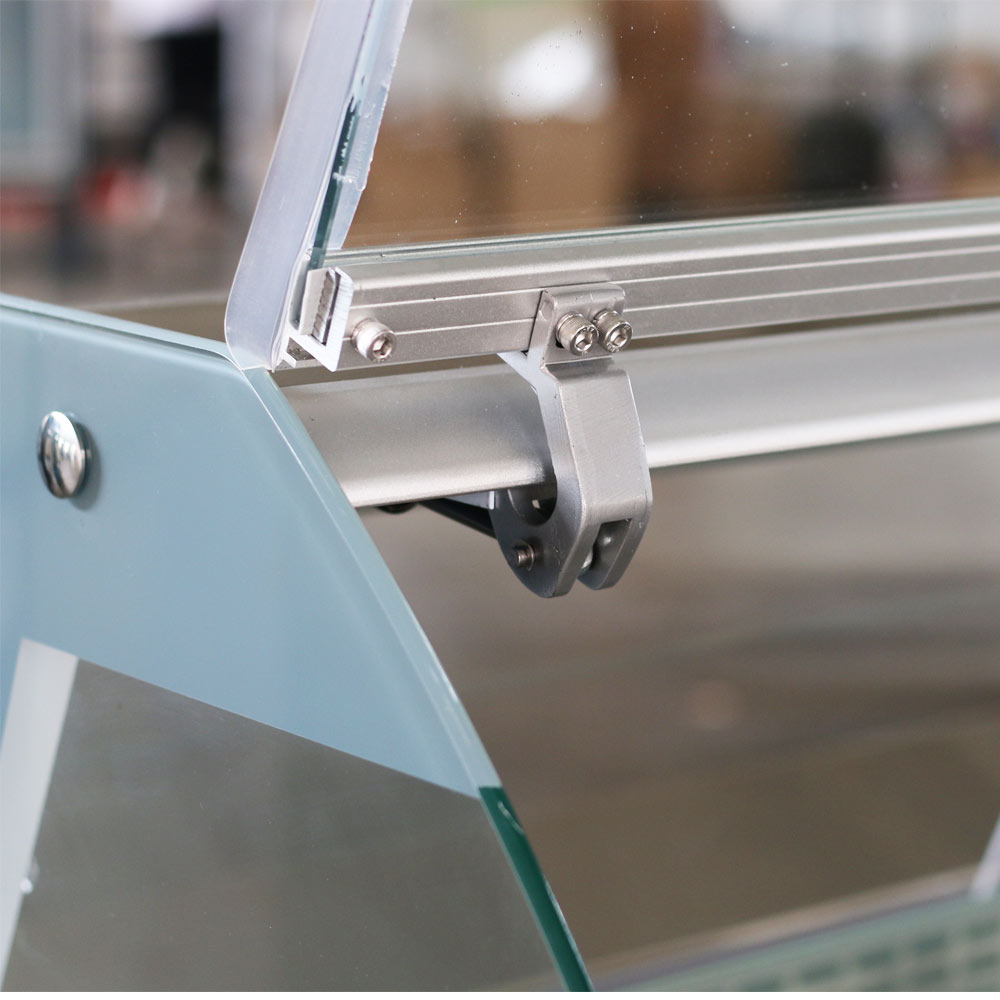

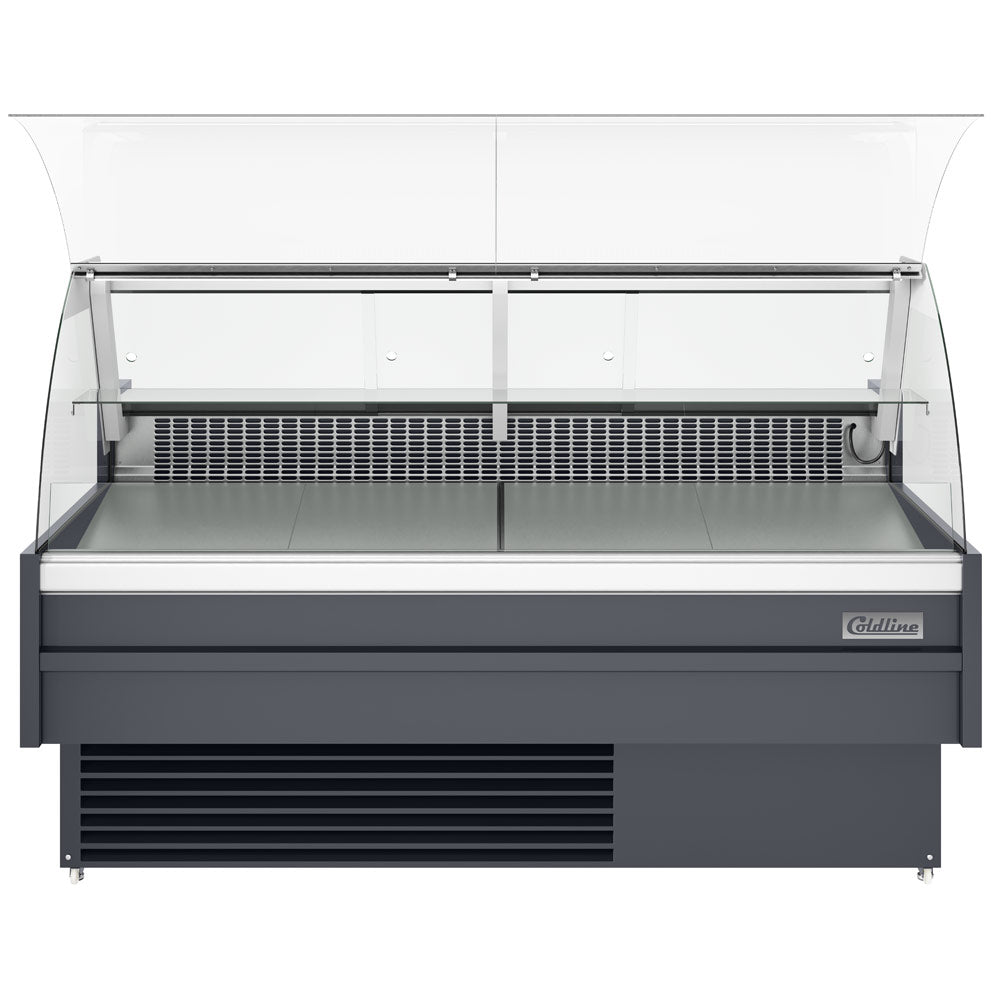

Lift-up tempered curved front glass for loading and cleaning, with LED lighting.

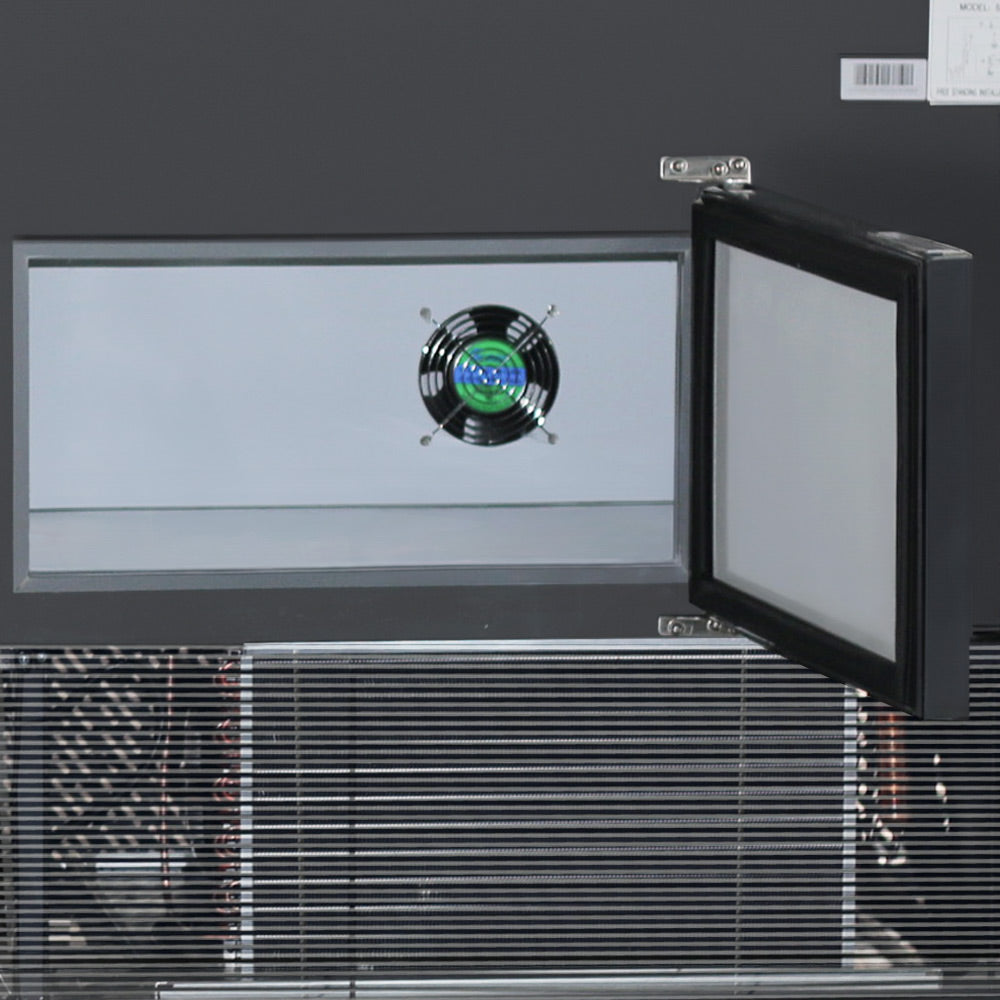

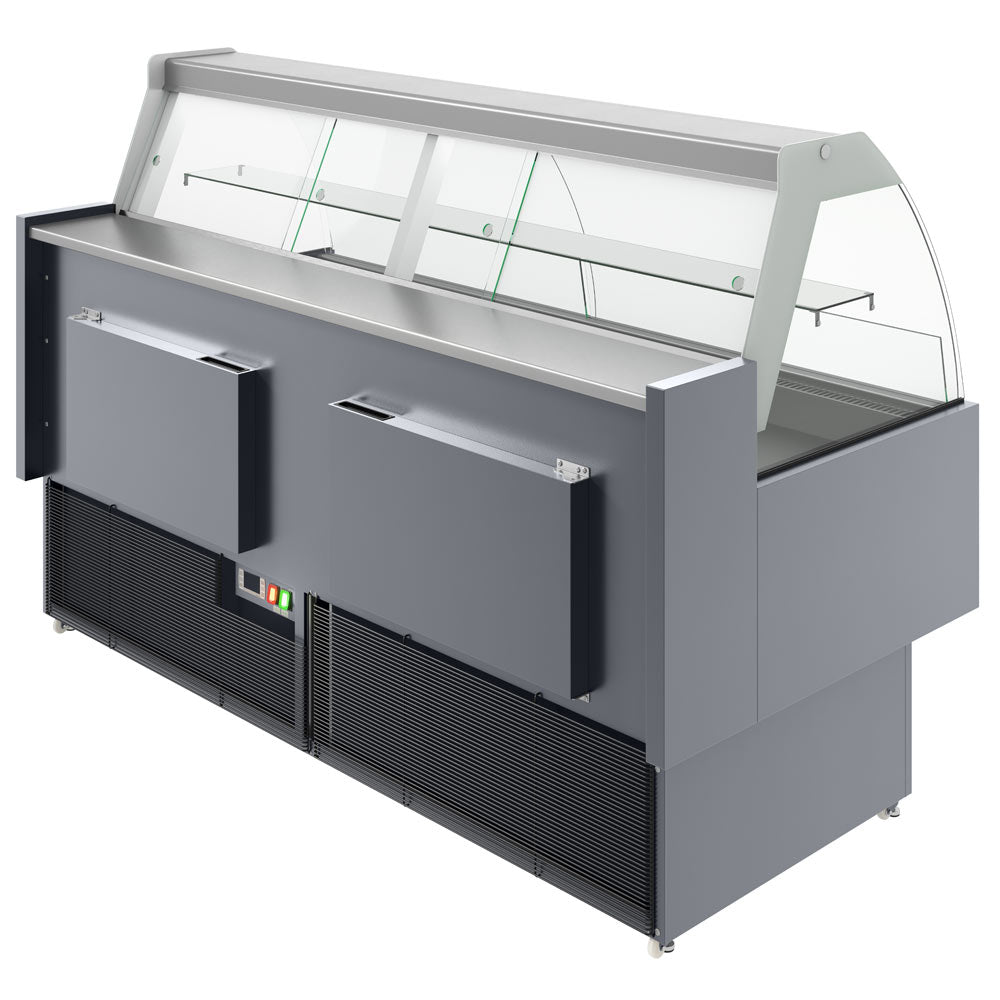

4.3 cu. ft. of refrigerated storage under the 7.2" SS304 stainless work surface.
Digital controller and display, automatic defrost, R290 refrigerant.
Automatic condensation evaporating and a bottom-mounted self-contained compressor.
A 115V outlet for its NEMA 5-15P plug on a 79" cord; it draws 6.1 A at 60 Hz, single phase. Coldline requires a dedicated 15 A circuit installed by a licensed electrician.
No. Coldline says the removable inside glass shelf is not refrigerated and its temperature is not suitable for meat; keep meat on the refrigerated deck below.
Indoors only. The sheet rates it for rooms up to 80°F, and the SDC manual asks for 25°C (77°F) or less and 60% humidity, away from sun, heaters, fans and doors. Some glass condensation is normal in humid rooms.
The sheet lists automatic condensation evaporating, so defrost water is evaporated by the unit; no drain is listed for this deli model.
It is 70.9" wide, 33.5" deep and 47.2" high. Measure every doorway and turn on the delivery path; the 33.5" depth is its smallest outside dimension.
USR Brands covers SDC-Series cases for 1 year parts and labor from delivery, plus 5 years on the compressor (the replacement part only, not labor), in the contiguous US. Glass is not covered, so inspect it before signing. Food truck and farm installs are parts only.
The Coldline refrigeration warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | SDC72 |
| Quantity | 1/Each |
| Shipping Weight | 490 lb. |
| Net Weight | 410 lb. |
| Width | 70.9 Inches |
| Depth | 33.5 Inches |
| Height | 47.2 Inches |
| Display Area | 10 sq. ft. |
| Rear Storage | 4.3 cu. ft. (67.7" L x 13.6" D) |
| Packaging Dimensions | 75.6" L x 38.7" D x 50.3" H |
| Voltage | 115 Volts |
| Amps | 6.1 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 79 Inches |
| Circuit | Dedicated 15 Amp, Installed by a Licensed Electrician |
| Capacity | 10 sq. ft. Display4.3 cu. ft. Rear Storage |
| Temperature Range | 33 - 40 Degrees F |
| Refrigerant | R290 |
| Horsepower | 1/2 HP |
| Max. Ambient Temperature | 80 Degrees F |
| Defrost | Automatic |
| Controls | Digital Controller and Display |
| Condensate | Automatic Evaporation |
| Compressor | Bottom-Mounted, Self-Contained |
| Front Glass | Tempered Curved, Lift-Up |
| Rear Work Surface | 7.2 Inches Deep, SS304 Stainless Steel |
| Interior Shelf | 1 Removable Tempered Glass, 68.5" x 7.9" x 0.5" (Non-Refrigerated) |
| Interior Lighting | LED |
| Exterior | Grey Pre-Painted Steel |
| Interior | Pre-Painted Steel |
| Casters | 4 x 2.5 Inch2 with Brakes, 2 withoutLeveling Feet Included |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
| Usage | CommercialMeat and Deli Display, Indoor Use Only |
