Coldline DP-560-FSG 71" 12-Tub Ice Cream Dipping Cabinet with Sneeze Guard, 22 Tub Capacity, Sliding Glass Lids, -15 to 8°F, 115V
A 71" ice cream dipping cabinet with a glass sneeze guard that serves 12 tubs and keeps 10 more frozen underneath.
The Coldline DP-560-FSG is a compact dipping cabinet for ice cream shops, candy stores, dessert bars and cafeterias. It displays 12 3-gallon tubs under two sliding glass lids and a clear flat-front glass sneeze guard, stores 10 more, and holds -15°F to 8°F with R290 refrigerant and LED lighting. It rolls on 6 preinstalled casters and plugs into a 115V outlet (NEMA 5-15P, 4 A) on a dedicated 15 amp circuit.
Measure every doorway and turn on the delivery path; its smallest outside dimension is the 28" depth. Coldline says not to tilt it more than 60° while moving it.
12 dipping holes for 3-gallon tubs, with room for 10 backup tubs below.

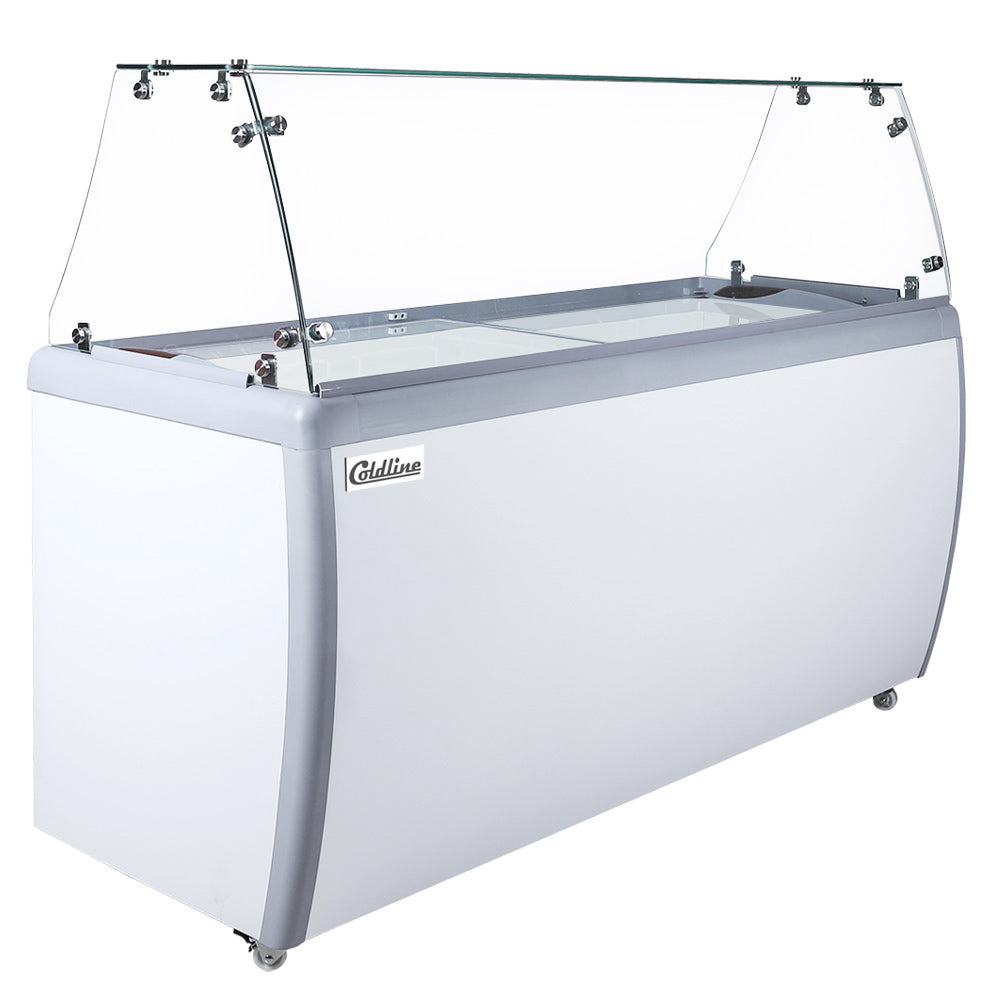

Two sliding glass lids with a built-in lock; a flat-front glass sneeze guard shields the tubs.
A manual knob sets -15°F to 8°F; R290 refrigerant.
6 low-profile casters, 3 with brakes, and a rear drain plug for manual defrosting.
A grounded 115V outlet for its NEMA 5-15P plug on a 71" cord. It draws 4 A (295 W), and USR Brands says it needs a dedicated 15 amp circuit installed by a licensed electrician.
It displays 12 3-gallon tubs (10" x 10") and stores 10 more, 22 in all, in 20.1 cu. ft. Shelves, tub holders and a coated wire basket are included.
Coldline rates it at -15°F to 8°F. The manual says knob position 4 is about 0°F, and positions 4 to 5 suit ice cream once the cabinet is stable.
The cabinet is 71" wide, 28" deep and 52" tall including the sneeze guard. The Coldline manual asks for more than 10 cm (about 4") of space at the front and back, in a cool, dry, ventilated spot out of direct sun, and rates it for rooms up to 100°F.
Defrosting is manual. When the frost layer reaches about 5 mm (1/5"), switch it off, take out the product, open the lids and let it melt, then drain the water through the drain plug.

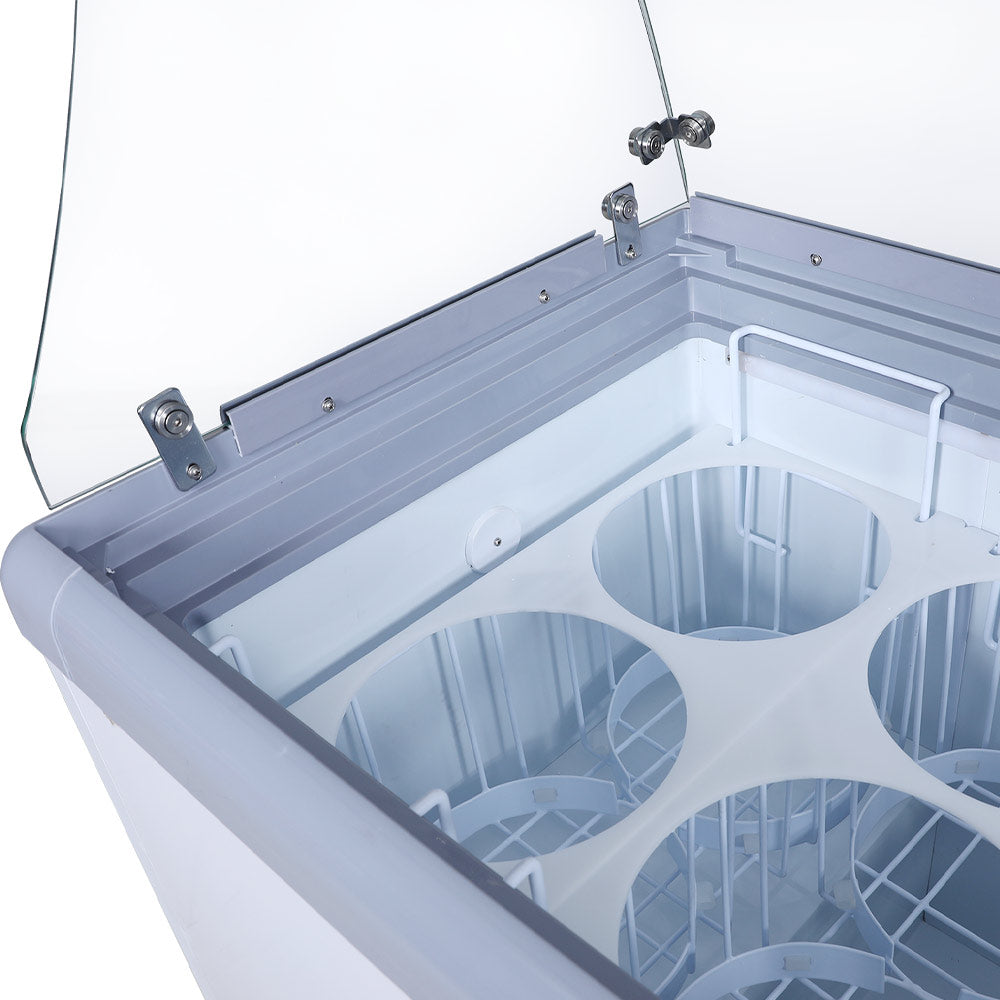

No. The glass sneeze guard ships in panels with rails, brackets, screws and a screwdriver, and Coldline publishes step-by-step assembly instructions. Check every glass panel on delivery.
USR Brands covers DP-Series dipping cabinets for 1 year parts and labor from delivery, in the contiguous US. Glass is not covered, so refuse a delivery with broken glass. Food truck and farm installs are parts only; residential use is not covered.
The Coldline warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | DP-560-FSG |
| Quantity | 1/Each |
| Shipping Weight | 301 lb. |
| Net Weight | 262 lb. |
| Width | 71 Inches |
| Depth | 28 Inches |
| Height | 52 Inches |
| Interior Dimensions | 65" L x 21" D x 25.5" H |
| Packaging Dimensions | 74" L x 30" D x 44" H |
| Voltage | 115 Volts |
| Amps | 4 Amps |
| Hertz | 60 |
| Phase | 1 |
| Wattage | 295 Watts |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 71 Inches |
| Circuit | Dedicated 15 Amp Circuit |
| Capacity | 12 Display Tubs10 Storage Tubs (3 Gallon)20.1 cu. ft. |
| Temperature Range | -15 - 8 Degrees F |
| Refrigerant | R290 |
| Horsepower | 2/3+ |
| Defrost | ManualRear Drain Plug |
| Temperature Control | Manual Control Knob |
| Top Style | Flat Glass2 Sliding Lids |
| Sneeze Guard | Clear Flat-Front Glass (Field Assembled) |
| Lock | Built-in |
| Interior Lighting | LED |
| Exterior | White Powder Coated |
| Interior | White Precoated Steel |
| Insulation | Foamed-in-Place Polyurethane |
| Included | ShelvesTub HoldersCoated Wire Basket |
| Casters | 6 Preinstalled Low Profile3 with Brakes, 3 without |
| Max. Ambient Temperature | 100 Degrees F |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
| Usage | CommercialIce Cream and Frozen Desserts |
