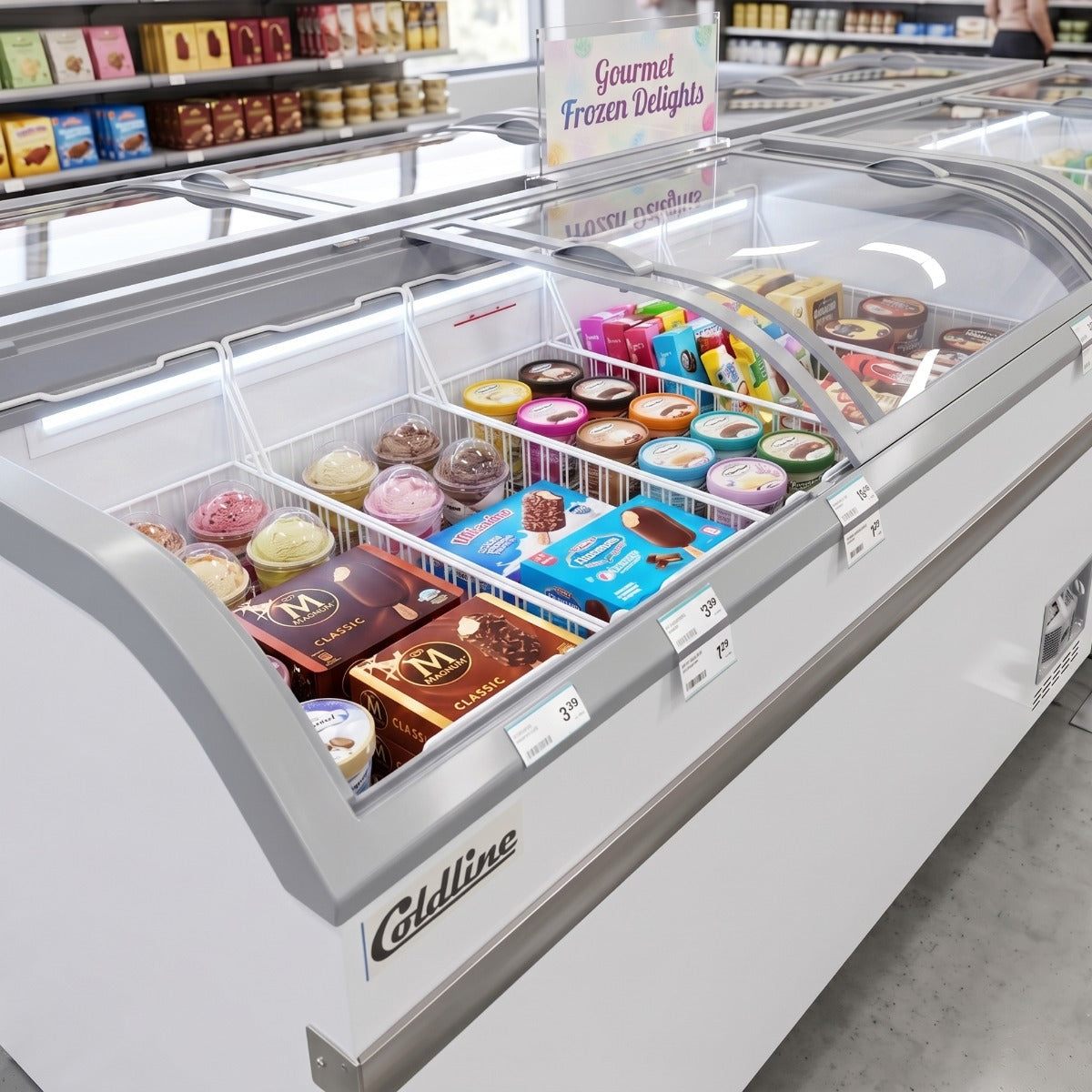

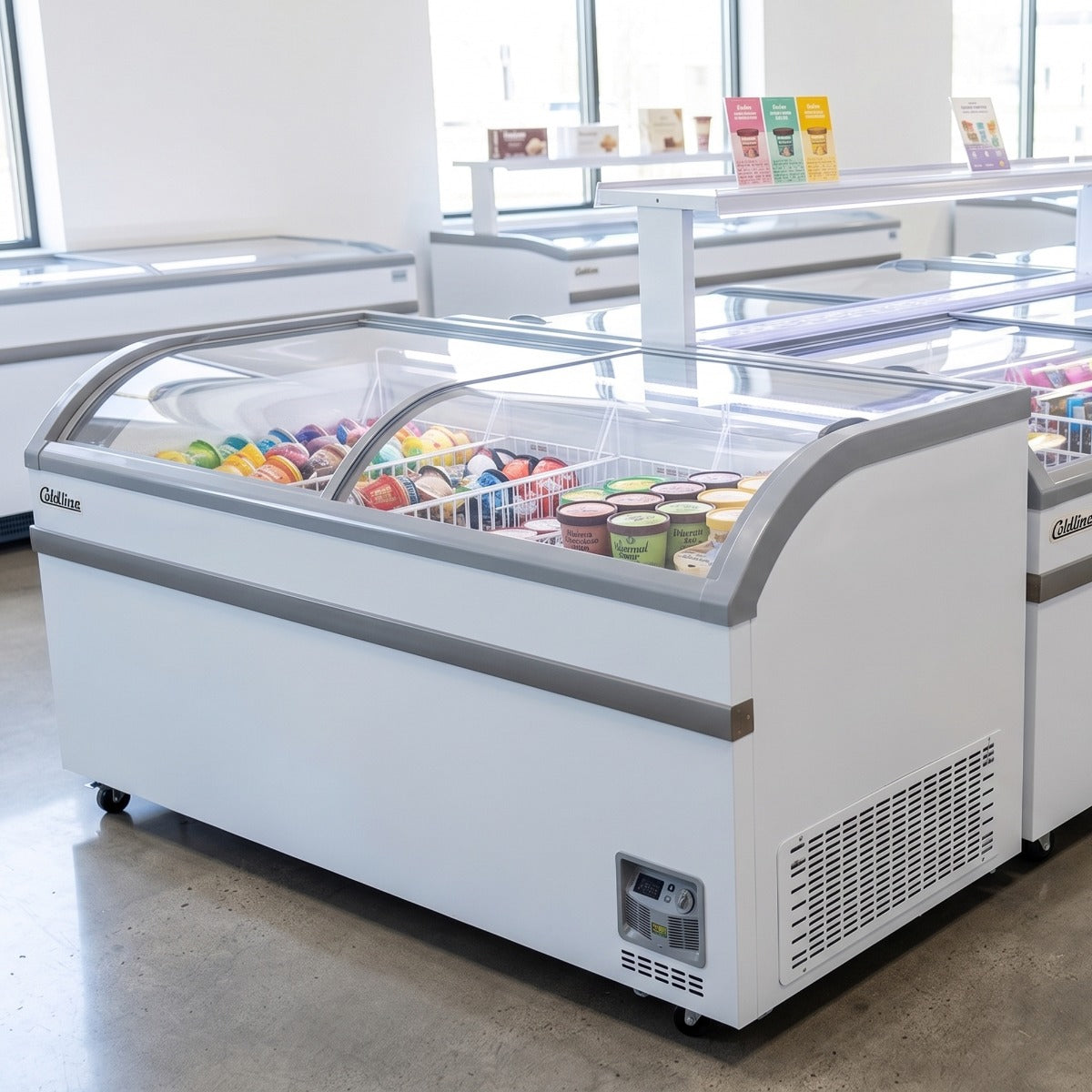

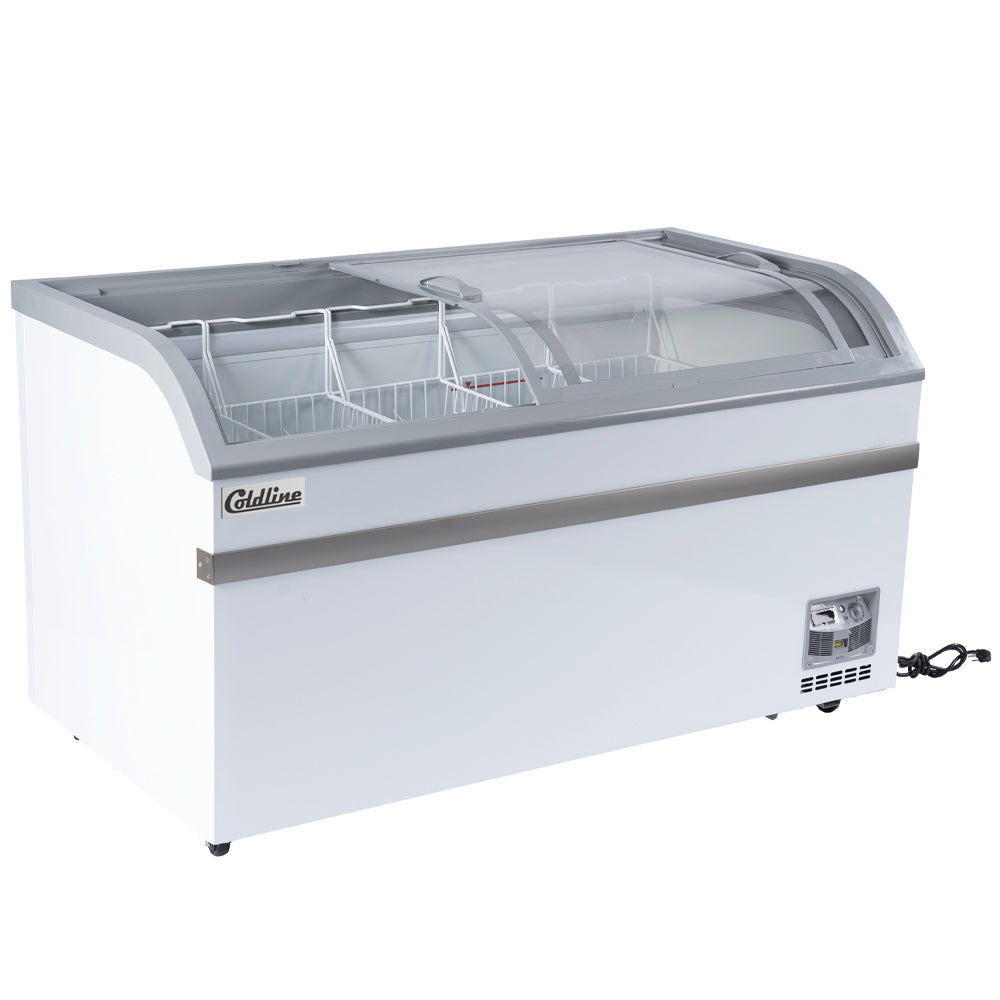

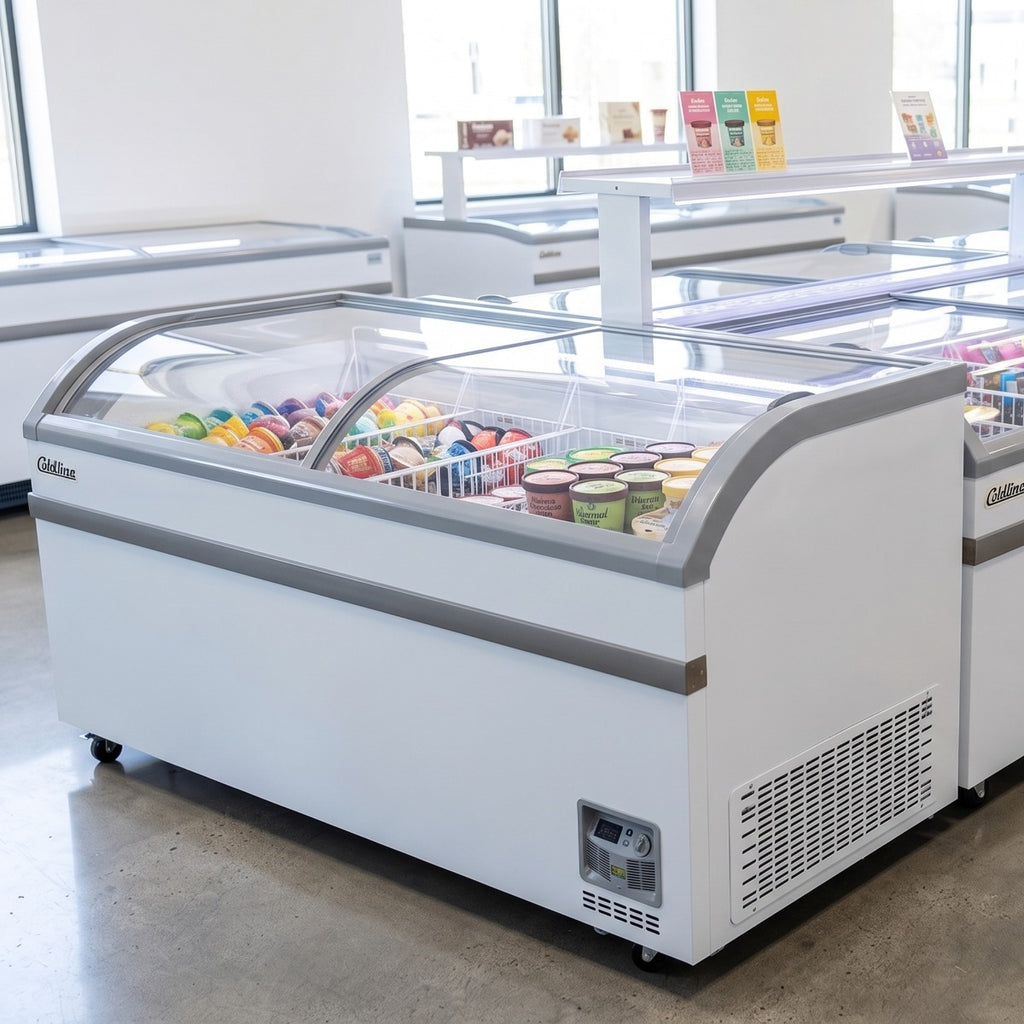

Coldline XS500YX 58" Curved Glass Top Ice Cream Display Freezer, 17.7 cu. ft., 5 Baskets, LED, -14.8 to -0.4°F, 115V
A 58" curved glass ice cream freezer that puts five baskets of frozen treats in front of your customers.
The Coldline XS500YX is a curved glass top display freezer for convenience stores, supermarkets, diners and school concession stands. It holds 17.7 cu. ft. at -14.8°F to -0.4°F in five coated wire baskets under two sliding Low-E tempered glass lids with LED lighting and a built-in lock. It plugs into a 115V outlet with a NEMA 5-15P plug (330 W) on a dedicated 15 amp circuit and rolls on four casters, two with brakes.
Measure every doorway and turn on the delivery path; its smallest outside dimension is the 29.8" depth. Coldline says not to tilt it more than 45° while moving it.

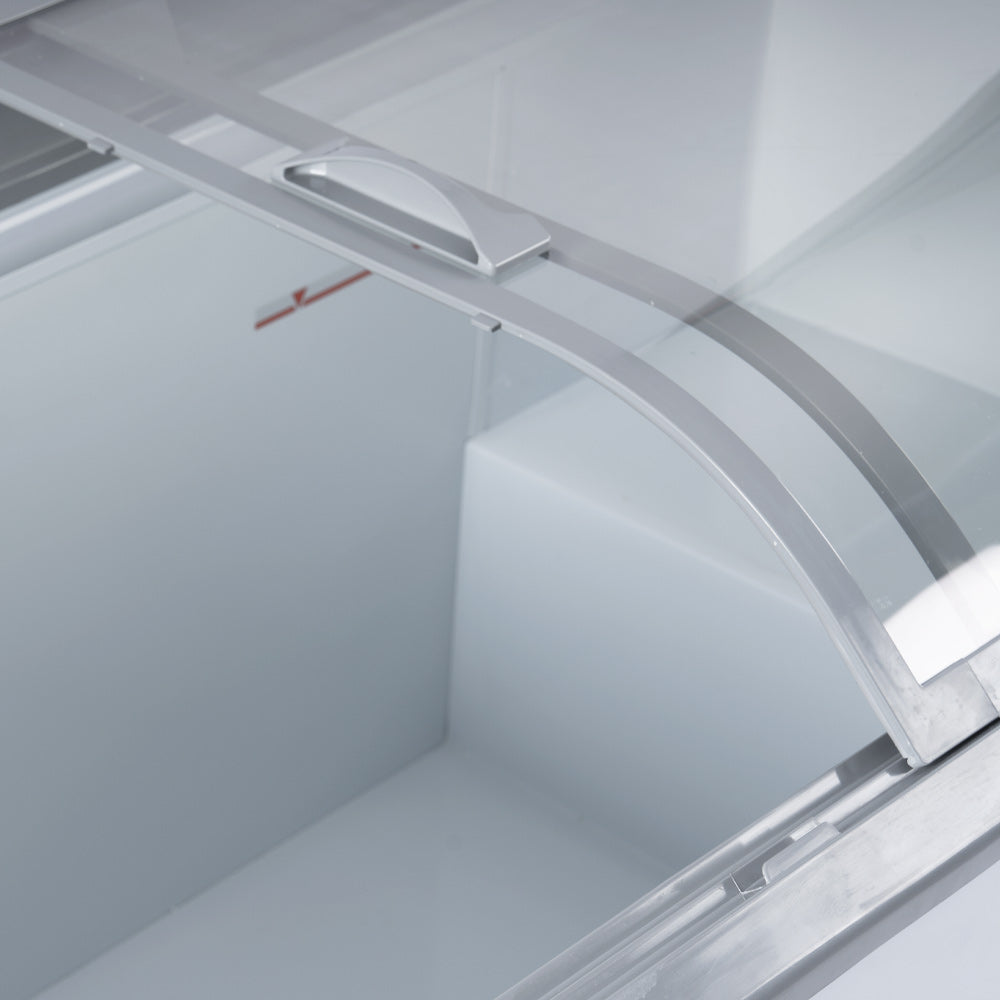

Curved glass top with sliding Low-E tempered lids shows the product and keeps the cold in.
5 coated wire baskets, each 21.8" L x 9.96" D x 12.85" H keep pints, bars and novelties organized.
Manual control holds -14.8°F to -0.4°F with R290 refrigerant.

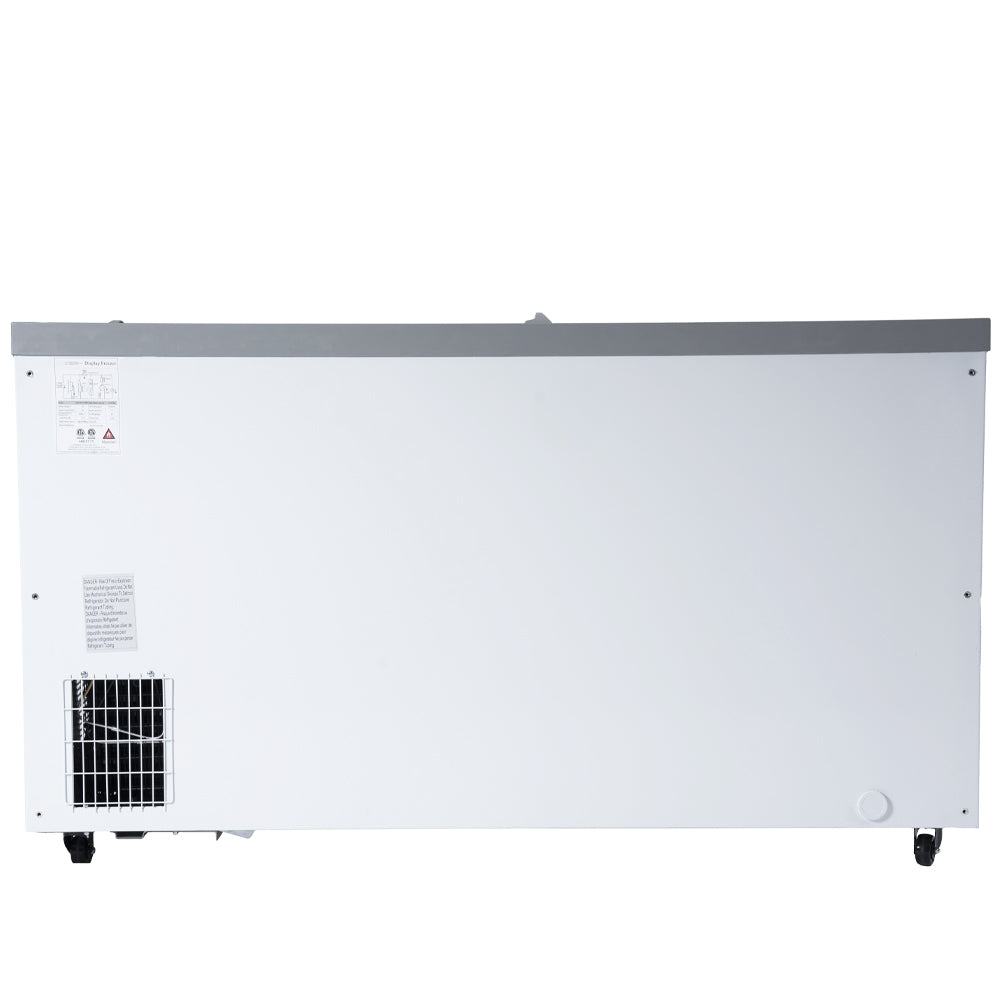

4 low-profile casters, 2 with brakes, plus a rear drain plug for defrosting.
A grounded 115V outlet for the NEMA 5-15P plug on a 72" cord. It is rated 330 W. USR Brands says it needs a dedicated 15 amp circuit installed by a licensed electrician.
It is 58.1" wide, 29.8" deep and 33.1" tall. The Coldline manual asks for more than 20 cm (7.9") behind and on both sides, in a dry, ventilated spot out of direct sun and away from heat sources.
Coldline rates it at -14.8°F to -0.4°F in rooms up to 90°F. It is meant for ice cream and other frozen desserts, not for bottled or canned drinks.
Defrosting is manual. When the frost layer reaches about 4-5 mm, switch it off, take out the product, open the lids and let it melt, then drain the water through the rear drain plug.
USR Brands covers XS-Series freezers for 1 year parts and labor from delivery, in the contiguous US. Glass is not covered, so refuse a delivery with broken glass. Food truck and farm installs are parts only; residential use is not covered.
The Coldline warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | XS500YX |
| Quantity | 1/Each |
| Shipping Weight | 209 lb. |
| Width | 58.1 Inches |
| Depth | 29.8 Inches |
| Height | 33.1 Inches |
| Packaging Dimensions | 61" L x 32" D x 39" H |
| Voltage | 115 Volts |
| Hertz | 60 |
| Phase | 1 |
| Wattage | 330 Watts |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 72 Inches |
| Circuit | Dedicated 15 Amp Circuit |
| Capacity | 17.7 cu. ft. |
| Temperature Range | -14.8 to -0.4 Degrees F |
| Refrigerant | R290 |
| Max. Ambient Temperature | 90 Degrees F |
| Defrost | ManualRear Drain Plug |
| Temperature Control | Manual |
| Top Style | Curved Glass |
| Lids | 2 Sliding Low-E Tempered Glass |
| Lock | Built-in |
| Lid Frame Color | Gray |
| Baskets | 5 coated wire baskets, each 21.8" L x 9.96" D x 12.85" H |
| Interior Lighting | LED |
| Exterior | White Painted SteelGray Plastic Trim |
| Interior | Steel |
| Insulation | Foamed-in-Place Polyurethane |
| Casters | 4 Low-Profile2 with Brakes, 2 without |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
| Usage | CommercialIce Cream and Frozen Desserts |
