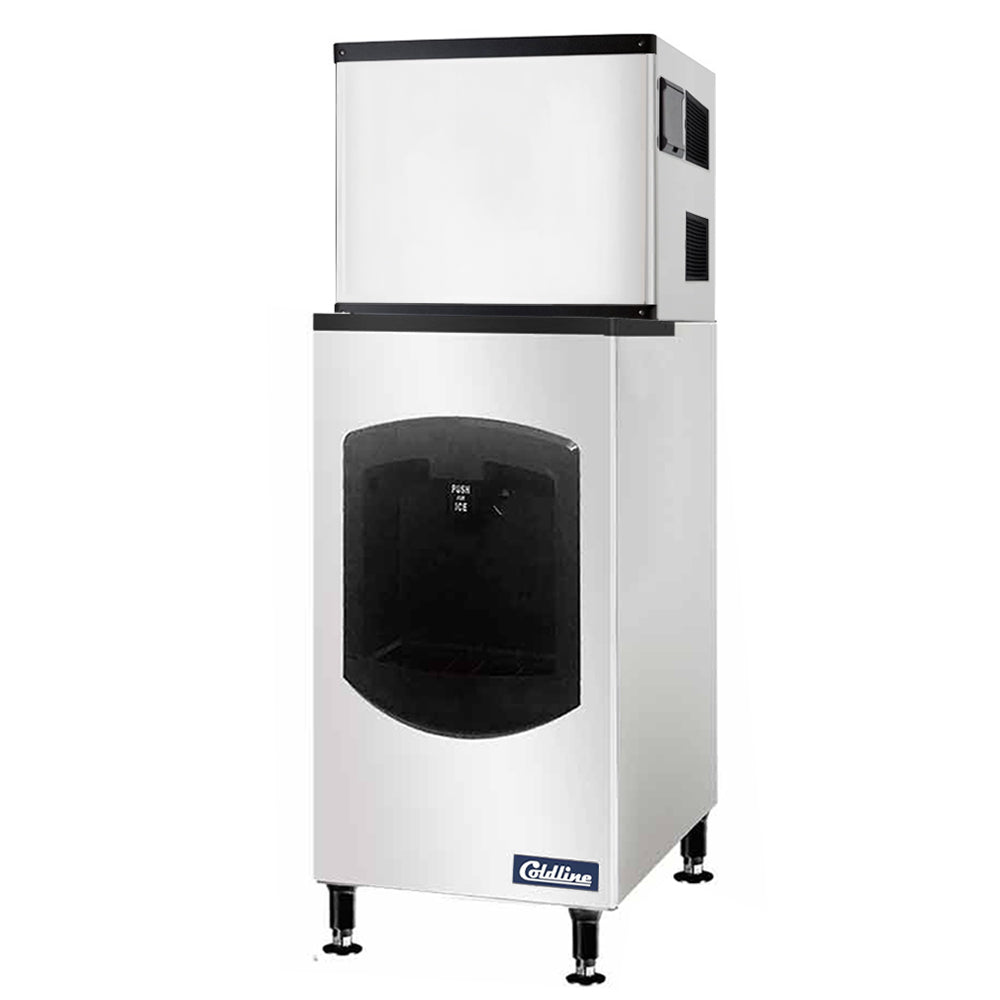

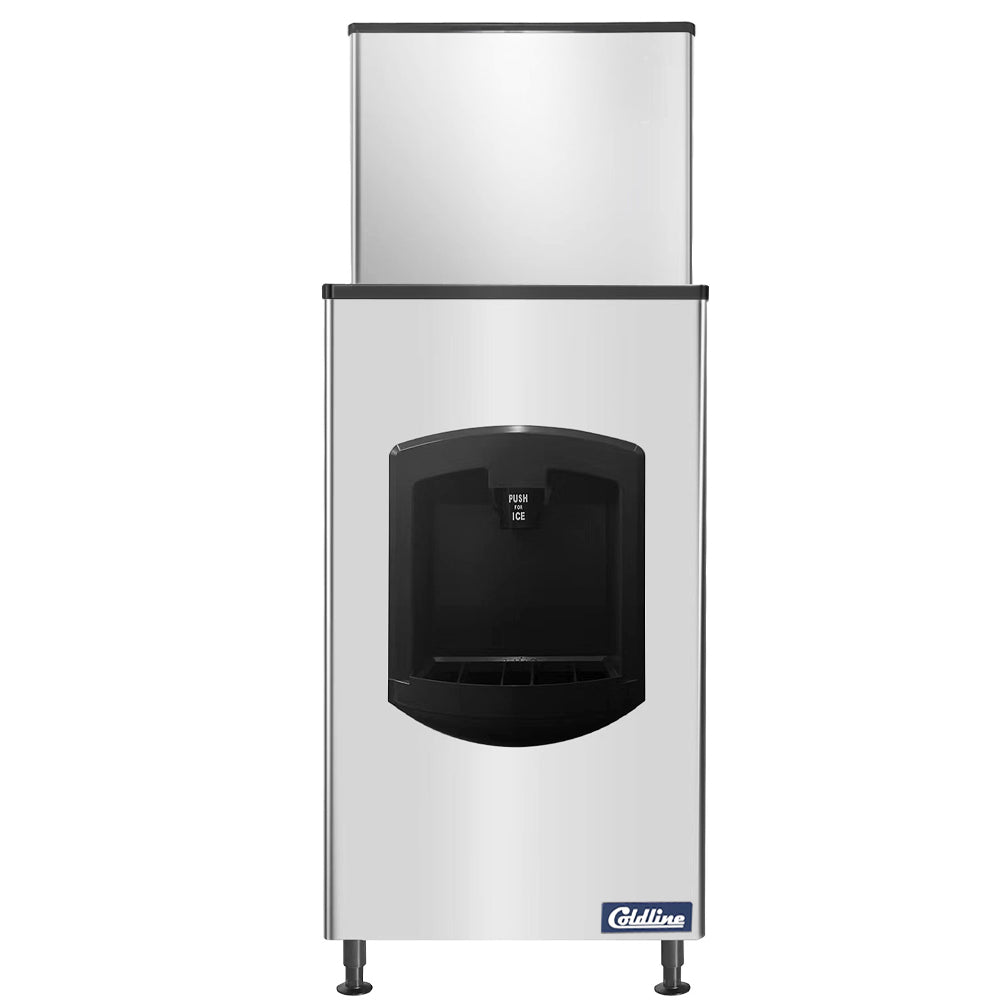

Coldline ICE550-HA-BD250-30 30" Half Cube Ice Machine with 250 lb. Dispensing Bin, 550 lb./Day, Air Cooled, 115V
A 30"-wide self-serve ice station: a 550 lb. half cube ice machine on a 250 lb. push-lever dispensing bin.
The Coldline ICE550-HA-BD250-30 pairs a modular half cube ice machine with a 250 lb. dispensing bin for hotels, hospitals and self-service stations. It makes up to 550 lb. of ice a day, and guests fill cups or buckets with a push-for-ice lever instead of scooping. It is 30" wide and 75.7" tall, runs on 115V with a NEMA 5-15P plug (1240 W), and uses R290 refrigerant.
At 75.7" tall, check the ceiling height and the delivery path; the 30" width is its narrowest side.
1/2" x 7/8" x 7/8" half cube cubes, up to 550 lb. every 24 hours, with adjustable thickness.
The 250 lb. bin hands out ice with a lever, so guests never reach into the bin.
A digital controller and display run production, ice thickness and the self-clean system.
Stainless steel exterior, polyethylene interior and foamed-in-place insulation.
A grounded 115V outlet for the NEMA 5-15P plug. The spec sheet rates it at 115V, 60 Hz, single phase, 1240 W; it lists no amps. The manual asks for a grounded socket with leakage (ground fault) protection.
A potable cold water line at 19 to 80 PSIG and a floor drain near the machine. The manual says to use the 3/4" inlet pipe supplied, add a shut-off valve (not supplied), slope the drain line more than 3 cm per meter, replace the inlet water filter every 1 to 3 months, and never connect hot water. A drain hose and a hose connector come in the box.
It is 30" wide, 33.7" deep and 75.7" tall including the bin. The Coldline manual asks for at least 30 cm (12") in front, 15 cm (6") at the sides and 20 cm (8") behind for airflow.
Indoors only, on a level floor that can carry its weight, away from heat sources and direct sun. The manual rates it for 5 to 40°C (41 to 104°F) rooms and 5 to 35°C (41 to 95°F) supply water, and says to let it stand upright for more than 24 hours after delivery before starting it.
USR Brands covers Coldline ICE-Series ice machines for 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor), in the contiguous US. Food truck and farm installs are parts only; residential use is not covered. The ice machine warranty names the ICE, NU and EIC series; it does not name storage or dispensing bins, so ask us about bin coverage.
The Coldline ice machine warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | ICE550-HA-BD250-30 |
| Quantity | 1/Each |
| Shipping Weight | 357 lb. |
| Net Weight | 328 lb. |
| Width | 30 Inches |
| Depth | 33.7 Inches |
| Height | 75.7 Inches |
| Packaging Dimensions | 33" W x 35" D x 70" H |
| Voltage | 115 Volts |
| Hertz | 60 |
| Phase | 1 |
| Wattage | 1240 Watts |
| Plug Type | NEMA 5-15P |
| Ice Type | Half Cube |
| Ice Size | 1/2" x 7/8" x 7/8" |
| Capacity | 550 lb./Day250 lb. Storage |
| Dispenser | Push-for-Ice Lever |
| Condenser | Air Cooled |
| Refrigerant | R290 |
| Water Pressure | 19 - 80 PSIG |
| Controls | Digital Controller and Display |
| Cleaning | Self-Clean System |
| Ice Thickness | Adjustable |
| Exterior | Stainless Steel |
| Interior | Polyethylene |
| Insulation | Foamed-in-Place Polyurethane |
| Legs | Adjustable Leveling |
| Accessories Included | Drain HoseHose Connector |
| Clearance | 30 cm (12") Front15 cm (6") Sides20 cm (8") Rear |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
| Usage | CommercialIndoor Use Only |
