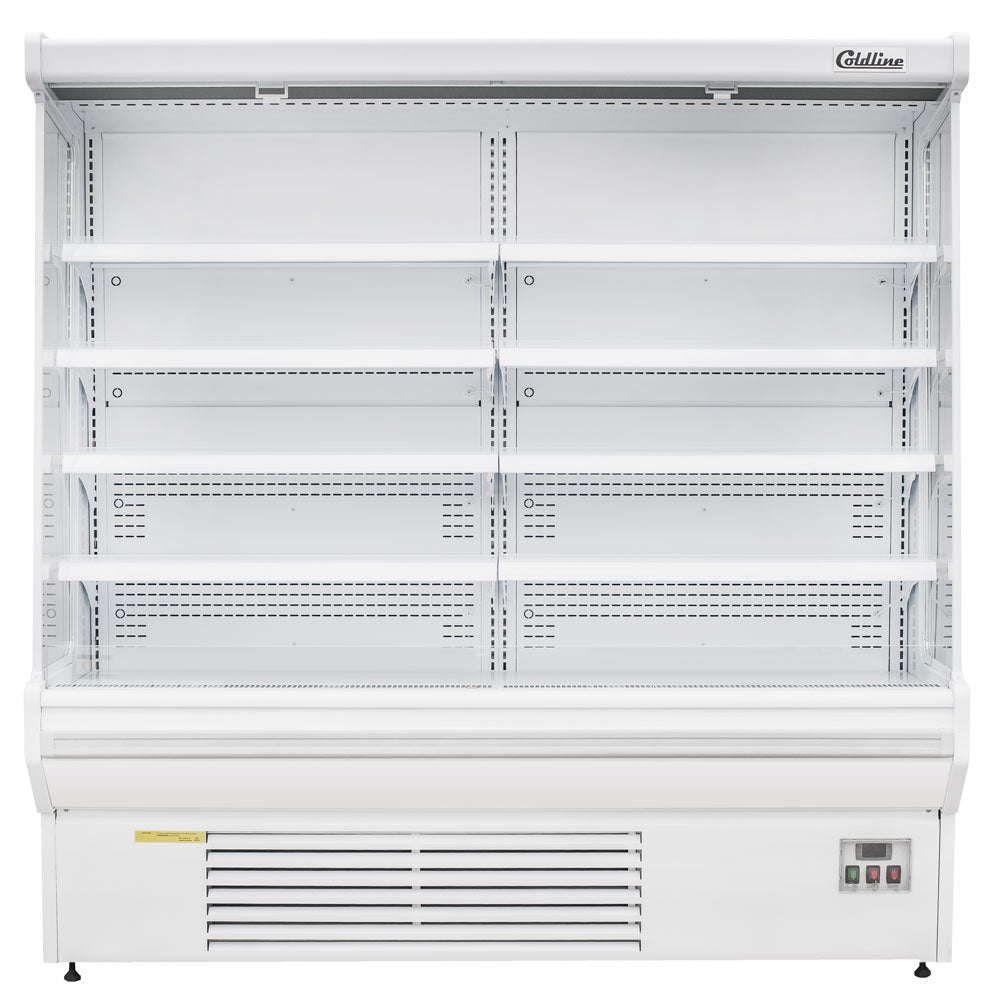

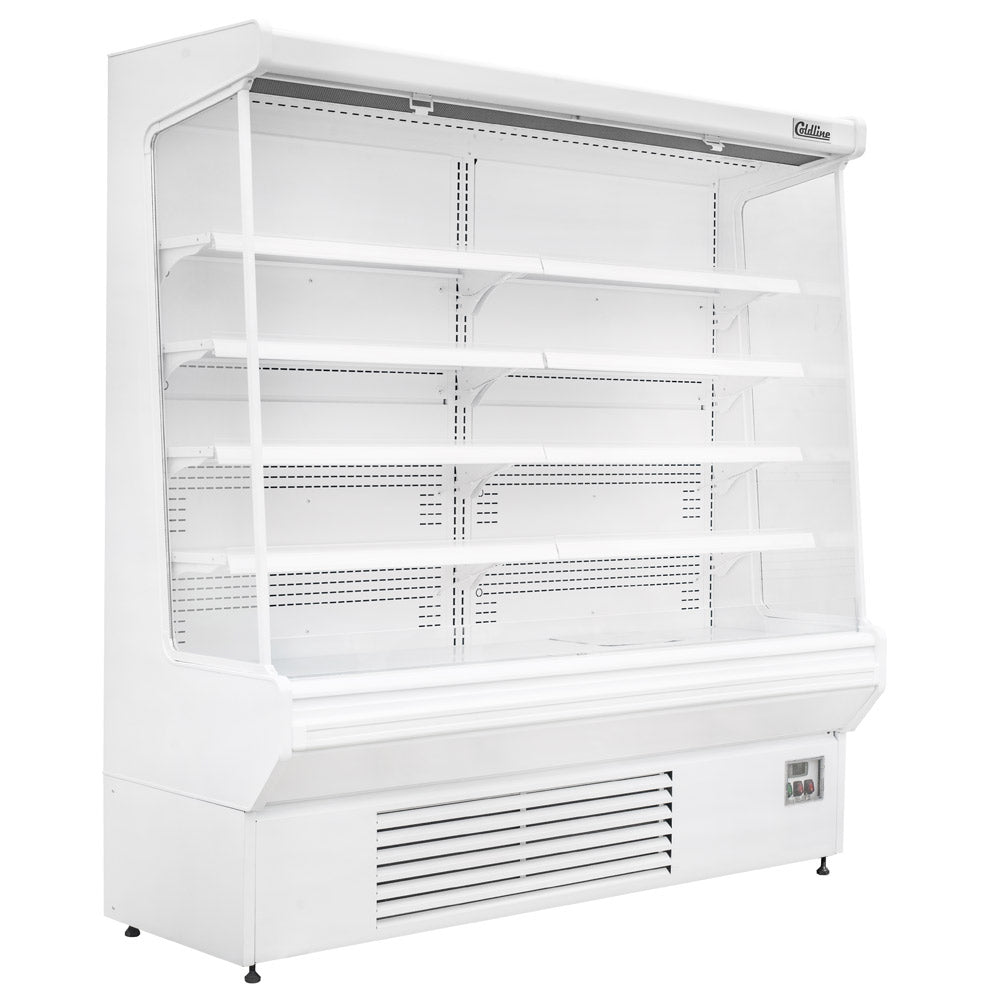

Coldline SOC-76-220-W 76" White Open Air Curtain Refrigerated Merchandiser, 27 cu. ft., 4 Shelves, Night Curtain, 220V, NEMA 6-30P

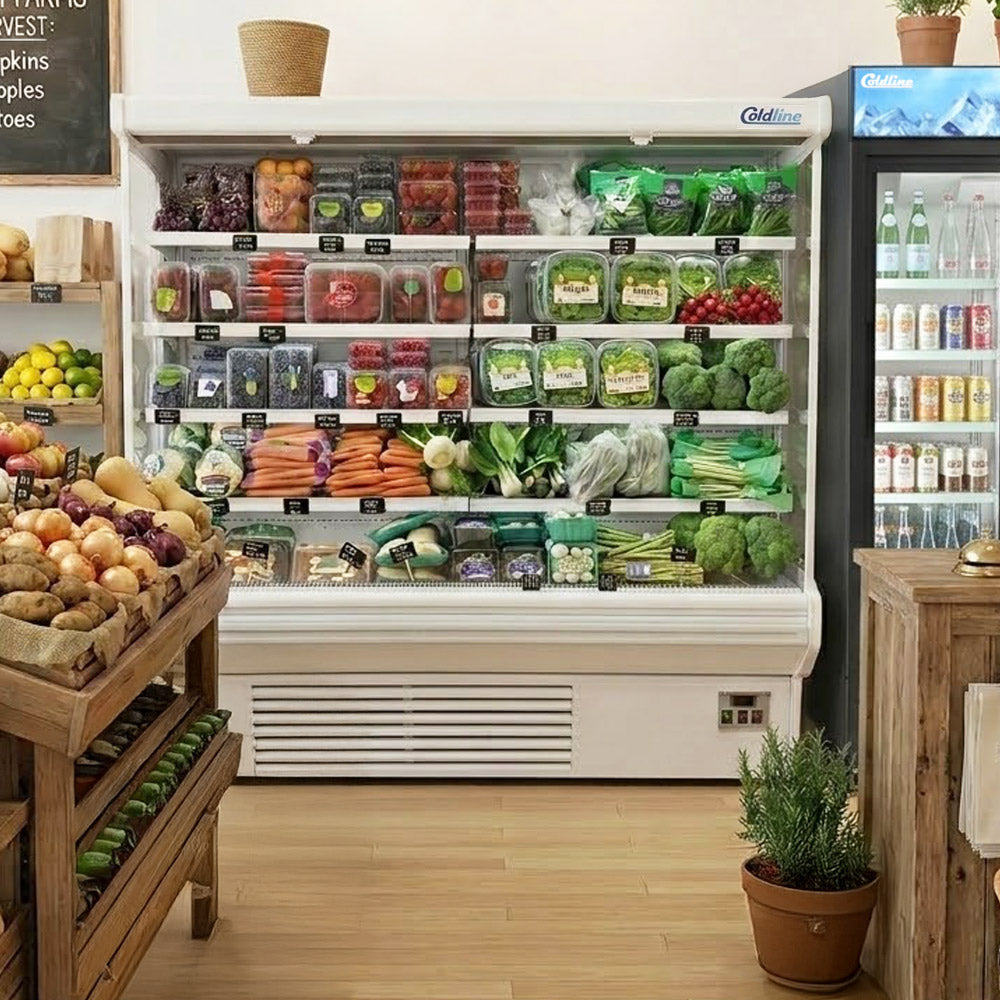

A 76" open air merchandiser that puts grab-and-go salads, dairy and drinks within reach, with no doors in the way.
The Coldline SOC-76-220-W is a self-contained open air curtain merchandiser for grocery stores, delis, cafes and convenience stores. It holds 27 cu. ft. of product on 4 adjustable LED-lit shelves and a base deck, with shelf tag holders and a night curtain for closing hours. This is the 220V version: it needs a dedicated 30 amp circuit with a NEMA 6-30P receptacle, so plan the electrical work before delivery.
Measure every doorway, ceiling and turn on the delivery path; its smallest outside dimension is the 27.6" depth. Keep it away from doors and air vents that disturb the air curtain.
An air curtain keeps product cold with no doors, so shoppers grab and go.
4 shelves hold 90 lb. each and tilt at 0°, 9° or 18°, each with its own LED light.
Pull the night curtain down after hours to hold temperature and save energy.
A digital controller and automatic defrost with a finned evaporator and R290 refrigerant.

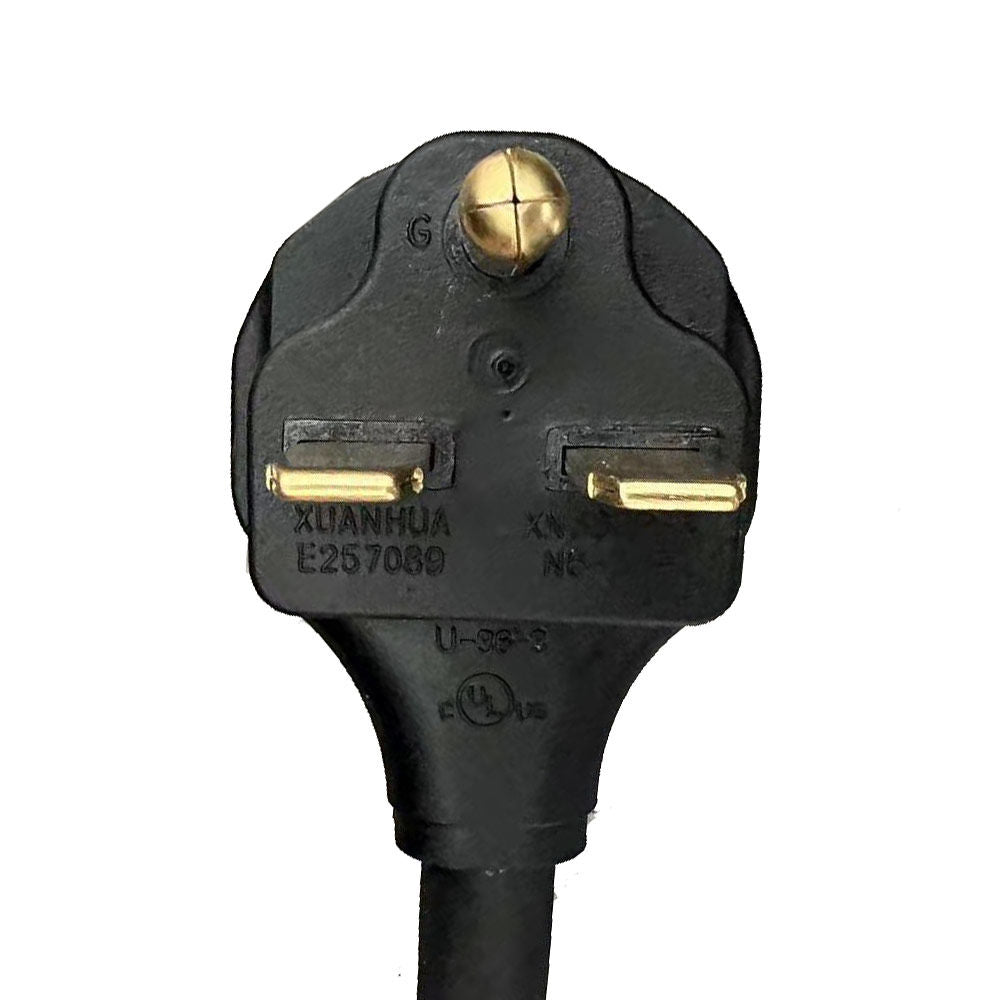

It runs on 220V, 60 Hz, single phase and draws 16.3 A. It has a NEMA 6-30P plug on a 45" cord, and USR Brands states it needs a dedicated 30 amp circuit installed by a licensed electrician. A standard 115V outlet will not work.
The case is 76.2" wide, 27.6" deep and 78.8" high and weighs 735 lb. (948 lb. shipping); it ships in an 81" x 32" x 88" crate. Measure every doorway, ceiling height and turn on the delivery path; its smallest outside dimension is the 27.6" depth.

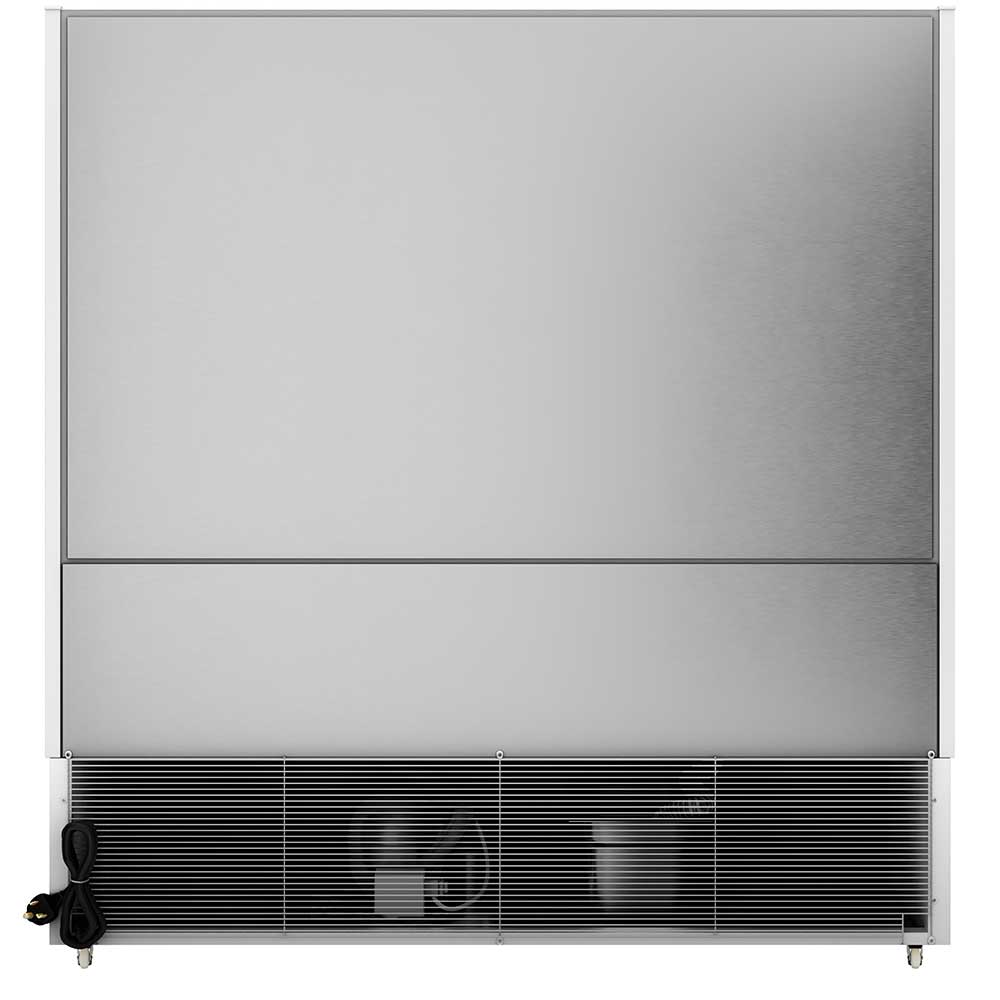

Indoors only. Coldline designs it for rooms up to 75°F and 55% relative humidity, on a level floor, away from direct sun, heat sources, doors, fans and air vents that disturb the air curtain. The manual asks for a 110 mm (4.3") gap between the back panel and a wall.
The technical data lists 30.2°F to 44.6°F, set on a digital controller, with automatic defrost. Pull the night curtain down after closing hours to hold temperature and save energy.
Each of the 4 adjustable shelves holds 90 lb. and tilts at 0°, 9° or 18°. The shelves are 11.0", 11.8", 11.8" and 13.8" deep from top to bottom, above a 17.1" deep base deck.
USR Brands covers the Coldline SOC-Series for 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor), in the contiguous US. Glass is not covered. Food truck and farm installs are covered for parts only.
The Coldline refrigeration warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | SOC-76-220-W |
| Quantity | 1/Each |
| Shipping Weight | 948 lb. |
| Net Weight | 735 lb. |
| Width | 76.2 Inches |
| Depth | 27.6 Inches |
| Height | 78.8 Inches |
| Interior Dimensions | 73.8" W x 17.8" D x 44.6" H |
| Display Deck Height | 25.3 Inches |
| Front Ledge Height | 28.7 Inches |
| Packaging Dimensions | 81" L x 32" D x 88" H |
| Wall Clearance | 110 mm (4.3") Behind |
| Voltage | 220 Volts |
| Amps | 16.3 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 6-30P |
| Power Cord Length | 45 Inches |
| Circuit | Dedicated 30 Amp Circuit |
| Capacity | 27 cu. ft. |
| Temperature Range | 30.2 - 44.6 Degrees F |
| Refrigerant | R290 |
| Horsepower | 2 x 1 HP |
| Defrost | Automatic |
| Controls | Digital Controller |
| Evaporator | Finned |
| Max. Ambient Conditions | 75 Degrees F55% Relative Humidity |
| Shelves | 4 Adjustable11.0", 11.8", 11.8" and 13.8" DeepTilt 0°, 9° or 18° |
| Base Deck Depth | 17.1 Inches |
| Shelf Load Capacity | 90 lb. |
| Interior Lighting | LED on Every Shelf |
| Night Curtain | Yes |
| Shelf Tag Holders | Yes |
| Exterior | White Painted Steel |
| Interior | Painted Steel |
| Insulation | Foamed-in-Place Polyurethane |
| Feet | Pre-installed Leveling Feet and 1.2" Casters |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
| Usage | Indoor Only |
