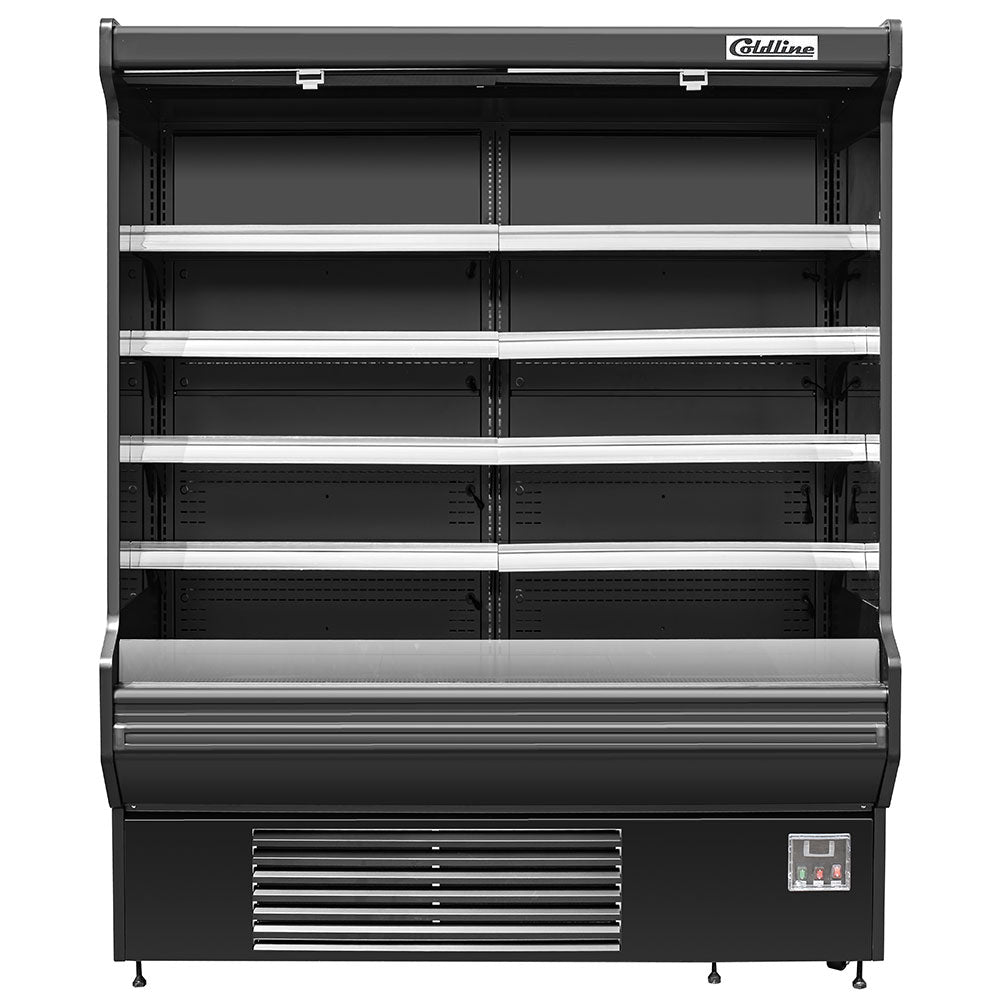

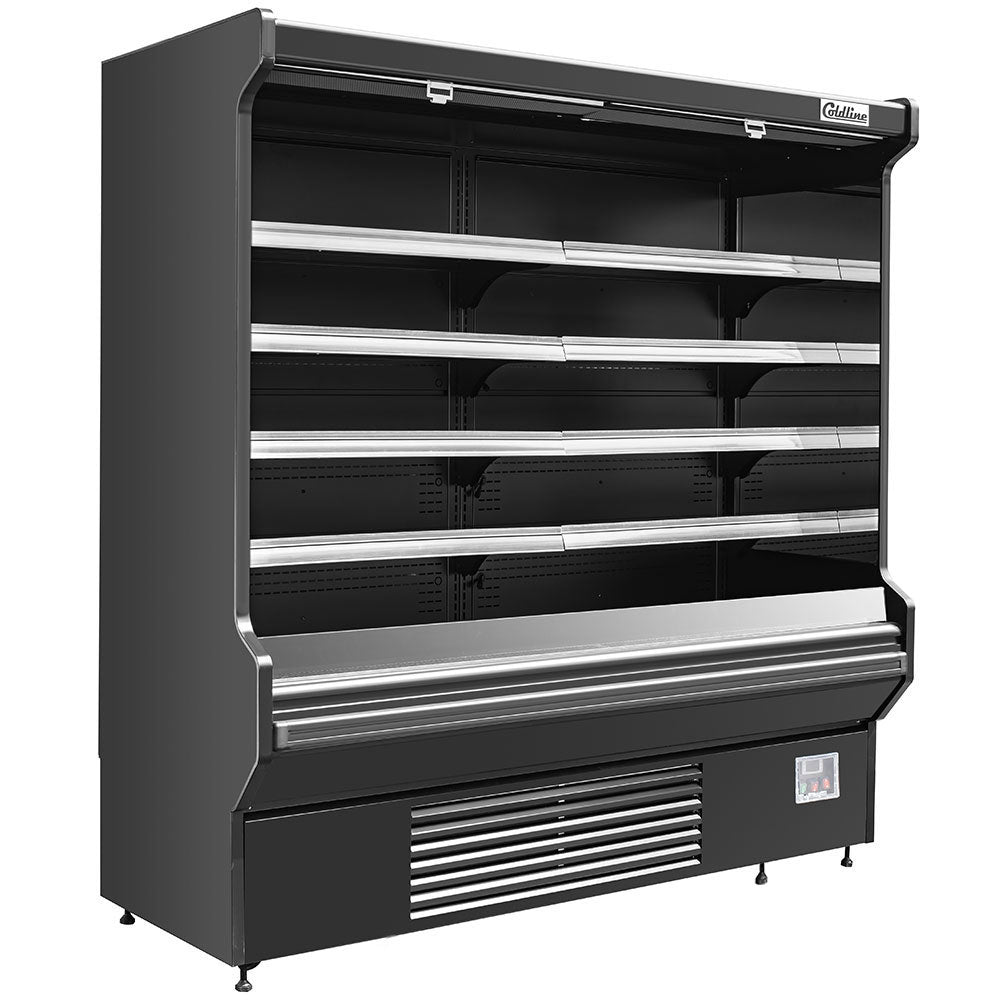

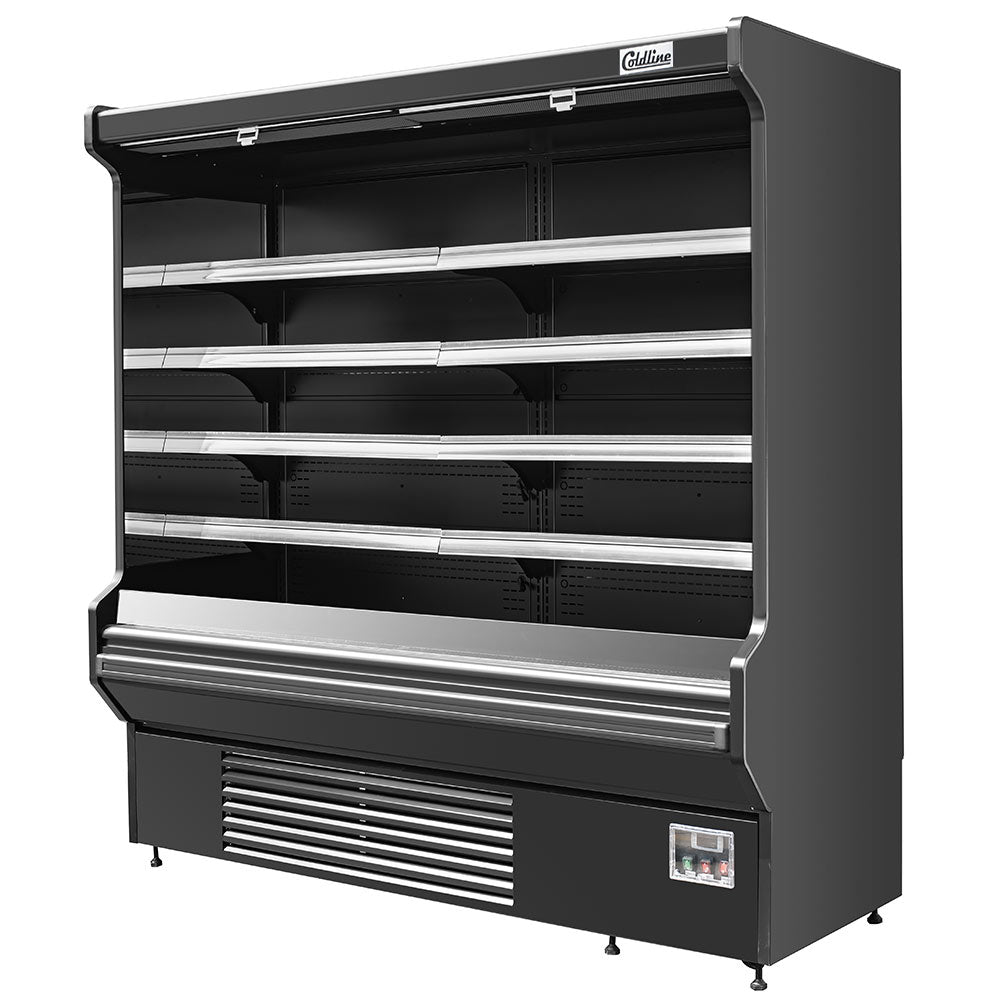

Coldline SOCD-76-B 76" Black Deep Open Air Refrigerated Merchandiser, Air Curtain, 33 cu. ft., 30.2-44.6°F, 220V NEMA 6-30P

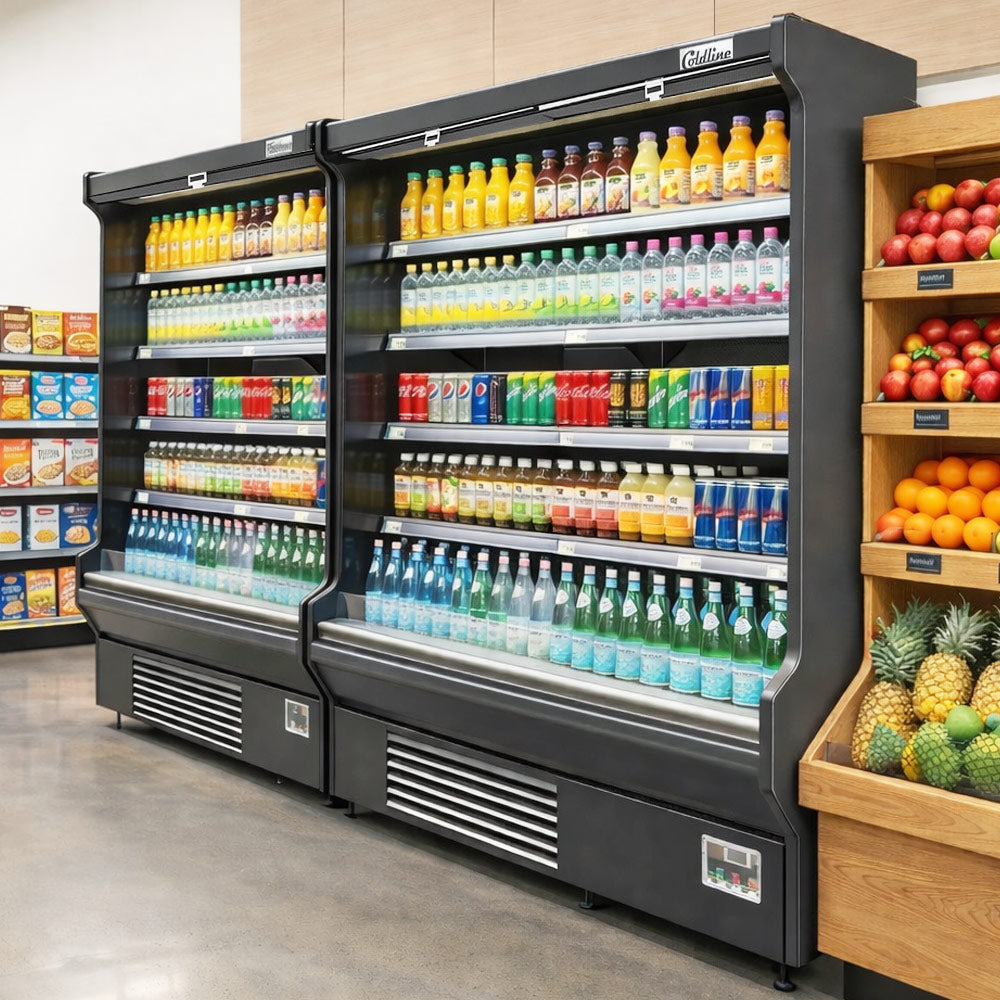

A 76" black deep open air merchandiser that puts cold drinks and grab-and-go food within reach of customers.
The Coldline SOCD-76-B is a self-serve refrigerated display for convenience stores, cafes, delis, markets and cafeterias. An air curtain keeps 33 cu. ft. of product at 30.2°F to 44.6°F with no doors in the way, on adjustable shelves that each have an LED light and a price tag holder. A night curtain closes it off after hours, and it runs on 220V with a NEMA 6-30P plug on a dedicated 30 A circuit.
An air curtain holds 30.2°F to 44.6°F across the open front, so customers grab items faster.
Each adjustable shelf has its own LED light and a shelf tag holder, rated 90 lb.
Pull the curtain down after closing to keep the cold in overnight.
Condensate evaporates on board, so no floor drain is needed.

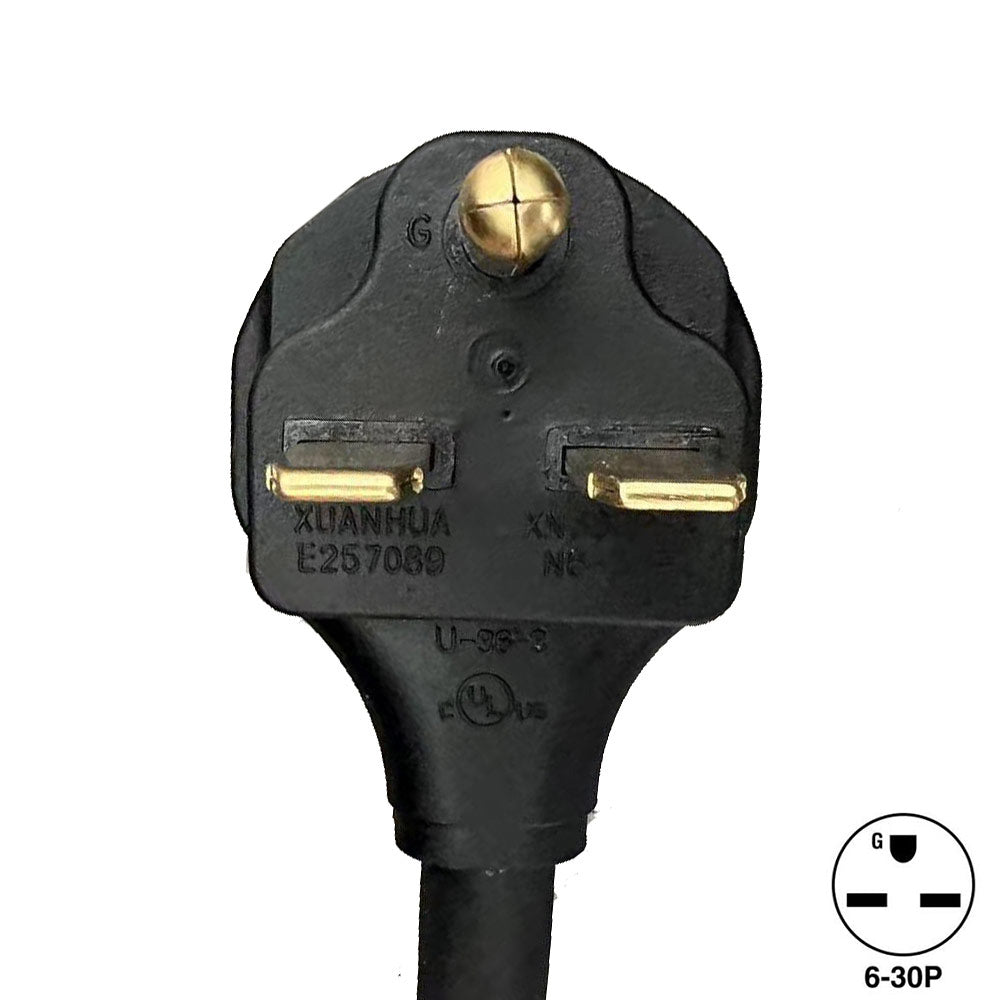

It runs on 220V, 60 Hz, single phase and draws 16.3 A through a NEMA 6-30P plug on a 45" cord, so it needs a 30 A, 250V (NEMA 6-30R) receptacle, not a standard 115V wall outlet. Coldline requires a dedicated 30 A circuit installed by a licensed electrician.
Coldline designed it for rooms that stay at or below 75°F and 55% relative humidity. Keep it indoors in an air-conditioned space, away from direct sun, doors, fans and air vents that blow across the open front; warmer or more humid rooms make the air curtain struggle.
It holds 30.2°F to 44.6°F. It is a self-serve display for cold packaged drinks, dairy, salads, deli and grab-and-go items. Keep products behind the shelf edge so they do not block the air curtain, and use the night curtain after hours.
It is 76.2" wide, 31.5" deep and 78.8" tall and ships at 936 lb. in a 79" W × 33" D × 84" H package. Measure every doorway, hallway and turn on the delivery path; the 31.5" depth is its smallest outside dimension.
USR Brands covers the Coldline SOCD-Series for 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor), in the contiguous US. Glass is not covered, food truck and farm installs are parts only, and residential use is not covered.
The Coldline refrigeration warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | SOCD-76-B |
| Quantity | 1/Each |
| Shipping Weight | 936 lb. |
| Net Weight | 774 lb. |
| Width | 76.2 Inches |
| Depth | 31.5 Inches |
| Height | 78.8 Inches |
| Packaging Dimensions | 79" W x 33" D x 84" H |
| Voltage | 220 Volts |
| Amps | 16.3 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 6-30P |
| Power Cord Length | 45 Inches |
| Circuit | Dedicated 30 Amp, Installed by a Licensed Electrician |
| Capacity | 33 cu. ft. |
| Temperature Range | 30.2 - 44.6 Degrees F |
| Refrigerant | R290 |
| Horsepower | (2) 1 |
| Defrost | Automatic |
| Controls | Digital |
| Evaporator | Finned |
| Max. Ambient Conditions | 75 Degrees F55% Relative Humidity |
| Display Style | Open Air (Air Curtain)Night Curtain |
| Shelves | Adjustable Steel Plate, 16.5" DeepShelf Tag HoldersTilt 0°, 9° or 18° |
| Shelf Load Capacity | 90 lb. per Shelf |
| Interior Lighting | LED on Every Shelf |
| Exterior | Black Painted Steel |
| Interior | Painted Steel |
| Insulation | Foamed-in-Place Polyurethane |
| Condensate | Built-in Evaporating System |
| Casters / Feet | Pre-installed Leveling Feet and 1.2" Casters |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
