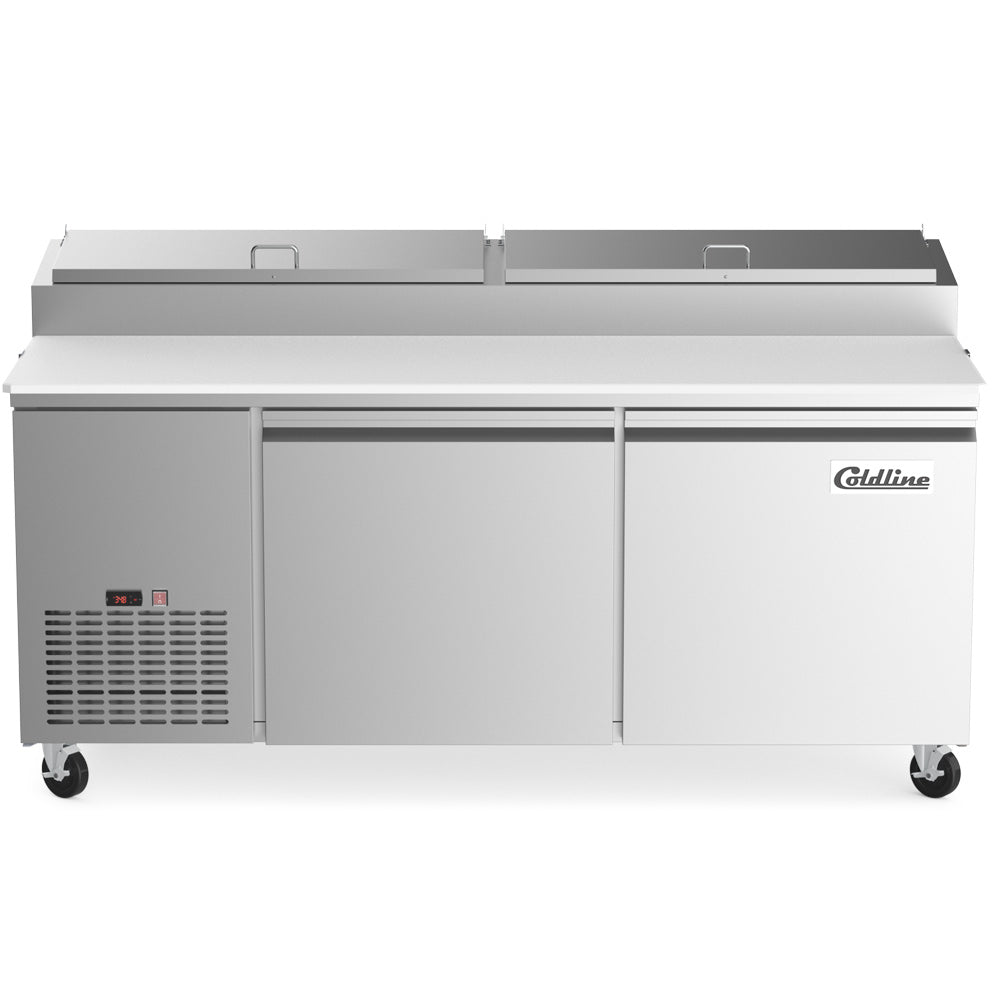

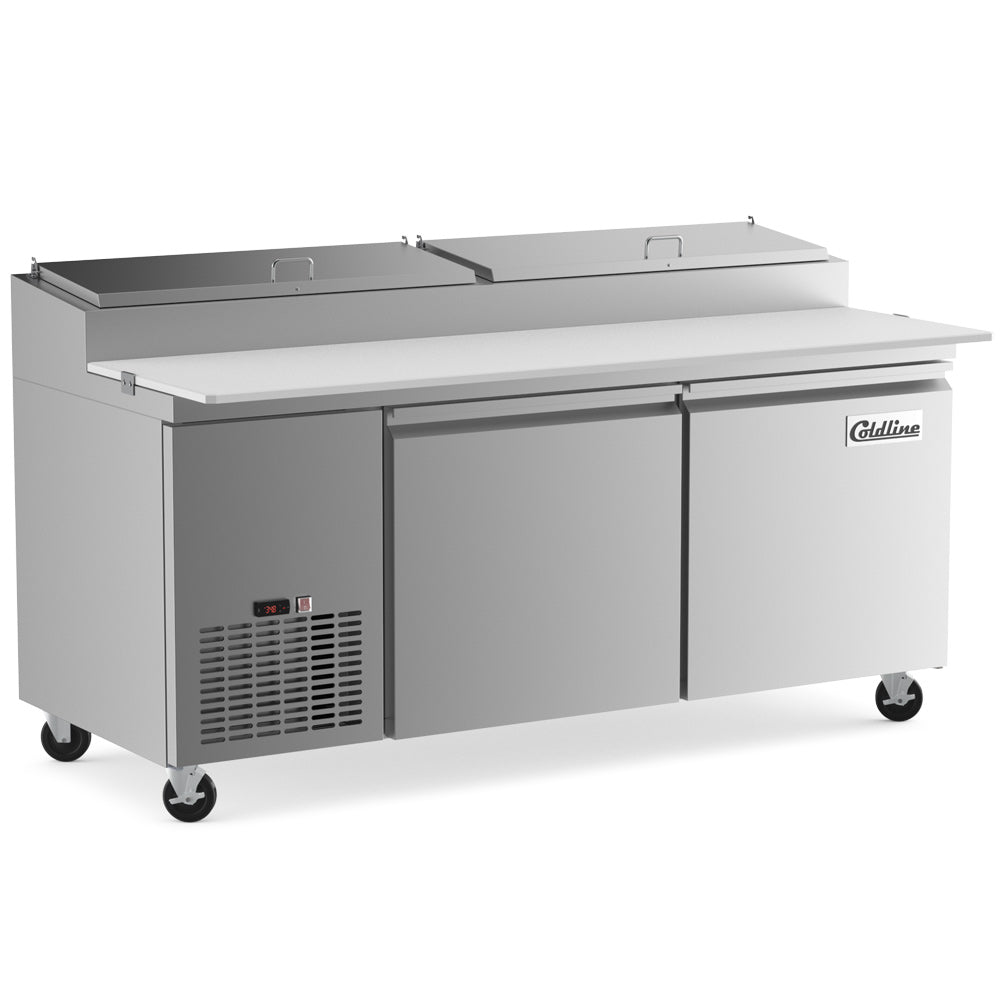

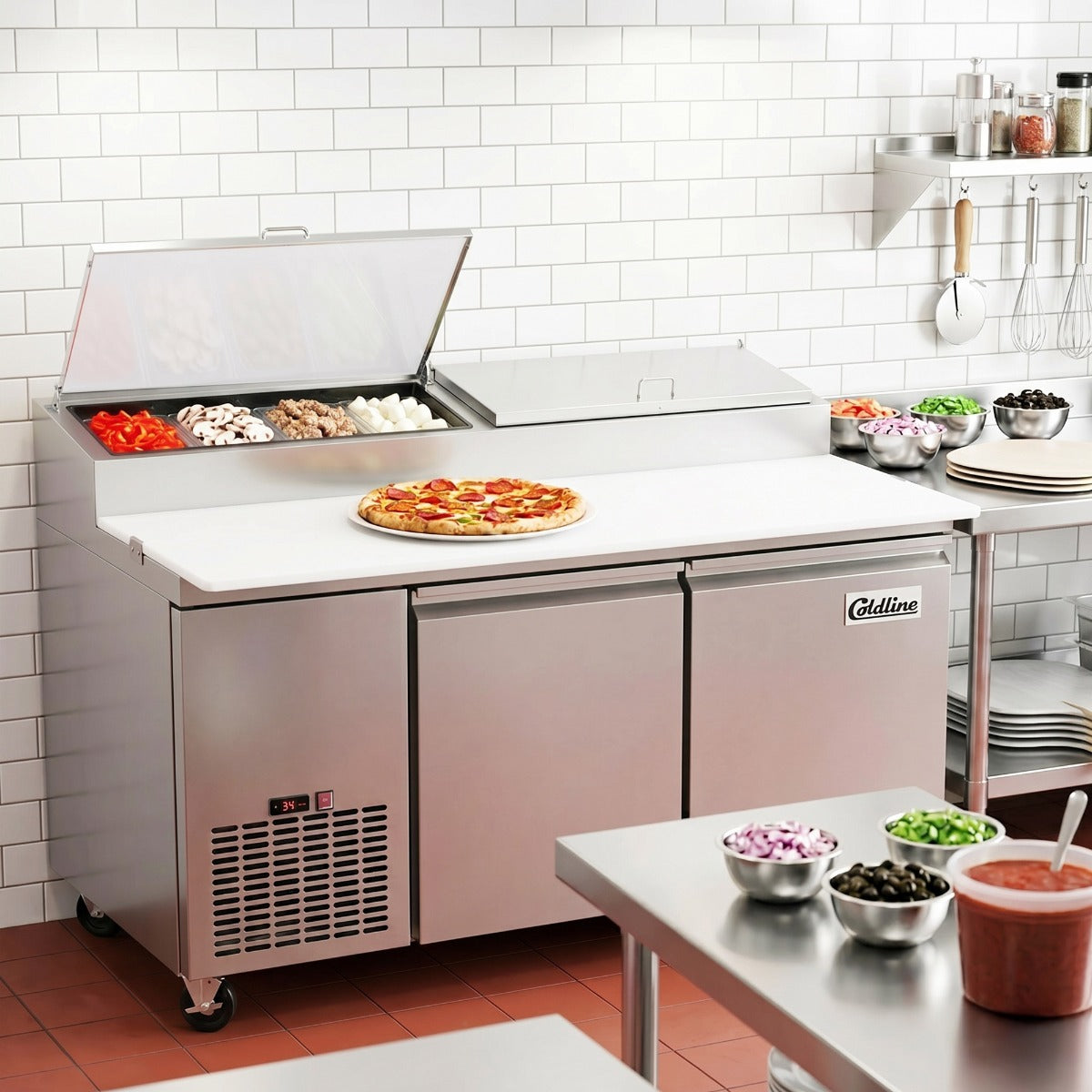

Coldline CPT-72 71" 2-Door Refrigerated Pizza Prep Table, (9) 1/3 Pans and Cutting Board Included, 16.9 cu. ft., 115V
A 71" refrigerated pizza prep table with a cold topping rail, a full-length cutting board and storage below.
The Coldline CPT-72 is a pizza and sandwich prep station for pizzerias, restaurants and delis. Its refrigerated rail holds (9) 1/3 size pans under an insulated lid, the cutting board runs the full length at a 35.3" working height, and the 16.9 cu. ft. base behind 2 self-closing doors stores dough and refills at 33°F to 41°F. Pans and cutting board come with it, and it plugs into a 115V NEMA 5-15P outlet on a dedicated 15 A circuit.
Measure every doorway and turn on the delivery path; the cabinet is 31.5" deep without the cutting board.

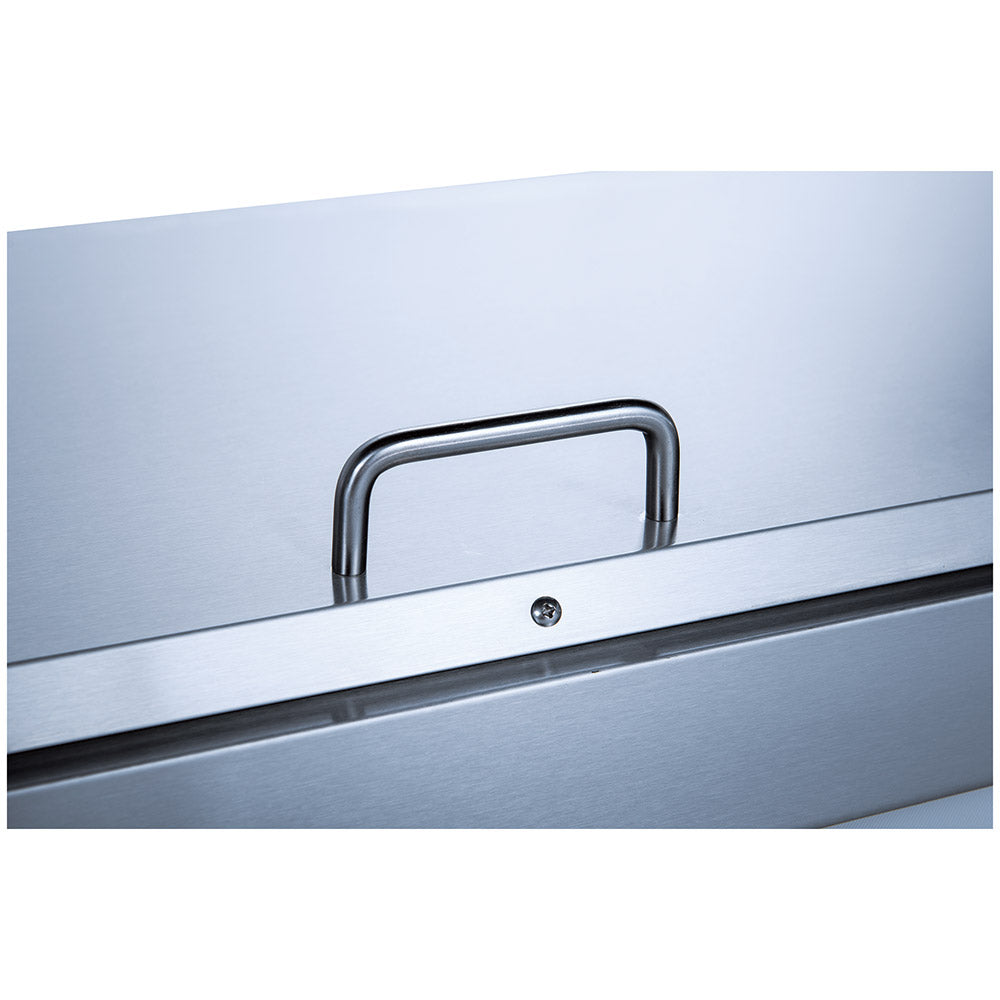

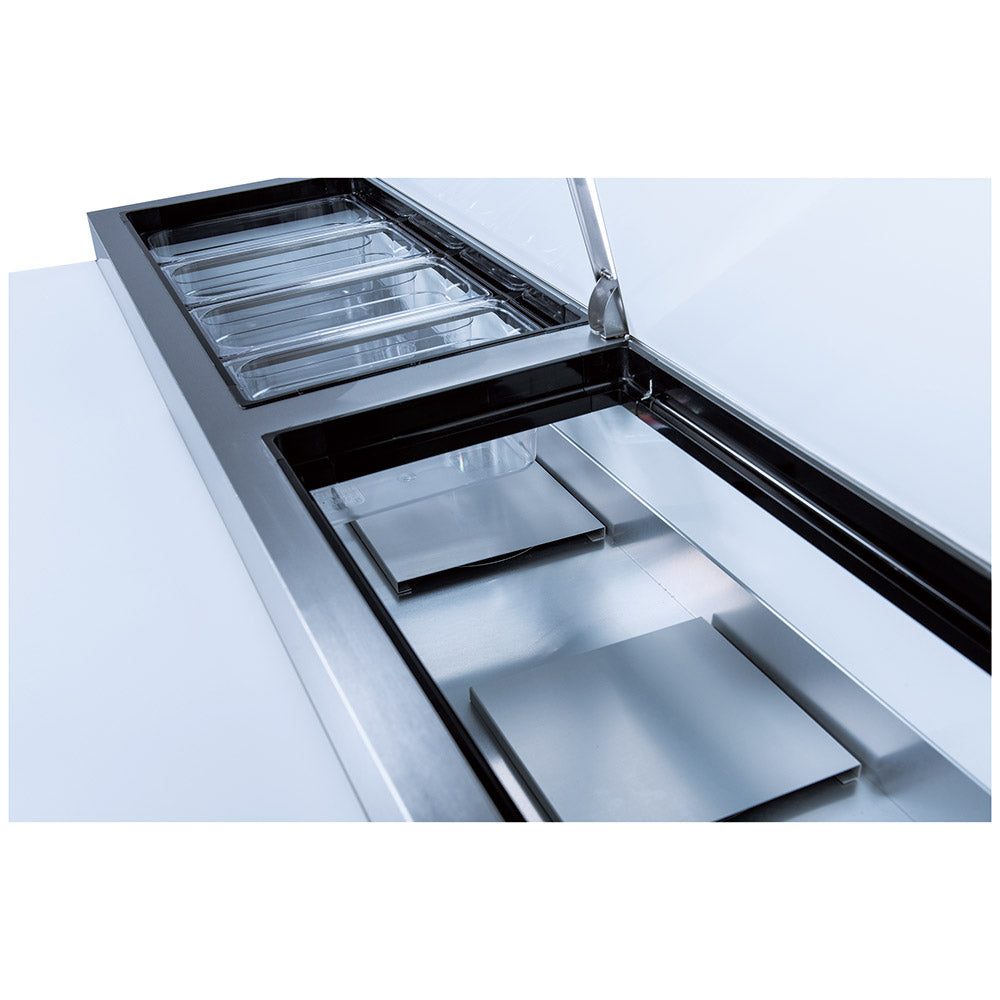

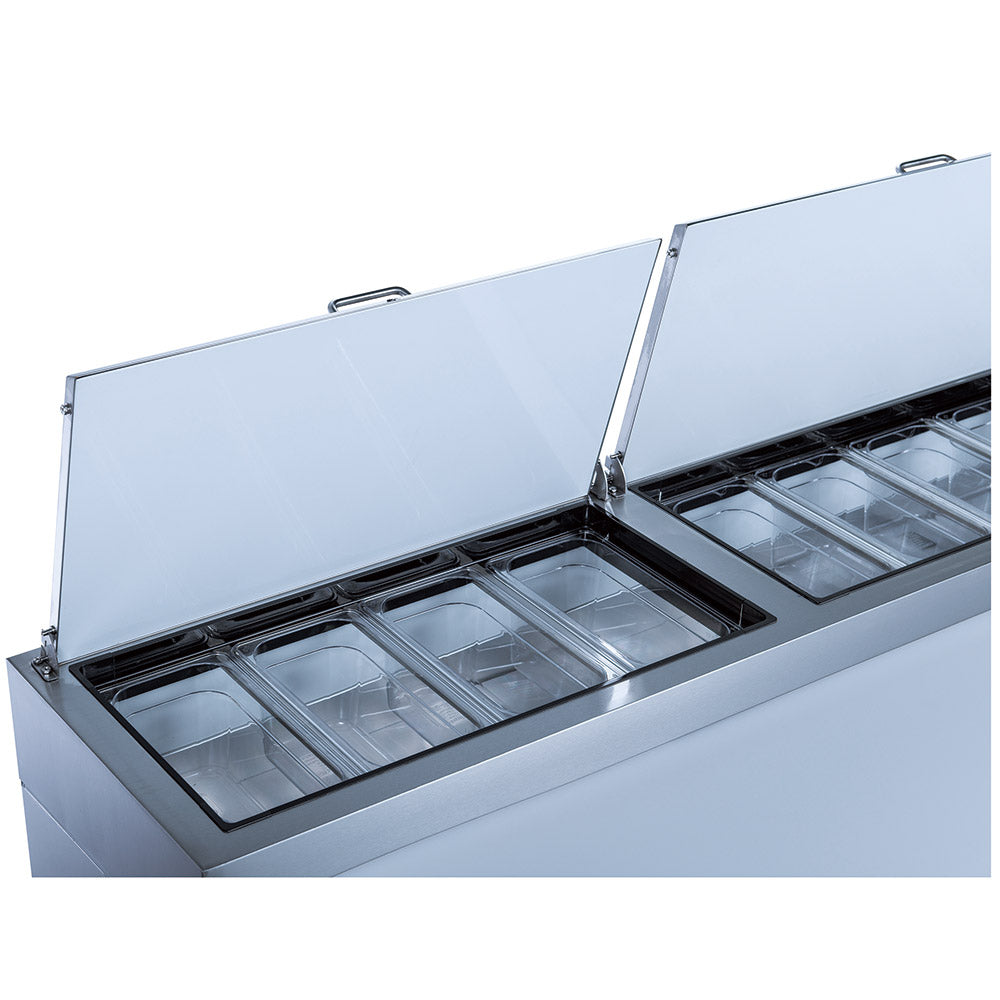

(9) 1/3 size pans under an insulated lid, included.

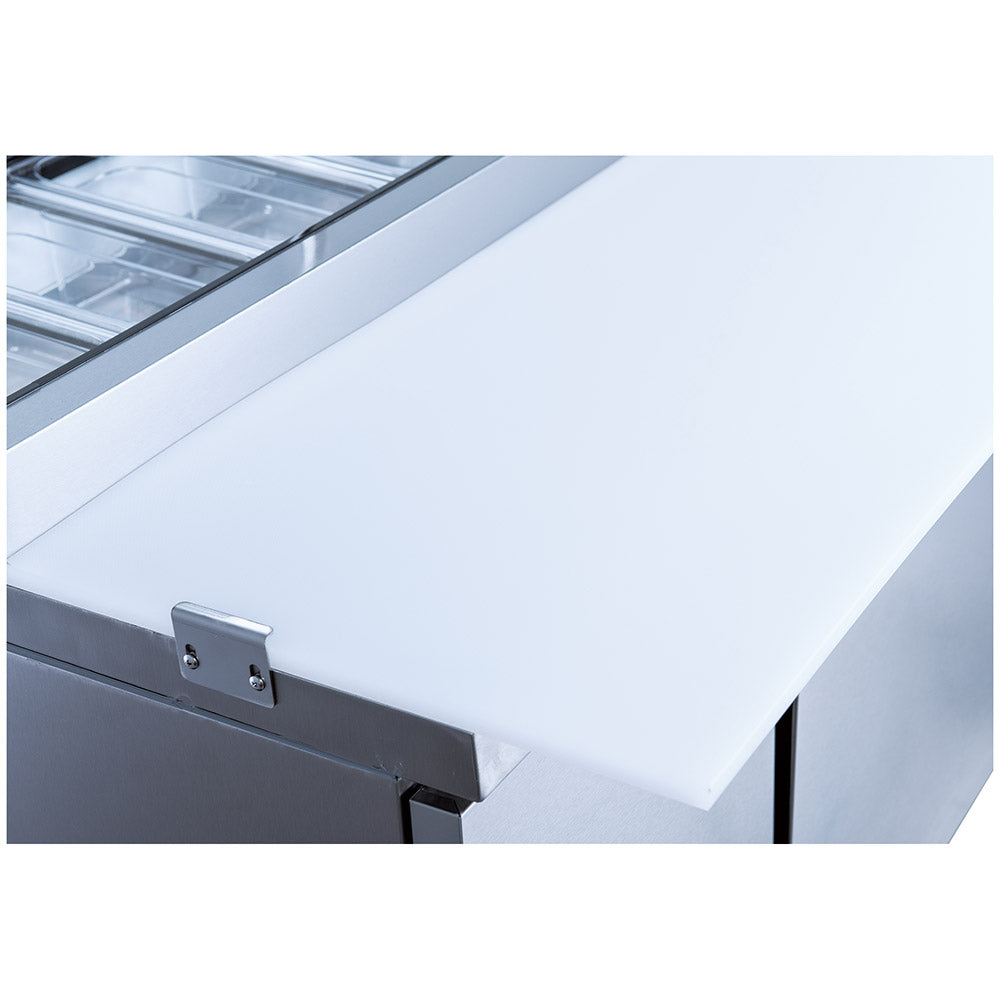

Cutting board 70.6" L x 19 7/16" D x 3/4" H, included.

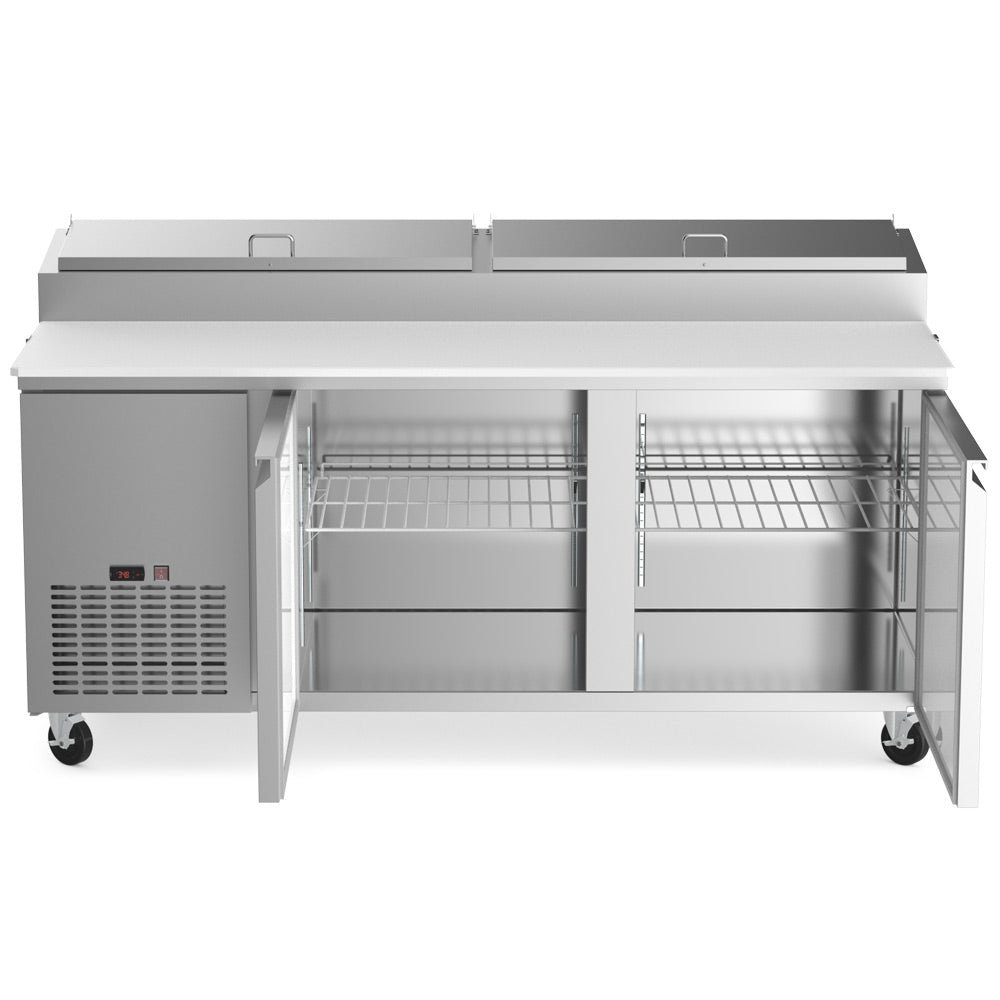

16.9 cu. ft. with 2 adjustable shelves and self-closing doors.
Electronic controller with automatic defrost and R290 refrigerant.
It runs on 115V, 60 Hz, single phase and draws 3.42 A. It has a NEMA 5-15P plug on an 84" cord, and Coldline requires a dedicated 15 A circuit installed by a licensed electrician.
Yes. The Coldline sheet lists (9) 1/3 size pans as the pan capacity and says the cutting board (70.6" L x 19 7/16" D x 3/4" H) and pans are included.
The cabinet is 70.9" wide, 31.5" deep and 39.4" high; with the cutting board it is 37.2" deep, and with the doors open it needs 55.6" of depth (Coldline drawing). Measure every doorway and turn on the delivery path first.
The prep table manual says to run the unit with all pans in place, even empty ones, fill pans only with what you will use in the shift, and close the insulated lid when you are not using it.

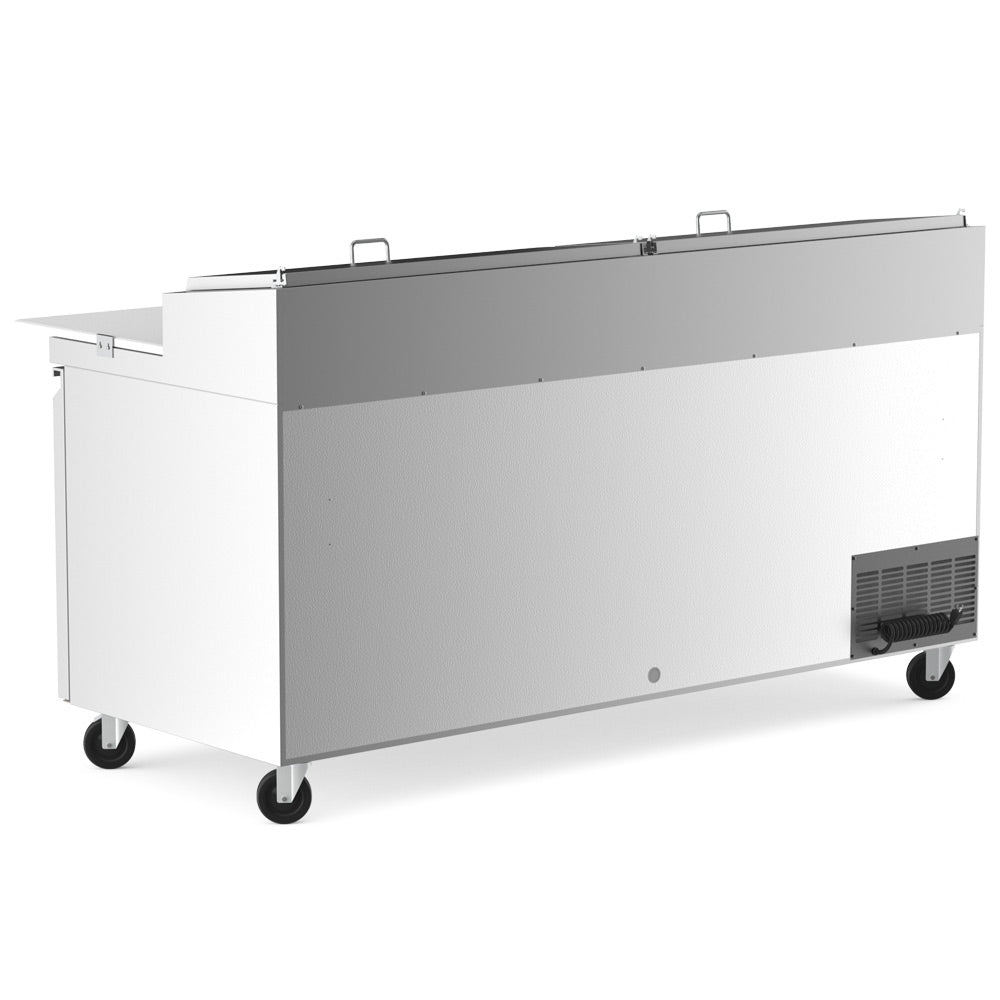

The condenser coil is easy to reach; keep it clean. Leave ventilation space around the unit and keep the room at or below the 90°F maximum ambient temperature on the sheet.
USR Brands covers the Coldline CPT-Series for 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor), in the contiguous US. Food truck and farm installs are covered for parts only, and residential use is not covered.
The Coldline refrigeration warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | CPT-72 |
| Quantity | 1/Each |
| Shipping Weight | 419 lb. |
| Net Weight | 363 lb. |
| Width | 70.9 Inches |
| Depth | 31.5 Inches |
| Height | 39.4 Inches |
| Working Height | 35.3 Inches |
| Depth with Cutting Board | 37.2 Inches |
| Depth with Doors Open | 55.6 Inches |
| Interior Dimensions | 48.4" L x 22.8" D x 26.1" H |
| Cutting Board Dimensions | 70.6" L x 19 7/16" D x 3/4" H |
| Packaging Dimensions | 76" L x 36.5" D x 45.8" H |
| Voltage | 115 Volts |
| Amps | 3.42 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 84 Inches |
| Circuit | Dedicated 15 Amp, Installed by a Licensed Electrician |
| Capacity | (9) 1/3 Size Pans16.9 cu. ft. Base |
| Pans | (9) 1/3 Size, Included |
| Temperature Range | 33 - 41 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/5 HP |
| Defrost | Automatic |
| Controls | Digital |
| Max. Ambient Temperature | 90 Degrees F |
| Doors | 2 Self-ClosingStay-Open FeatureRecessed Handles |
| Shelves | 2 Adjustable Epoxy Coated Steel, 23.6" L x 24" D |
| Shelf Load Capacity | 90 lb. |
| Exterior | 430 Series Stainless Steel |
| Interior | 304 Series Stainless Steel |
| Insulation | Foamed-in-Place Polyurethane |
| Casters | Heavy-Duty with Brakes |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
