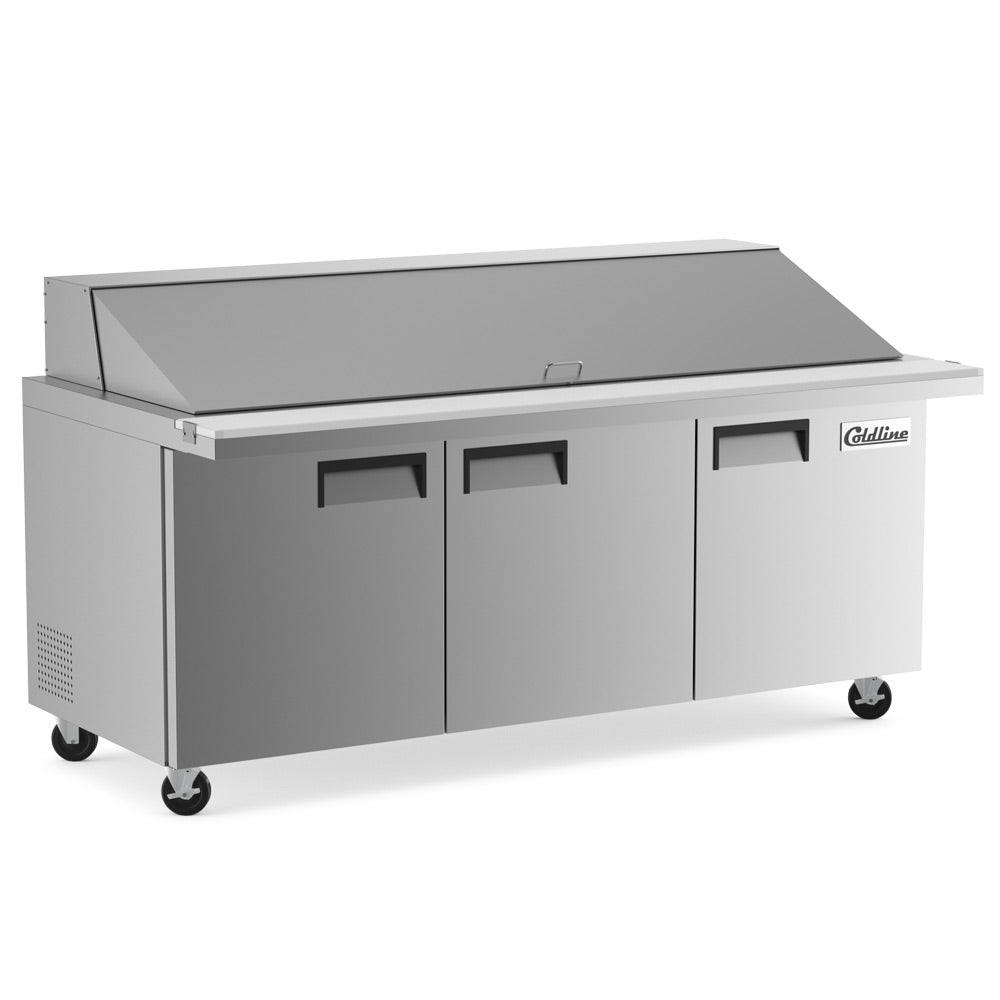

Coldline SMP72 72" 3-Door Mega Top Refrigerated Sandwich Prep Table, (30) Pans and Cutting Board, 20 cu. ft., 115V
A 72" mega top refrigerated sandwich and salad prep table with a cold pan rail, cutting board and storage below.
The Coldline SMP72 is a sandwich and salad prep station for delis, sub shops, restaurants and cafes. Its mega top rail holds (30) 1/6 size clear pans under an insulated lid, the 8" deep cutting board sits at a 35.3" working height, and the 20 cu. ft. base behind 3 self-closing doors holds 33°F to 41°F. Pans and cutting board come with it, and it plugs into a 115V NEMA 5-15P outlet on a dedicated 15 A circuit.
Measure every doorway and turn on the delivery path; the cabinet is 34" deep including the cutting board.

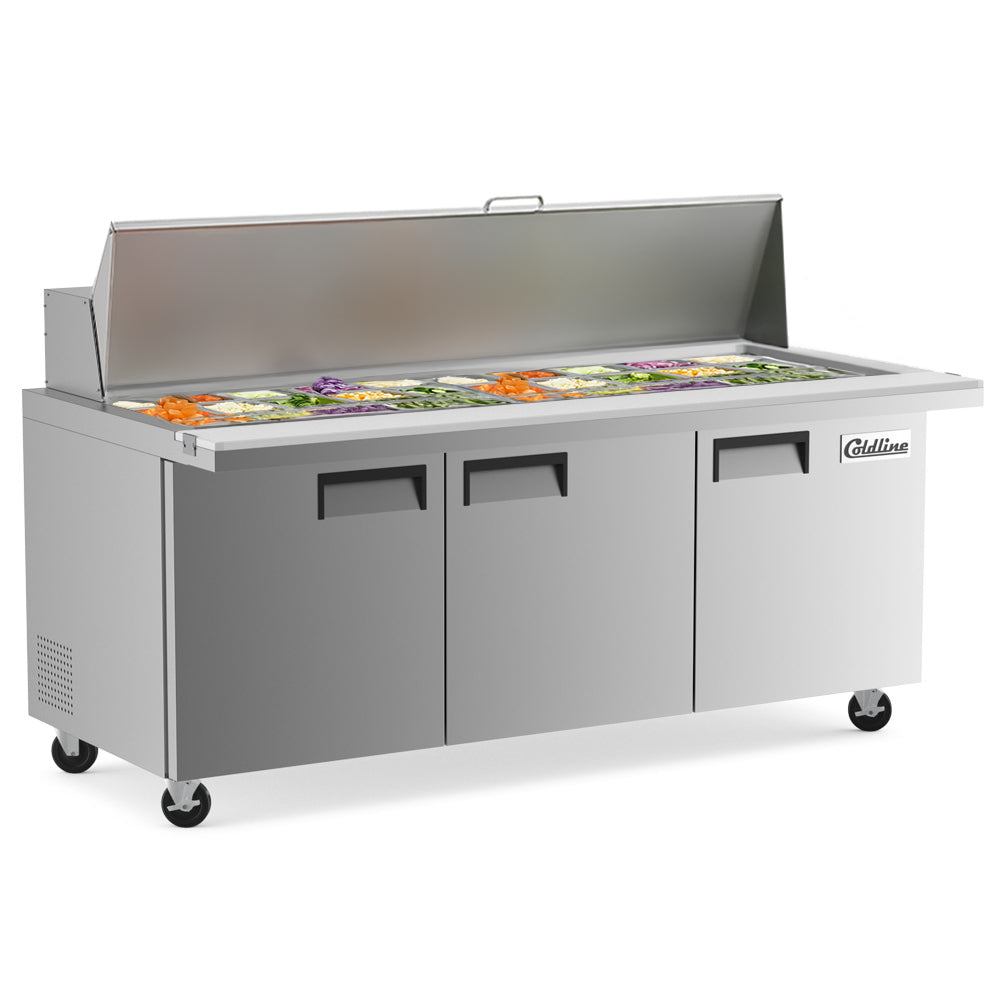

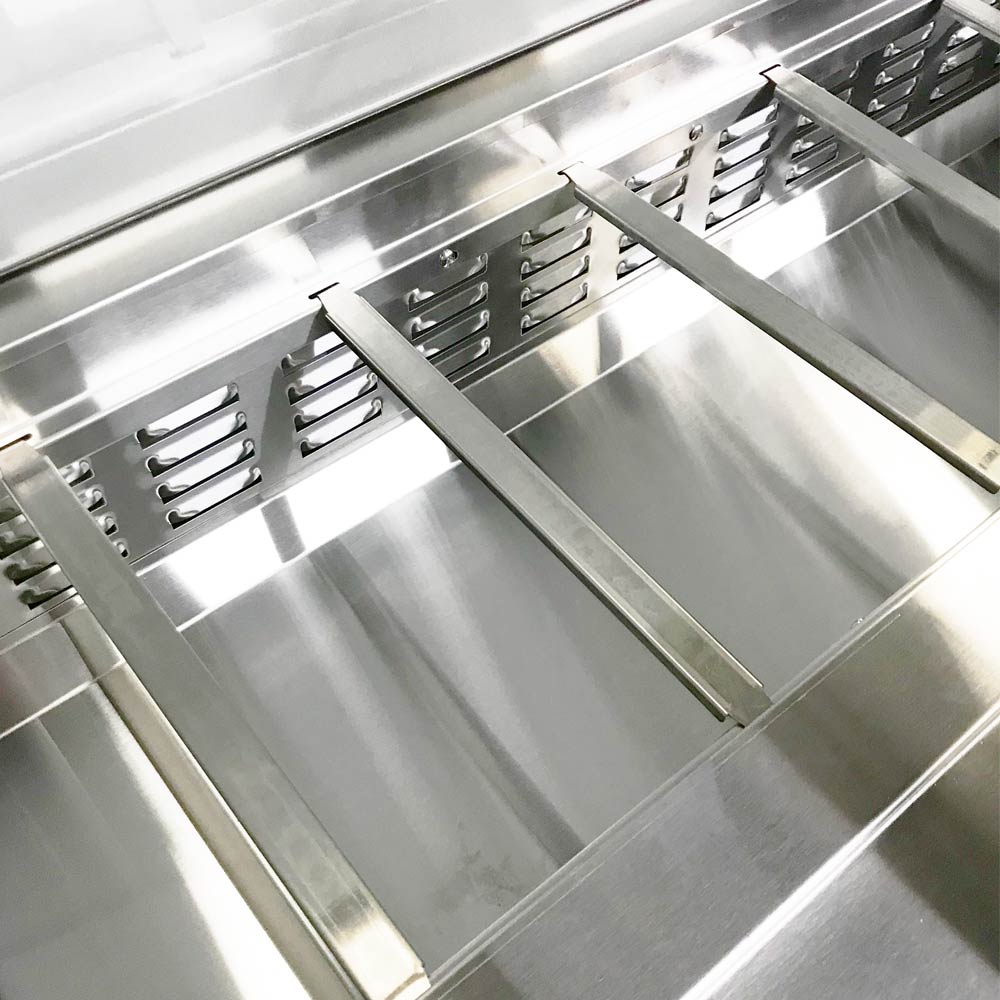

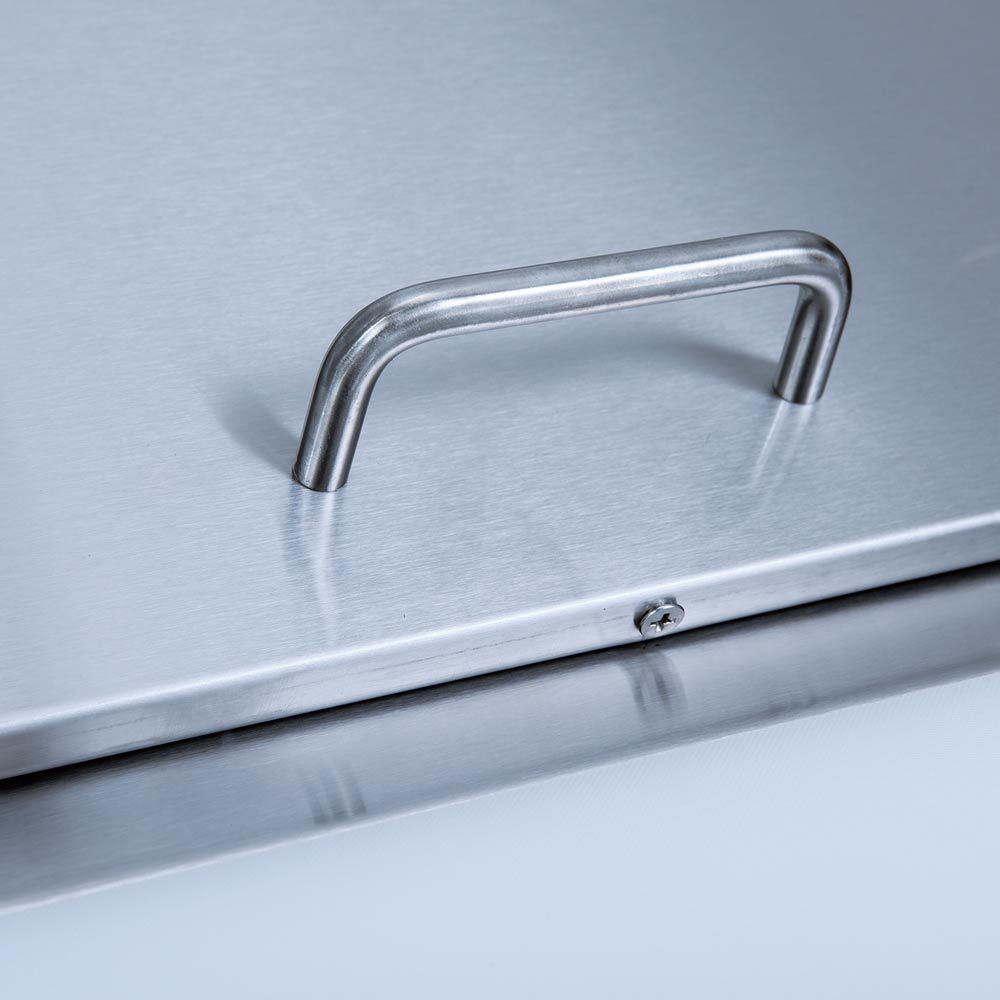

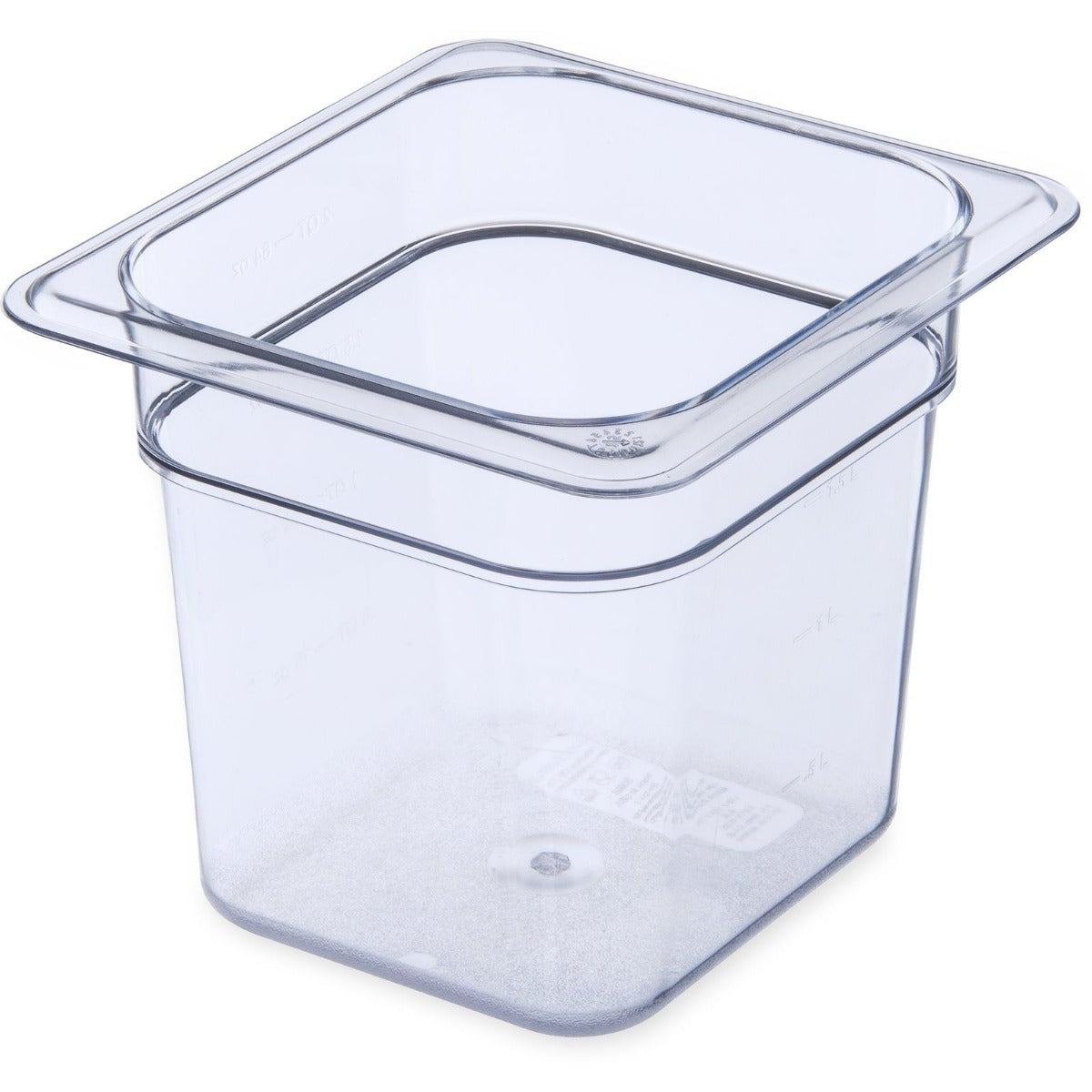

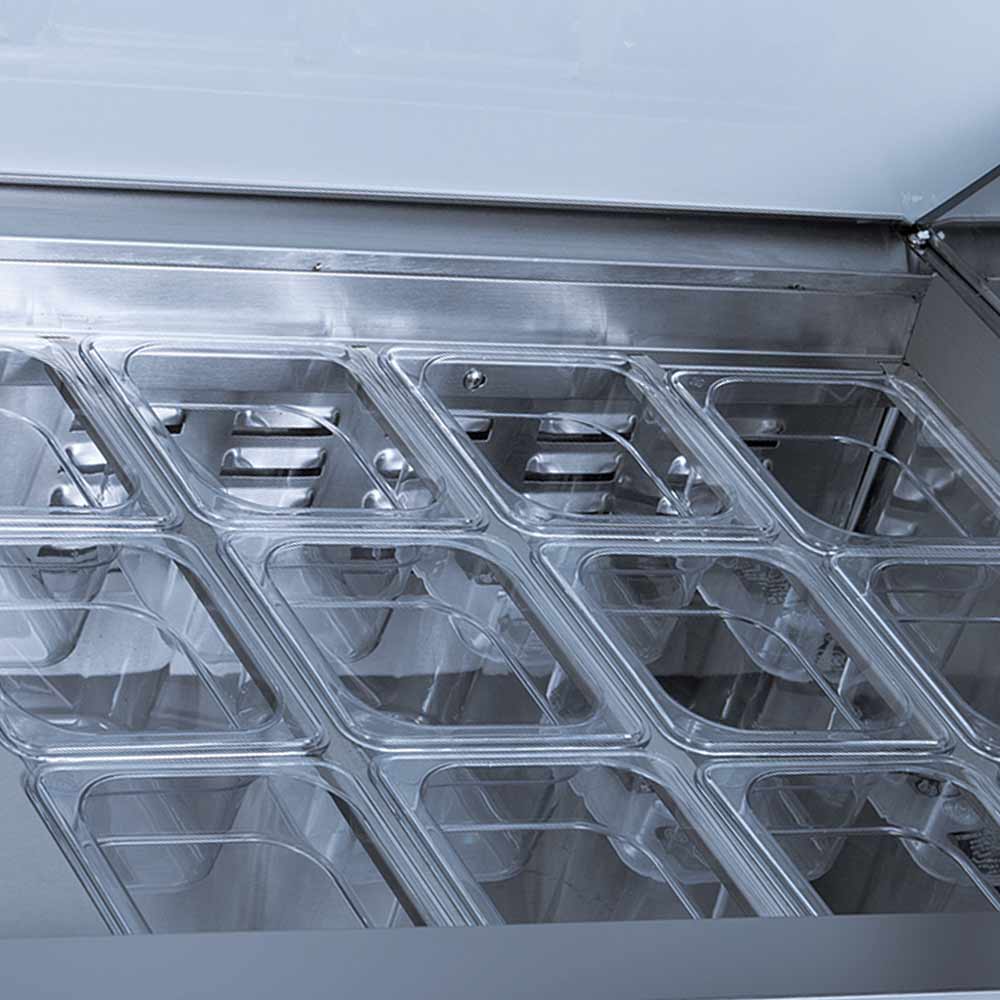

(30) 1/6 size pans in three rows under an insulated lid, included.

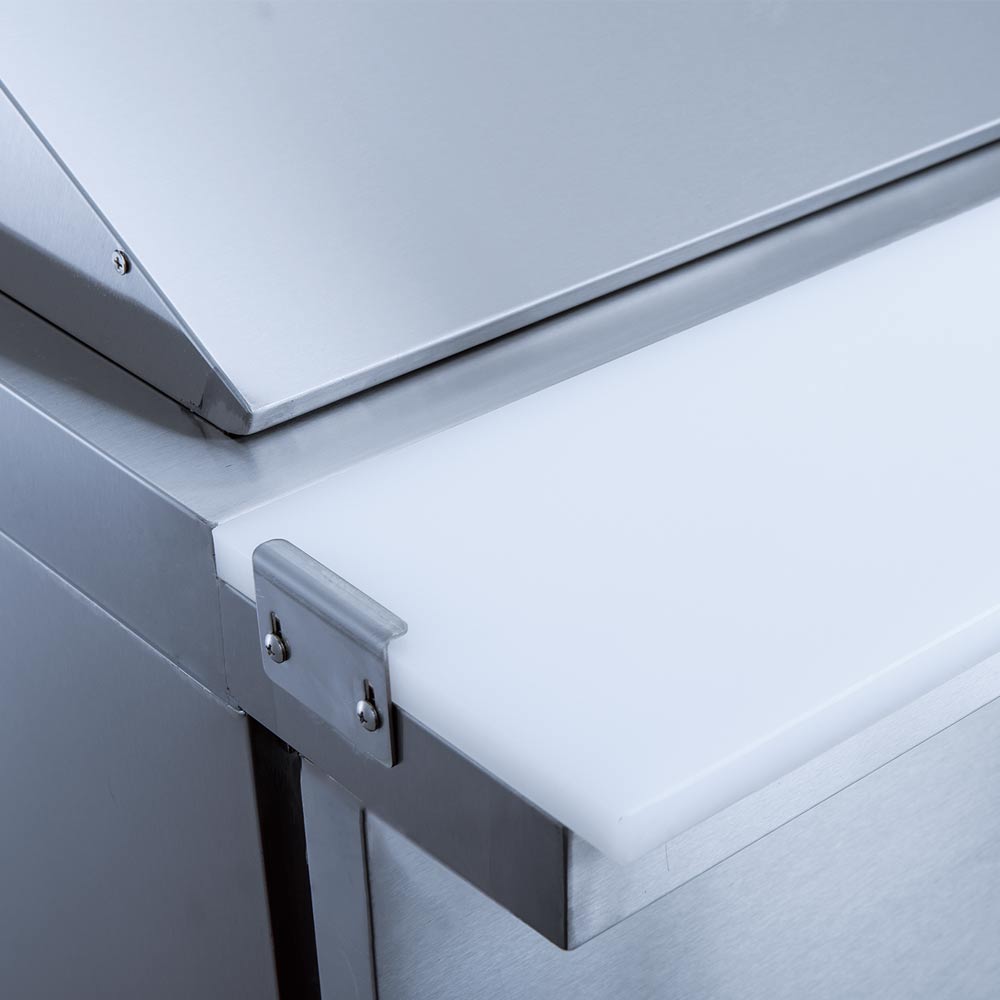

70.4" L x 8" D x 0.75" H board at a 35.3" working height, included.

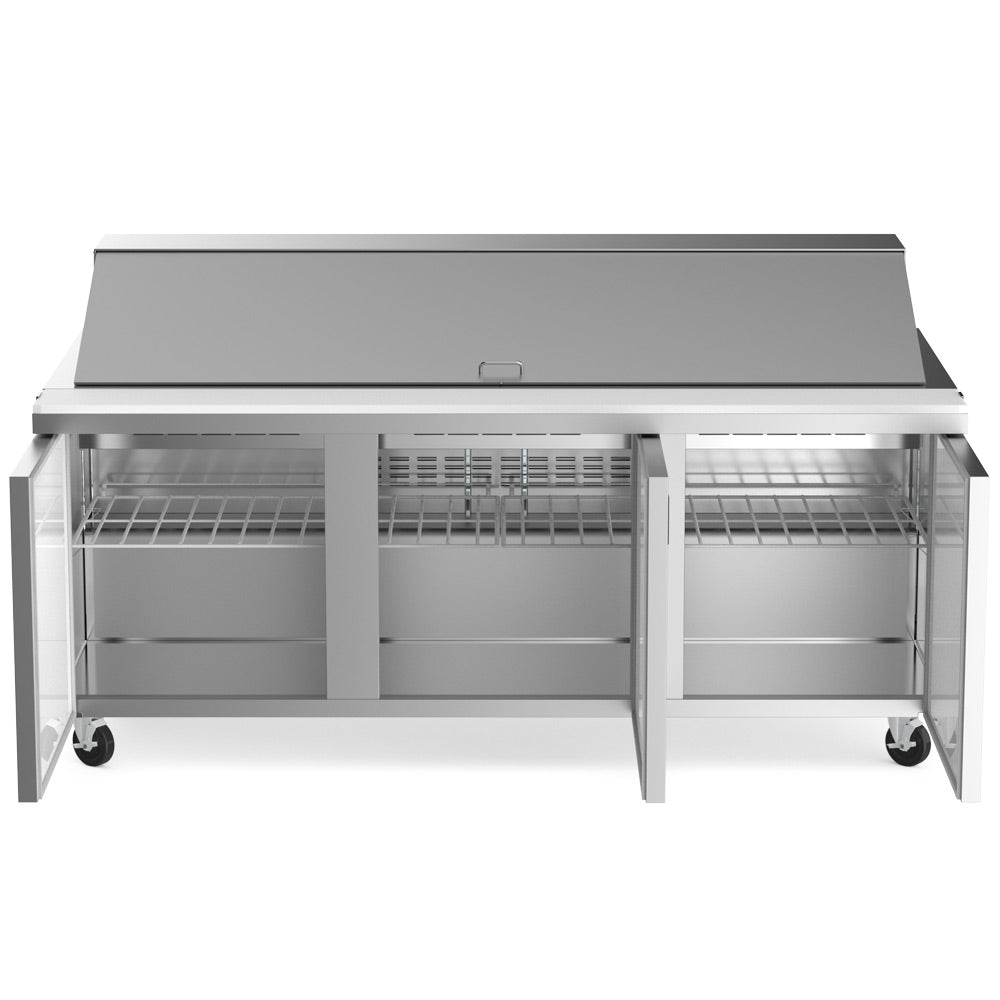

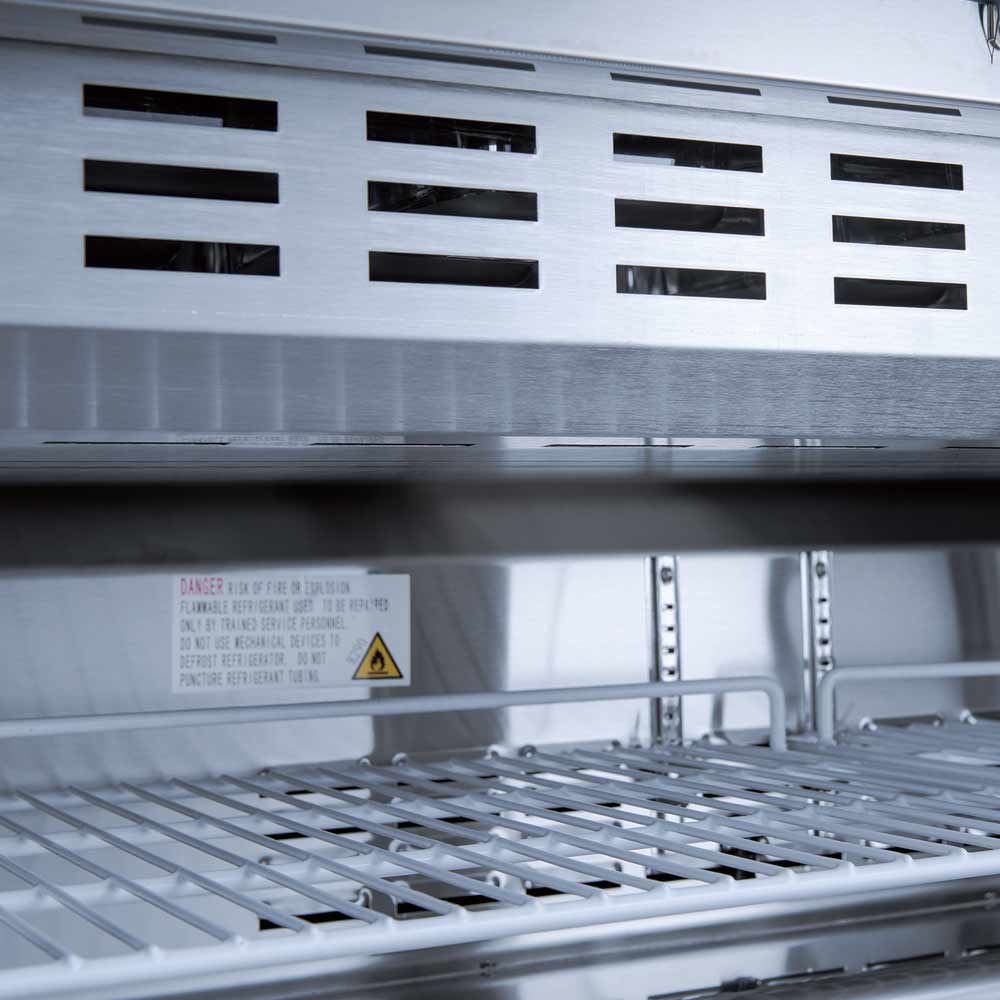

20 cu. ft. with 3 adjustable epoxy-coated shelves (90 lb. each).

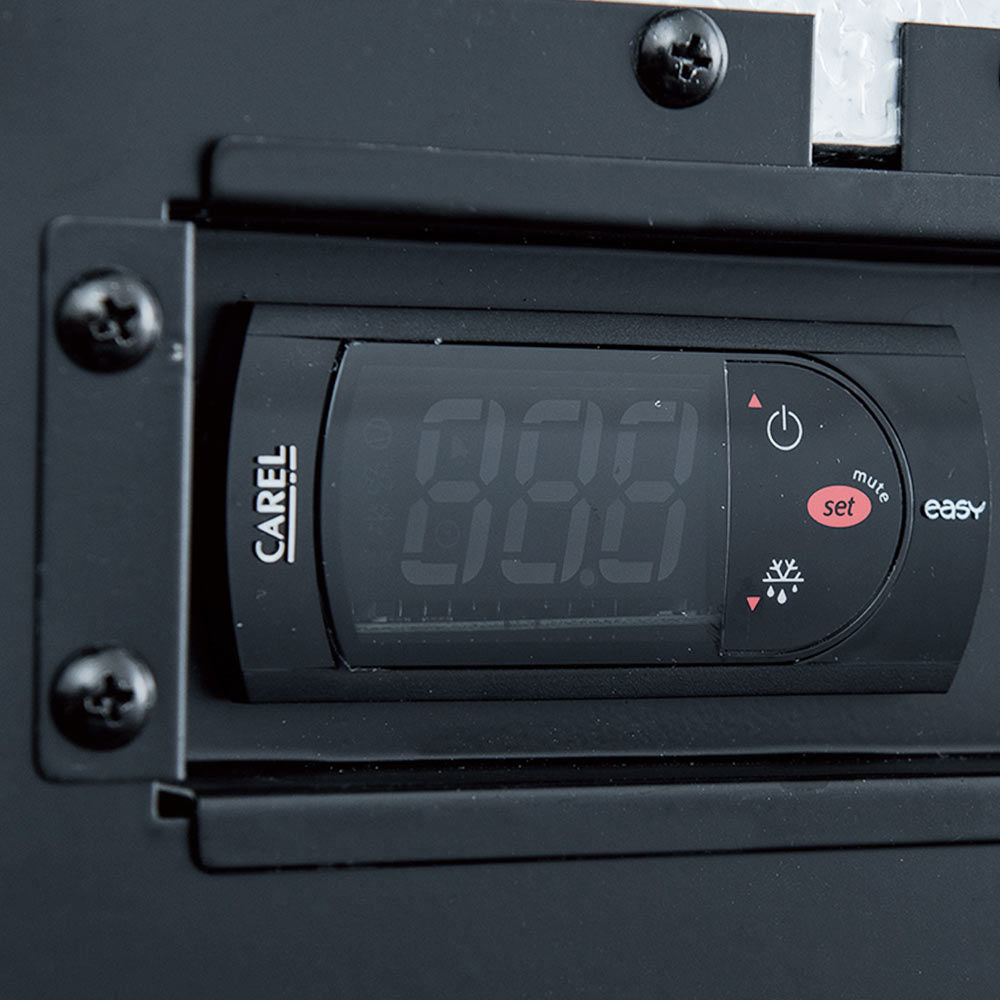

Electronic controller with automatic defrost and R290 refrigerant.
It runs on 115V, 60 Hz, single phase and draws 3.3 A through a NEMA 5-15P plug on a 96" cord. Coldline requires a dedicated 15 A circuit installed by a licensed electrician, and the manual says not to use an extension cord.
Yes. The Coldline sheet lists cutting boards and clear pans as features; the rail takes (30) 1/6 size pans and the board measures 70.4" L x 8" D x 0.75" H.
It is 70.4" wide, 34" deep and 45.9" high, needs 53.75" of height with the lid open and about 50.8" of depth with the doors open (Coldline drawing). Measure every doorway and turn on the delivery path first.
The manual says to run it with all pans in place, even empty ones, fill pans only with what you will use in the shift, and close the insulated lid when you are not using it. Let it reach temperature before loading.

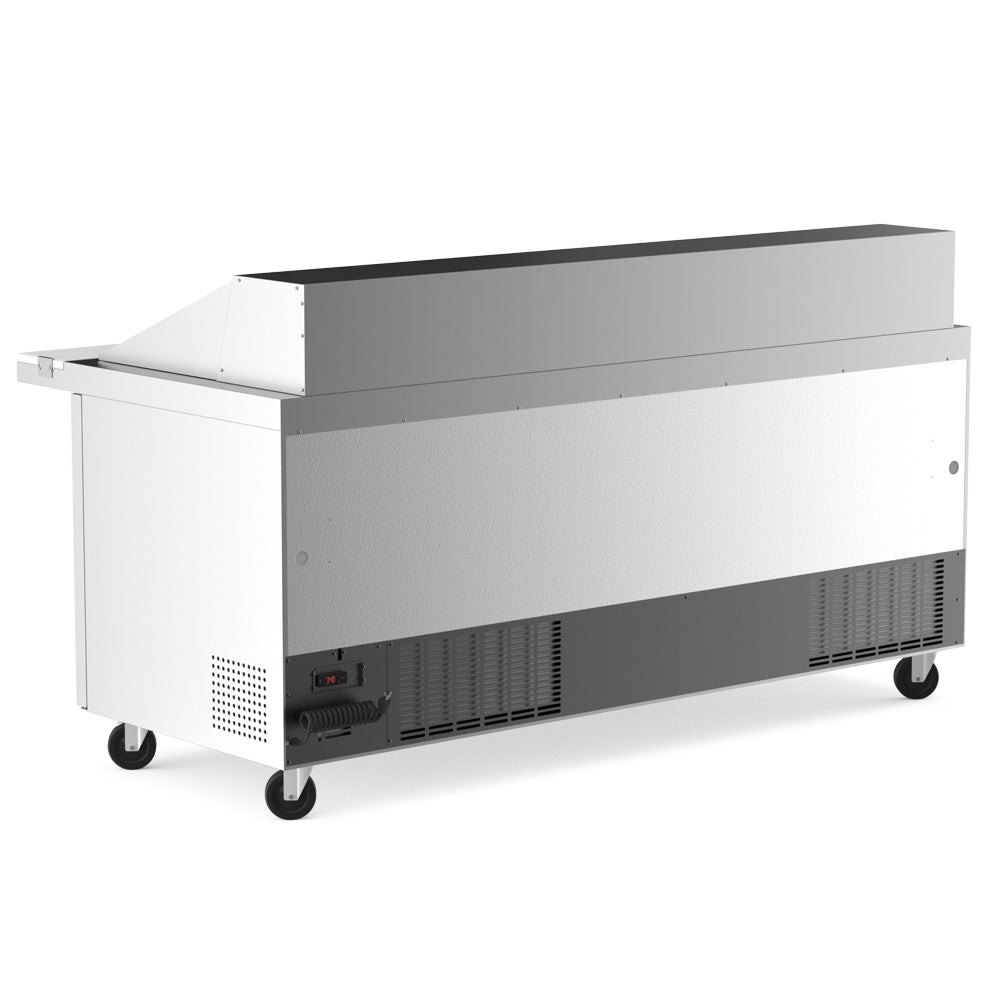

Keep 3" of clearance at the back, leave 2 to 4" between the back wall and stored food, and clean the condenser coil at least once a month; a malfunction from a dirty condenser or high room temperature voids the warranty. The sheet rates it for rooms up to 90°F.
USR Brands covers the Coldline SMP-Series for 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor), in the contiguous US. Food truck and farm installs are parts only, and residential use is not covered.
The Coldline refrigeration warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | SMP72 |
| Quantity | 1/Each |
| Shipping Weight | 577 lb. |
| Net Weight | 374 lb. |
| Width | 70.4 Inches |
| Depth | 34 Inches |
| Height | 45.9 Inches |
| Working Height | 35.3 Inches |
| Height with Lid Open | 53.75 Inches |
| Depth with Doors Open | 50.8 Inches |
| Interior Dimensions | 66.4" L x 23.8" D x 23.5" H |
| Cutting Board Dimensions | 70.4" L x 8" D x 0.75" H |
| Packaging Dimensions | 74.6" L x 38.8" D x 49.1" H |
| Voltage | 115 Volts |
| Amps | 3.3 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 96 Inches |
| Circuit | Dedicated 15 Amp, Installed by a Licensed Electrician |
| Capacity | (30) Pans20 cu. ft. Base |
| Pans | (30) 1/6 Size, Clear, Included |
| Top Type | Mega Top |
| Temperature Range | 33 - 41 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 2/3 HP |
| Defrost | Automatic |
| Controls | Digital |
| Max. Ambient Temperature | 90 Degrees F |
| Doors | 3 Self-Closing90 Degree Stay-OpenRecessed Handles |
| Shelves | (3) 21.6" L x 17" D, Adjustable Epoxy Coated Steel |
| Shelf Load Capacity | 90 lb. |
| Interior Light | None |
| Exterior | Stainless Steel |
| Interior | Stainless Steel |
| Insulation | Foamed-in-Place Polyurethane |

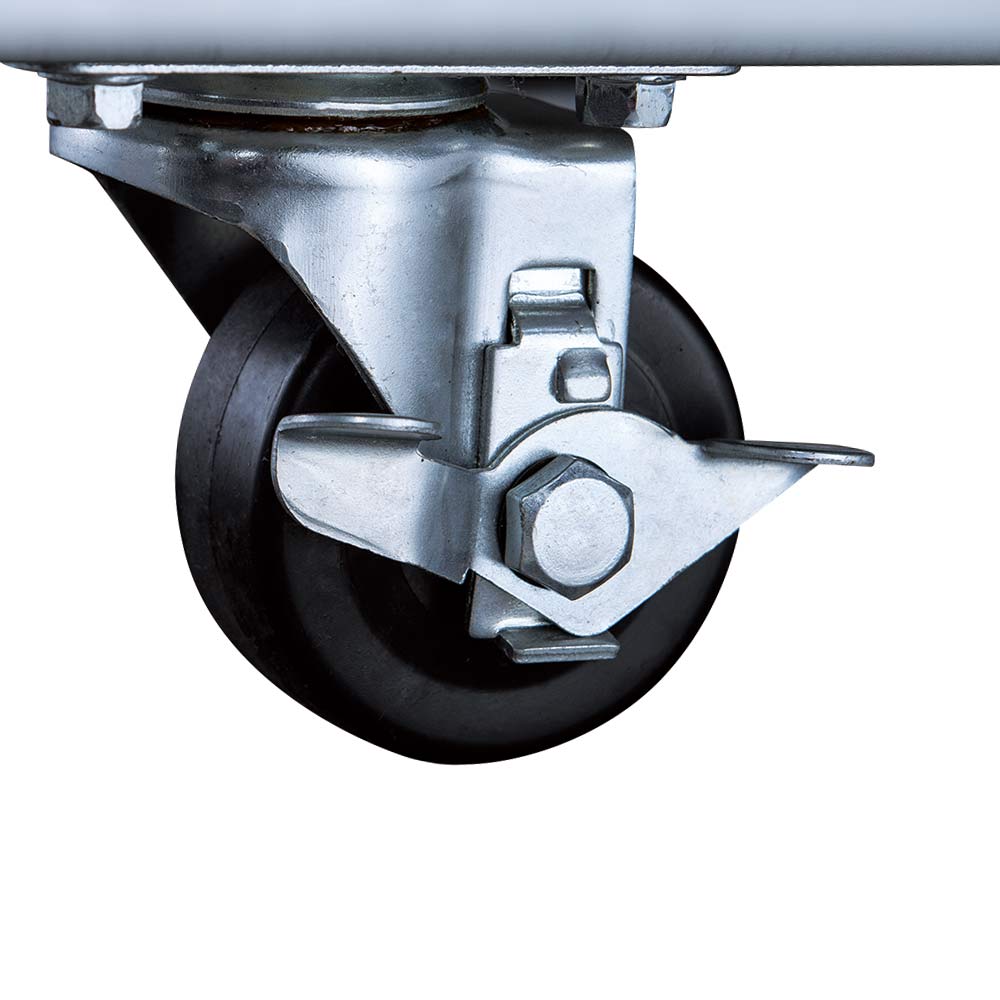

| Casters | (4) Preinstalled Heavy-Duty2 with Brakes, 2 without |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
