Coldline C12F 25" Solid Door Reach-In Freezer, 11 cu. ft., -8 to 0°F, Stainless Steel, 115V
A 25"-wide one-door freezer that holds -8°F to 0°F and fits tight kitchens.
The Coldline C12F is a compact reach-in freezer for restaurants, delis, bakeries and cafes where floor space is short. It is 24.8" wide and 23.5" deep, holds 11 cu. ft. on 3 adjustable shelves, and keeps -8°F to 0°F with a digital controller and automatic defrost. The 2/3 HP system uses R290 refrigerant and plugs into a 115V NEMA 5-15P outlet on a dedicated 15 A circuit. The cabinet is 430 stainless steel inside and out, with a self-closing, lockable door.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 23.5" depth.
At 24.8" wide and 23.5" deep it fits where a full-size freezer will not, with 11 cu. ft. inside.
A digital controller holds -8°F to 0°F, and the 2/3 HP R290 system defrosts automatically.

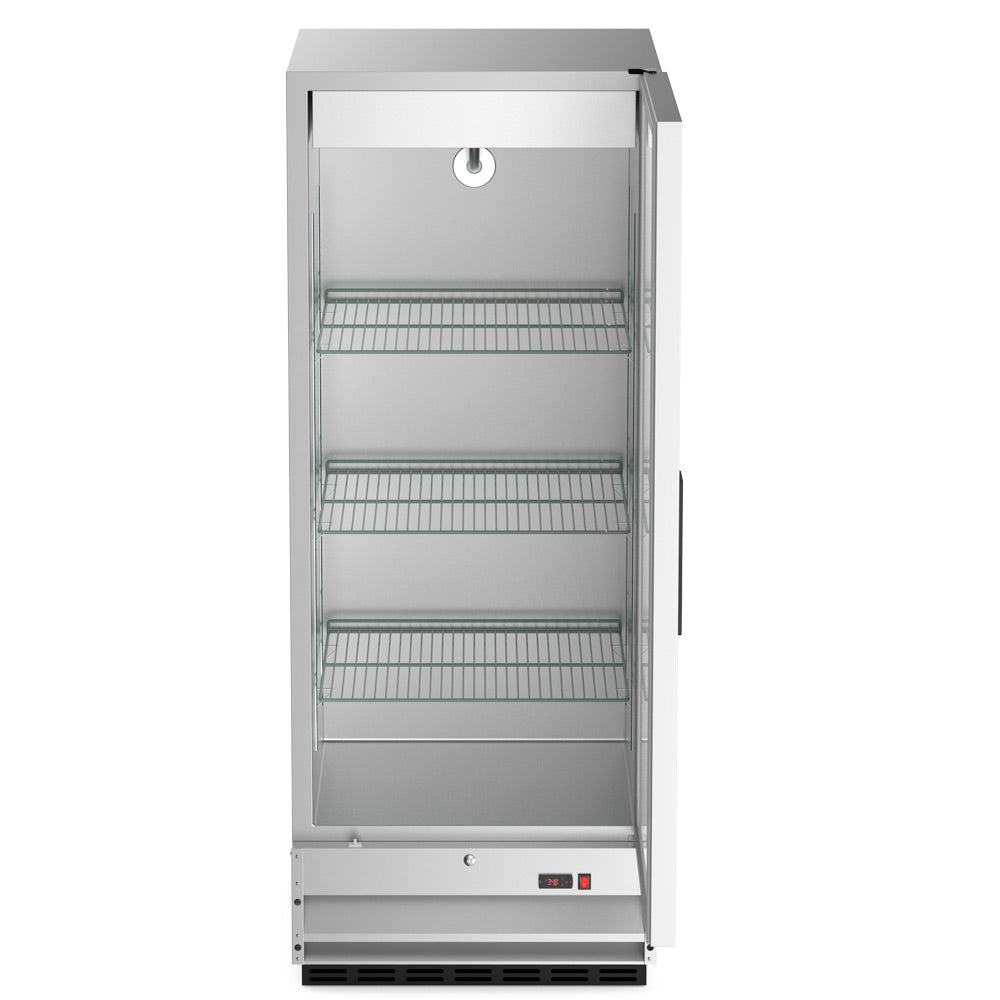

Three 20.2" × 11.7" epoxy-coated wire shelves, each rated for 90 lb., adjust to your stock.
The door closes on its own, has a recessed handle, and locks with the included keys.
A grounded 115V outlet for its NEMA 5-15P plug. It draws 3.3 A, but USR Brands requires a dedicated 15 A circuit installed by a licensed electrician. The manual says to give it its own outlet and not to use an extension cord.
The freezer is 24.8" wide, 23.5" deep and 64.6" tall, and ships in a 26" × 25" × 66" carton. Measure every doorway and turn on the delivery path; the smallest outside dimension is the 23.5" depth. Do not tilt it more than 45° while moving it.
Plan 46.4" of depth in front for the door to open (Coldline drawing). The manual asks for 4" of clearance at the back, more than 20 cm (about 8") from the wall, and an indoor, well-ventilated spot away from heat sources.
If it was just transported, let it stand upright for at least 24 hours before plugging it in, as the manual says. Then let it reach temperature (-8°F to 0°F) before loading product.
USR Brands covers Coldline C-Series units for 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor). It is valid in the contiguous US; food truck and farm installs are parts only, and residential use is not covered.
USR Brands, which backs the Coldline warranty, states that it cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Clean the condenser coil at least once a month; the removable installation board gives access to it. Wash the door gasket weekly in warm, soapy water, and clean the stainless steel with mild soap, never steel wool, bleach or abrasive cleaners.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | C12F |
| Quantity | 1/Each |
| Shipping Weight | 225 lb. |
| Net Weight | 181 lb. |
| Width | 24.8 Inches |
| Depth | 23.5 Inches |
| Height | 64.6 Inches |
| Depth with Door Open | 46.4 Inches |
| Interior Dimensions | 20.9" W x 18.9" D x 48.4" H |
| Packaging Dimensions | 26" W x 25" D x 66" H |
| Voltage | 115 Volts |
| Amps | 3.3 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 96 Inches |
| Circuit | Dedicated 15 Amp Circuit |
| Capacity | 11 cu. ft. |
| Temperature Range | -8 - 0 Degrees F |
| Max. Ambient Temperature | 90 Degrees F |
| Horsepower | 2/3 HP |
| Refrigerant | R290 |
| Defrost | Automatic |
| Controls | Digital Temperature Controller |
| Doors | 1 Solid, Self-Closing |
| Door Lock | Lock and Keys Included |
| Handle | Recessed |
| Exterior | 430 Stainless SteelAluminum Back |
| Interior | 430 Stainless Steel |
| Insulation | Foamed-in-Place Polyurethane |
| Shelves | 3 Adjustable20.2" x 11.7"Epoxy Coated Wire |
| Shelf Load Capacity | 90 lb. |
| Feet | Leveling Feet |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
