Coldline CBT-72-CSG 72" Refrigerated Salad Bar Buffet Table with Sneeze Guard, Tray Slide and Pan Cover, (15) 1/3 Pans, 115V
A 72" self-serve refrigerated salad bar with a sneeze guard, tray slide and pan cover in the box.
The Coldline CBT-72-CSG is a refrigerated salad bar and buffet table in restaurants, cafeterias, delis and caterers. The top well takes (15) 1/3 or (30) 1/6 size pans, 4" or 6" deep, held at 33°F to 41°F, and the 21.75 cu. ft. base behind 3 self-closing doors stores refills. It comes with sneeze guard, tray slide and pan cover. It rolls on casters with brakes and plugs into a 115V NEMA 5-15P outlet on a dedicated 15 A circuit.
(15) 1/3 or (30) 1/6 size pans, 4" or 6" deep, at 33°F to 41°F.

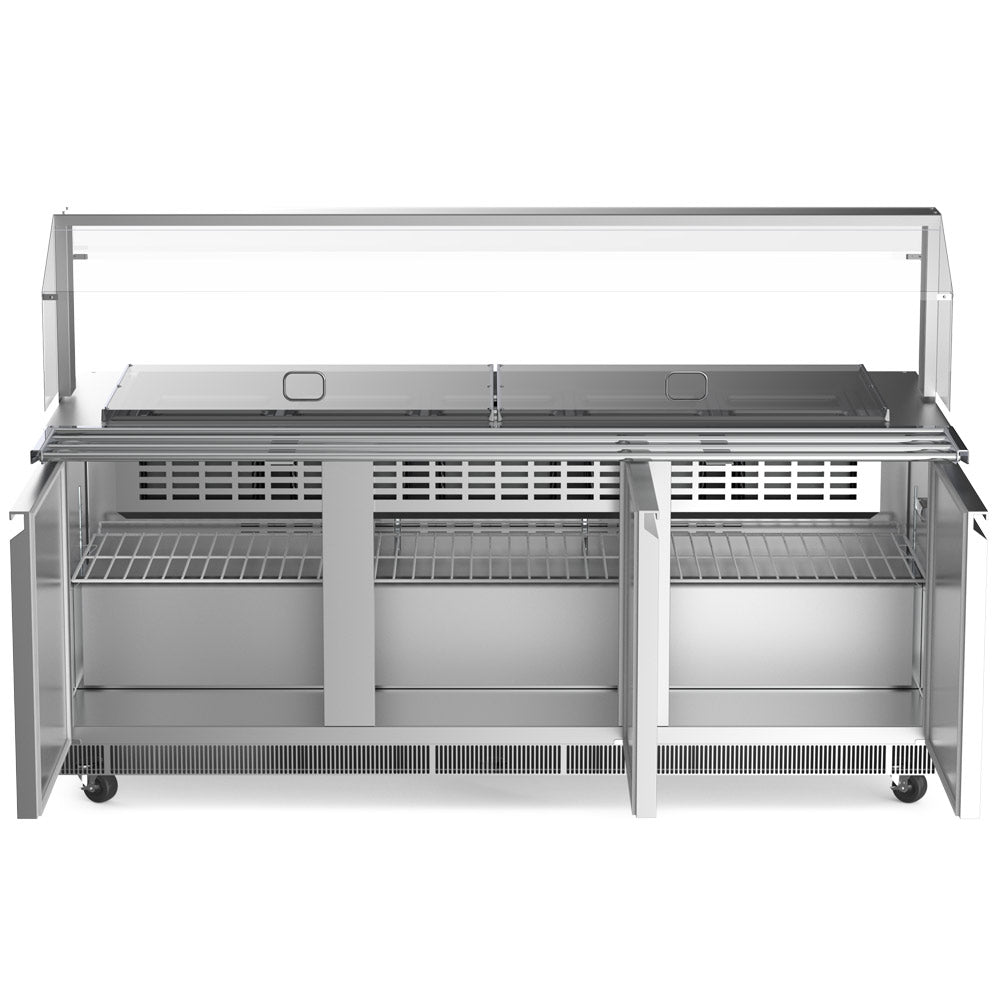

21.75 cu. ft. with 3 adjustable shelves and doors that stay open at 90°.
Sneeze guard, tray slide and pan cover are included.
Electronic controller with automatic defrost and R290 refrigerant.
It runs on 115V, 60 Hz, single phase and draws 5.5 A (534 W) through a NEMA 5-15P plug. Coldline requires a dedicated 15 A circuit installed by a licensed electrician, and the manual says not to use an extension cord.
The top well takes (15) 1/3 size or (30) 1/6 size standard pans, 4" or 6" deep. The sheet does not list pans as included, so order them separately. The manual says to run it with all pans in place, even empty ones.
It is 71 1/16" wide, 29 1/2" deep and 55 3/16" high including the sneeze guard. With the doors open it needs 50 3/4" of depth (Coldline drawing). Measure every doorway and turn on the delivery path first.
The sneeze guard, (1) tray slide and a pan cover come with the unit; a back side tray slide is optional. The sneeze guard is assembled with the screws and brackets listed in the sneeze guard installation guide. With the tray slide the unit is 39 9/16" deep.
Indoors, in a well-ventilated area on a level floor, away from heat and moisture. The manual asks for 3" of clearance at the back and says outdoor use may damage the unit. The maximum ambient temperature on the sheet is 90°F.
The Coldline warranty statements we have do not name the CBT series. The attached Coldline refrigeration warranty gives 1 year parts and labor plus 5 years on the compressor for the listed series; call us to confirm the warranty for this model before ordering.
Both Coldline warranty statements say USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | CBT-72-CSG |
| Quantity | 1/Each |
| Shipping Weight | 418 lb. |
| Net Weight | 356 lb. |
| Width | 71 1/16 Inches |
| Depth | 29 1/2 Inches |
| Height | 55 3/16 Inches |
| Height to Work Surface | 35 Inches |
| Depth with Doors Open | 50 3/4 Inches |
| Depth with Tray Slide | 39 9/16 Inches |
| Tray Slide Depth | 10 1/16 Inches |
| Caster Height | 3 Inches |
| Interior Dimensions | 66 1/2" W x 19 7/8" D x 25 3/4" H |
| Packaging Dimensions | 74" W x 33" D x 50" H |
| Voltage | 115 Volts |
| Amps | 5.5 Amps |
| Hertz | 60 |
| Phase | 1 |
| Wattage | 534 W |
| Plug Type | NEMA 5-15P |
| Circuit | Dedicated 15 Amp, Installed by a Licensed Electrician |
| Capacity | (15) 1/3 Size Pans(30) 1/6 Size Pans21.75 cu. ft. Base |
| Pan Depth | 4" or 6" Deep Standard Pans |
| Temperature Range | 33 - 41 Degrees F |
| Refrigerant | R290 |
| Horsepower | 2/3 HP |
| Defrost | Automatic |
| Controls | Digital |
| Max. Ambient Temperature | 90 Degrees F |
| Doors | 3 Self-Closing90° Stay-Open |
| Shelves | 3 Adjustable Epoxy Coated Steel, 21 5/8" W x 17 1/8" D |
| Shelf Load Capacity | 90 lb. |
| Included | Sneeze Guard(1) Tray SlidePan Cover |
| Optional | Back Side Tray Slide |
| Exterior | Stainless Steel |
| Interior | Stainless Steel |
| Insulation | Foamed-in-Place Polyurethane |
| Casters | 4 Pre-installed Heavy-Duty2 with Brakes, 2 without |
| Certifications | cETLusETL Sanitation |
