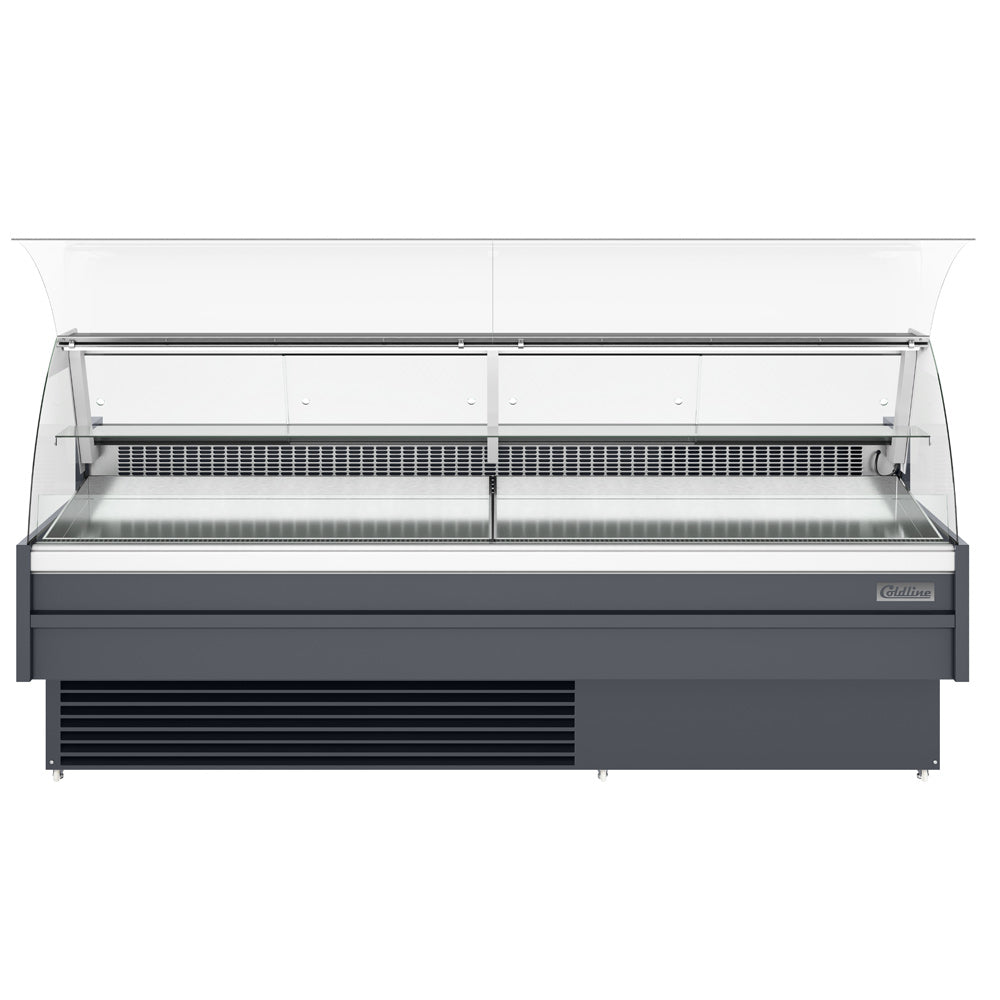

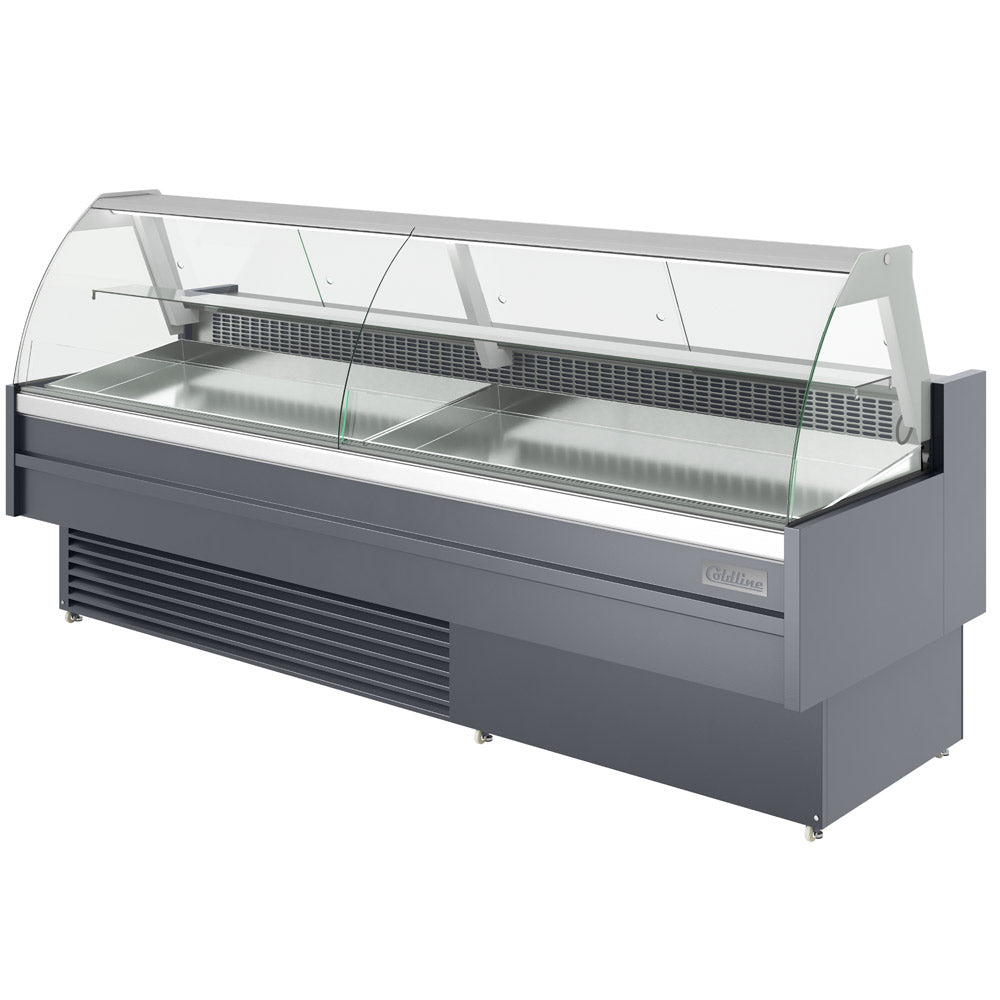

Coldline SDC98-F 102" Refrigerated Curved Glass Fish Display Case with Ice Bin and Drain, 33-40°F, 115V
A 102" refrigerated seafood case with a built-in ice bin and drain to show fresh fish on ice.

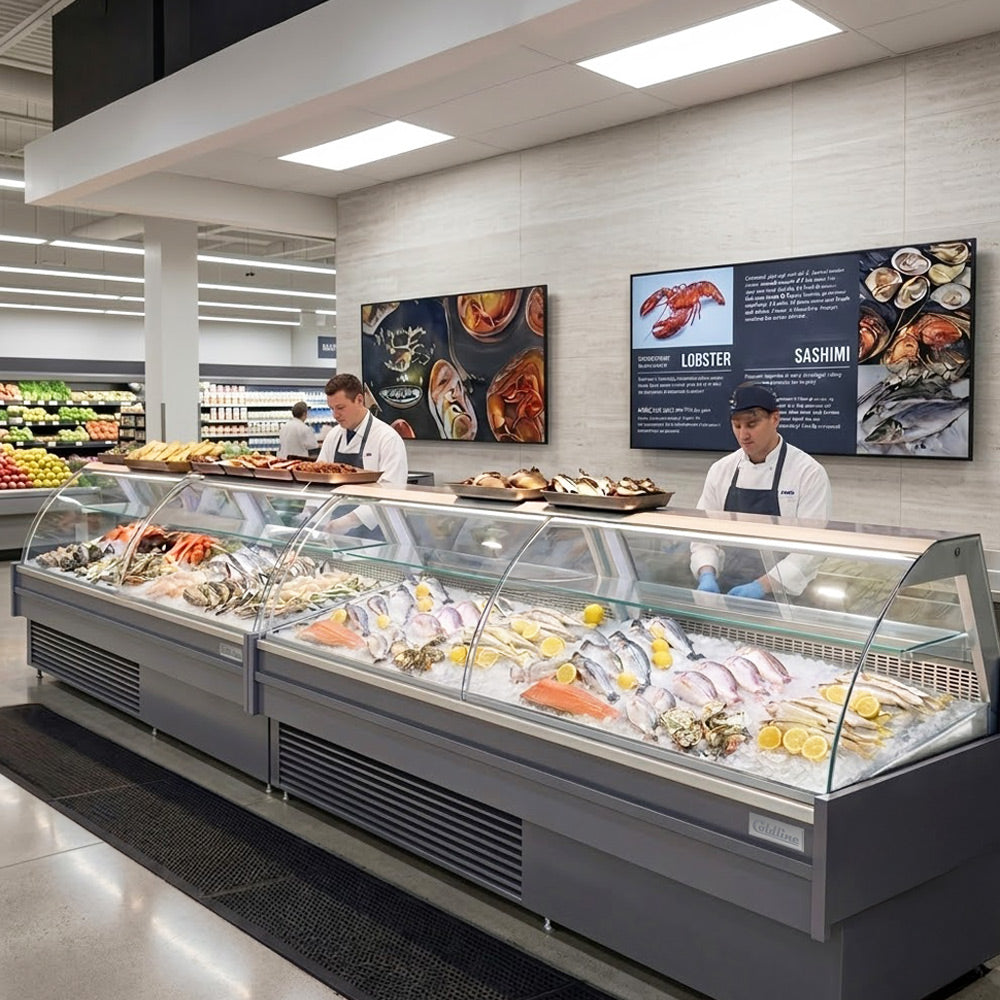

The Coldline SDC98-F is a self-contained fish and seafood display case for supermarkets, fish markets and delis. Fish sits on ice in the built-in bin behind curved lift-up front glass, at 33°F to 40°F with a digital controller and automatic defrost; melt water leaves through the drain. It adds 6 cu. ft. of refrigerated storage at the back, a 8" stainless work surface and LED lighting, and plugs into a 115V outlet with a NEMA 5-15P plug (6.8 A).
Measure every doorway and turn on the delivery path; its smallest outside dimension is the 33.46" depth. Keep it away from doors, fans and heat sources.
A built-in ice bin with drain keeps fish and seafood on ice in front of customers.

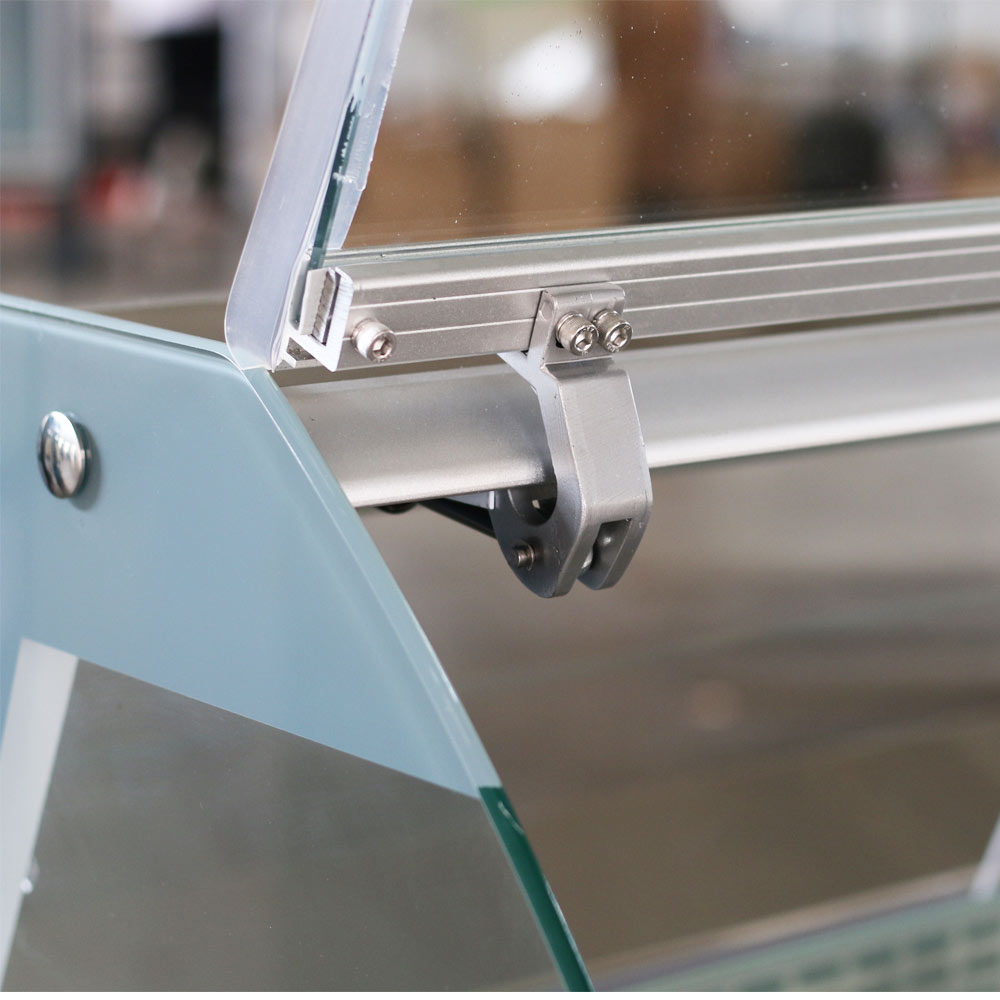

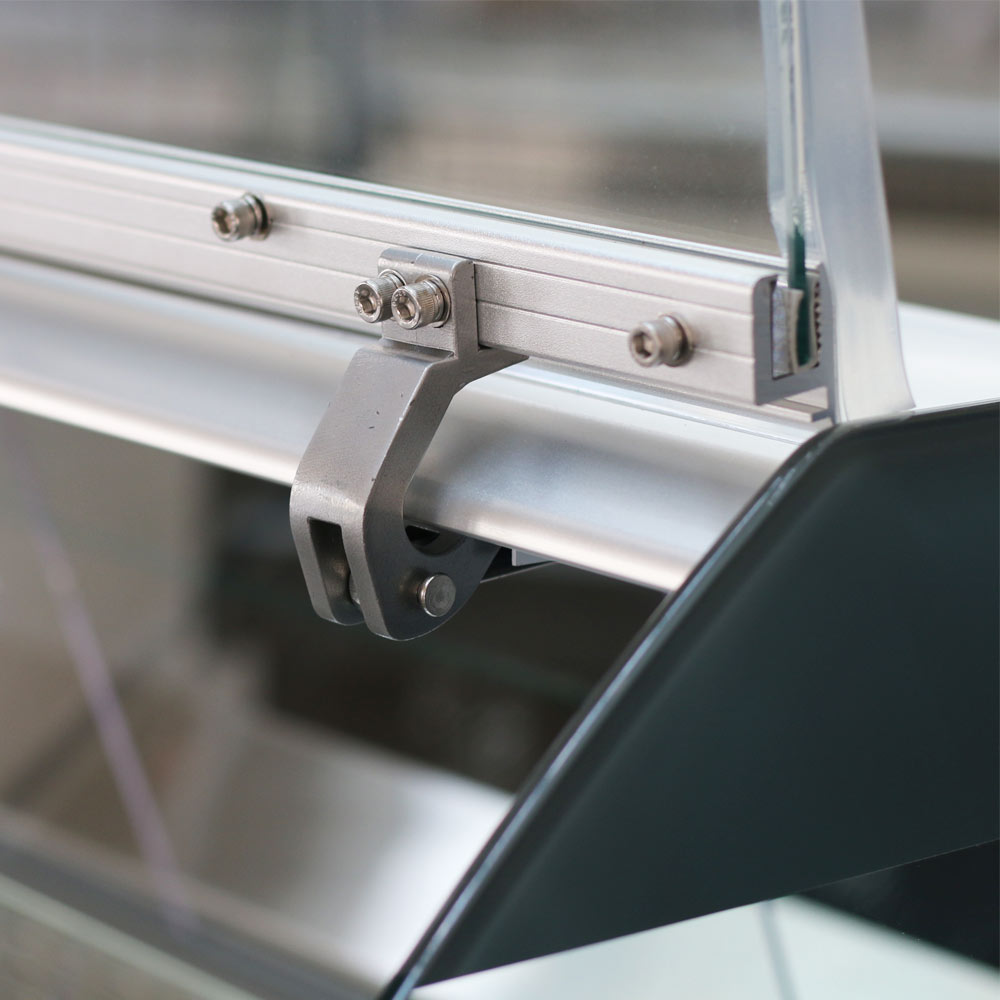

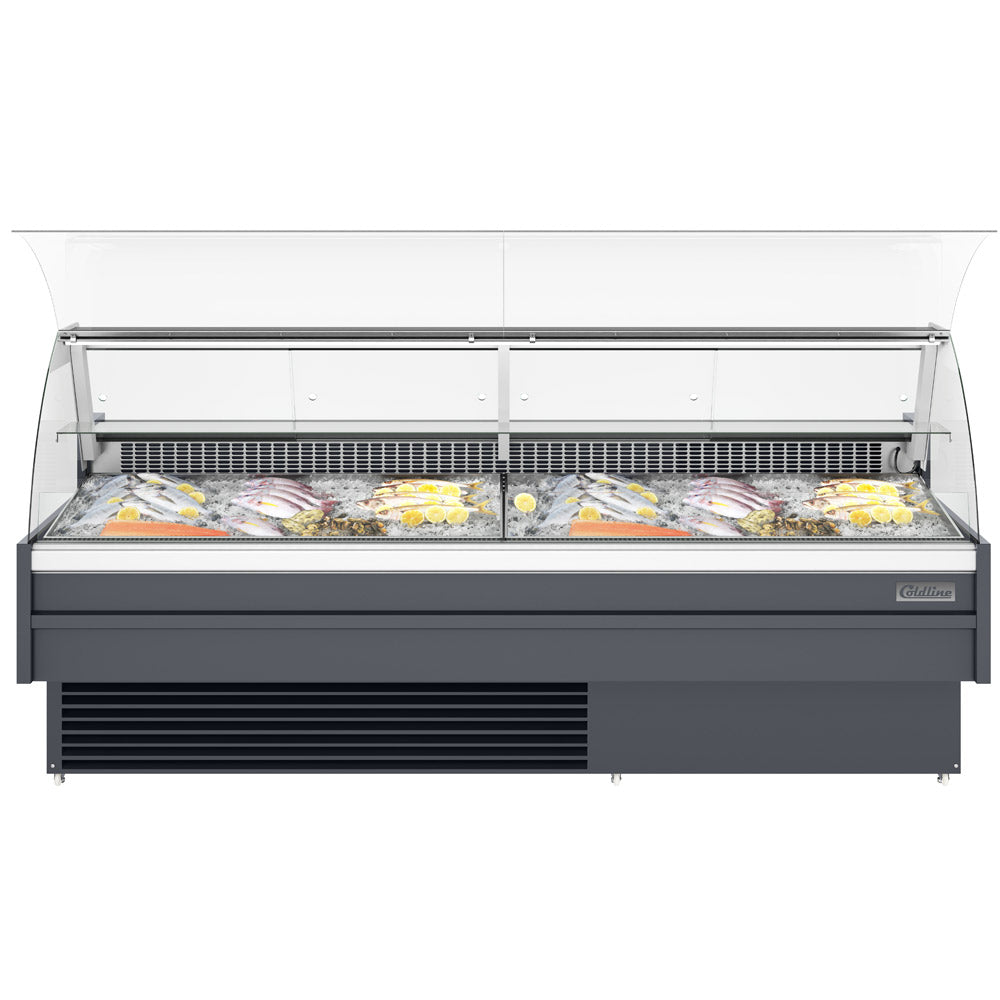

Curved tempered front glass lifts up for loading and cleaning.

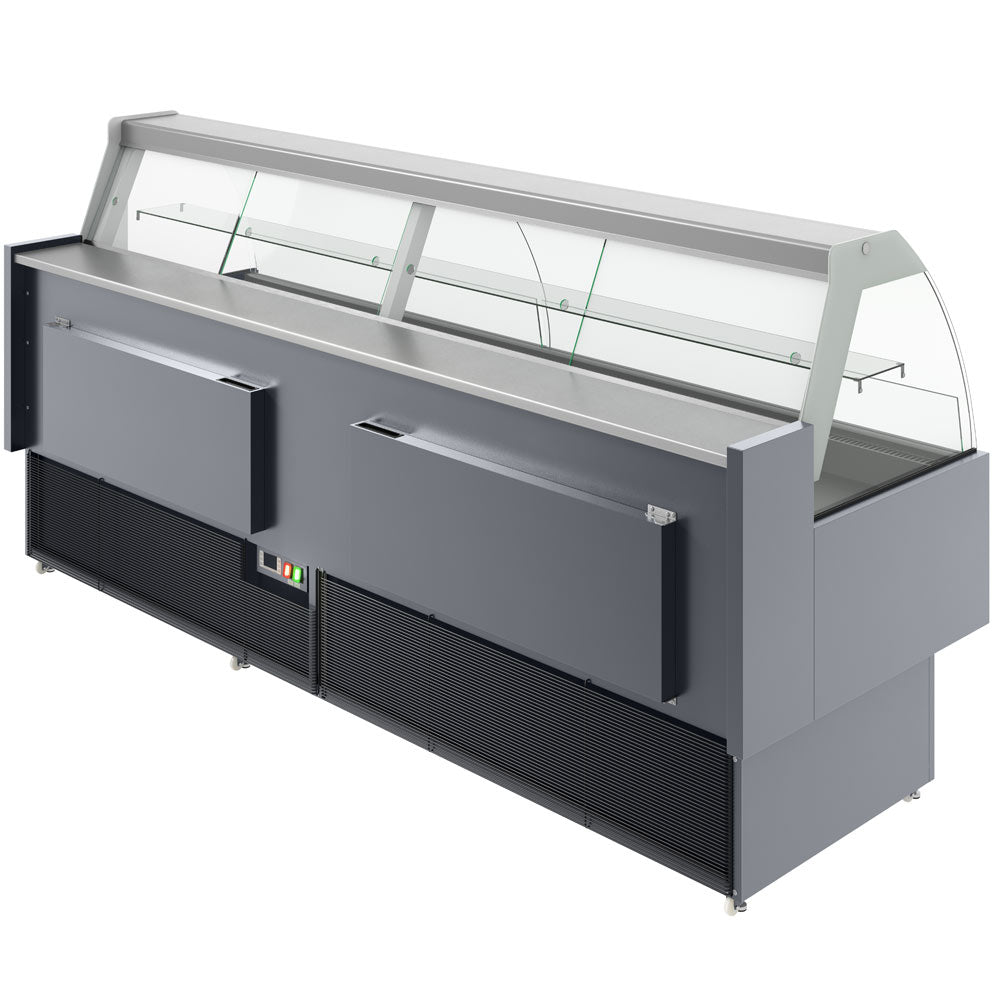

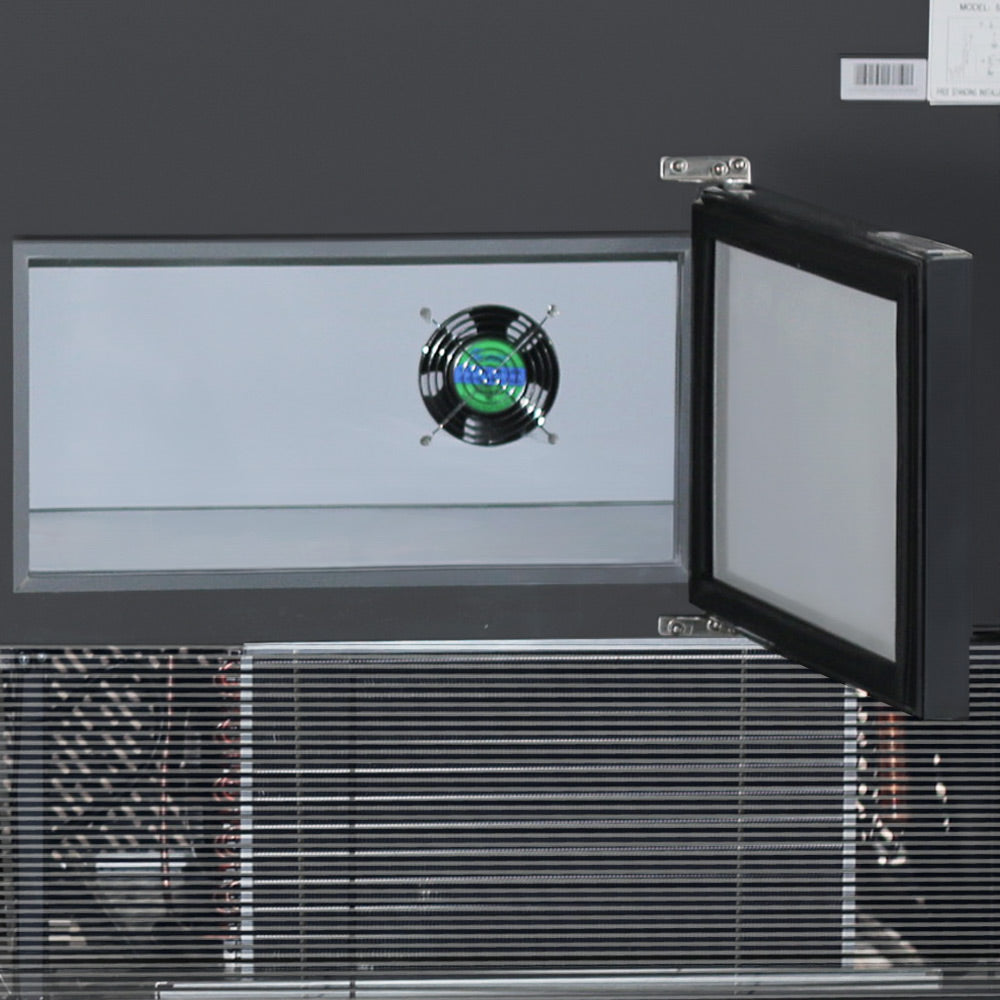

6 cu. ft. of refrigerated storage under the 8" stainless rear work surface.
Digital controller, automatic defrost and R290 refrigerant.
A grounded 115V outlet for its NEMA 5-15P plug on a 79" cord; it draws 6.8 A at 60 Hz, single phase.

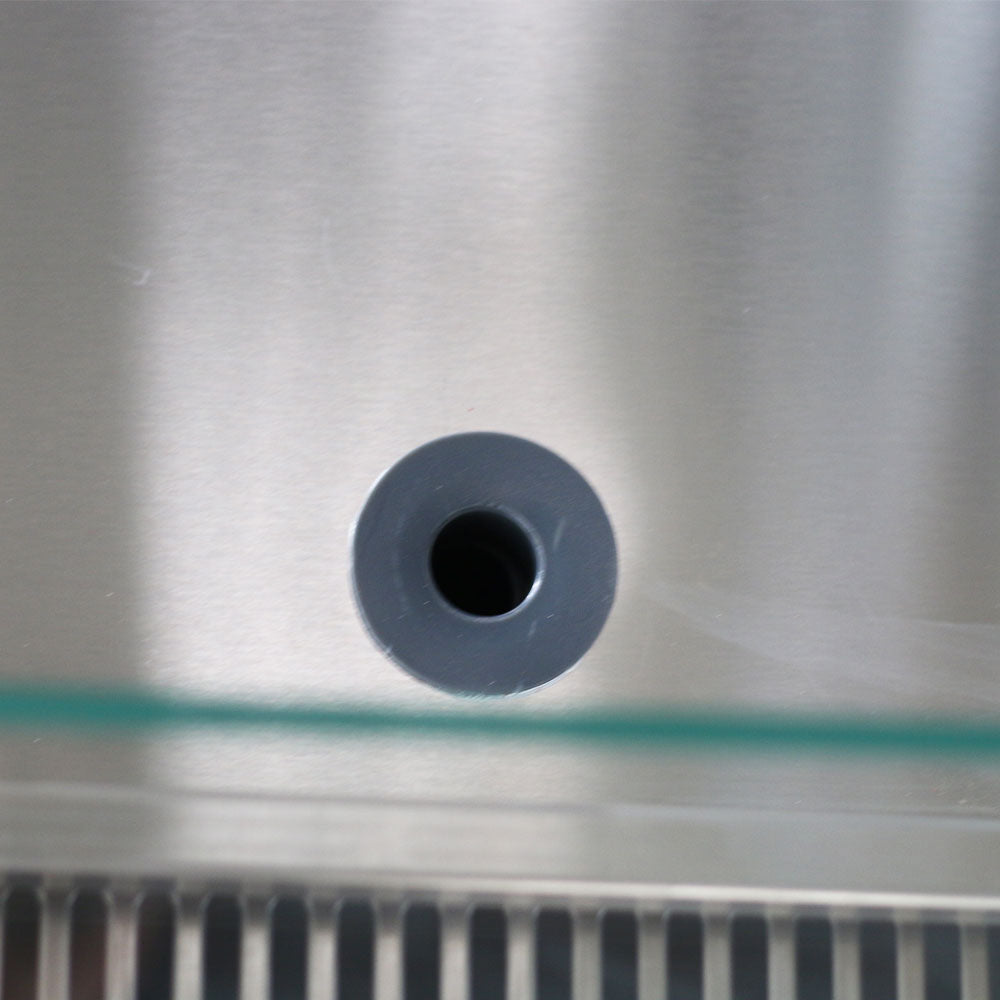

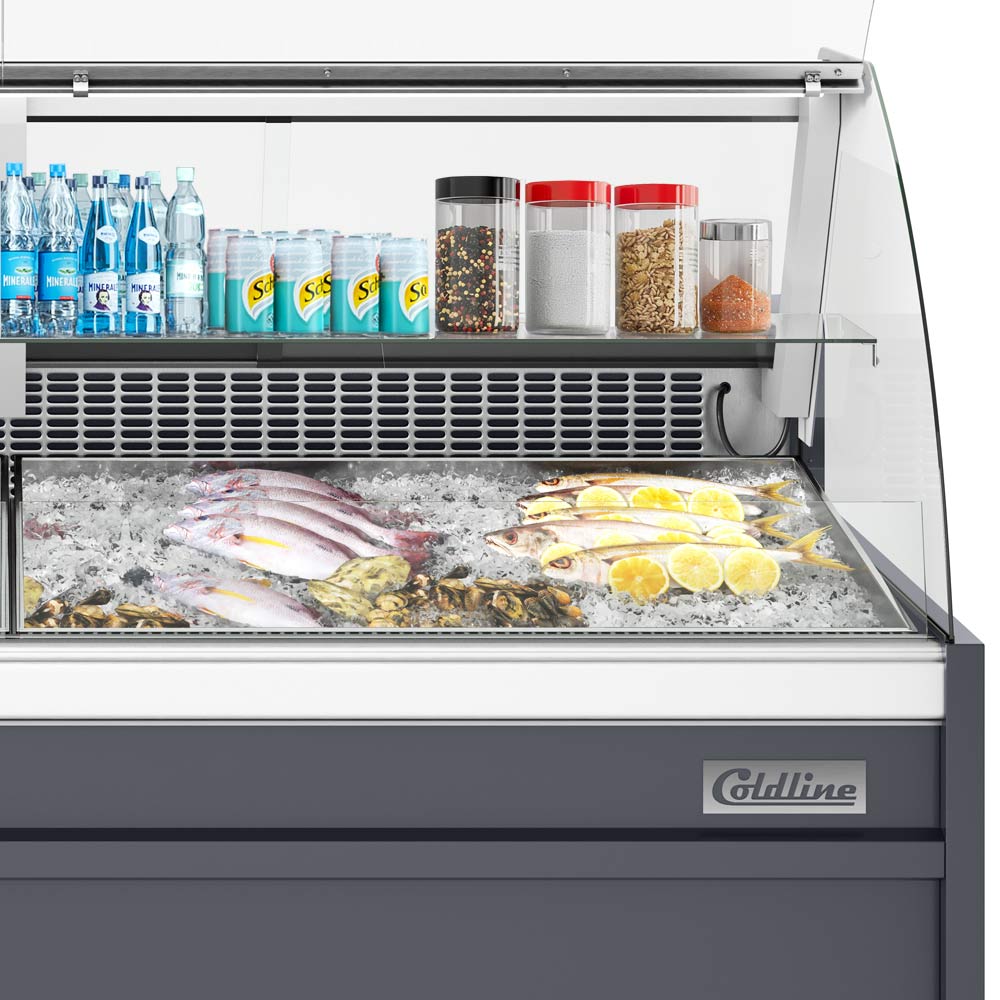

Fish and seafood sit on ice in the built-in display bin, and melt water runs out through the drain. The Coldline manual says to slope the drain pipe toward a floor drain and to use the correct water pan for fish or deli use.

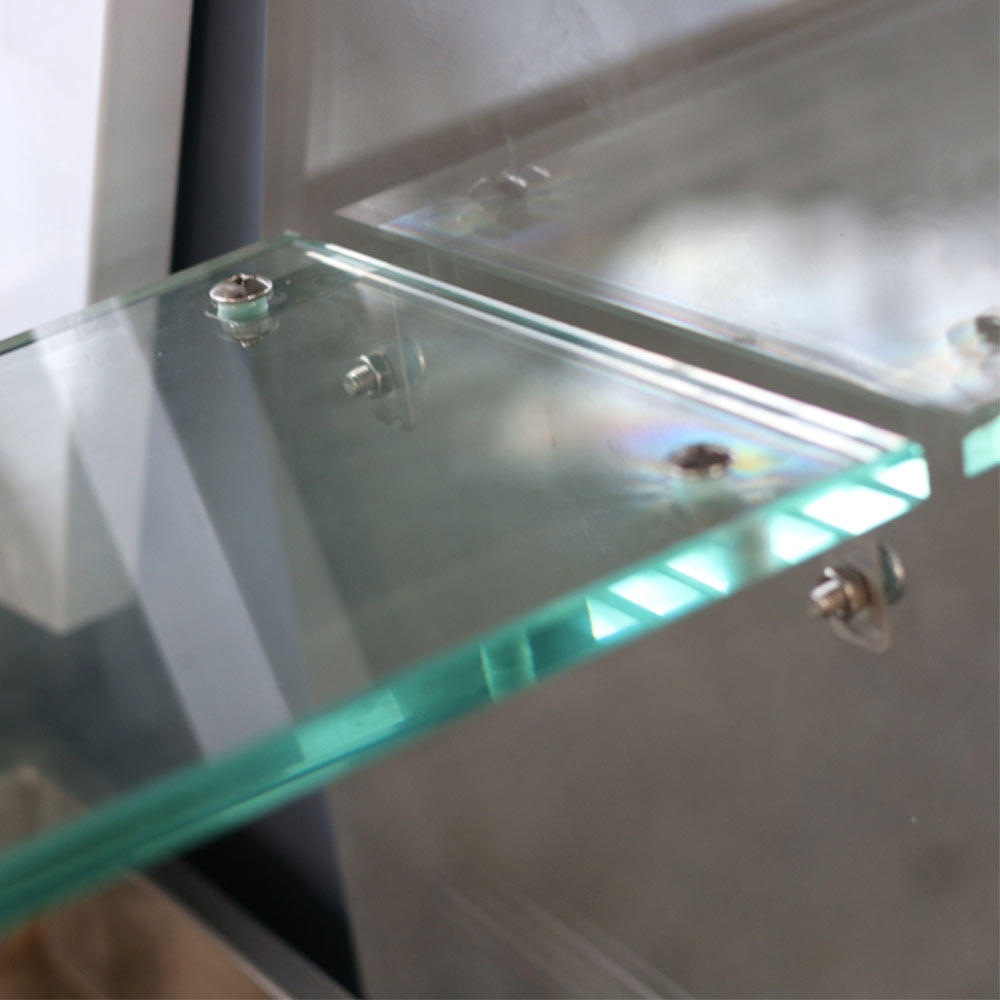

No. Coldline says the inside glass shelf is not refrigerated and not suitable for fish or meat; use it for signs, lemons or packaged items.
Indoors only. Coldline rates it for rooms up to 80°F; the manual asks for 25°C (77°F) or less and 60% humidity, away from sun, heaters, fans and doors. Some glass condensation is normal in humid rooms.
101.6" wide, 33.46" deep and 48.43" tall. Four 2.5" casters (2 with brakes) and leveling feet are included. It ships at 762 lb., so plan a liftgate or forklift for the delivery.
USR Brands covers SDC-Series cases for 1 year parts and labor from delivery, plus 5 years on the compressor (the replacement part only), in the contiguous US. Glass is not covered, so inspect it before signing. Food truck and farm installs are parts only.
The Coldline refrigeration warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | SDC98-F |
| Quantity | 1/Each |
| Shipping Weight | 762 lb. |
| Net Weight | 655 lb. |
| Width | 101.6 Inches |
| Depth | 33.46 Inches |
| Height | 48.43 Inches |
| Display Area | 16 sq. ft. |
| Rear Storage | 6 cu. ft. (98.4" L x 13.6" D) |
| Packaging Dimensions | 107" L x 38.7" D x 50.3" H |
| Voltage | 115 Volts |
| Amps | 6.8 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 79 Inches |
| Capacity | 16 sq. ft. Display6 cu. ft. Rear Storage |
| Temperature Range | 33 - 40 Degrees F |
| Refrigerant | R290 |
| Max. Ambient Temperature | 80 Degrees F |
| Defrost | Automatic |
| Temperature Control | Digital |
| Front Glass | Tempered Curved Lift-Up Glass |
| Ice Bin | Built-in with Drain |
| Condensate | Automatic Evaporation |
| Compressor | Bottom-Mounted, Self-Contained |
| Rear Work Surface | 8 Inches Deep, SS304 Stainless Steel |
| Interior Shelf | 1 Glass, 97" x 7.9" x 0.5" (Non-Refrigerated) |
| Interior Lighting | LED |
| Exterior | Grey Pre-painted Steel |
| Interior | Pre-painted Steel |
| Casters | 4 x 2.5 Inch2 with Brakes, 2 withoutLeveling Feet Included |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
| Usage | CommercialFish and Seafood Display, Indoor Use Only |
