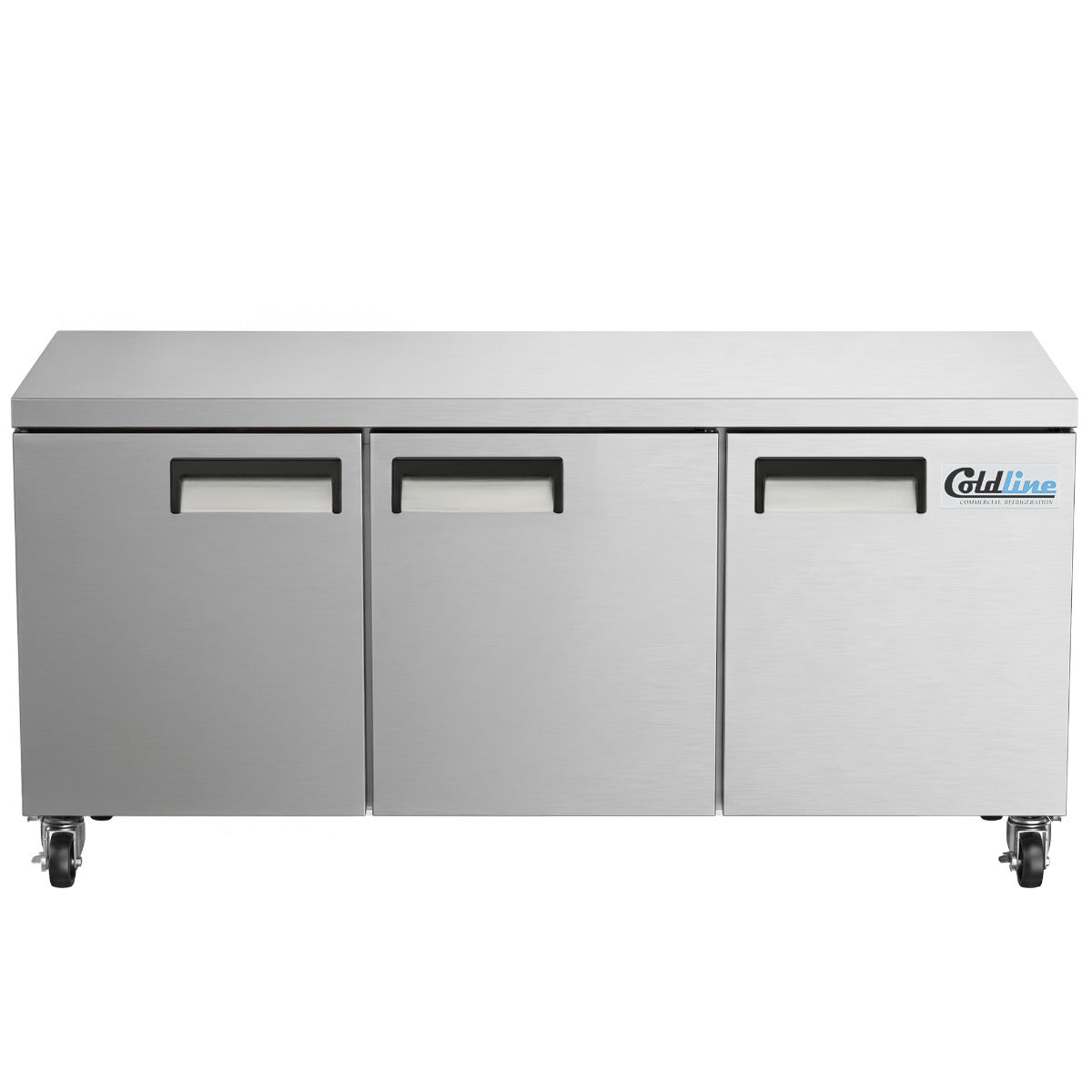

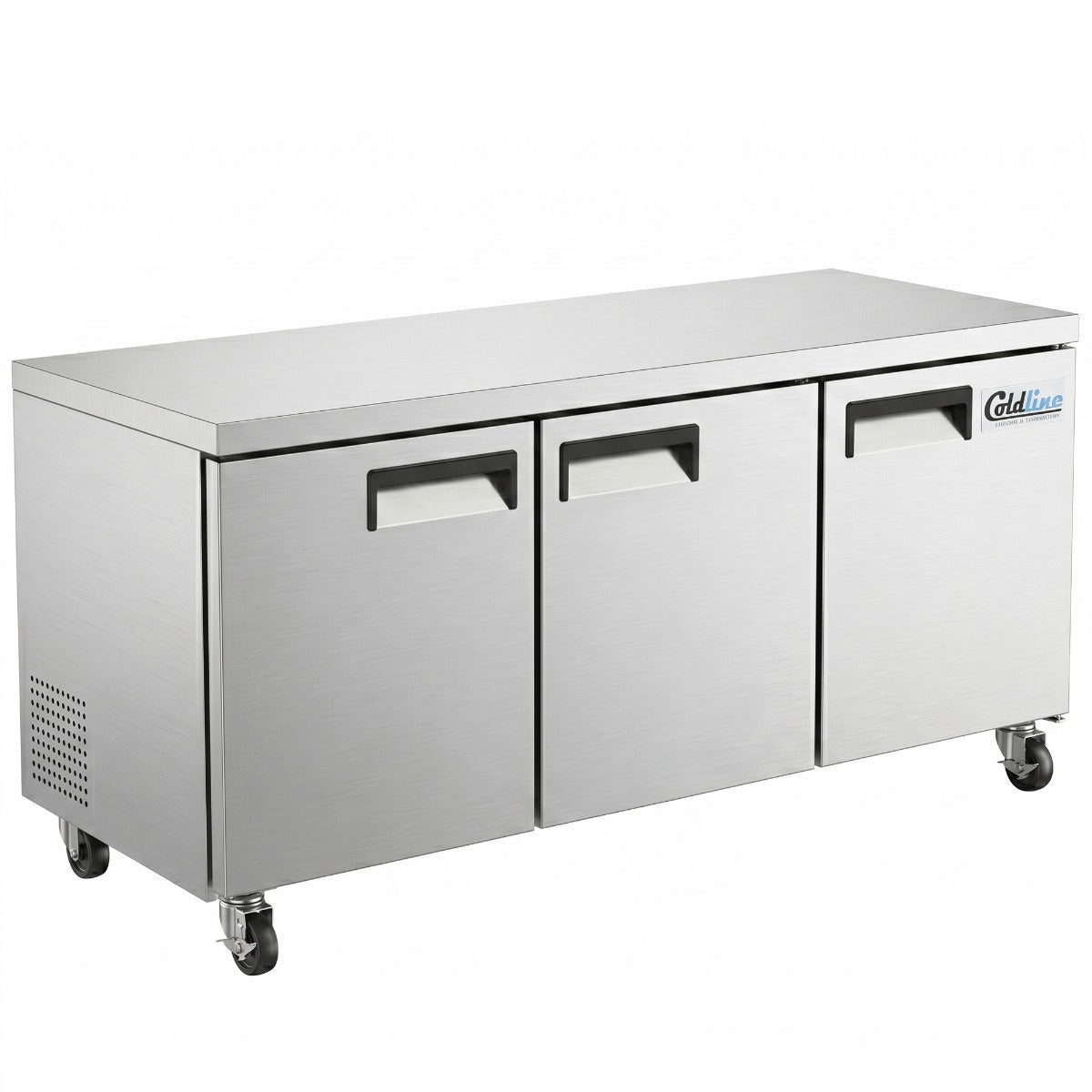

Coldline UC-72R 72" 3-Door Undercounter Worktop Refrigerator, 18 cu. ft., 33 to 41°F, 115V
A 72" undercounter refrigerator with a stainless steel worktop for prep space and cold storage in one footprint.
The Coldline UC-72R is a 3-door worktop refrigerator for restaurants, delis, bakeries and cafes. It stores 18 cu. ft. at 33°F to 41°F behind self-closing doors, gives you a stainless steel work surface at a 35.3" working height, and rolls on preinstalled 5" casters with brakes. It plugs into a 115V NEMA 5-15P outlet on a dedicated 15 A circuit.
Measure every doorway and turn on the delivery path; its smallest outside dimension is the 29.5" depth.
Stainless steel top over 18 cu. ft. of refrigerated storage.

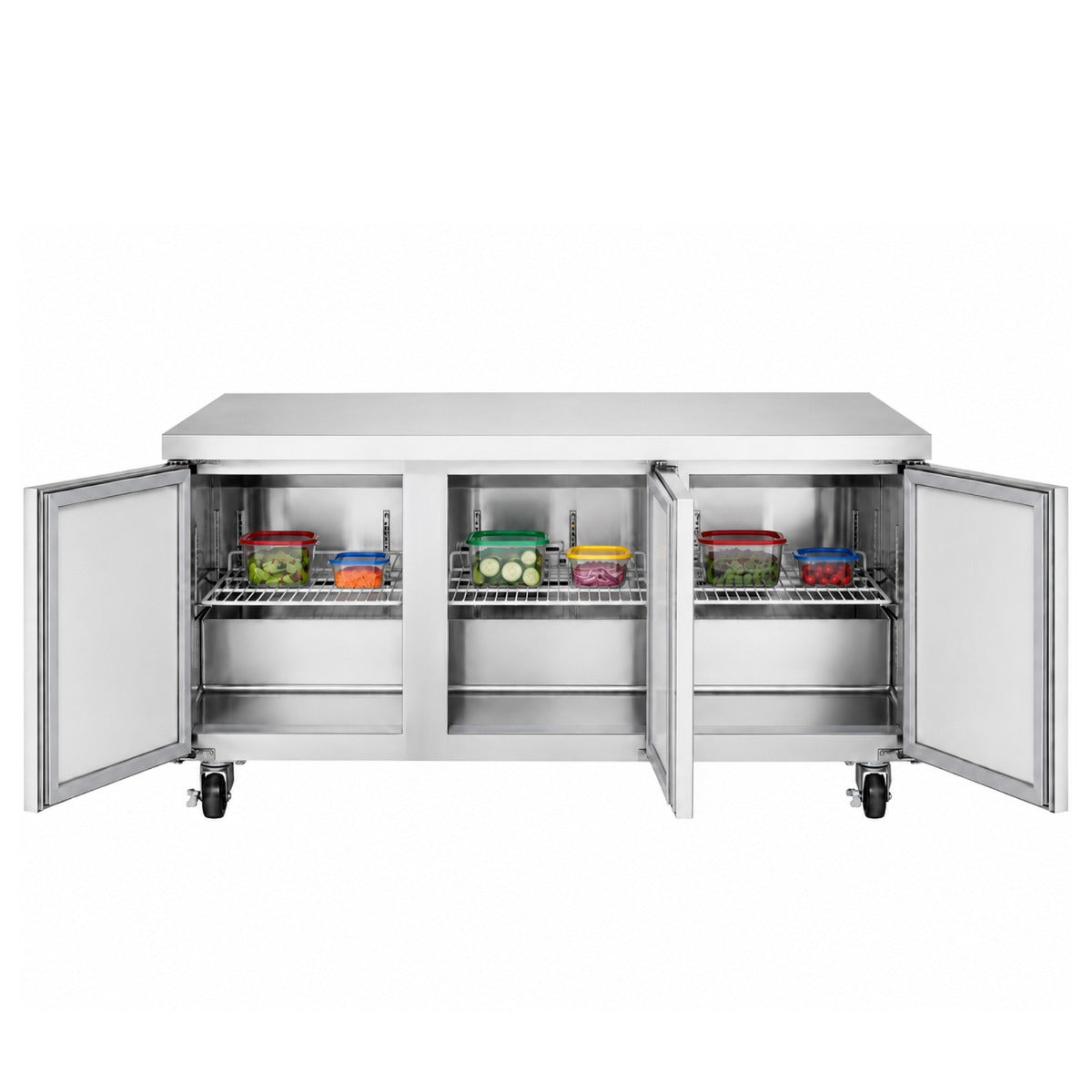

3 doors with a 90 degree stay-open feature for loading.

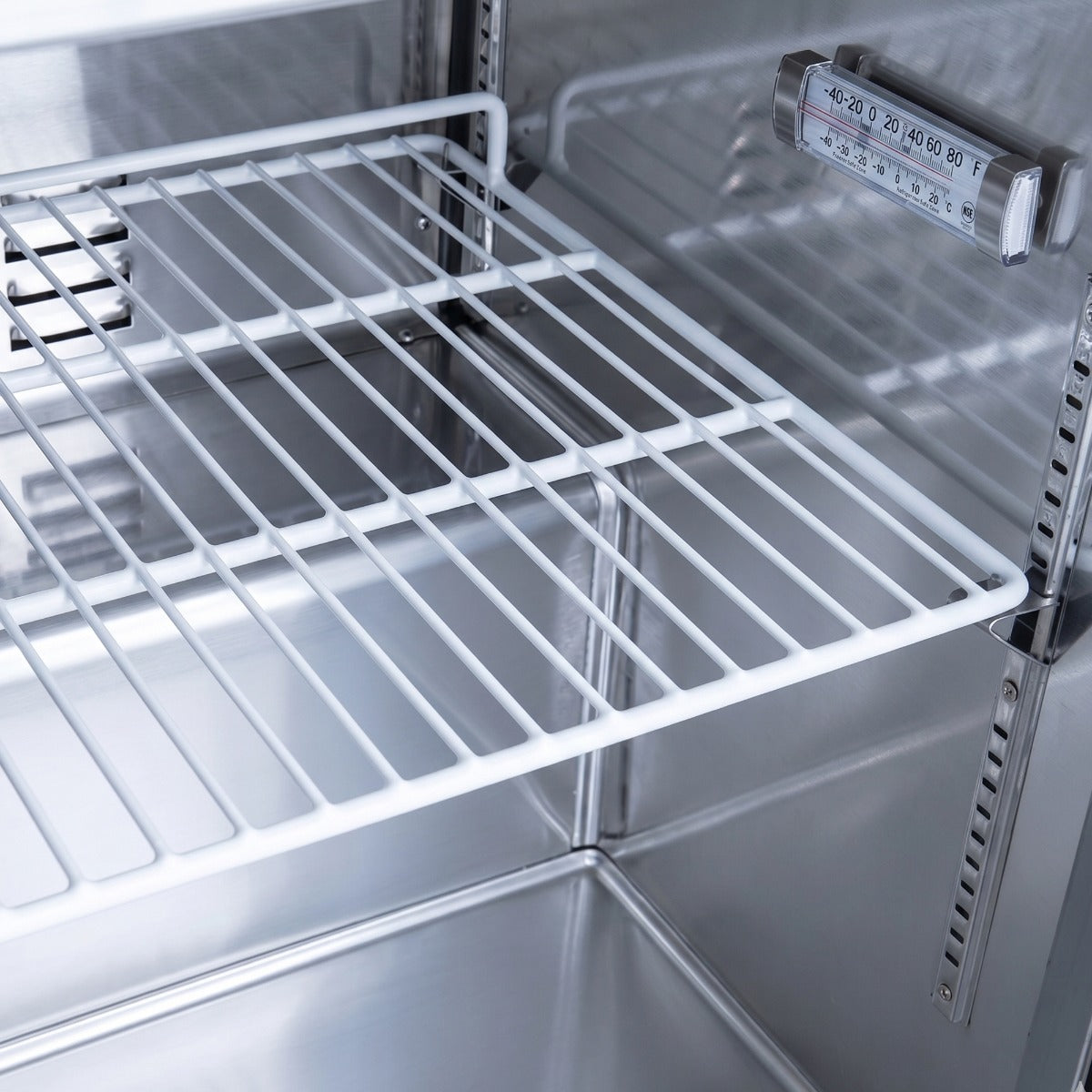

3 adjustable epoxy coated steel shelves, 90 lb. each.

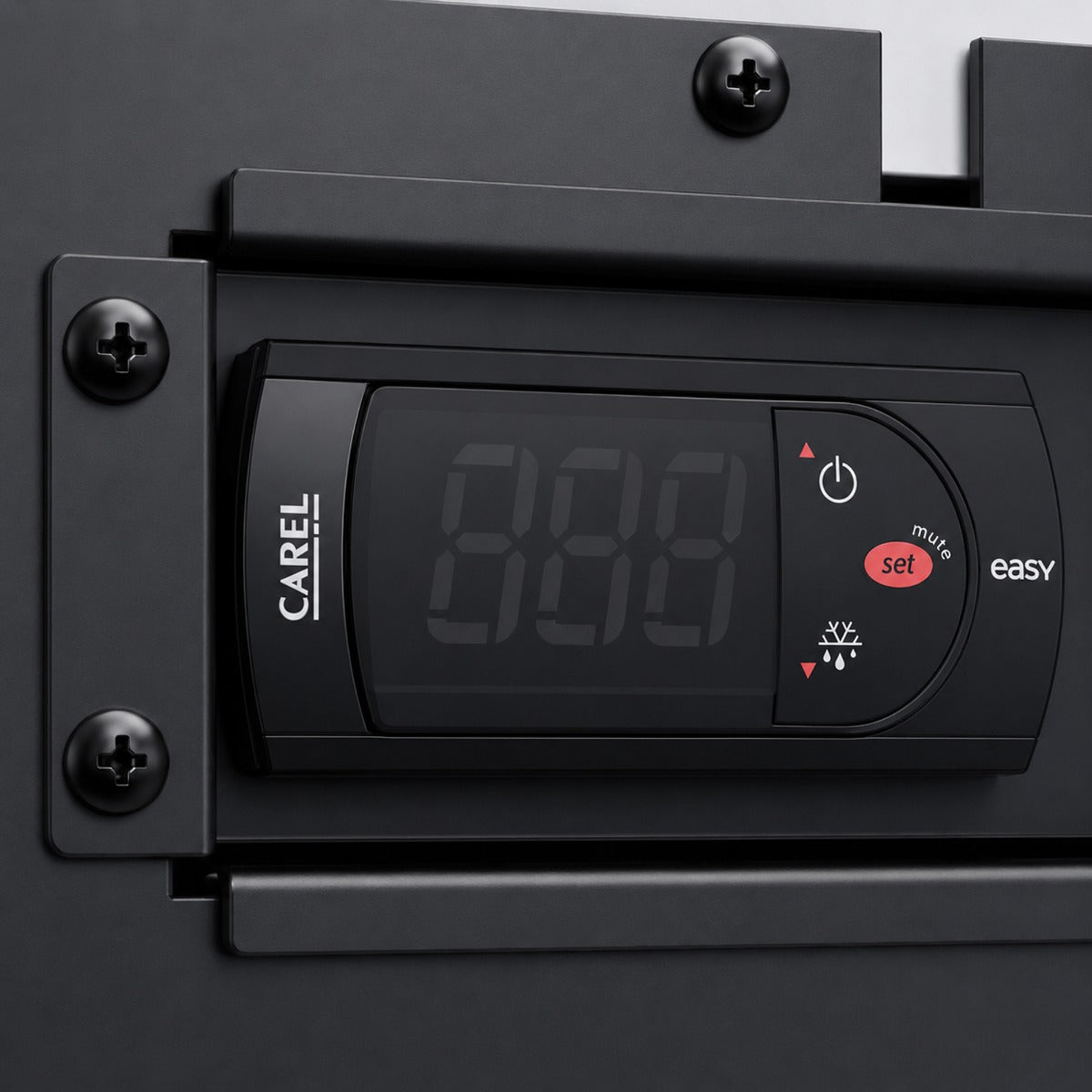

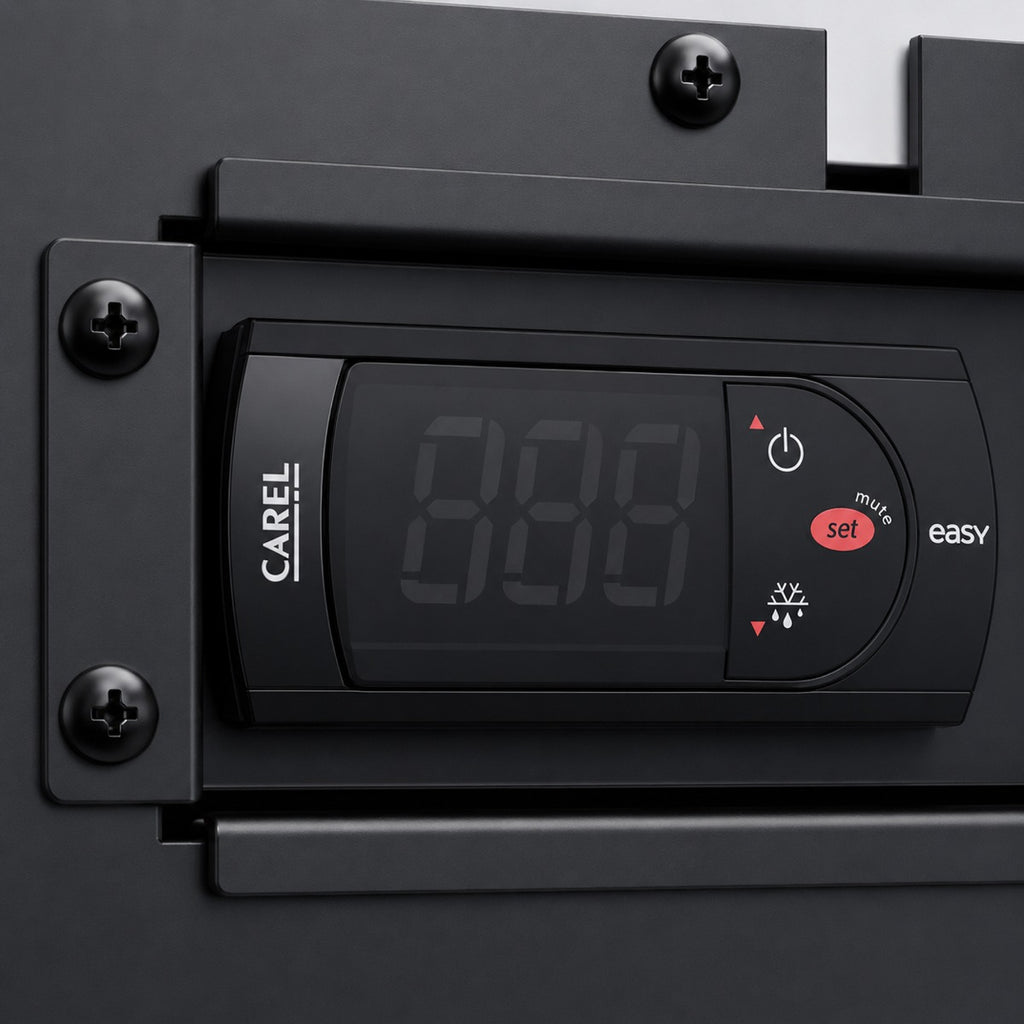

Electronic controller with automatic defrost and R290 refrigerant.
It is 71.5" wide, 29.5" deep and 35.5" high on its standard 5" casters and needs 53.3" of depth with the doors open (drawing). The sheet also shows a 34" height with low profile wheels; ask us before ordering if you need that. Measure every doorway and turn on the delivery path first.
It runs on 115V, 60 Hz, single phase and draws 3.2 A through a NEMA 5-15P plug on an 84" cord. Coldline requires a dedicated 15 A circuit installed by a licensed electrician, and the manual says not to use an extension cord.
Yes. It has a stainless steel work surface at a 35.3" working height, so it doubles as prep space.
33°F to 41°F with a digital controller and automatic defrost, in rooms up to 90°F (Coldline sheet). Let it reach temperature before loading.

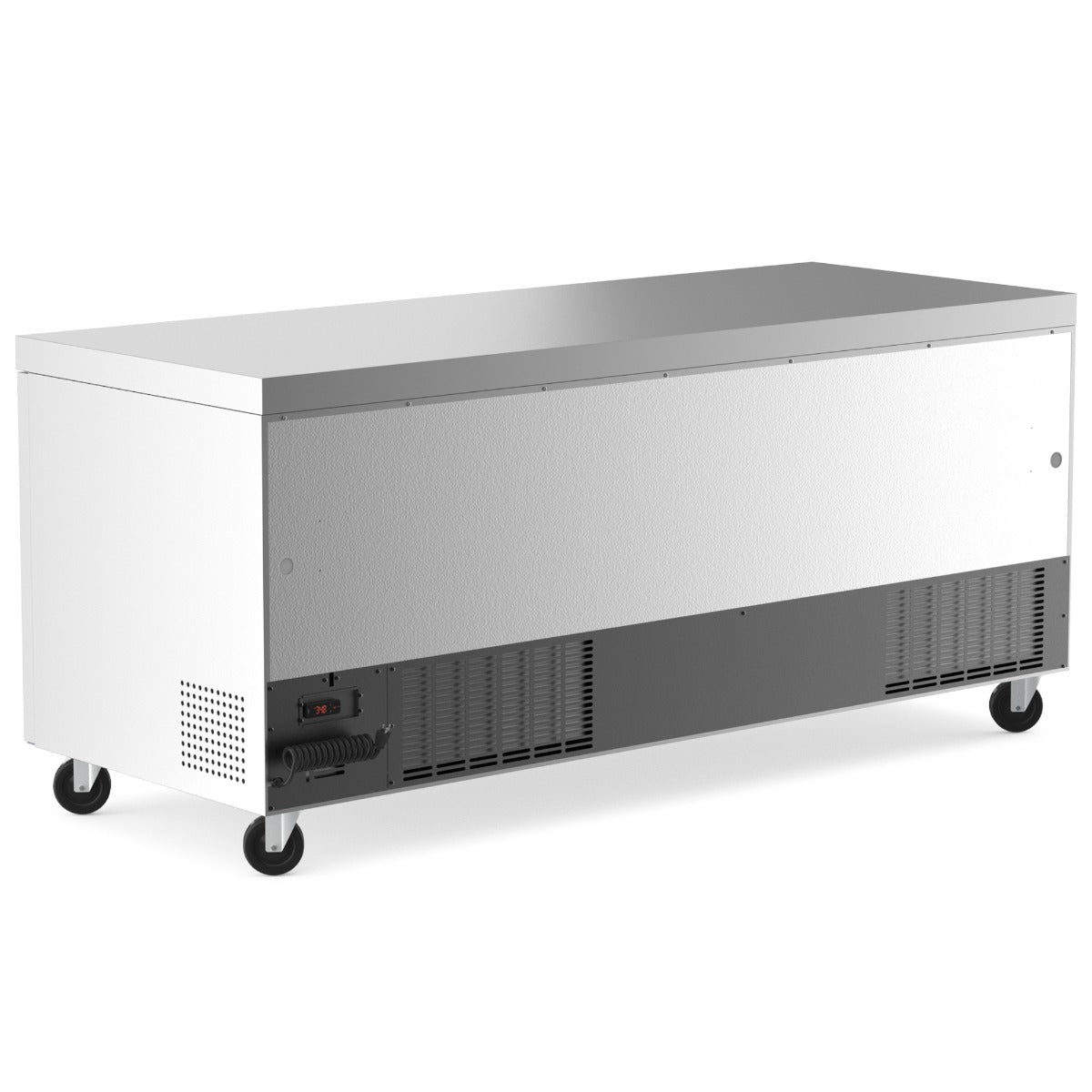

Keep 3" of clearance at the back, leave 2 to 4" between the back wall and stored food so the fan can move air, and clean the condenser coil at least once a month; a malfunction from a dirty condenser or high room temperature voids the warranty.
USR Brands covers the Coldline UC-Series for 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor), in the contiguous US. Food truck and farm installs are parts only, and residential use is not covered.
The Coldline refrigeration warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | UC-72R |
| Quantity | 1/Each |
| Shipping Weight | 360 lb. |
| Net Weight | 298 lb. |
| Width | 71.5 Inches |
| Depth | 29.5 Inches |
| Height | 35.5 Inches |
| Working Height | 35.3 Inches |
| Height with Low Profile Wheels | 34 Inches |
| Depth with Doors Open | 53.3 Inches |
| Interior Dimensions | 66.9" L x 22.9" D x 23.5" H |
| Packaging Dimensions | 74.3" L x 32.3" D x 38.5" H |
| Voltage | 115 Volts |
| Amps | 3.2 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 84 Inches |
| Circuit | Dedicated 15 Amp, Installed by a Licensed Electrician |
| Capacity | 18 cu. ft. |
| Temperature Range | 33 - 41 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/5 HP |
| Defrost | Automatic |
| Controls | Digital |
| Max. Ambient Temperature | 90 Degrees F |
| Doors | 3 Self-Closing90 Degree Stay-OpenRecessed Handles |
| Shelves | (2) 20.8" L x 17.1" D and (1) 17.1" L x 23.5" D, Adjustable Epoxy Coated Steel |
| Shelf Load Capacity | 90 lb. |
| Exterior | Stainless Steel |
| Interior | Stainless Steel |
| Insulation | Foamed-in-Place Polyurethane |
| Interior Light | None |
| Casters | (4) Preinstalled 5" Heavy-Duty2 with Brakes, 2 without |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
