Description
6 open burners over a full-size oven in a 36" footprint.
The Serv-Ware SGR-6B is a 36" gas restaurant range for restaurants, diners and institutional kitchens. It has 6 open burners at 30,000 BTU each under removable 12" x 12" heavy duty cast grates, and a standard oven with a 31,000 BTU U-shaped burner that runs from 250°F to 550°F and takes a full-size sheet pan side-to-side or front-to-back. It is built for natural gas, ships with an LP conversion kit, and carries cETLus and ETL Sanitation marks.
Will it fit · Will it hook up
- Outside size
- 36" W × 32.6" D × 60" H (to the top of the high shelf)
- Cooktop height
- 36.02" from the floor (drawing)
- Gas
- Natural gas, 3/4" gas line, 4" W.C.; LP conversion kit included (LP 10" W.C.)
- Total input
- 211,000 BTU/hr (6 burners × 30,000 + oven 31,000)
- Oven
- Standard, 250°F to 550°F; full-size sheet pan fits side-to-side or front-to-back; 2 racks, 4 positions
- Shipping weight
- 490 lbs

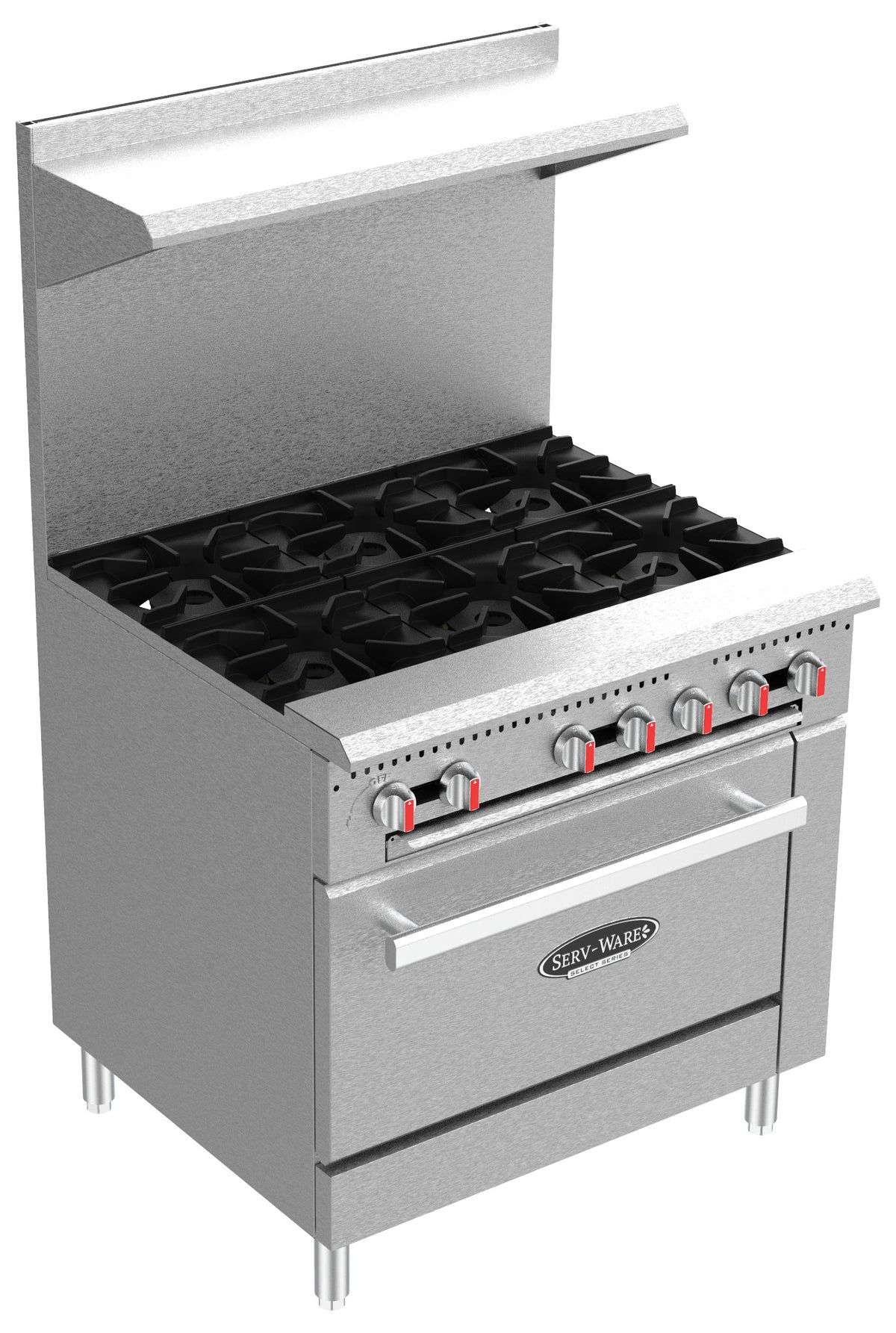

Measure doorways and turns on the delivery path; its smallest outside dimension is the 32.6" depth. Plan a 3/4" gas connection and a ventilation hood as your local code requires. Serv-Ware does not publish clearances to combustible walls. The store photo is labeled as a Serv-Ware Select Series range and may differ in looks from the SGR-6B on the spec sheet; call (201) 467-8222 if appearance matters.
6 × 30,000 BTU burners
Open burners with removable 12" x 12" heavy duty cast grates; covered pilots and burner covers keep spills from clogging them.
Oven, 250°F to 550°F
A 31,000 BTU U-shaped burner, porcelain door liner and oven bottom, 2 racks and 4 rack positions; full-size sheet pans fit either way.
Heavy duty build
Fully welded frame; stainless steel front and back riser; galvanized sides; durable stainless steel pilot.
Easy cleaning
Pull-out crumb tray with rounded edges and removable cast grates.
Level on any floor
6" adjustable heavy duty stainless steel legs.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee.
- Ships by freight.
- Gas hookup and any conversion should be done by a qualified gas installer; the warranty excludes improper conversion and incorrect gas pressure.
- Serv-Ware asks you to inspect all components on arrival and notify the carrier of any damage before signing.
Questions buyers ask
Does it run on propane?
It is built for natural gas and comes with an LP conversion kit. Have a qualified gas technician convert it; LP runs at 10" W.C. and natural gas at 4" W.C.
What gas connection does it need?
A 3/4" gas line. Total input is 211,000 BTU/hr, so size the gas supply for that load.
Will a full-size sheet pan fit in the oven?
Yes. A full-size sheet pan fits side-to-side or front-to-back, and the thermostat runs from 250°F to 550°F.
Will it fit through my door?
The range is 36" wide, 32.6" deep and 60" high to the top of the high shelf, and ships at 490 lbs. Measure every doorway and turn; its smallest outside dimension is the 32.6" depth.
Do I need a hood?
Commercial gas ranges are installed under a ventilation hood in most jurisdictions. Check with your local code official and installer.

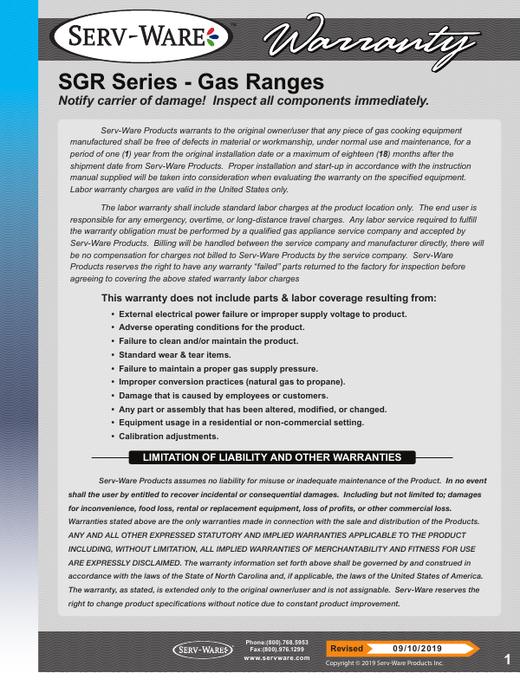

What does the warranty cover?
Serv-Ware covers parts and labor on the entire unit for 1 year from installation (up to 18 months from shipment), in the United States and for commercial use only. Labor must be done by a qualified gas appliance service company accepted by Serv-Ware.
When will it ship, and do you match lower prices?
It usually ships in 1 business day, shipping is free on this item, and it is covered by our Best Price Guarantee. Call (201) 467-8222 if you find a lower price.
Specs
| Manufacturer | Serv-Ware |
|---|---|
| Model Number | SGR-6B |
| Quantity | 1/Each |
| Shipping Weight | 490 lb. |
| Width | 36 Inches |
| Depth | 32.6 Inches |
| Height | 60 Inches |
| Cooktop Height (Drawing) | 36.02 Inches |
| Back Riser and High Shelf Above Cooktop (Drawing) | 22.13 Inches |
| Legs | 6" Adjustable Stainless Steel |
| Gas Type | Natural GasLP Conversion Kit Included |
| Total BTU | 211,000 BTU/H |
| Gas Line | 3/4 Inch |
| Gas Pressure | 4 in. W.C. (Natural Gas)10 in. W.C. (LP) |
| Burner BTU | 30,000 BTU/H Each |
| Oven BTU | 31,000 BTU/H (U-Shaped Burner) |
| Number of Burners | 6 Open Burners |
| Grates | Removable Heavy Duty Cast12" x 12" |
| Oven | 1 Standard Oven |
| Oven Temperature Range | 250 - 550 Degrees F |
| Oven Racks | 2 Racks4 Rack Positions |
| Oven Capacity | Full-Size Sheet Pan, Side-to-Side or Front-to-Back |
| Pilots | CoveredStainless Steel |
| Crumb Tray | Pull-Out |
| Exterior | Stainless Steel Front and Back RiserGalvanized Sides |
| Frame | Fully Welded |
| Oven Interior | Porcelain Door Liner and Oven Bottom |
| Knobs | High Temperature with Set Screw |
| Certifications | cETLus, ETL Sanitation |
| Warranty | 1 Year Parts & Labor (Entire Unit) |
| Usage | Commercial Use Only |
