Description
Ten burners and two ovens for a high-volume line in a 60" footprint.

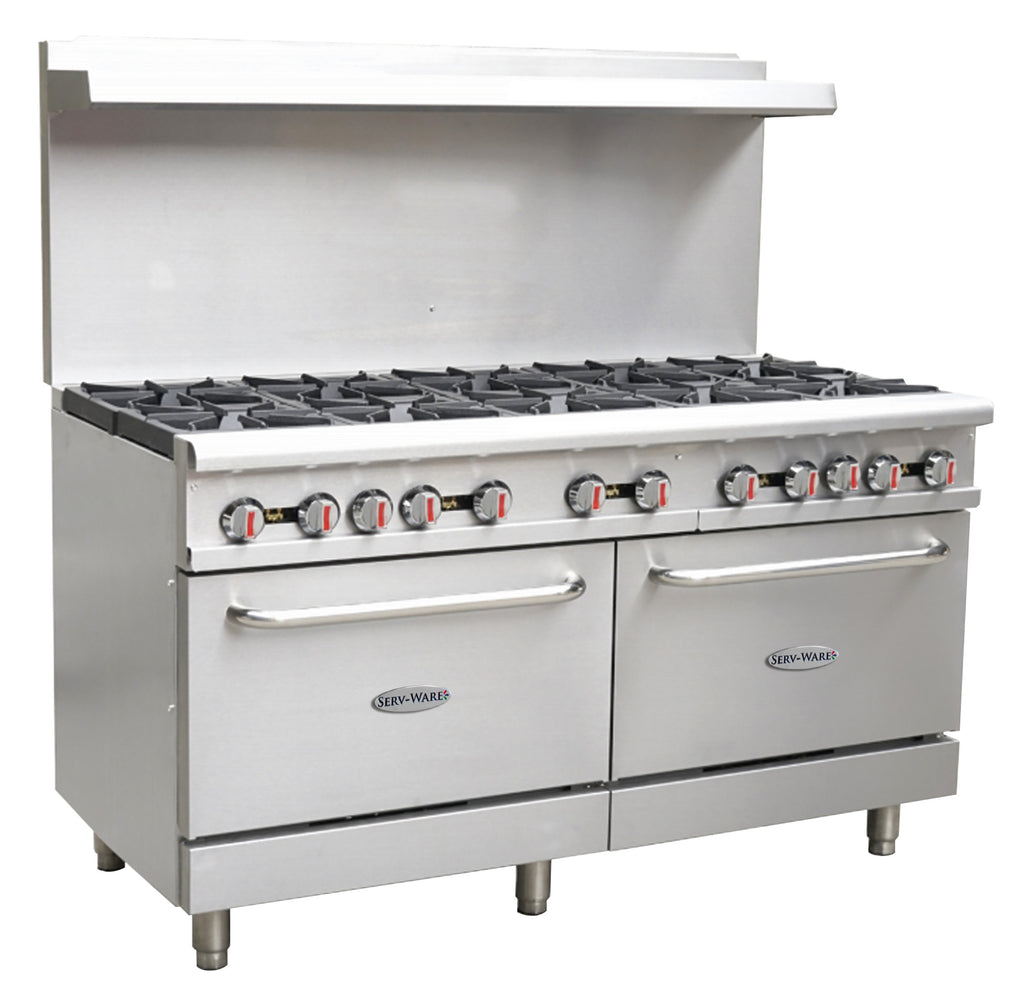

The Serv-Ware SGR-10B is a 60" gas restaurant range for busy restaurants, diners and banquet kitchens. It has ten 30,000 BTU open burners under removable 12" x 12" heavy duty cast grates and two ovens with 31,000 BTU U-shaped burners, each taking a full-size sheet pan side-to-side or front-to-back. It is built for natural gas and ships with an LP conversion kit, and it is ETL Sanitation and cETLus listed.
Will it fit · Will it hook up
- Outside size
- 60" W × 32.6" D × 60" H (to the top of the high shelf)
- Cooktop height
- 36.02" from the floor (drawing)
- Gas
- Natural gas, 3/4" gas line, 4" W.C.; LP conversion kit included (LP 10" W.C.)
- Total input
- 362,000 BTU/hr (10 burners × 30,000 + 2 ovens × 31,000)
- Ovens
- 2; full-size sheet pan fits side-to-side or front-to-back
- Shipping weight
- 815 lbs
Measure doorways and turns on the delivery path; its smallest outside dimension is the 32.6" depth. Plan for a 3/4" gas connection and a ventilation hood as your local code requires. Serv-Ware does not publish clearances to combustible walls on the spec sheet.
Ten 30,000 BTU burners
Ten open burners with covered pilots and burner covers that keep spills from clogging them.
Two ovens, 250°F to 550°F
Each oven has a 31,000 BTU U-shaped burner, porcelain door liner and oven bottom, and takes a full-size sheet pan either way. Serv-Ware lists 2 oven racks and 4 rack positions.
Heavy duty build
Fully welded frame; stainless steel front, back riser, high shelf, oven handle and bullnose; galvanized sides.
Easy cleaning
Removable 12" x 12" heavy duty cast grates and a pull-out crumb tray with rounded edges.
Natural gas or LP
Built for natural gas and supplied with an LP conversion kit.
Level on any floor
6" adjustable heavy duty stainless steel legs with nickel plated bullet feet.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee.
- Ships by freight.
- Gas hookup and any LP conversion must be done by a qualified gas installer; the warranty excludes improper conversion and incorrect gas pressure.
- Optional 5" casters with brake for SGR ranges (Serv-Ware 5SB-4040) are sold separately.
- Inspect the shipment before signing for it.
Questions buyers ask
Does it run on propane?
It is built for natural gas and comes with an LP conversion kit. Have a qualified gas technician convert it; LP runs at 10" W.C. and natural gas at 4" W.C.
What gas connection does it need?
A 3/4" gas line. Total input is 362,000 BTU/hr (ten 30,000 BTU burners plus two 31,000 BTU ovens), so size the gas supply for that load.
Will a full-size sheet pan fit in the ovens?
Yes. A full-size sheet pan fits side-to-side or front-to-back, and the thermostat runs from 250°F to 550°F.
Will it fit through my door?
The range is 60" wide, 32.6" deep and 60" high to the top of the high shelf, and ships at 815 lbs. Measure every doorway and turn; its smallest outside dimension is the 32.6" depth.
Do I need a hood?
Commercial gas ranges are installed under a ventilation hood in most jurisdictions. Check with your local code official and installer.
Is it NSF or ETL listed?
The spec sheet carries the ETL Sanitation and cETLus marks (Intertek).
What does the warranty cover?
Serv-Ware covers parts and labor on the entire unit for 1 year from installation (up to 18 months from shipment), in the United States and for commercial use only. Labor must be done by a qualified gas appliance service company accepted by Serv-Ware.
When will it ship, and do you match lower prices?
It usually ships in 1 business day, shipping is free on this item, and it is covered by our Best Price Guarantee. Call (201) 467-8222 if you find a lower price.
Specs
| Manufacturer | Serv-Ware |
|---|---|
| Model Number | SGR-10B |
| Quantity | 1/Each |
| Shipping Weight | 815 lb. |
| Width | 60 Inches |
| Depth | 32.6 Inches |
| Height | 60 Inches |
| Cooktop Height (Drawing) | 36.02 Inches |
| Back Riser and High Shelf Above Cooktop (Drawing) | 22.13 Inches |
| Legs | 6" Adjustable Stainless SteelNickel Plated Bullet Feet |
| Gas Type | Natural GasLP Conversion Kit Included |
| Gas Line | 3/4 Inch |
| Gas Pressure | 4 in. W.C. (Natural Gas)10 in. W.C. (LP) |
| Total BTU | 362,000 BTU/H |
| Burner BTU | 30,000 BTU/H Each |
| Oven BTU | 31,000 BTU/H Each (U-Shaped Burner) |
| Number of Burners | 10 Open Burners |
| Grates | Removable Heavy Duty Cast12" x 12" |
| Number of Ovens | 2 Standard Ovens |
| Oven Temperature Range | 250 - 550 Degrees F |
| Oven Racks | 2 Racks4 Rack Positions |
| Oven Capacity | Full-Size Sheet Pan, Side-to-Side or Front-to-Back |
| Pilots | CoveredStainless Steel |
| Crumb Tray | Pull-Out |
| Exterior | Stainless Steel Front, Back Riser, High Shelf, Oven Handle and BullnoseGalvanized Sides |
| Oven Interior | Porcelain Door Liner and Oven Bottom |
| Frame | Fully Welded |
| Knobs | High Temperature with Set Screw |
| Casters | Optional (5SB-4040, Sold Separately) |
| Certifications | cETLus, ETL Sanitation |
| Warranty | 1 Year Parts & Labor (Entire Unit) |
| Usage | Commercial Use Only |
