Description

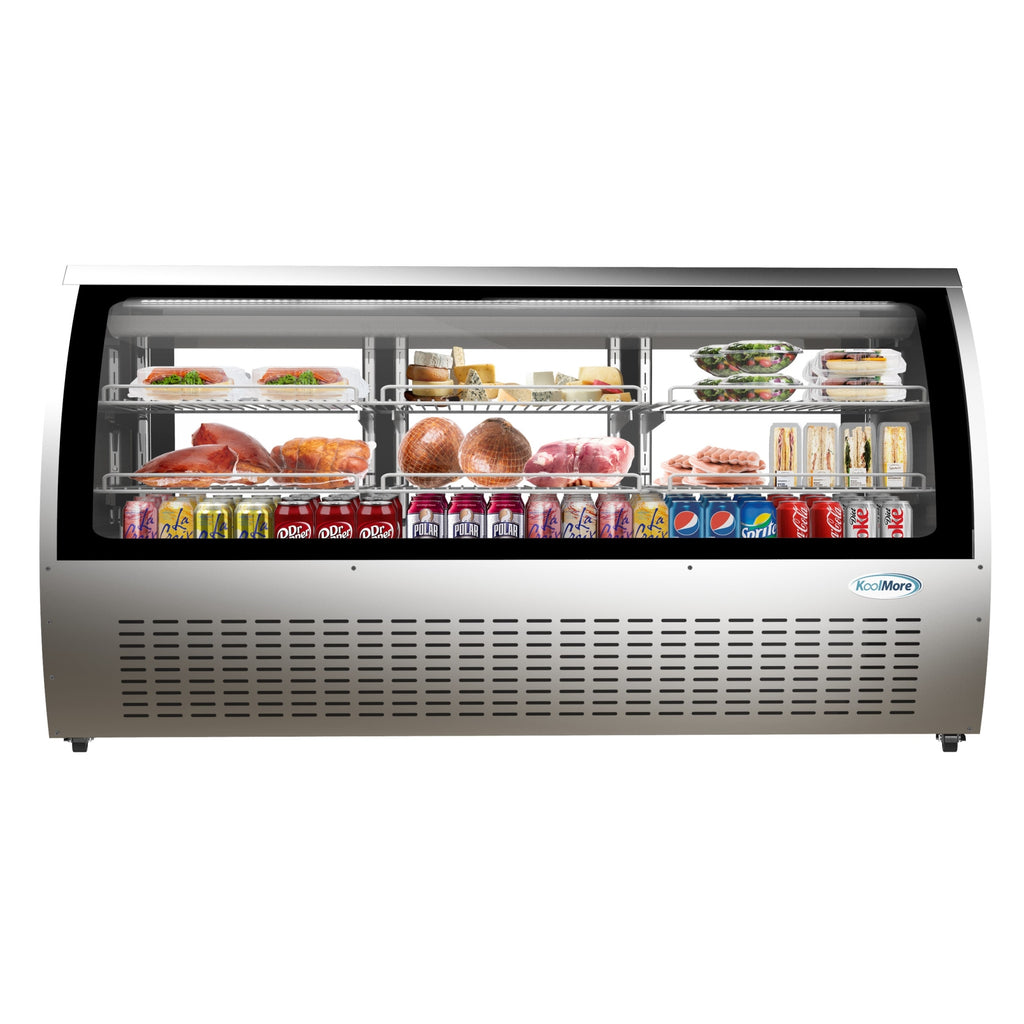

An 82" curved-glass deli case for a full counter of meats, cheeses and prepared foods.
Made for delis, butcher counters and markets. The RD32C-SS holds 32 cu. ft. gross at 33 to 40°F behind curved glass, loads through three rear sliding doors and plugs into a 115V outlet of its own.
Will it fit · Will it plug in
- Outside size
- 82" W x 32.5" D x 42.8" H
- Inside
- 78" W x 26.75" D x 26.75" H
- Air clearance
- At least 8" from the wall, and do not seal the back, per the manual
- Power
- 115V, 60 Hz, 1 phase, 7.08 A, 518 W; NEMA 5-15P plug on a 98.4" cord. Dedicated outlet, no extension cord
- Weight
- 508 lbs. (507 lbs. shipping)
Koolmore gives no minimum doorway width. Measure every doorway and turn on the delivery path; the narrowest outside dimension is the 32.5" depth.
Made for deli
Curved front glass and LED lighting show deli meats, sausages and prepared foods.
Room to merchandise
32 cu. ft. gross on 9 adjustable plastic-coated shelves rated 88 lbs. each.
Steady cold
An external digital control holds 33 to 40°F with automatic defrost.
Moves for cleaning
4 swivel casters, 2 with brakes.
Delivery and setup
- Ships by freight carrier. See our shipping policy for delivery options and timing.
- Inspect the crate, glass and cabinet for damage before signing the delivery receipt, and note any damage on it.
- Do not tilt it more than 45 degrees in transit, and let it run 2 to 3 hours before loading product, as the manual says.
- Plug it into its own 110-120V outlet; the manual says not to share the outlet or use an extension cord.
- Set it on a dry, level floor indoors, away from direct sun and heat sources.
- Clean the condenser about every 30 days; the manual says a dirty condenser causes compressor failure that the warranty does not cover.
Questions buyers ask
What temperature does it hold?
33 to 40°F, set on the digital controller. Koolmore rates it for rooms up to 90°F.
What outlet does it need?
A 115V outlet for a NEMA 5-15P plug, used only for this case. It draws 7.08 A and 518 W.
How do staff load it?
Through sliding doors at the back. Customers see the product through the curved front glass.
How many shelves does it have?
9 adjustable plastic-coated steel shelves rated 88 lbs. each, plus the deck.
Will it fit through my door?
Koolmore does not list a minimum doorway. The case is 82" wide, 32.5" deep and 42.8" tall; measure doorways and turns before ordering.
What does the warranty cover?
Koolmore lists 1 year parts and labor, for the original purchaser in the United States. Contact Koolmore before getting service, or the warranty may be void.
Is it good for meat and deli?
Yes. Koolmore designed it for deli meats, sausages, cheeses and prepared foods held at 33 to 40°F.
Specs
| Manufacturer | KoolMore |
|---|---|
| Model Number | RD32C-SS |
| Quantity | 1 Each |
| Shipping Weight | 507 lbs. |
| Width | 82 Inches |
| Depth | 32.5 Inches |
| Height | 42.8 Inches |
| Shelf Width | 24.4 Inches |
| Shelf Depth | 20.5 Inches |
| Interior Width | 78 Inches |
| Interior Depth | 26.75 Inches |
| Interior Height | 26.75 Inches |
| Weight | 508 lbs. |
| Voltage | 115 Volts |
| Amps | 7.08 Amps |
| Wattage | 518 Watts |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 98.4 Inches |
| Capacity | 32 cu. ft. Gross28.1 cu. ft. Net |
| Temperature Range | 33 - 40 Degrees F |
| Ambient Temperature Rating | Up to 90 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 0.8 HP |
| Compressor Location | Bottom Mount |
| Defrost | Automatic |
| Controls | Digital, Temperature Display |
| Doors | 3 Sliding Doors (Rear, Staff Side) |
| Glass | Tempered, Curved Front |
| Shelves | 9 Adjustable Plastic-Coated Carbon Steel, 88 lbs. Capacity Each |
| Lighting | LED, Top |
| Exterior | 430 Stainless Steel (22 Gauge) |
| Interior | Aluminum |
| Color | Stainless Steel |
| Casters | 4 Swivel Casters (2 with Brakes) |
| Clearance | 8 Inches from Wall (Manual) |
| Certifications | cETLus ListedETL Sanitation |
| Warranty | 1 Year Parts and Labor |
| Usage | Commercial Indoor |
| Country of Origin | China |
