Description
A 2-door lighted glass freezer that puts ice cream, frozen meals and ice in front of customers.
The Dukers DSM-41F is a 2-door glass swing door merchandiser freezer for convenience stores, delis, markets and cafés. It holds 28 cu. ft. at 0 to -8°F on 8 adjustable shelves, is 47 1/4" wide and plugs into a 115V outlet with a NEMA 5-15P plug. A lighted sign on top and LED interior lighting keep frozen product visible.
Will it fit · Will it plug in
- Outside size
- 47 1/4" W × 29 1/4" D × 80 1/4" H (height on casters, from the Dukers drawing)
- Door open
- 50 1/4" total depth with the doors open; allow front clearance for the swing
- Doors
- 2 glass swing doors, 49 7/8" tall glass section
- Inside
- 28 cu. ft.; 8 adjustable shelves
- Power
- 115V / 60 Hz / 1 phase, 8.4 A (Dukers manual); NEMA 5-15P plug; Dukers recommends a dedicated circuit
- Crated size
- 49 1/4" × 30 1/8" × 82 5/8" (W × D × H); 396 lb net weight
Measure every doorway and turn on the delivery path; the cabinet's smallest outside dimension is the 29 1/4" depth. Keep at least 1" between the cabinet and the wall, don't block the back, and keep it out of direct sunlight.
Built to sell
A lighted top sign, LED interior light and anti-fog tempered glass doors keep frozen product easy to see.
Freezer temperatures
A digital controller with LED display holds 0 to -8°F, with automatic defrost and a manual defrost key.
Plug-in power
It runs on 115V with a NEMA 5-15P plug and an 8.4 A rated current; Dukers recommends a dedicated circuit.
Natural refrigerant
R290 hydrocarbon refrigerant (5.11 oz) with a bottom-mount 3/4+ HP compressor.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee: call (201) 467-8222 if you find a lower price.
- Ships by freight in a crate of 49 1/4" × 30 1/8" × 82 5/8"; the unit weighs 396 lb.
- Make sure all casters are installed and the cabinet is level before you start it.
- Inspect the shipment before signing for it and note any damage on the delivery receipt.
Questions buyers ask
What outlet does it need?
A grounded 115V outlet that takes a NEMA 5-15P plug; Dukers recommends a dedicated circuit. Its manual lists 8.4 A rated current. Don't run it on an extension cord; Dukers' warranty excludes damage from extension cords or wrong voltage.
Will it fit through my door?
The cabinet is 47 1/4" wide, 29 1/4" deep and 80 1/4" tall on casters. Measure doors and turns on the way in, and leave room in front for the doors to open (50 1/4" total depth open).
What temperature does it hold?
0 to -8°F, set on the digital controller. It is for holding and displaying frozen packaged food, not for freezing hot food.
How many shelves does it have, and how much can they hold?
8 adjustable coated stainless steel shelves. Dukers' freezer manual says not to load more than 50 kg (about 110 lb) per shelf.
How much space does it need around it?
Dukers' manual asks for more than 1" between the cabinet and the wall, with the back not sealed in so the condenser can vent. It is not for outdoor use.

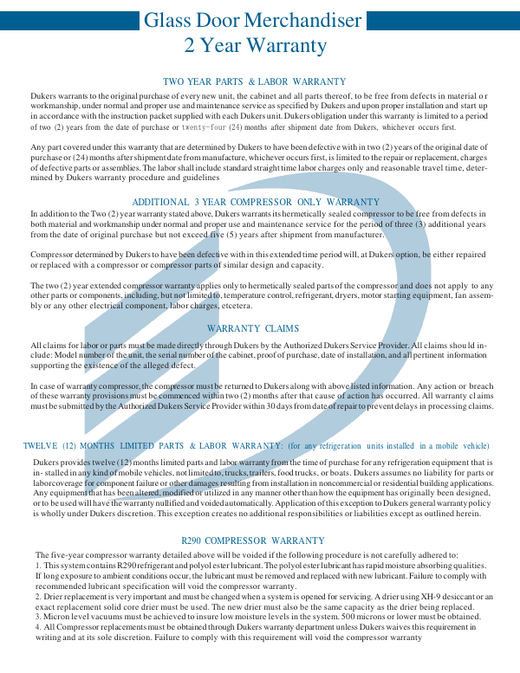

What does the warranty cover?
2 years parts and labor plus 3 more years on the compressor (5 years compressor total), from the purchase date or 24 months after shipment from Dukers, whichever comes first. Units installed in a vehicle or food truck get 12 months parts and labor. Not covered: residential use, damage from extension cords or wrong supply voltage, a dirty condenser coil, and units used in Hawaii or Alaska.
When will it ship, and do you match lower prices?
It usually ships in 1 business day, shipping is free on this item, and it is covered by our Best Price Guarantee. Call (201) 467-8222 if you find a lower price.
Specs
| Manufacturer | Dukers |
|---|---|
| Model Number | DSM-41F |
| Quantity | 1 Each |
| Product Type | Glass Door Merchandiser Freezer |
| Width | 47 1/4 Inches |
| Depth | 29 1/4 Inches |
| Height | 80 1/4 Inches (on casters) |
| Depth with Door Open | 50 1/4 Inches |
| Glass Door Height | 49 7/8 Inches |
| Packaging Dimensions | 49 1/4 x 30 1/8 x 82 5/8 Inches (W x D x H) |
| Net Weight | 396 lbs |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Amps | 8.4 Amps |
| Plug Type | NEMA 5-15P |
| Capacity | 28 cu. ft. |
| Temperature Range | 0 to -8 Degrees F |
| Refrigerant | R2905.11 oz. Charge |
| Compressor | 3/4+ HP, Bottom Mount |
| Defrost | Automatic |
| Controls | Digital with LED Display |
| Climatic Category | 4-5 |
| Doors | 2 Glass Swing Doors, Anti-Fog Tempered Glass |
| Shelves | 8 Adjustable, Coated Stainless Steel |
| Exterior Finish | Black |
| Interior Finish | White |
| Lighting | LED Interior and Lighted Top Sign |
| Casters | Yes |
| Certifications | cETLusETL Sanitation |
| Warranty | 2 Years Parts & Labor5 Years Compressor |
| Usage | Commercial Indoor |
