Description

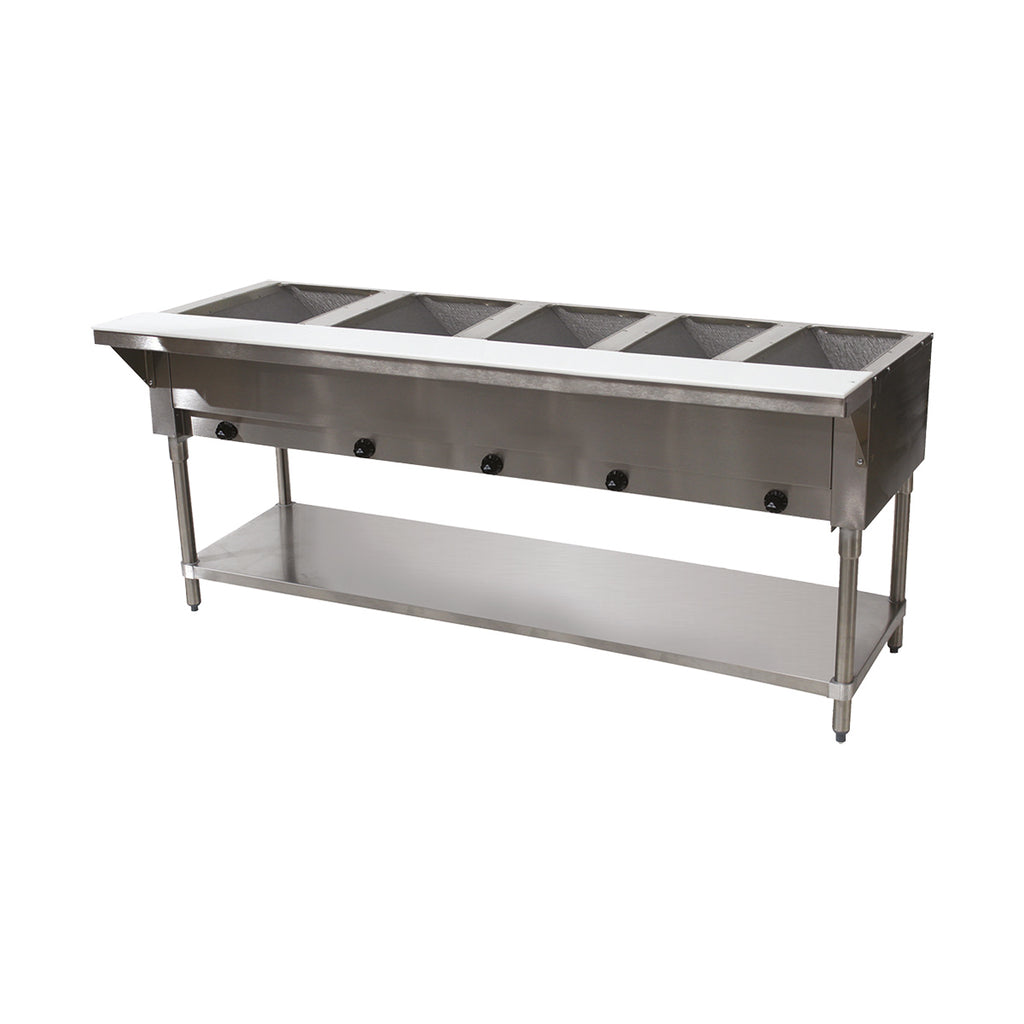

Advance Tabco HF-5G-NAT — Commercial Steam Tables
The Advance Tabco HF-5G-NAT is offered in the configuration shown below. Review the construction, included components and manufacturer specifications to confirm the fit for your installation.
Product Features
- Five 12" x 20" open wells each with infinite 3‑setting control knobs delivering 3,500 BTU per well for precise temperature management.
- Stainless‑steel top and 22‑gauge stainless body paired with a galvanized 8" undershelf and removable 3/8" poly cutting board for easy cleaning and service.
- Total input of 17,500 BTU, 1/2" NPT natural‑gas connection, and required 4" WC pressure regulator ensure efficient fuel use.
- Meets NSF/ANSI certifications 29200 and 29213; stationary design with adjustable bullet feet provides stable, level installation.
Technical Specifications
| Well Type | open well |
|---|---|
| Overall Width (side - side) | 73" - 78" |
| Design | open base with undershelf |
| Base Finish | stainless steel |
| Working Height | 35" |
| Pan Capacity | (5) pan |
| Shipping Weight (Supplier Reference) | 170.0 lb |
| Height | 34.38 in |
| Width | 77.75 in |
| Depth | 30.63 in |
| Manufacturer | Advance Tabco |
| Model Number | HF-5G-NAT |
Installation and Configuration
Check the manufacturer specification sheet for installation requirements, dimensions and connections. Optional accessories are sold separately unless identified as included in the product features.
Documents and Resources

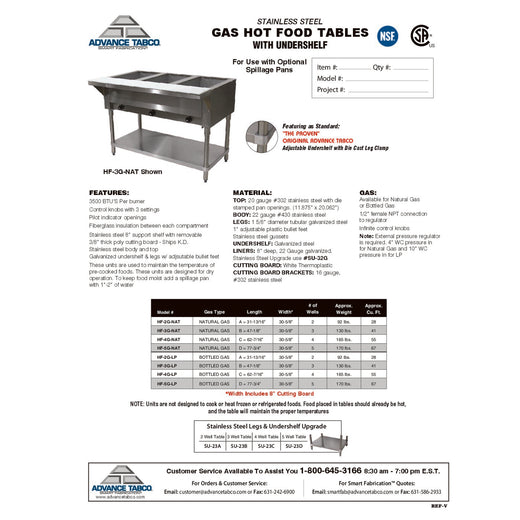

Available documents: Spec Sheet. Open the product documents section to view or download the manufacturer PDFs.
