A 125,000 BTU jet burner on a 24" high stock pot frame, for bringing big pots to a boil fast.

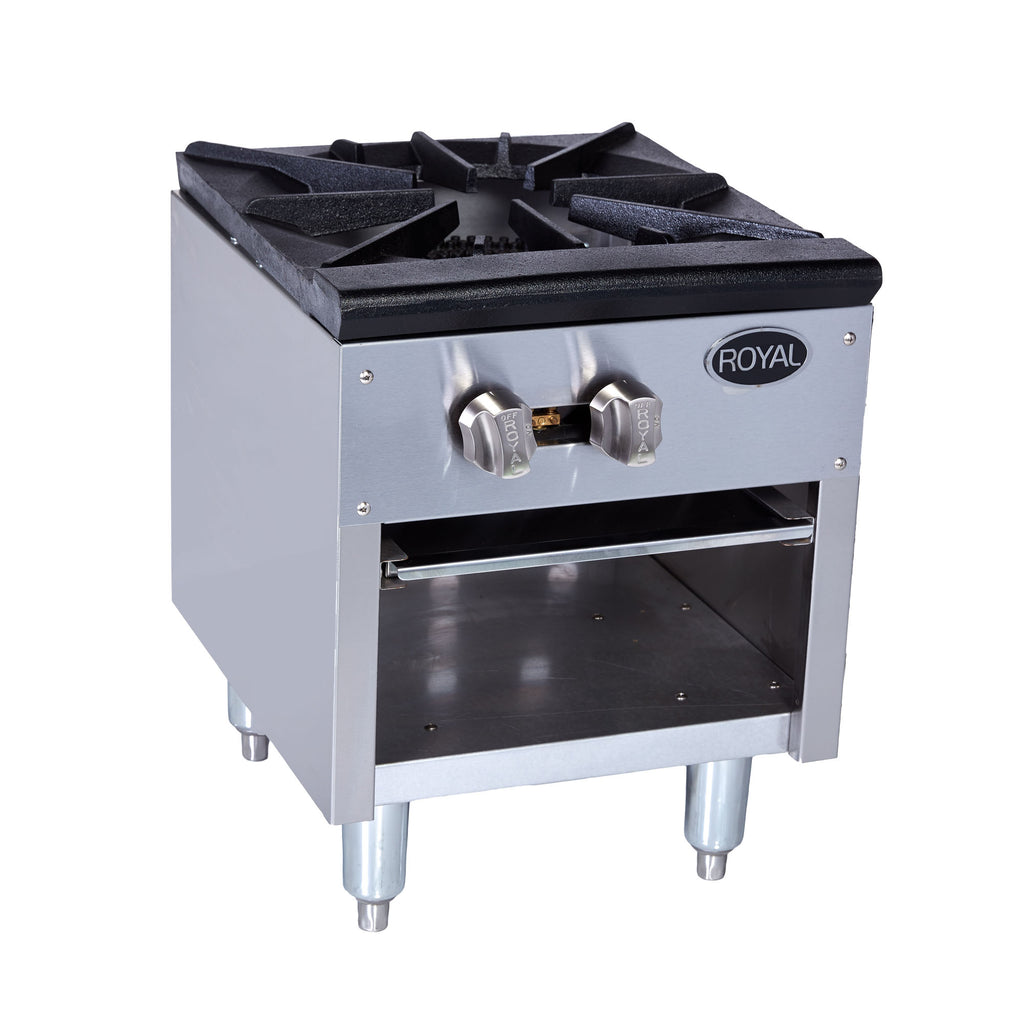

The RSPJ-18 is Royal's jet-burner version of the RSP-18 stock pot range: an 18-tip brass jet burner rated at 125,000 BTU/hr on an 18" wide, 21" deep, 24" high frame. It suits restaurants, commissaries and soup and noodle shops that boil large pots all day. Order it for natural gas or propane; the pressure regulator comes with the unit.
Will it fit · Will it plug in
- Outside size
- 18" W × 21" D × 24" H (floor-standing on legs)
- Gas
- Natural gas or LP, 125,000 BTU/hr from an 18-tip jet burner; 3/4" NPT inlet at the right rear
- Clearances
- Combustible walls: 17" rear, 15" sides. Non-combustible walls: 4" rear, 0" sides (spec sheet)
- Gas pressure
- 5" W.C. natural gas, 10" W.C. propane; regulator supplied
- Electrical
- None listed: pilots and manual valves
- Shipping
- 140 lbs.; crated about 24" D × 28" H × 20-1/2" W (Royal's stock pot table crate rule: depth + 3", height + 4", width + 2-1/2")
Keep the floor around it clear and level, and check that the hood covers the burner.
18-tip jet burner
Non-clogging brass burner tips rated at a combined 125,000 BTU/hr, more than the 90,000 BTU three-ring RSP-18, for fast boiling.
24" working height
At 24" high it sits lower than a burner on a counter, which keeps tall stock pots easier to fill, stir and lift off.
Stainless steel shell
Stainless steel sides and front valve cover on a compact heavy gauge chassis.
Easy to clean
A full-width removable stainless steel drip pan catches spills under the burner.
Delivery and setup
- Ships by freight carrier; the shipping cost depends on your location. See our shipping policy for details.
- Call (201) 467-8222 for the current lead time before you schedule installation.
- Choose natural gas or LP when you order. If your kitchen is above 2,000 feet, tell us the elevation so Royal can set the unit up for it.
- A qualified gas installer must connect the supplied regulator and a manual shut-off valve ahead of the unit, following local codes.
- Inspect the shipment before signing and note any visible damage on the freight bill.
Questions buyers ask
Does it run on natural gas or propane?
Either. Pick Natural Gas or Liquid Propane (LP) before adding it to the cart; Royal builds it for the gas you specify. Tell us your elevation if you are above 2,000 feet.
How is it different from the RSP-18?
Same 18" x 21" x 24" frame, but with an 18-tip brass jet burner rated at 125,000 BTU/hr instead of the 90,000 BTU three-ring burner. Royal's sheet lists this model as RSP-J-18; its catalog lists RSPJ-18.
How much clearance does it need?
Royal's spec sheet lists 17" at the rear and 15" at the sides from combustible walls, and 4" at the rear and 0" at the sides from non-combustible walls.
What gas connection does it need?
A 3/4" NPT connection at the right rear of the unit. Pressure is 5" W.C. for natural gas and 10" W.C. for propane, and the regulator ships with the unit for your installer to connect.
Can I add casters?
Royal's 2026 catalog lists casters as an option for its stock pot and wok ranges (set of 4 with 2 locking). A caster-mounted gas appliance needs a flexible connector and a restraint.
Is a stronger burner available?
Royal's 2026 catalog lists a 165,000 BTU 32-tip jet burner as an option for its jet ranges. Call us to price it.
What does the warranty cover?
Royal's limited warranty is 2 years on parts and 1 year on labor from installation (up to 30 months from manufacture). Cast iron parts, such as the grate and burner parts, are covered for 90 days. Labor is covered when an authorized Royal service agency does the work.
How do I clean it?
Daily, empty and wash the drip pan, clean the grate with warm water, a mild cleaner and a wire brush, and wipe the stainless steel with hot soapy water. Now and then check that the jet tips are clear.
Specs
| Manufacturer | Royal Range of California |
|---|---|
| Model Number | RSPJ-18 |
| Royal Model | RSP-J-18 (spec sheet)RSPJ-18 (catalog) |
| Quantity | 1 Each |
| Shipping Weight | 140 lbs. |
| Width | 18 Inches |
| Depth | 21 Inches |
| Height | 24 Inches |
| Crated Size | About 24" D x 28" H x 20-1/2" W |
| Installation | Floor-standing on legs |
| Gas Type | Natural Gas or Liquid Propane (specify when ordering) |
| Burner | 18-tip non-clogging brass jet burner |
| Total BTU | 125,000 BTU/H |
| Pilot | Stainless steel pilot tubing |
| Gas Inlet | 3/4" NPT, right rear |
| Gas Pressure | 5" W.C. Natural Gas10" W.C. Propane |
| Pressure Regulator | Supplied, connected by the installer |
| Clearance (Combustible) | 17" rear15" sides |
| Clearance (Non-Combustible) | 4" rear0" sides |
| Construction | Compact heavy gauge chassisStainless steel sides and front valve coverFull-width removable stainless steel drip pan |
| Options | 165,000 BTU 32-tip jet burnerCasters, set of 4 (2 locking) |
| Certifications | CSA C/USCSA Sanitation |
| Warranty | 2 years parts, 1 year labor |
| Usage | Commercial use only |
