Description
Show off cold drinks and grab-and-go food in a one-door glass merchandiser customers can serve themselves from.
The Serv-Ware GR23B-HC is a 27" one-door glass merchandiser refrigerator for convenience stores, delis, cafeterias and restaurants that want customers to see drinks, grab-and-go food and dairy. It holds 23 cu. ft. at 33°F to 41°F behind a self-closing, lockable Low-E glass door, with an LED interior lamp and illuminated top panel. It plugs into a standard 115V outlet, is Energy Star certified and UL classified for safety and sanitation and carries a 3-year parts and labor warranty.
Will it fit · Will it plug in
- Outside size
- 27" W × 32" D × 81.5" H (78" H without the casters)
- Inside
- 23 cu. ft.; about 22.2" wide × 27.6" deep; 4 shelves
- Doors
- One hinged glass door; it stays open past 90° for loading
- Power
- 115V, 60 Hz, 1-phase, 3 amps, NEMA 5-15P plug
- Shipping weight
- 340 lbs
Measure every doorway and turn on the delivery path; its smallest outside dimension is the 27" width. Leave space around the unit for air circulation and keep it away from heat sources.
Holds 33°F to 41°F
An electronic thermostat with a digital LED display gives accurate control and an easy reading at a glance. The unit defrosts every 6 hours.
Product on display
A Low-E glass door, an LED interior lamp and an illuminated top panel keep product visible.
A door that closes itself
The door is self-closing and lockable, and stays open past 90° while you restock.
Efficient, listed cooling
A 3/8 HP bottom-mount system runs on R290 refrigerant and delivers 1,670 BTU/h. It is Energy Star certified and UL classified for safety and sanitation.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships the next business day.
- Covered by our Best Price Guarantee.
- The casters ship uninstalled; attach them before moving the unit into place.
- Inspect all components when the shipment arrives and note any damage with the carrier.
- Serv-Ware recommends installation by a certified commercial restaurant equipment installer and an electrician check before and after installation.
Questions buyers ask
What outlet does it need?
It uses a NEMA 5-15P plug on 115V, 60 Hz, single phase, and draws 3 amps, so it plugs into a standard wall outlet.
Will it fit through my door?
The cabinet is 27" wide, 32" deep and 81.5" high with the casters on, and ships at 340 lbs. Measure every doorway and turn on the delivery path; its smallest outside dimension is the 27" width.
What temperature does it hold?
It holds 33°F to 41°F. An electronic thermostat with a digital LED display lets staff set and read the temperature, and the unit runs a defrost cycle every 6 hours.
How much does it hold?
It has 23 cu. ft. of storage with 4 epoxy-coated wire shelves.

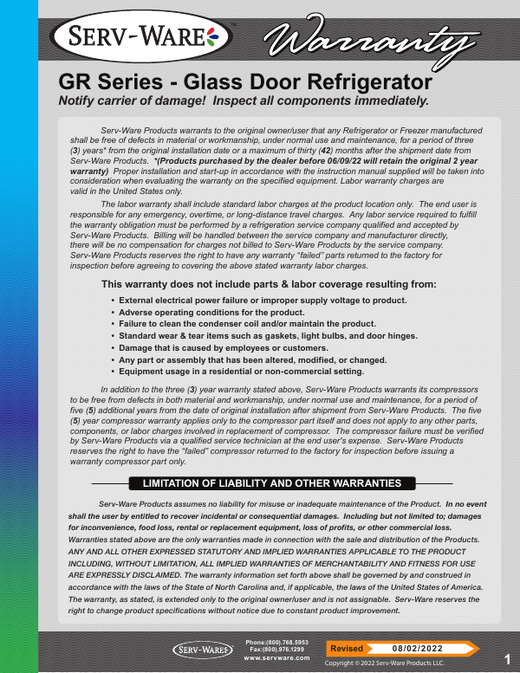

What does the warranty cover?
Serv-Ware covers parts and labor on the entire unit for 3 years and the compressor for 5 years (part only), in the United States and for commercial use. Serv-Ware also sells an optional 2-year extended parts and labor warranty, which can be bought up to six months after purchase with proof of sale.
How do I keep it running well?
Clean the condenser coil regularly: the warranty does not cover failures caused by a dirty condenser or missing maintenance. Gaskets, light bulbs and door hinges are wear items.
Can I use it outdoors or at home?
No. Serv-Ware designs it for indoor use in a climate-controlled room with good air circulation, away from heat sources, and the warranty excludes residential use.
When will it ship, and do you match lower prices?
Serv-Ware items usually ship the next business day, shipping is free on this item, and it is covered by our Best Price Guarantee. Call (201) 467-8222 if you find a lower price.

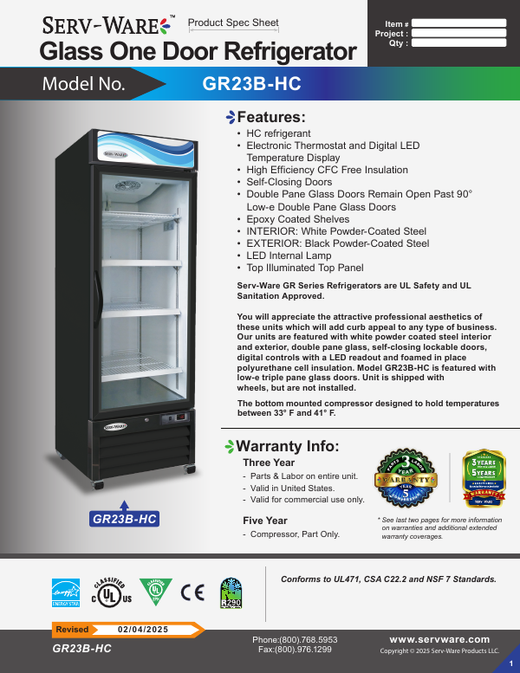

Specs
| Manufacturer | Serv-Ware |
|---|---|
| Model Number | GR23B-HC |
| Quantity | 1/Each |
| Shipping Weight | 340 lb. |
| Width | 27 Inches |
| Depth | 32 Inches |
| Height | 81.5 Inches (with Casters) |
| Height without Casters | 78 Inches |
| Interior Width | 22.2 Inches |
| Interior Depth | 27.6 Inches |
| Voltage | 115 Volts |
| Amps | 3 Amps |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Plug Type | NEMA 5-15P |
| Capacity | 23 cu. ft. |
| Temperature Range | 33 - 41 Degrees F |
| BTU | 1,670 BTU/H |
| Horsepower | 3/8 hp |
| Refrigerant | R290 (Hydrocarbon)3 oz. Charge |
| Refrigeration Type | Self-Contained, Bottom Mount |
| Defrost | Every 6 Hours |
| Controls | Electronic ThermostatDigital LED Display |
| Exterior Material | Black Powder-Coated Steel |
| Interior Material | White Powder-Coated Steel |
| Insulation | CFC-Free Polyurethane Foam |
| Access Type | Doors |
| Number of Doors | 1 |
| Door Type | Glass |
| Door Style | Swing |
| Door Features | Self-Closing, LockableLow-E GlassStay Open Past 90° |
| Number of Shelves | 4 (4 per Door) |
| Shelf Type | Epoxy-Coated Wire |
| Lighting | LED Interior LampIlluminated Top Panel |
| Casters | With CastersShipped Uninstalled |
| Certifications | Energy Star, cULus Classified, UL EPH Classified (Sanitation), CE |
| Standards | UL 471, CSA C22.2, NSF 7 |
| Warranty | 3 Years Parts & Labor5 Years Compressor (Part Only) |
| Usage | Commercial Indoor Use |
Certifications
