Description
Give customers a full wall of frozen food and ice cream they can see and reach.
The Serv-Ware GF72B-HC is an 81" three-door glass merchandiser freezer for convenience stores, delis, cafeterias and restaurants that want customers to see frozen food, ice cream and frozen desserts. It holds 72 cu. ft. at -10°F to 0°F behind three self-closing, lockable Low-E double-pane glass doors, with an LED interior lamp and illuminated top panel. It runs on 220-240V, is ETL Sanitation and cETLus listed and carries a 3-year parts and labor warranty.
Will it fit · Will it plug in
- Outside size
- 81" W × 31.9" D × 81.5" H (78" H without the casters)
- Inside
- 72 cu. ft.; about 76.5" wide × 27.6" deep × 52.25" high; 12 shelves (4 per door)
- Doors
- Three hinged glass doors, 26.125" wide each; they stay open past 90° for loading
- Power
- 220-240V, 60 Hz, 1-phase, 9 amps, NEMA L14-20 plug
- Shipping weight
- 835 lbs
Measure every doorway and turn on the delivery path; its smallest outside dimension is the 31.9" depth. Leave space around the unit for air circulation and keep it away from heat sources. It needs a 220-240V circuit, not a standard 115V outlet; have an electrician confirm the supply before delivery.
Holds -10°F to 0°F
An electronic thermostat with a digital LED display gives accurate control and an easy reading at a glance. The unit defrosts every 6 hours.
Product on display
Low-E double-pane glass doors, an LED interior lamp and an illuminated top panel keep product visible.
Doors that close themselves
The doors are self-closing and lockable, and stay open past 90° while you restock.
Efficient, listed cooling
A 1-1/4 HP bottom-mount system runs on R290 refrigerant and delivers 1,186 BTU/h. It is ETL Sanitation and cETLus listed.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships the next business day.
- Covered by our Best Price Guarantee.
- The casters ship uninstalled; attach them before moving the unit into place.
- Inspect all components when the shipment arrives and note any damage with the carrier.
- Serv-Ware recommends installation by a certified commercial restaurant equipment installer and an electrician check before and after installation.
Questions buyers ask
What power does it need?
It runs on 220-240V, 60 Hz, single phase, and draws 9 amps. It has a NEMA L14-20 plug, so it needs a matching receptacle on a 220-240V circuit; have an electrician confirm it before delivery.
Will it fit through my door?
The cabinet is 81" wide, 31.9" deep and 81.5" high with the casters on, and ships at 835 lbs. Measure every doorway and turn on the delivery path; its smallest outside dimension is the 31.9" depth.
What temperature does it hold?
It holds -10°F to 0°F. An electronic thermostat with a digital LED display lets staff set and read the temperature, and the unit runs a defrost cycle every 6 hours.
How much does it hold?
It has 72 cu. ft. of storage with 12 vinyl-coated wire shelves, 4 per door.

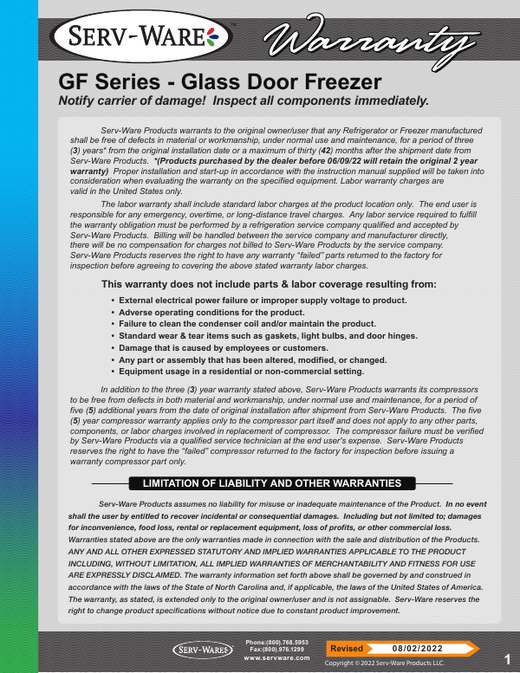

What does the warranty cover?
Serv-Ware covers parts and labor on the entire unit for 3 years and the compressor for 5 years (part only), in the United States and for commercial use. Serv-Ware also sells an optional 2-year extended parts and labor warranty, which can be bought up to six months after purchase with proof of sale.
How do I keep it running well?
Clean the condenser coil regularly: the warranty does not cover failures caused by a dirty condenser or missing maintenance. Gaskets, light bulbs and door hinges are wear items.
Can I use it outdoors or at home?
No. Serv-Ware designs it for indoor use in a climate-controlled room with good air circulation, away from heat sources, and the warranty excludes residential use.
When will it ship, and do you match lower prices?
Serv-Ware items usually ship the next business day, shipping is free on this item, and it is covered by our Best Price Guarantee. Call (201) 467-8222 if you find a lower price.

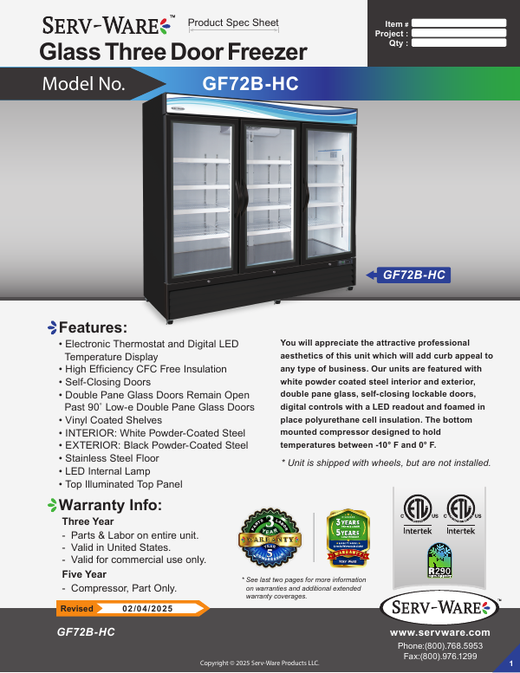

Specs
| Manufacturer | Serv-Ware |
|---|---|
| Model Number | GF72B-HC |
| Quantity | 1/Each |
| Shipping Weight | 835 lb. |
| Width | 81 Inches |
| Depth | 31.9 Inches |
| Height | 81.5 Inches (with Casters) |
| Height without Casters | 78 Inches |
| Interior Width | 76.5 Inches |
| Interior Depth | 27.6 Inches |
| Interior Height | 52.25 Inches |
| Door Width | 26.125 Inches (each) |
| Voltage | 220-240 Volts |
| Amps | 9 Amps |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Plug Type | NEMA L14-20 |
| Capacity | 72 cu. ft. |
| Temperature Range | -10 - 0 Degrees F |
| BTU | 1,186 BTU/H |
| Horsepower | 1-1/4 hp |
| Refrigerant | R290 (Hydrocarbon)5.29 oz. Charge |
| Refrigeration Type | Self-Contained, Bottom Mount |
| Defrost | Every 6 Hours |
| Controls | Electronic ThermostatDigital LED Display |
| Exterior Material | Black Powder-Coated Steel |
| Interior Material | White Powder-Coated Steel |
| Floor | Stainless Steel |
| Insulation | CFC-Free Polyurethane Foam |
| Access Type | Doors |
| Number of Doors | 3 |
| Door Type | Glass |
| Door Style | Swing |
| Door Features | Self-Closing, LockableLow-E Double Pane GlassStay Open Past 90° |
| Number of Shelves | 12 (4 per Door) |
| Shelf Type | Vinyl-Coated Wire |
| Lighting | LED Interior LampIlluminated Top Panel |
| Casters | With CastersShipped Uninstalled |
| Certifications | cETLus, ETL Sanitation |
| Warranty | 3 Years Parts & Labor5 Years Compressor (Part Only) |
| Usage | Commercial Indoor Use |
