Description

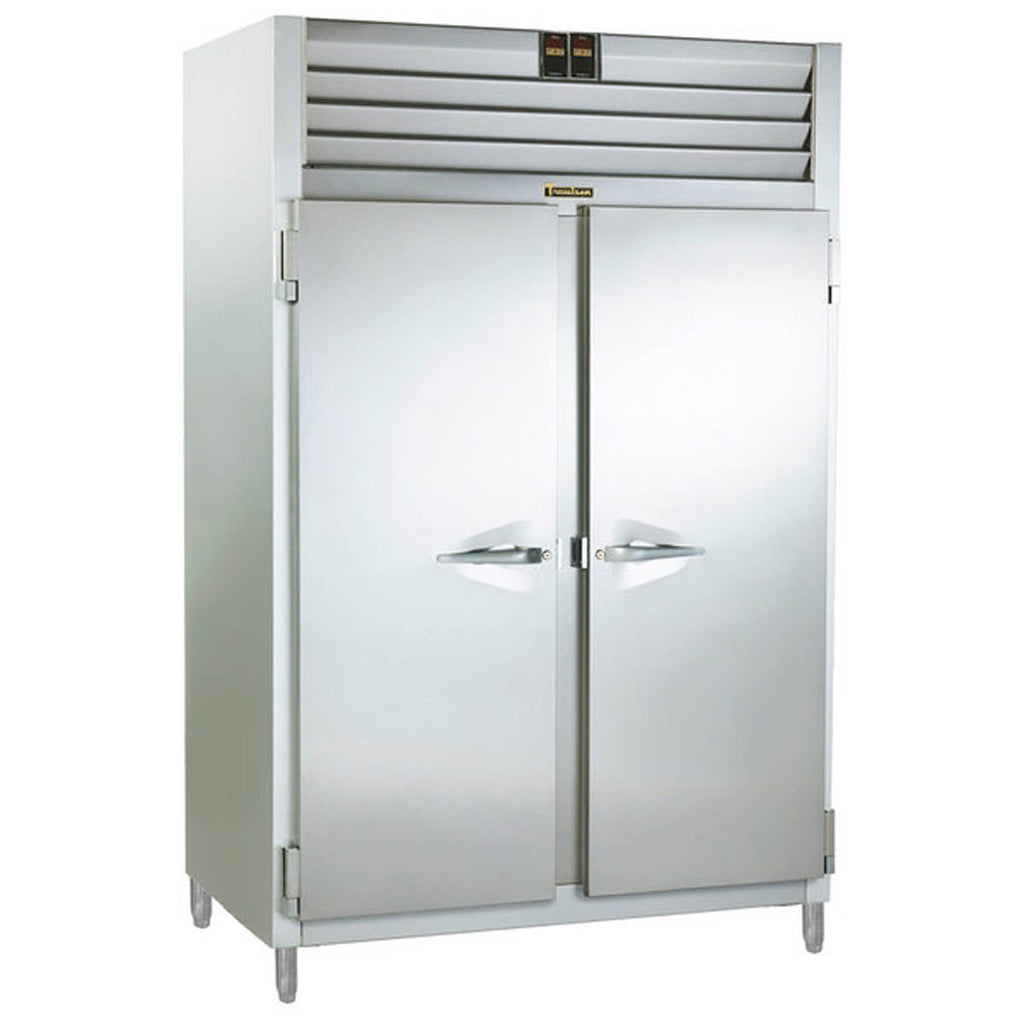

The Traulsen ADH232WUT-FHS is a two-section, self-contained dual-temperature reach-in that places a heated cabinet on the left and a refrigerated cabinet on the right. This arrangement keeps hot and cold holding zones in one 58-inch-wide footprint while providing independent cabinet space for a cookline, plating area, or high-volume service operation.
This A-Series configuration has two full-height solid doors, a stainless steel exterior, and anodized aluminum interior and door liners. Six coated wire shelves are standard—three per section—and the cabinet uses a top-mounted refrigeration system with front-facing condenser access.
Applications and Workflow
Use this model where a commercial kitchen needs refrigerated ingredients or prepared cold items immediately beside hot held product, such as at an assembly line, banquet staging area, or service kitchen. It is a reach-in holding cabinet, not a pass-through unit. The left compartment is heated and the right compartment is refrigerated, so plan product workflow around that fixed arrangement.
Features and Practical Benefits
Hot and cold zones in one cabinet
The heated left section and refrigerated right section consolidate two distinct holding environments into one two-section reach-in.
Full-height solid-door access
The ADH232WUT-FHS configuration uses two full-height solid doors with locks, self-closing action, and a 120-degree stay-open feature.
Built for organized storage
Six factory-installed coated wire shelves provide three shelves in each compartment; listed shelf area is evenly divided between the refrigerated and heated sections.
Service-minded refrigeration layout
The right-side refrigeration system is top mounted and includes a front-facing condenser, helping support routine condenser cleaning from the front of the cabinet.
Durable A-Series construction
The cabinet front, sides, louver assembly, and doors are stainless steel, while the interior and door liners are anodized aluminum.
Technical Specifications
| Manufacturer model | ADH232WUT-FHS |
|---|---|
| Cabinet configuration | Heated left section; refrigerated right section |
| Door configuration | Two full-height solid doors |
| Net capacity | 46.86 cu. ft. |
| Overall width | 58 in. |
| Overall depth | 35 in. |
| Overall height | 83 1/4 in. on 6 in. legs |
| Depth with door open 90° | 57 11/16 in. |
| Clear door width | 21 1/8 in. |
| Clear full-door height | 57 5/8 in. |
| Standard shelves | 6 coated wire shelves |
| Electrical requirement | 208-230/115V, 60 Hz, single phase; NEMA L14-20P |
| Wattage at 208V | 2000 W |
| Full-load amperage | 13.5 A |
| Refrigerant | R-450A |
| Compressor capacity | 1/3 HP |
| Refrigerated compartment operating range | 34-38°F |
| Heated compartment operating range | 140-180°F |
| Power cord | 9 ft. cord and plug |
| Included legs | Four adjustable 6 in. stainless steel legs |
| Exterior construction | Stainless steel front, sides, louver assembly, and doors |
| Interior construction | Anodized aluminum interior and door liners |
Installation and Purchasing Considerations
- Allow a 58-inch-wide by 35-inch-deep footprint; overall height is 83 1/4 inches on the included 6-inch adjustable legs.
- Plan aisle clearance for the doors: cabinet depth reaches 57 11/16 inches with a door open 90 degrees. Each door has a 21 1/8-inch clear width.
- Connect to the specified 208-230/115V, 60 Hz, single-phase electrical supply using the supplied 9-foot cord and NEMA L14-20P plug. Confirm the receptacle and electrical service before ordering.
- Provide 12 inches of top clearance where possible for performance and service access. Keep the top-mounted refrigeration area accessible for maintenance.
- The cabinet includes four adjustable 6-inch stainless steel legs. Casters and other support configurations are options, not standard equipment.
Choosing This Configuration
ADH232WUT-FHS is the full-height solid-door version. The related HHS configuration uses half-height solid doors and is a different door arrangement.
This exact model has a heated left section and refrigerated right section; it is not a single-temperature refrigerator or heated cabinet.
Standard storage is six coated wire shelves. Sheet-pan trayslides and additional or stainless steel shelves are optional configurations rather than standard included storage.
Frequently Asked Questions
Which side is heated and which side is refrigerated?
The left section is heated, and the right section is refrigerated.
What temperatures does this cabinet operate at?
The refrigerated compartment is specified for 34-38°F operation, while the heated compartment is specified for 140-180°F operation.
How many doors and shelves does the ADH232WUT-FHS have?
It has two full-height solid doors and six standard coated wire shelves, arranged as three shelves per section.
What electrical connection is required?
The unit is specified for 208-230/115V, 60 Hz, single-phase power and is equipped with a 9-foot cord and NEMA L14-20P plug.
