Description

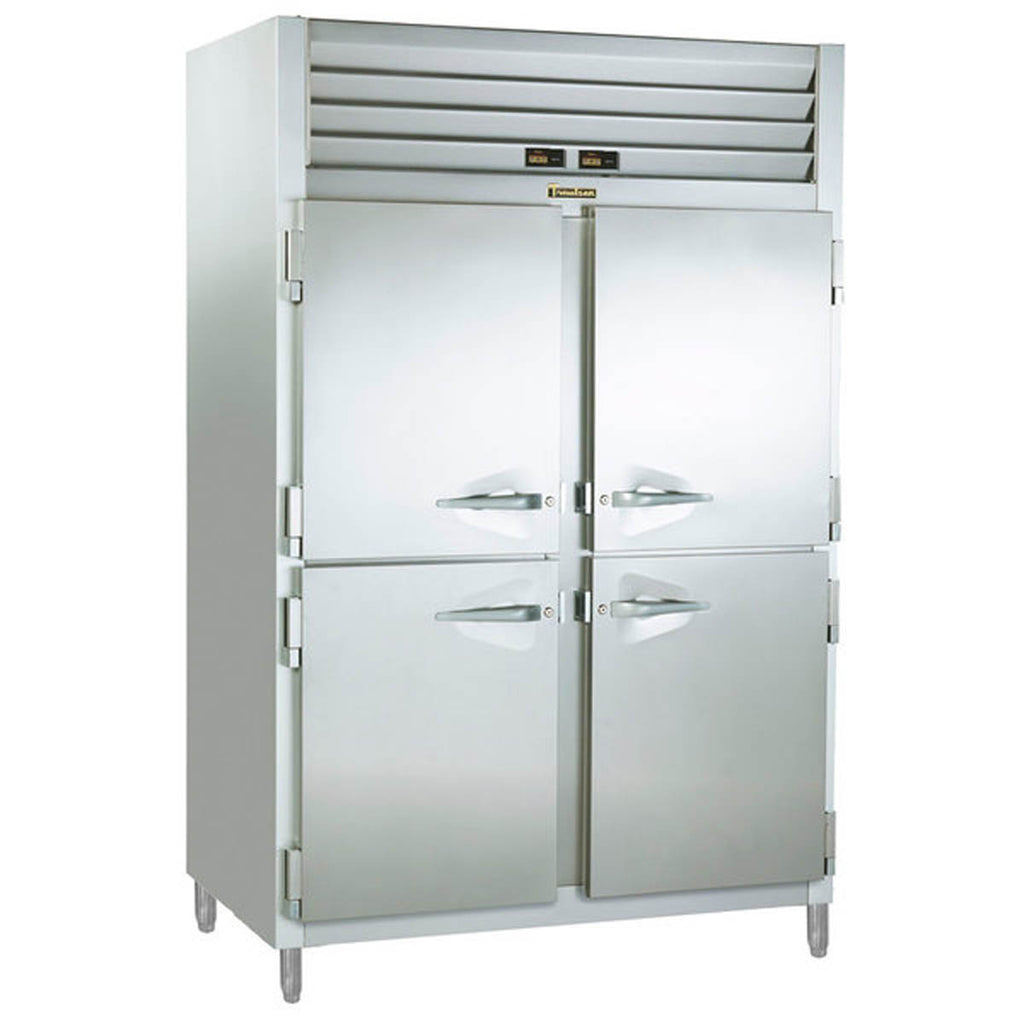

The Traulsen RDT232NUT-HHS is a self-contained, two-section reach-in refrigerator/freezer designed to keep refrigerated and frozen inventory in one 52 1/8-inch-wide cabinet. Its left section is refrigerated and its right section is frozen, allowing cooks to separate ingredients by temperature without moving between separate cabinets.
This exact HHS configuration uses four half-height solid stainless steel doors rather than two full-height doors. The split doors let staff access part of a section at a time, while the standard interior includes three adjustable coated wire shelves in each section. Stainless steel exterior and interior surfaces suit demanding commercial prep and storage areas.
Applications and Workflow
Suitable for restaurant, hotel, healthcare, institutional, and grocery back-of-house storage where refrigerated and frozen products need to be organized in adjacent sections. This is a dual-temperature cabinet, not a single-temperature refrigerator or freezer: the refrigerator is on the left and the freezer is on the right.
Features and Practical Benefits
Refrigerated and frozen storage in one footprint
Dedicated left refrigerator and right freezer sections provide 21.13 cu. ft. of net capacity in each compartment.
Half-door access
Four half-height solid doors allow staff to open only the portion of a section needed for a retrieval. Doors are self-closing and have a 120-degree stay-open feature.
Organized shelf storage
Six adjustable coated wire shelves are standard, with three shelves installed in each section on shelf pins.
Self-contained refrigeration
The balanced dual refrigeration system is built into the cabinet, with R-450A used for the refrigerator and R-448A for the freezer.
Built for commercial workflow
Stainless steel exterior and interior construction, locks, LED lighting, and horizontal workflow door handles support repeated kitchen use.
Technical Specifications
| Manufacturer model | RDT232NUT-HHS |
|---|---|
| Configuration | Two-section reach-in refrigerator/freezer; refrigerator left, freezer right |
| Door configuration | 4 half-height solid doors |
| Net capacity, total | 42.26 cu. ft. |
| Net capacity, refrigerator | 21.13 cu. ft. |
| Net capacity, freezer | 21.13 cu. ft. |
| Overall width | 52 1/8 in. |
| Overall depth | 35 in. |
| Overall height | 83 1/4 in. on 6 in. legs |
| Depth with door open 90 degrees | 57 11/16 in. |
| Clear half-door height | 27 1/2 in. |
| Standard shelves | 6 adjustable coated wire shelves |
| Electrical requirement | 115/60/1, NEMA 5-20P |
| Full-load amperage | 15.4 A |
| Refrigerator refrigerant | R-450A |
| Freezer refrigerant | R-448A |
| Refrigerator operating temperature | 34 to 38 degrees F |
| Freezer operating temperature | -5 to 0 degrees F |
| Included legs | Four adjustable 6 in. stainless steel legs |
Installation and Purchasing Considerations
- Allow a finished footprint of 52 1/8 in. W x 35 in. D x 83 1/4 in. H on the supplied 6 in. adjustable legs.
- Plan aisle clearance for a 57 11/16 in. overall depth when a door is open 90 degrees. Each half-door clear opening is 27 1/2 in. high.
- Provide a 115/60/1 electrical supply with a NEMA 5-20P receptacle. The unit is supplied with a 9 ft. cord and plug.
- Maintain 12 in. top clearance for preferred performance and service access. The self-contained refrigeration system is top-mounted behind the louver assembly.
- Verify that the receiving route, final location, electrical receptacle, overhead clearance, and door swing are suitable before installation.
Choosing This Configuration
RDT232NUT-HHS is the half-height solid-door version, with four doors total. The full-height-door version is a different configuration.
This model places the refrigerator compartment on the left and freezer compartment on the right. A freezer-compartment relocation is identified as an option, not a standard feature of this exact configuration.
Standard support is four 6 in. adjustable stainless steel legs. Casters, alternate bases, tray slides, and additional or stainless shelves are options unless separately specified.
Frequently Asked Questions
Which side is the refrigerator and which side is the freezer?
The refrigerator is in the left section and the freezer is in the right section.
How many doors and shelves does the RDT232NUT-HHS have?
This HHS configuration has four half-height solid doors and six standard adjustable coated wire shelves—three shelves per section.
What electrical connection does it require?
It operates on 115/60/1 power and is equipped with one NEMA 5-20P plug on a 9 ft. cord.
How much clearance is needed above the cabinet?
Traulsen identifies 12 inches of top clearance as preferred for optimum performance and service access. Also account for the 57 11/16-inch depth with a door open 90 degrees.
