Description

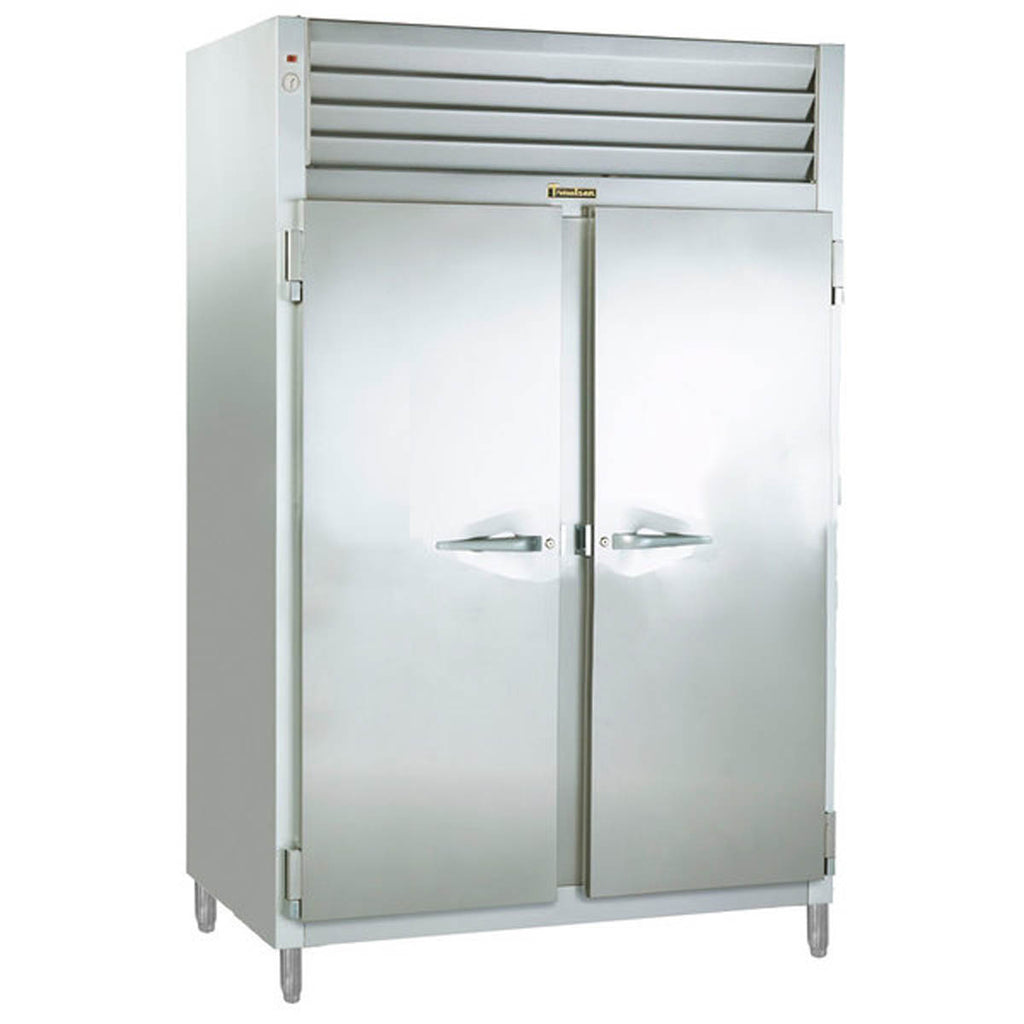

The Traulsen RET232NUT-FHS is a 52-inch, two-section Even-Thaw reach-in refrigerator designed to thaw frozen product through an automated refrigeration and airflow system. This exact FHS configuration has full-height solid doors, a stainless steel exterior and interior, and a top-mounted self-contained refrigeration system.
Its 28 included #1 tray slides provide 14 slide positions per section for organized product staging during the thawing process. The Smart Control uses an LED display and automatic operation, then returns the cabinet to refrigeration operation once product is thawed. This model is intended for thawing rather than use as a holding cabinet.
Applications and Workflow
Use this cabinet in commissaries, institutional kitchens, production kitchens, and other commercial operations that need a dedicated, high-capacity thawing workflow. It is designed to thaw approximately 300 lb. of product per section in 24 hours or less. Do not select it as a refrigerated holding cabinet; the manufacturer identifies Even-Thaw models as thawing-only equipment.
Features and Practical Benefits
Dedicated two-section thawing workflow
The Even-Thaw refrigeration and airflow design is made to thaw product automatically, with a stated capacity of approximately 300 lb. per section in 24 hours or less.
Full-height solid-door access
This FHS version uses full-height solid doors rather than the half-height-door configuration available in the same cabinet family. Doors are self-closing and stay open at 120 degrees for loading and unloading.
Flexible tray-slide interior
Twenty-eight #1 tray slides are included, with 14 per section. Each pair can accommodate one 18 x 26 inch pan or two 14 x 18 inch pans.
Self-contained top-mounted system
The refrigeration system is top mounted and self-contained behind the louver assembly, simplifying placement compared with equipment requiring a remote condenser.
Durable, cleanable cabinet construction
Heavy-gauge stainless steel is used on the cabinet front, sides, louver assembly, doors, interior, and door liner. Magnetic snap-in gaskets are designed for removal and cleaning.
Technical Specifications
| Manufacturer model | RET232NUT-FHS |
|---|---|
| Cabinet configuration | Two-section, full-height solid doors |
| Net capacity | 36.36 cu. ft. (1,029.6 L) |
| Overall width | 52 1/8 in. (132.4 cm) |
| Overall depth | 35 in. (88.8 cm) |
| Overall height on 6 in. legs | 83 1/4 in. (211.5 cm) |
| Depth with door open 90 degrees | 55 3/4 in. (141.6 cm) |
| Clear full-door height | 57 5/8 in. (146.3 cm) |
| Electrical requirement | 115/60/1, NEMA 5-20P |
| Full-load amperage | 14 A |
| Refrigerant | R-450A |
| Compressor horsepower | 1/2 HP |
| Standard operating temperature | 37-41°F |
| Included tray slides | 28 #1 tray slides, 14 per section |
| 18 x 26 in. pan capacity | 28 pans |
| 14 x 18 in. pan capacity | 56 pans |
| Standard legs | Four adjustable 6 in. stainless steel legs |
| Power cord | 9 ft. cord with plug attached |
Installation and Purchasing Considerations
- Allow a 52 1/8-inch overall width, 35-inch overall depth, and 83 1/4-inch overall height on the supplied 6-inch legs.
- Plan for 55 3/4 inches of depth when a door is open 90 degrees. The clear full-door height is 57 5/8 inches.
- Provide 12 inches of clearance above the cabinet where possible; Traulsen identifies this as preferred for performance and service access.
- The unit requires 115/60/1 electrical service, draws 14 full-load amps, and is equipped with a NEMA 5-20P plug on a 9-foot attached cord. Confirm the installation outlet matches this plug configuration.
- The standard support package is four adjustable 6-inch stainless steel legs. Casters and other support arrangements are listed as options rather than standard equipment.
- When ordering, specify hinging and any desired options. The manufacturer lists door rehinging as an option.
Choosing This Configuration
RET232NUT-FHS is the full-height solid-door version of this 52-inch, two-section Even-Thaw cabinet. The related HHS configuration uses half-height solid doors instead.
This is a self-contained, top-mounted model; it is not identified as a remote-condensing cabinet.
The standard interior includes tray slides. Pans are not identified as included; plan pan selection separately.
The listed refrigerant for this exact manufacturer specification is R-450A.
Frequently Asked Questions
What is the intended use of the RET232NUT-FHS?
It is an Even-Thaw cabinet intended to thaw frozen food product. The manufacturer states that Even-Thaw models are not for use as holding cabinets.
How much product can this cabinet thaw?
Traulsen states an approximate thawing capacity of 300 lb. per section in 24 hours or less. With two sections, evaluate your product loading plan by section and pan arrangement.
What pans work with the included tray slides?
Each pair of tray slides can hold either one 18 x 26 inch pan or two 14 x 18 inch pans. The cabinet includes 28 #1 tray slides, not listed pans.
What electrical connection does it need?
This model uses 115/60/1 power, has a 14-amp full-load rating, and is supplied with a NEMA 5-20P plug and 9-foot cord.
