Description

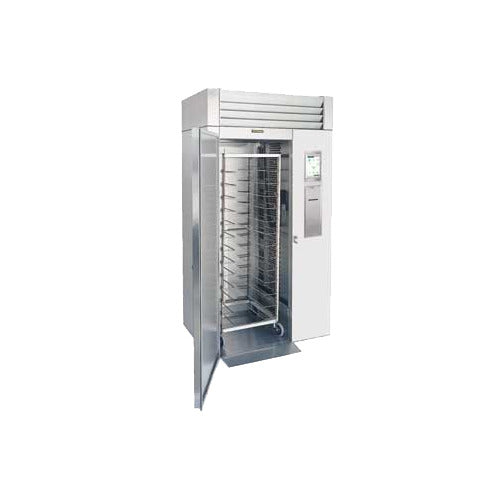

The Traulsen TBC1H-24 is a right-hinged, roll-in blast chiller designed to chill product loaded on one mobile rack. Its touchscreen supports automatic or manually adjusted cycles, with selectable target temperatures or cycle times to fit changing production routines.
This configuration combines a self-contained maintenance refrigeration system with a separate remote condensing requirement for blast-chill operation. Three removable food probes, an onboard cycle-data printer, USB access, and 90-day cycle-data memory support documented batch workflows. The roll-in rack is not supplied with the cabinet.
Applications and Workflow
Suitable for commissaries, banquet operations, institutional kitchens, and other commercial food-production areas that move batches on a single roll-in rack. This is a roll-in, right-hinged cabinet—not a roll-thru model—and it requires a properly sized remote condensing unit for blast-chill operation.
Features and Practical Benefits
One-rack roll-in workflow
The cabinet accommodates one roll-in rack up to 27 inches wide, 29 inches deep, and 72 inches high, allowing a loaded rack to move into the chiller as a batch.
Right-hinged access
The TBC1H-24 is the right-hinged roll-in configuration, helping buyers match the door swing to the intended production layout.
Flexible cycle control
Use automatic or manual operation, set a product target temperature or cycle time, and select from Blast Chill, Speed, Energy Saving, and Delicate settings.
Cycle records at the cabinet
Three removable probes monitor product, while the onboard printer, USB port, and 90-day memory provide options for retaining cycle information.
Durable cleanable cabinet
Stainless steel interior and exterior surfaces and an EZ-Clean door gasket support routine cleaning in a high-use production area.
Technical Specifications
| Manufacturer model | TBC1H-24 |
|---|---|
| Configuration | Roll-in, right-hinged |
| Rack capacity | 1 roll-in rack |
| Maximum rack dimensions | 27 in W x 29 in D x 72 in H |
| Overall width | 48 1/2 in (123.2 cm) |
| Overall depth | 37 5/8 in (95.5 cm) |
| Overall height | 90 3/8 in (229.6 cm) |
| Net capacity | 35.0 cu ft (991 L) |
| Product capacity | 300 lb (136.1 kg) |
| Electrical service | 115/60/1 |
| Full-load amps | 16.0 A |
| Required circuit | 20 amp |
| Plug | None listed |
| Remote condensing requirement | Remote R-407A condensing unit required for blast-chill operation |
| Recommended remote capacity | 18,700 BTU/HR at evaporator |
| Suction line connection | 7/8 in |
| Liquid line connection | 1/2 in |
| Product target temperature range | 40 to -5°F |
| Food probes | 3 removable probes |
| Cycle-data memory | 90 days |
Installation and Purchasing Considerations
- Plan a 48 1/2 inch W x 37 5/8 inch D x 90 3/8 inch H footprint. Confirm the route, ceiling clearance, and final location can accommodate the 90 3/8 inch cabinet height and roll-in loading workflow.
- Provide 115/60/1 electrical service with a 20 amp required circuit. The specification lists no plug, so electrical connection planning should be completed by a qualified installer.
- This unit requires connection to an adequately sized remote condensing unit for blast-chill operation. The manufacturer lists 18,700 recommended BTU/HR at the evaporator using R-407A, with 7/8 inch suction and 1/2 inch liquid line connections.
- Plan condensate removal with a floor drain or the optional condensate evaporator. The remote condensing unit and roll-in rack are separately provided items, not standard cabinet equipment.
- Verify the rack fits the stated 27 inch W x 29 inch D x 72 inch H maximum dimensions, with wheels inboard of the rack frame.
Choosing This Configuration
This exact TBC1H-24 configuration is a right-hinged roll-in model with no listed special feature.
A label printer is an optional accessory that adds the “-LP” suffix; it is not identified as included with TBC1H-24.
Do not substitute a roll-thru configuration when a single-door roll-in workflow and right-hand hinge are required.
The Combi Oven Compatibility Kit is an option and changes cabinet depth; it is not part of this standard configuration.
Frequently Asked Questions
Is a remote condensing unit included with the TBC1H-24?
No remote condensing unit is identified as standard. Blast-chill operation requires connection to an adequately sized remote condensing unit.
Does this blast chiller include a roll-in rack?
No. The cabinet accommodates one qualifying roll-in rack, but racks are available as an optional accessory rather than supplied standard.
What size rack can fit in this cabinet?
The maximum stated rack dimensions are 27 inches wide by 29 inches deep by 72 inches high, with wheels inboard of the rack frame.
Which way does the door hinge?
The TBC1H-24 is the right-hinged roll-in configuration.
