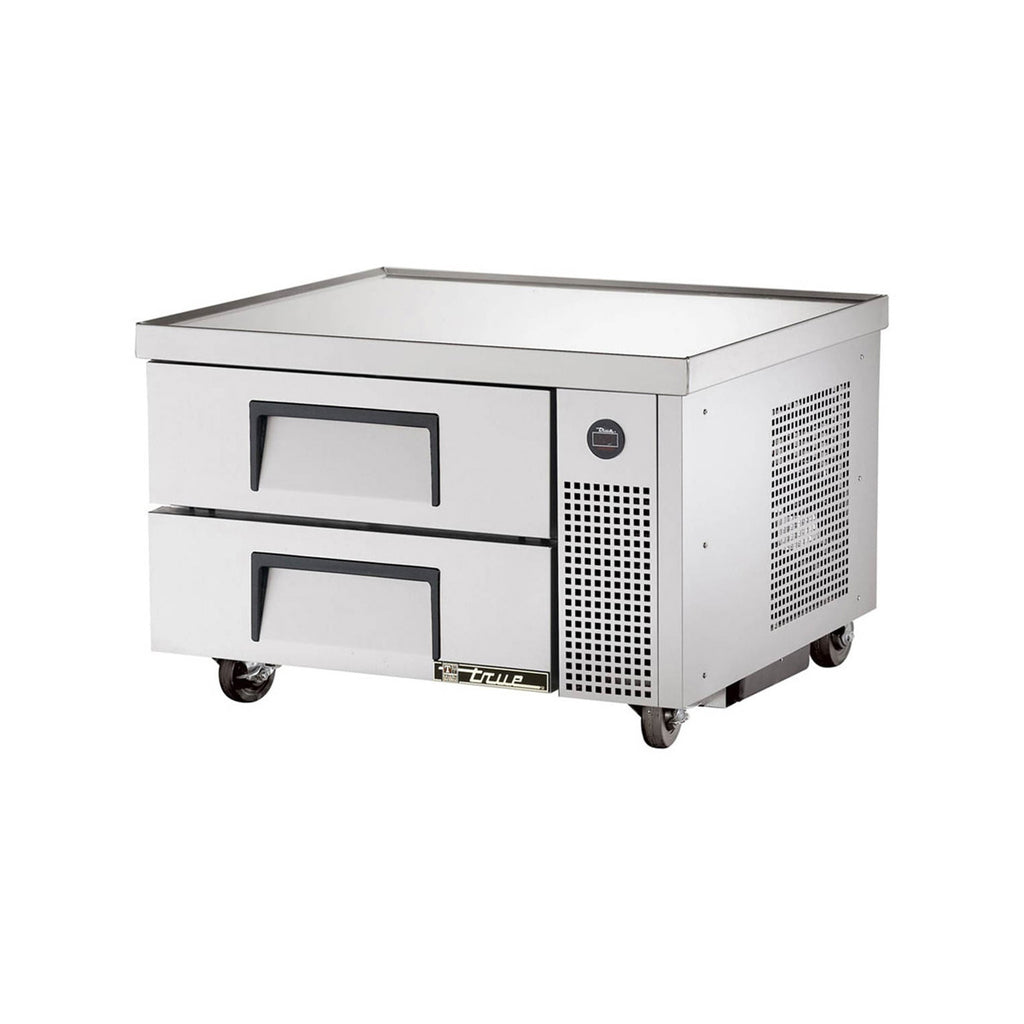

True TRCB-36-HC 36" 2-Drawer Refrigerated Chef Base, 33-38°F, 717 lb. Top Rating, R290, 115V
A 36" refrigerated chef base that puts 2 drawers of cold pans right under your cooking line.
The True TRCB-36-HC is a 36-3/8" wide refrigerated chef base with 2 drawers that holds 33°F to 38°F. Its one-piece stainless steel top is rated to support up to 717 lb., so countertop cooking equipment can sit on top on its own legs. It plugs into a dedicated 115V, 15 amp outlet with the included NEMA 5-15P cord.
Measure doorways and turns on the delivery path: the cabinet is 32-1/8" deep and 36-3/8" wide, not counting rear bumpers.
The one-piece reinforced 300 series stainless top has a drip-resistant V edge and supports up to 717 lb. of equipment.
Each drawer takes one full-size 12" x 20" x 4" pan plus three 1/6-size 6" x 6" x 4" pans. Pans are sold separately. Drawers run on stainless slides and rollers you can remove without tools.
An extra large evaporator coil, a higher horsepower compressor and a large condenser keep the drawers between 33°F and 38°F under a hot line.
A sealed, self-lubricating evaporator fan motor with larger blades moves high-volume, low-velocity air for faster temperature recovery.
Natural R290 hydrocarbon refrigerant with zero ozone depletion potential and a global warming potential of 0.02.
True rates the one-piece stainless top to support up to 717 lb. Use the cooking equipment on its manufacturer-supplied legs with at least 4" between the heating element and the top, and True recommends a heat shield (supplied by others).
Each drawer takes one full-size 12" x 20" x 4" pan plus three 1/6-size 6" x 6" x 4" pans. Pans are sold separately.
The cabinet is 20-1/2" tall; the standard 4" castors bring it to 25-1/2". Optional 6" legs are also listed.
A dedicated 115V, 15 amp outlet. The unit draws 2.4 A and comes with a 10 ft. cord and NEMA 5-15P plug.
True rates the TRCB-36-HC to hold 33°F to 38°F.
It sits behind the side grille and slides out for easy maintenance.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | TRCB-36-HC |
| Series | TRCB Chef Base |
| Quantity | 1/Each |
| Shipping Weight | 250 lb. |
| Width | 36-3/8 Inches |
| Depth | 32-1/8 Inches |
| Height | 20-1/2 Inches |
| Depth Note | Excludes 1" Rear Bumpers |
| Height Note | Add 5" for Castors or 6" for Optional Legs |
| Height with Castors | 25-1/2 Inches |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 2.4 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 10 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 33 - 38 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/4 HP |
| System | Self-Contained, Capillary TubeSealed, Self-Lubricating Evaporator Fan MotorEpoxy-Coated Evaporator |
| Condensing Unit Access | Behind the Side Grille, Slides Out |
| Controls | Exterior Digital Temperature Display |
| Drawers | 2 Drawers on Heavy-Duty Stainless Steel Slides and Rollers, Removable Without Tools |
| Drawer Capacity | 1 Full-Size 12" x 20" x 4" Pan plus Three 1/6-Size 6" x 6" x 4" Pans per Drawer, Sold Separately |
| Top | One-Piece Reinforced 300 Series Stainless SteelDrip-Resistant V Edge |
| Top Load Rating | Up to 717 lb. |
| Exterior | Stainless Steel Front, Top and SidesGalFan Coated Steel Back |
| Interior | White Aluminum LinerStainless Steel Floor with Coved Corners |
| Handles | 12" Recessed Handles, Foamed-In-Place |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 4" Plate Castors, Locks on Front Set |
| Cooking Equipment | Use the Equipment Maker's Supplied LegsMinimum 4" Clearance from Heating Element to the TopHeat Shield Recommended, Supplied by Others |
| True Options | 16 Gauge Top6" Legs6" Seismic/Flanged LegsFlat Top, No Marine EdgeAdditional Drawer Divider BarsDrawer Locks |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 Compliant for Open Food Product |
| Warranty | 7-Year Compressor Warranty, USA and Canada |
