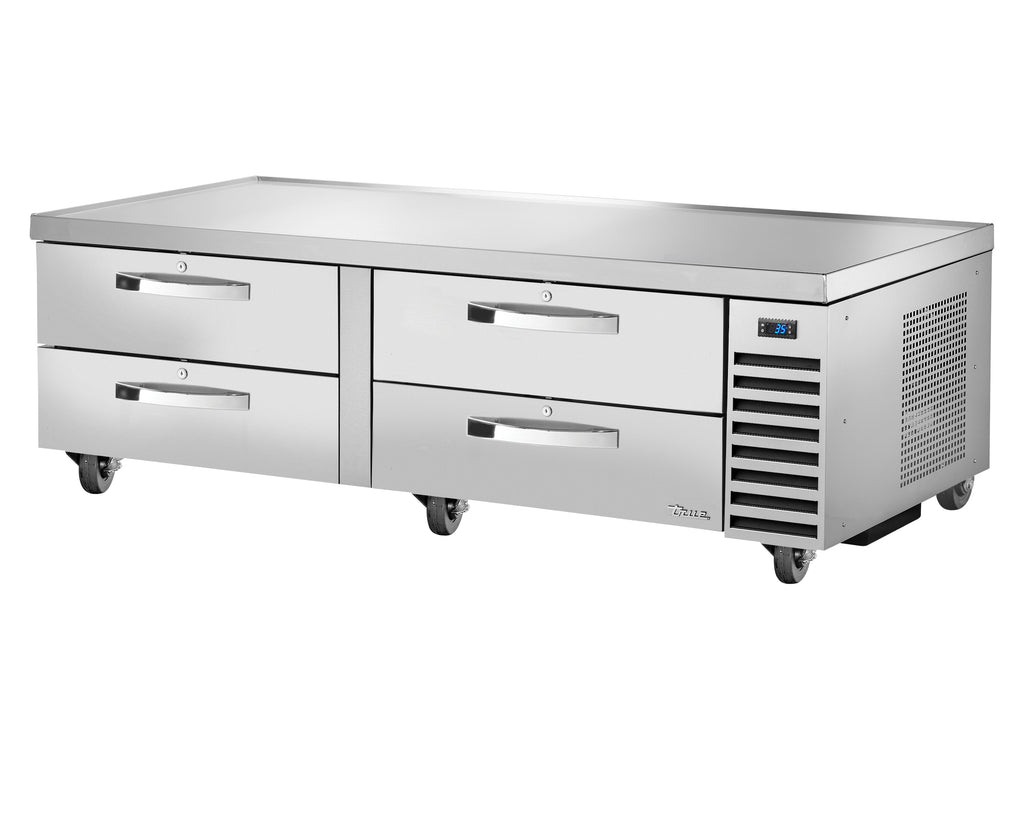

True TRCB-72-HC~SPEC3 72" 4-Drawer Spec Series Refrigerated Chef Base, 33-38°F, 1084 lb. Top Rating, R290, 115V
A 72" refrigerated chef base that puts 4 drawers of cold pans right under your cooking line.
The True TRCB-72-HC~SPEC3 is a 72-3/8" wide refrigerated chef base with 4 drawers that holds 33°F to 38°F. Its one-piece stainless steel top is rated to support up to 1084 lb., so countertop cooking equipment can sit on top on its own legs. It plugs into a dedicated 115V, 15 amp outlet with the included NEMA 5-15P cord.
Measure doorways and turns on the delivery path: the cabinet is 32-1/8" deep and 72-3/8" wide, not counting handles or rear bumpers.
The one-piece reinforced 300 series stainless top has a drip-resistant V edge and supports up to 1084 lb. of equipment.
Each drawer takes two full-size 12" x 20" x 4" food pans. Pans are sold separately. Drawers run on stainless slides and rollers you can remove without tools.
An extra large evaporator coil, a higher horsepower compressor and a large condenser keep the drawers between 33°F and 38°F under a hot line.
True's self-cleaning RCU technology removes the need to clean the condenser coil and helps hold temperature.
True's Spec Series package adds a stainless steel interior liner, heavy duty all-metal handles and drawer locks as standard.
Natural R290 hydrocarbon refrigerant with zero ozone depletion potential and a global warming potential of 0.02.
True rates the one-piece stainless top to support up to 1084 lb. Use the cooking equipment on its manufacturer-supplied legs with at least 4" between the heating element and the top, and True recommends a heat shield (supplied by others).
Each drawer takes two full-size 12" x 20" x 4" food pans. Pans are sold separately.
The cabinet is 20-1/2" tall; the standard 4" castors bring it to 25-1/2". Optional 6" legs are also listed.
A dedicated 115V, 15 amp outlet. The unit draws 4.4 A and comes with a 10 ft. cord and NEMA 5-15P plug.
True rates the TRCB-72-HC~SPEC3 to hold 33°F to 38°F.
True's self-cleaning RCU technology removes the need to clean the condenser coil. The condensing unit sits behind the side grille and slides out for service.
Yes. True products carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | True Manufacturing |
|---|---|
| Model Number | TRCB-72-HC~SPEC3 |
| Series | Spec Series TRCB Chef Base |
| Quantity | 1/Each |
| Shipping Weight | 435 lb. |
| Width | 72-3/8 Inches |
| Depth | 32-1/8 Inches |
| Height | 20-1/2 Inches |
| Depth Note | Excludes 1-1/2" Drawer Handles and 1" Rear Bumpers |
| Height Note | Add 5" for Castors or 6" for Optional Legs |
| Height with Castors | 25-1/2 Inches |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 4.4 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 10 ft. |
| Circuit | Dedicated 15 Amp Outlet |
| Temperature Range | 33 - 38 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/3 HP |
| System | Self-Contained, Capillary TubeSelf-Cleaning RCU CondenserSealed, Self-Lubricating Evaporator Fan MotorEpoxy-Coated Evaporator |
| Condensing Unit Access | Behind the Side Grille, Slides Out |
| Drawers | 4 Drawers on Heavy-Duty Stainless Steel Slides and Rollers, Removable Without Tools |
| Drawer Capacity | 2 Full-Size 12" x 20" x 4" Food Pans per Drawer, Sold Separately |
| Top | One-Piece Reinforced 300 Series Stainless SteelDrip-Resistant V Edge |
| Top Load Rating | Up to 1084 lb. |
| Exterior | All Stainless Steel Front, Top, Sides and Back |
| Interior | Stainless Steel LinerStainless Steel Floor with Coved Corners |
| Handles | Heavy Duty All-Metal Working Spec Handles |
| Locks | Drawer Locks Standard |
| Insulation | Foamed-In-Place High Density Polyurethane |
| Castors | 4" Plate Castors, Locks on Front Set |
| Cooking Equipment | Use the Equipment Maker's Supplied LegsMinimum 4" Clearance from Heating Element to the TopHeat Shield Recommended, Supplied by Others |
| True Options | 16 Gauge Top6" Legs6" Seismic/Flanged LegsFlat Top, No Marine EdgeAdditional Drawer Divider Bars |
| Certifications | cULus, UL EPH Classified |
| Sanitation | NSF/ANSI Standard 7 Compliant for Open Food Product |
