Turbo Air TS030MR404A2 3 HP Extended Medium Temp Outdoor Condensing Unit

Roll over image to zoom in Click on image to zoom

Turbo Air TS030MR404A2 3 HP Extended Medium Temp Outdoor Condensing Unit

Name: Turbo Air TS030MR404A2 3 HP Extended Medium Temp Outdoor Condensing Unit
Brand: Turbo Air
SKU: TS030MR404A2
Price: 3599.0 USD
Availability: InStock

Turbo AirSKU: TS030MR404A2

Ships in 1-3 Business Days

Price:

$3,599.00

Quantity:

Key Features

3 HP scroll compressor for medium-temperature cooler applications
Outdoor condensing unit for remote walk-in refrigeration
26,470 BTU/h rated cooling capacity
208–230V / 1-phase / 60 Hz
Head-pressure control and adjustable low-pressure control
Blue anti-corrosion fins and internally grooved copper tubing
Refrigerant specification: R-404A / R-448A

Specifications

Manufacturer	Turbo Air
Product	Parts & Accessories
Product Type	Commercial Refrigeration
Part Type	Compressor
For Use With	Walk-In Refrigeration
Application	Outdoor
Mounting Location	Remote
Width (in)	39.06
Height (in)	27.25
Depth (in)	30.25
Weight	305.00
Voltage	208/230
Phase	1
Hertz	60
Horsepower	3
Total BTU	26,470 BTU/h (R-448A; 95°F ambient; 25°F saturated suction temperature)
Refrigerant	R404A/R448A
Warranty	1-year Parts; 1-year Compressor

Resources & Documents

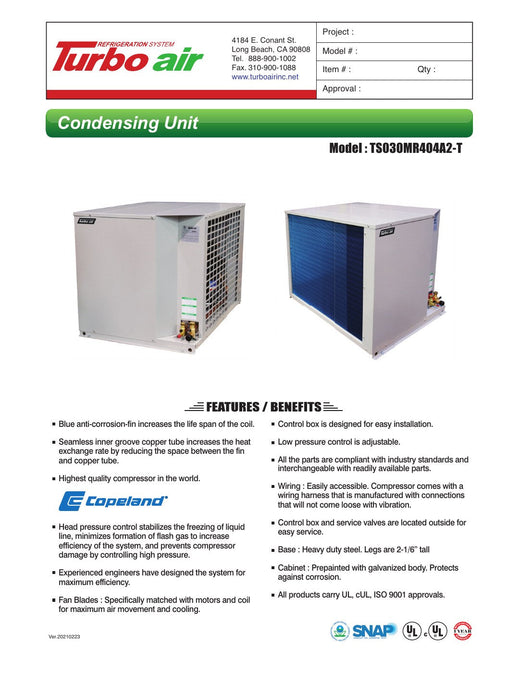

PDF Spec Sheet

PDF California 65 Statement

Share this product

The Turbo Air TS030MR404A2 is an outdoor medium-temperature condensing unit for remote walk-in cooler systems. Its 3 HP scroll compressor operates on 208–230V, 1-phase power, with R-404A / R-448A listed in the refrigerant specification.

Refrigeration and equipment details

Head-pressure control and adjustable low-pressure control are included. Blue anti-corrosion fins and internally grooved copper tubing form the condenser coil assembly. An external control box and service valves provide service access. This configuration is supplied without a defrost timer.

Cooling capacity

The published capacity is 26,470 BTU/h at the listed rating conditions: R-448A, 95°F ambient, 25°F saturated suction temperature. Actual capacity changes with operating conditions.

Dimensions and installation

Overall dimensions are 39.06 inches wide × 30.25 inches deep × 27.25 inches high. Electrical requirements are 208–230V, 1-phase, 60 Hz. Check the available installation space and power supply against these specifications.

Pair this condensing unit with an evaporator suited to the refrigerant, operating temperature and project load. Compressor horsepower and BTU capacity do not establish a suitable walk-in room size on their own.

Review the Specifications and Resources & Documents sections for available technical information, or compare other walk-in refrigeration units at Atlantic.

Buying Information

What am I buying?

Turbo Air TS030MR404A2 is an outdoor condensing unit. This listing is for the condensing unit, not a complete refrigeration system.

Included with this model

Condensing Unit

Not included in this equipment listing

Separate evaporator and field refrigeration piping
Walk-in room panels, doors and shelving
Installation labor, field wiring and site work

What electrical supply does it require?

208–230V · 1-phase · 60 Hz

Have your installer verify the field-wiring requirements in the model documentation; a plug-in connection is not specified in the available product data.

Your electrician must confirm the supply, circuit protection and wiring against the exact model documentation and equipment nameplate. Listed operating amps are not a circuit-sizing recommendation.

Is it in stock, and when will it arrive?

Request current availability for TS030MR404A2. Many models in this range are stocked by Atlantic; models not held in our stock can ship directly from the factory. The shipping source and dispatch time depend on the exact model and current availability.

Contact Atlantic with your model and delivery ZIP code to check the current Atlantic or factory availability, shipping source, estimated dispatch date and transit time. A dispatch estimate is not an arrival date. Confirm the timeline before ordering if you have a project deadline.

What will delivery and the total cost be?

Shipping is $500 USD per order within the contiguous United States. This is an order-level shipping charge, not a per-item charge. We do not sell or ship these products to Alaska or Hawaii.

Your total is the equipment subtotal plus $500 shipping, applicable tax and any separately confirmed delivery services. Confirm your receiving requirements before placing the order.

Tell Atlantic your ZIP code, whether you have a loading dock or forklift, and whether you need liftgate service. Liftgate availability and any additional service charges require confirmation; inside delivery, unpacking, installation and equipment placement are not implied by the shipping charge.

Read the general shipping policy. The shipping rate above applies to this product range.

Who do I contact if there is a problem?

Contact Atlantic with your order number, model, serial number and a description of the issue. Obtain the applicable service instructions before arranging warranty work.

Parts, compressor and labor coverage can have different terms. Check the warranty document for the exact model and ask Atlantic to confirm the applicable coverage and claim route before ordering. Labor, travel and other service costs should not be assumed to be covered.

The manufacturer's coverage and any separate seller coverage must be distinguished. Review Atlantic's warranty and return policy; model documents are available in Resources & Documents where supplied.

Why buy from Atlantic?

Atlantic is a restaurant and supermarket equipment seller with a showroom and warehouse in Kearny, New Jersey. You can review the model specifications and available documents here, buy online and contact our team directly about your order, delivery or warranty questions.

We provide equipment information and purchasing support. Your own refrigeration contractor determines capacity and system compatibility.

Contact Atlantic or view our location · About Atlantic

Warranty

Atlantic is an authorized Turbo Air dealer. These products carry Turbo Air factory warranty coverage, subject to the applicable manufacturer's terms.

SMART 7 packaged systems: Parts and compressor: 2 years, subject to installation/shipment date limits. Labor: 1 year.
Remote condensing units: Parts: 1 year for direct end-user/installer shipments. Compressor: 1 year, subject to installation/shipment date limits.
Evaporator coils: Parts: 1 year. Compressor coverage does not apply to a standalone evaporator. Labor is not included in the remote-system warranty summary.

Coverage, start dates, exclusions and replacement limits are governed by the exact product's warranty terms. Installation and shipping damage are not covered by this factory warranty.

For a claim, have your invoice, model and serial number ready. Contact Atlantic at 201-467-8222. Obtain service authorization before arranging repairs.
