Turbo Air STI075LP2 Low Temperature Indoor Refrigeration System

Turbo AirSKU: STI075LP2

Ships in 1-3 Business Days

Price:
Regular price$8,565.00

Key Features

  • Self-contained SMART 7 system for indoor walk-in freezers
  • 7,491 BTU/h rated cooling capacity*
  • 208–230V / 1-phase / 60 Hz
  • Pre-charged R-290 refrigeration system
  • Hot-gas defrost and hot-gas condensate system
  • EC motor
  • Hardwired electrical connection

*Capacity rating: R-290; 95°F ambient; -10°F room temperature. Capacity varies with operating conditions.

Specifications

TypeElectronic Parts Refrigeration Systems
UsageIndoor
Width53 1/2 Inches
Height25 5/8 Inches
Depth42 1/8 Inches
Shipping Weight305 lb.
Voltage208 - 230 Volts
Phase1 Phase
Hertz60 Hz
Amps14.6 Amps
Plug TypeHardwire
Total BTU7,491 BTU/h (R-290; 95°F ambient; -10°F room temperature)
Refrigerant TypeR-290
ColorSilver
FeaturesUL Certified
Quantity1/Each
UPC Code400018191941

Resources & Documents

Description

Features

  • Protects aluminum and copper pipes from toxic gases generated from foods, retards refrigerant leakage, and prolongs the cooling capacity.
  • Allows safe storage of foods with a feature that self-adjusts the circulation of refrigerant as the internal temperature changes, thus recovering the required temperature quickly. And protects compressor from preventing liquid refrigerant flood back to compressor.
  • Reduced Defrost time improve temperature fluctuation of the cold storage helps maintain product quality and efficiency of system.
  • Higher efficiency from larger heat transfer area compare to fin and tube condenser coil. Compact and lighter structure reduces weight of the unit. Improved durability and corrosion resistance than traditional copper-aluminum coils.
  • Through the use of highly efficient EC motors, our products reduce energy consumption and lower electricity costs, thus protecting the environment. Our products are designed with easy to-replace motor and fan blades.
  • The hot gas condensate system is an ideal system because of its fast evaporation of condensed water and its enhancing refrigeration efficiency. In spite of these advantages, many companies have stopped the application of such a system because of the high risk of discarding the refrigerators due to the rapid corrosion of hot gas lines causing refrigerant leakage and water inflow into the cooling pipes. Such problems are completely resolved in our products, thanks to a patented technology that prevents pipes from corrosion.
  • This system is designed to release hot air to the outside faster than competitors’ and to enhance cooling efficiency. At the same time, it retards elevation of compressor temperature and keeps refrigerant pressure from increasing, thus saving energy as a result.

Specifications:

  • Blue Anti-corrosion-fin and Coated Copper Tube
  • Expansion Valve & Solenoid Valve
  • Hot Gas Defrost
  • Efficient Micro Channel Condenser Coil
  • Energy Efficient EC Motor
  • Leak Free Patented Hot Gas Condensate System
  • Highly Efficient Air Circulation Enclosure

Key Features

2,200 BTU, Low Temperature, Indoor Package Unit With Scroll Compressor, 208-230V/1Ph/60Hz

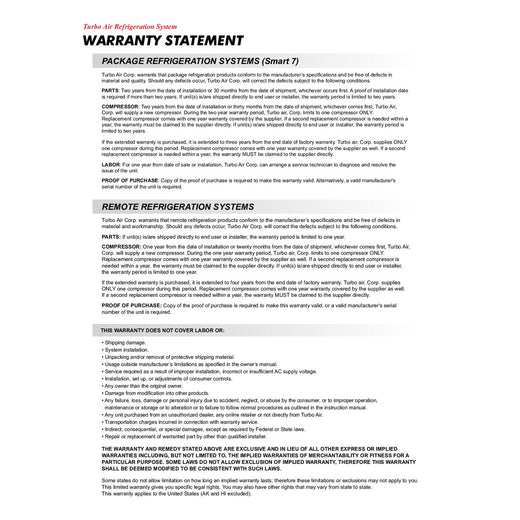

Warranty

2 Year Compressor and Parts Warranty
1 Year Labor Warranty

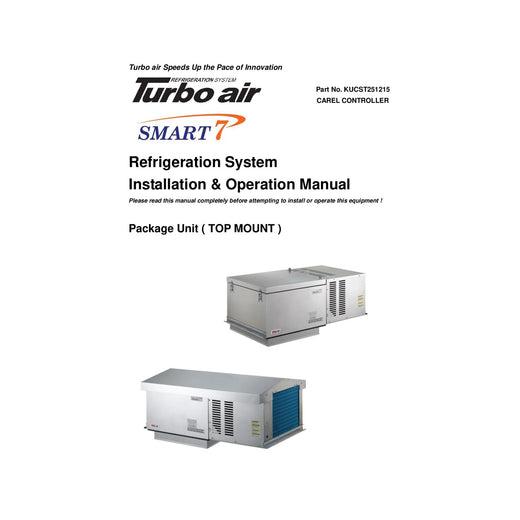

Documents

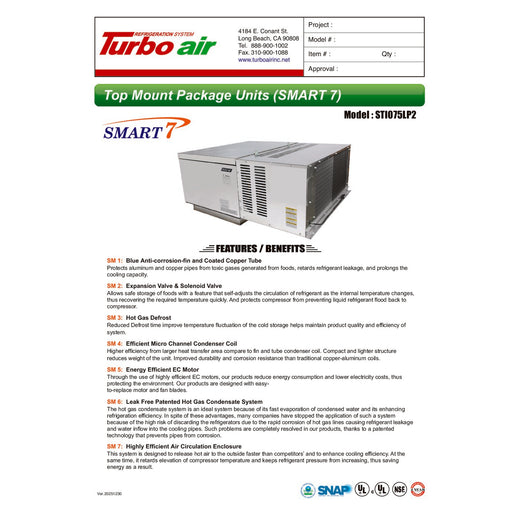

Cut Sheet
