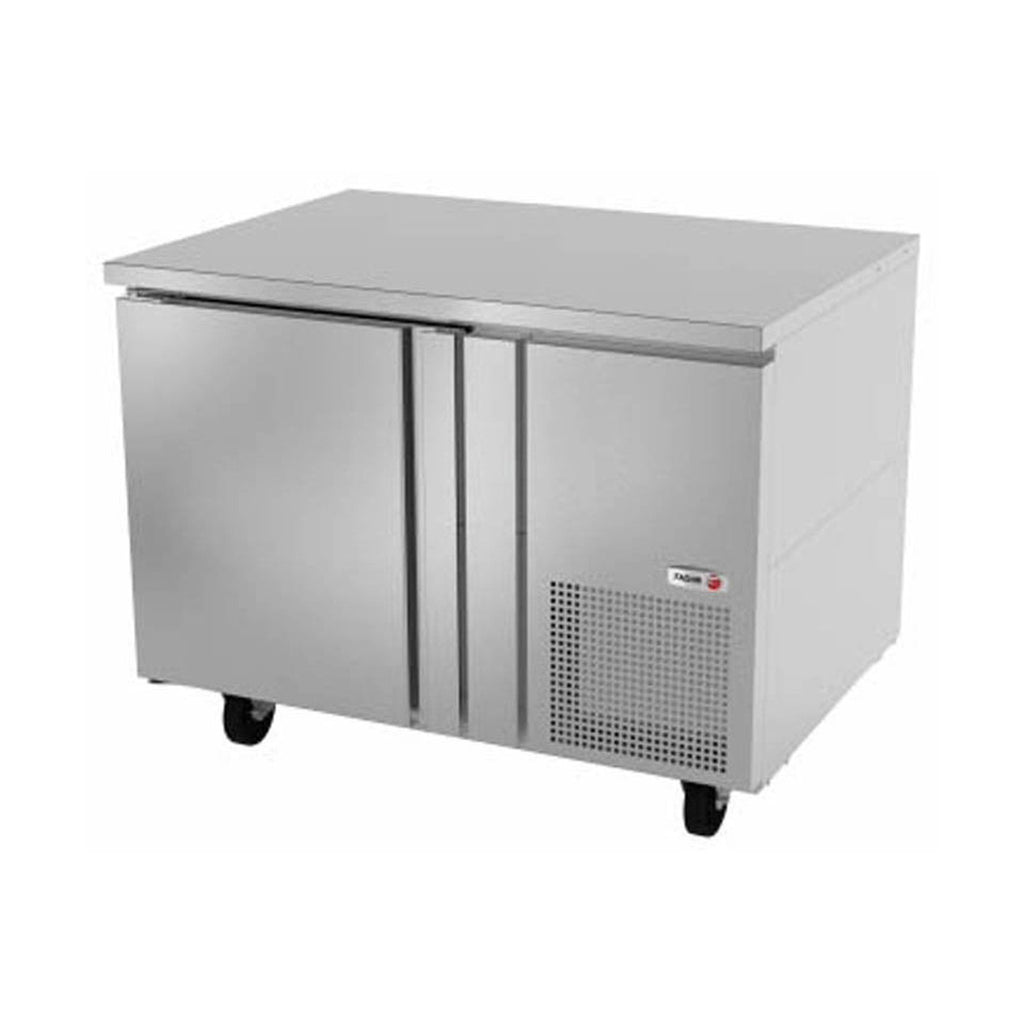

Fagor SUR-46 46" 1-Door Deep Undercounter Refrigerator, 32-1/2" Deep, 9.9 cu. ft., 33°F to 38°F, 115V, R290
A 46" deep undercounter refrigerator that puts 9.9 cu. ft. of cold storage under a stainless steel top 36" off the floor.
The Fagor SUR-46 is a 32-1/2" deep undercounter refrigerator for restaurant lines, delis, cafes and caterers. One solid door opens onto 2 epoxy-coated shelves, and the shelf rails also take 12" x 20" pans, all held at 33°F to 38°F. The flat stainless steel top gives you prep space right above the food. It runs on a standard 115V outlet at 3.0 amps and rolls on 5" casters.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 32-1/2" depth plus the 1" bumper. The compressor sits on the right side and the system is side breathing for built-in use, so keep the grille on the right end clear.
A 32-1/2" deep body with 9.9 cu. ft. inside. Fagor rates it to hold 33°F to 38°F in normal operation.
2 epoxy-coated shelves on channel slides, 2 per door, adjustable in 2" steps. The rails also take 12" x 20" pans.
Stainless steel top, front, sides and interior with a coved floor; gaskets come off without tools for cleaning.
A 1/3 HP self-contained system on natural R290 refrigerant, built to DOE energy standards, with a large fan over the top-mounted evaporator.
A standard grounded 115V outlet for the NEMA 5-15P plug on the 8 ft. cord. It draws 3.0 amps.
It is 46" wide, 32-1/2" deep plus a 1" bumper, and 30" tall without casters. Measure doors, hallways and turns on the delivery path before ordering.
Yes. Besides the 2 shelves per door, the shelf rails take 12" x 20" foodservice pans. Pans are sold separately.
Fagor designs it to hold 33°F to 38°F during normal operation.
Fagor builds it for built-in applications: the system is side breathing with the compressor on the right side. Keep the grille on the right end clear for airflow.
It comes with 5" casters, front 2 with brakes. Fagor offers 6" adjustable legs, which you can choose in the casters or legs option above the Add to Cart button.
Yes. Fagor builds a 220V/50Hz export version; you can choose it in the voltage option above the Add to Cart button.
Fagor gives 3 years parts and labor plus 2 more years on the compressor, 5 years in total, in the continental US and Canada only.
Specs
| Manufacturer | Fagor |
|---|---|
| Model Number | SUR-46 |
| Quantity | 1/Each |
| Shipping Weight | 280 lb. |
| Shipping Cube | 43 cu. ft. |
| Width | 46 Inches |
| Depth | 32-1/2 Inches |
| Front Bumper | 1 Inch, not included in depth |
| Height | 30 Inches |
| Overall Height on Casters | 36 Inches |
| Work Surface Height on Casters | 36 Inches |
| Depth with Door Open | 55-5/8 Inches |
| Voltage | 115 Volts |
| Amps | 3.0 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 8 ft. |
| Capacity | 9.9 cu. ft. |
| Temperature Range | 33 - 38 Degrees F |
| Horsepower | 1/3 HP |
| Refrigerant | R290 Hydrocarbon |
| Refrigeration System | Self-Contained, Capillary TubeSide Mounted Compressor, Right SideSide Breathing for Built-In Use |
| Evaporator | Mounted to Interior Top Panel, Encased in Stainless SteelLarge Fan Motor and Blades |
| Exterior | Stainless Steel Top, Front and SidesGalvanized Back |
| Interior | Stainless Steel with Coved Corner Floor |
| Insulation | 2" Foamed-in-Place Polyurethane, CFC-Free |
| Number of Doors | 1 |
| Door Features | Stainless Steel Inside and Out, In-Step DesignSelf-Closing120° Stay-OpenRecessed Full-Length HandlesMagnetic Gaskets, Removable Without Tools |
| Number of Shelves | 2 Epoxy-Coated, 2 per Door, Adjustable in 2" Increments |
| Pan Rails | Shelf Rails Also Take 12" x 20" Pans, Pans Sold Separately |
| Casters | 5" Casters, Front 2 with Brakes |
| Fagor Options | 6" Adjustable Legs3" CastersAdditional Epoxy-Coated ShelvesUniversal Tray Slides220V/50Hz |
| Certifications | ETL Sanitation, cETLus |
| Standards | Conforms to UL and NSF-7DOE 2017 Compliant |
| Warranty | 3 Years Parts & Labor, 5 Years Compressor |
| Warranty Coverage | Continental US & Canada |
