Description

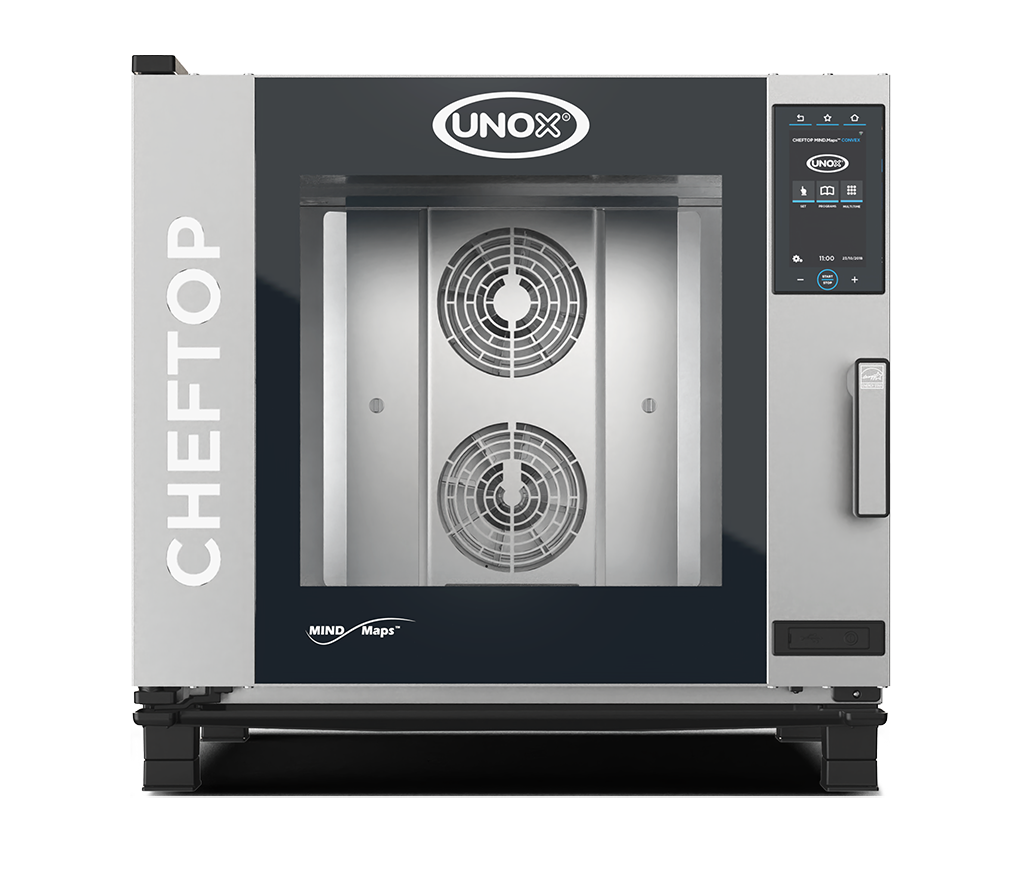

The UNOX XAVC-06FS-EQRM is a CHEFTOP MIND.Maps CONVEX electric convection oven for commercial kitchens handling baking, roasting and browning. Its capacity is 6 full-size 18 x 26-inch sheet pans, with a 9.5-inch touchscreen for setting and managing the cooking process. The left-hinged door identifies this model’s access configuration, helping you match the oven to the kitchen layout.
Cooking Performance and Workflow
For restaurants and institutional kitchens, the 6 full-size 18 x 26-inch sheet pans format supports a defined batch size while keeping pan selection clear. Dry-heat convection makes this model suited to foods that need browning and a crisp finish.
- AIR.Plus air circulation distributes heat through the cooking chamber.
- DRY.Maxi humidity extraction supports dry-heat finishing.
- Touchscreen recipe controls help repeat established cooking programs.
Model Specifications
| Manufacturer | UNOX |
|---|---|
| Manufacturer model | XAVC-06FS-EQRM |
| Series | CHEFTOP MIND.Maps CONVEX |
| Equipment type | Electric convection oven |
| Capacity | 6 full-size 18 x 26-inch sheet pans |
| Controls | 9.5-inch touchscreen |
| Door hinge | Left-hinged |
| Temperature range | 86–500°F |
| Electrical configuration | 208/240V; manufacturer specifies supported three-phase and single-phase configurations |
Installation and Equipment Selection
Match the pan format, door clearance and electrical configuration to the site before ordering. Plan the water supply, treatment, drainage and ventilation according to the manufacturer installation requirements. Stands, stacking kits and exhaust accessories must be selected for the exact oven model; they are separate unless specified as included.
Common Questions
Which pans does this model accommodate? The specified format is 6 full-size 18 x 26-inch sheet pans. Choose containers and any required guides for this configuration.
How do I distinguish it from similar UNOX ovens? Compare the complete XAVC-06FS-EQRM code, door hinge and power configuration rather than relying only on the series name.
