Astra 8 x 10 Walk-In Combo Cooler & Freezer With Floor CMB8X10

AstraSKU: CMB8X10

Astra 8 x 10 Walk-In Combo Cooler & Freezer With Floor CMB8X10


Price:
Sale price$6,518.00

Indoor / Outdoor

Door Size

Add-Ons

Layout

Product Specifications

Panel Brand Astra
Refrigeration Brand Turbo Air
Model CMB8X10
Internal Dimensions 7' 6"W x 9' 2"L x 6' 11"H
External Dimensions 8' 2"W x 9' 10"L x 7' 7"H
Nominal Width 8'
Nominal Length 10'
Nominal Height 8'
Height 90.9"
Length 98.4"
Width 118.1"
Cubic Feet 168 ft³
Shipping Weight 1317 lb
Insulation Value R27 for coolers and R33 for freezers
Panel Construction 4" thick foamed-in-place polyurethane insulation
Panel Warranty 10 year panel warranty

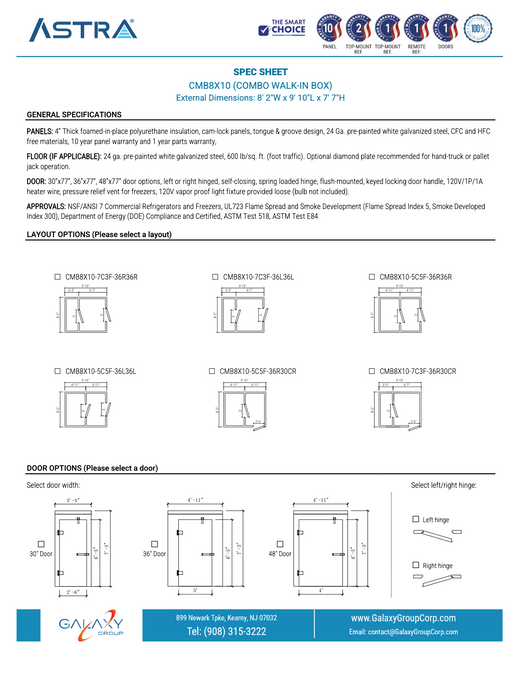

Resources & Documents

Product Certifications

NSF certification
UL certification
ASTM certification
DOE certification

Description

The Astra CMB8X10 is an 8 x 10 walk-in cooler/freezer combo box built for commercial foodservice storage, restaurant equipment planning, and back-of-house cold storage where one footprint needs to support multiple temperature zones. With a nominal 8' by 10' size and a box-only format, it fits operations that are organizing walk-in cooler and walk-in freezer space around their own refrigeration strategy.

This walk-in box is part of the Astra modular refrigeration builder line and uses foamed-in-place panel construction with a floorless configuration. Buyers can select from door size options, including 30", 36", and a 48" pallet size upgrade, along with indoor or outdoor placement. For outdoor applications, a rain roof cover option is available separately, and multiple layout configurations are offered to help match the opening arrangement to the site plan.

The CMB8X10 can suit grocery back rooms, deli refrigeration areas, convenience store refrigeration storage, and other commercial kitchen equipment applications that need organized, split-use cold storage. Because walk-in cooler or freezer planning can be complex, customers can contact Atlantic Restaurant & Supermarket Equipment for help selecting the right brand, model, and configuration for their storage needs.

Standard Features

Refrigeration Options

  • 10-Year Panel Warranty
  • 2-Year Top Mount Refrigeration Parts
  • 1-Year Top Mount Refrigeration Labor
  • 1-Year Remote Refrigeration Parts
  • 1-Year Door Warranty

Payment & Security

Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Available Astra QuickShip Walk In Cooler Models

Model Number External Dimensions Spec Sheet
CNF5X6 4'11" L x 6'7" W x 7'3" H PDF
CNF5X8 4'11" L x 8'2" W x 7'3" H PDF
CNF5X10 4'11" L x 9'10" W x 7'3" H PDF
CNF6X6 6'7" L x 6'7" W x 7'3" H PDF
CNF6X8 6'7" L x 8'2" W x 7'3" H PDF
CNF6X10 6'7" L x 9'10" W x 7'3" H PDF
CNF6X12 6'7" L x 11'6" W x 7'3" H PDF
CNF8X8 8'2" L x 8'2" W x 7'3" H PDF
CNF8X10 8'2" L x 9'10" W x 7'3" H PDF
CNF8X12 8'2" L x 11'6" W x 7'3" H PDF
CNF8X13 8'2" L x 13'2" W x 7'3" H PDF
CNF8X15 8'2" L x 14'9" W x 7'3" H PDF
CNF8X17 8'2" L x 16'5" W x 7'3" H PDF
CNF8X18 8'2" L x 18'1" W x 7'3" H PDF
CNF8X20 8'2" L x 19'8" W x 7'3" H PDF
CNF10X10 9'10" L x 9'10" W x 7'3" H PDF
CNF10X12 9'10" L x 11'6" W x 7'3" H PDF
CNF10X13 9'10" L x 13'2" W x 7'3" H PDF
CNF10X15 9'10" L x 14'9" W x 7'3" H PDF
CNF10X17 9'10" L x 16'5" W x 7'3" H PDF
CNF10X18 9'10" L x 18'1" W x 7'3" H PDF
CNF10X20 9'10" L x 19'8" W x 7'3" H PDF
CWF5X6 4'11" L x 6'7" W x 7'7" H PDF
CWF5X8 4'11" L x 8'2" W x 7'7" H PDF
CWF5X10 4'11" L x 9'10" W x 7'7" H PDF
CWF6X6 6'7" L x 6'7" W x 7'7" H PDF
CWF6X8 6'7" L x 8'2" W x 7'7" H PDF
CWF6X10 6'7" L x 9'10" W x 7'7" H PDF
CWF6X12 6'7" L x 11'6" W x 7'7" H PDF
CWF8X8 8'2" L x 8'2" W x 7'7" H PDF
CWF8X10 8'2" L x 9'10" W x 7'7" H PDF
CWF8X12 8'2" L x 11'6" W x 7'7" H PDF
CWF8X13 8'2" L x 13'2" W x 7'7" H PDF
CWF8X15 8'2" L x 14'9" W x 7'7" H PDF
CWF8X17 8'2" L x 16'5" W x 7'7" H PDF
CWF8X18 8'2" L x 18'1" W x 7'7" H PDF
CWF8X20 8'2" L x 19'8" W x 7'7" H PDF
CWF10X10 9'10" L x 9'10" W x 7'7" H PDF
CWF10X12 9'10" L x 11'6" W x 7'7" H PDF
CWF10X13 9'10" L x 13'2" W x 7'7" H PDF
CWF10X15 9'10" L x 14'9" W x 7'7" H PDF
CWF10X17 9'10" L x 16'5" W x 7'7" H PDF
CWF10X18 9'10" L x 18'1" W x 7'7" H PDF
CWF10X20 9'10" L x 19'8" W x 7'7" H PDF
Model Number External Dimensions Spec Sheet
FWF5X6 4'11" L x 6'7" W x 7'7" H PDF
FWF5X8 4'11" L x 8'2" W x 7'7" H PDF
FWF5X10 4'11" L x 9'10" W x 7'7" H PDF
FWF6X6 6'7" L x 6'7" W x 7'7" H PDF
FWF6X8 6'7" L x 8'2" W x 7'7" H PDF
FWF6X10 6'7" L x 9'10" W x 7'7" H PDF
FWF6X12 6'7" L x 11'6" W x 7'7" H PDF
FWF8X8 8'2" L x 8'2" W x 7'7" H PDF
FWF8X10 8'2" L x 9'10" W x 7'7" H PDF
FWF8X12 8'2" L x 11'6" W x 7'7" H PDF
FWF8X13 8'2" L x 13'2" W x 7'7" H PDF
FWF8X15 8'2" L x 14'9" W x 7'7" H PDF
FWF8X17 8'2" L x 16'5" W x 7'7" H PDF
FWF8X18 8'2" L x 18'1" W x 7'7" H PDF
FWF8X20 8'2" L x 19'8" W x 7'7" H PDF
FWF10X10 9'10" L x 9'10" W x 7'7" H PDF
FWF10X12 9'10" L x 11'6" W x 7'7" H PDF
FWF10X13 9'10" L x 13'2" W x 7'7" H PDF
FWF10X15 9'10" L x 14'9" W x 7'7" H PDF
FWF10X17 9'10" L x 16'5" W x 7'7" H PDF
FWF10X18 9'10" L x 18'1" W x 7'7" H PDF
FWF10X20 9'10" L x 19'8" W x 7'7" H PDF
Model Number External Dimensions Spec Sheet
CMB5X12 4'11" L x 11'6" W x 7'7" H PDF
CMB5X13 4'11" L x 13'2" W x 7'7" H PDF
CMB5X15 4'11" L x 14'9" W x 7'7" H PDF
CMB6X8 6'7" L x 8'2" W x 7'7" H PDF
CMB6X10 6'7" L x 9'10" W x 7'7" H PDF
CMB6X12 6'7" L x 11'6" W x 7'7" H PDF
CMB6X13 6'7" L x 13'2" W x 7'7" H PDF
CMB6X15 6'7" L x 14'9" W x 7'7" H PDF
CMB6X17 6'7" L x 16'5" W x 7'7" H PDF
CMB6X18 6'7" L x 18'1" W x 7'7" H PDF
CMB6X20 6'7" L x 19'8" W x 7'7" H PDF
CMB8X8 8'2" L x 8'2" W x 7'7" H PDF
CMB8X10 8'2" L x 9'10" W x 7'7" H PDF
CMB8X12 8'2" L x 11'6" W x 7'7" H PDF
CMB8X13 8'2" L x 13'2" W x 7'7" H PDF
CMB8X15 8'2" L x 14'9" W x 7'7" H PDF
CMB8X17 8'2" L x 16'5" W x 7'7" H PDF
CMB8X18 8'2" L x 18'1" W x 7'7" H PDF
CMB8X20 8'2" L x 19'8" W x 7'7" H PDF
CMB10X10 9'10" L x 9'10" W x 7'7" H PDF
CMB10X12 9'10" L x 11'6" W x 7'7" H PDF
CMB10X13 9'10" L x 13'2" W x 7'7" H PDF
CMB10X15 9'10" L x 14'9" W x 7'7" H PDF
CMB10X17 9'10" L x 16'5" W x 7'7" H PDF
CMB10X18 9'10" L x 18'1" W x 7'7" H PDF
CMB10X20 9'10" L x 19'8" W x 7'7" H PDF

Astra QuickShip Walk-In Boxes

Find the right walk-in box size for your space

Review Astra QuickShip cooler, freezer, and combo models in one place. Use the tabs below to compare dimensions, spec sheets, and pricing as you plan your project.
