Panels
- 4" Thick Foamed-In-Place Polyurethane Insulation
- Cam-Lock Panels, Tongue & Groove Design
- 24 Gauge Pre-Painted White Galvanized Steel
- R27 for Coolers and R33 for Freezers
- CFC and HFC Free Materials
- 10 Year Panel Warranty
Skip to content

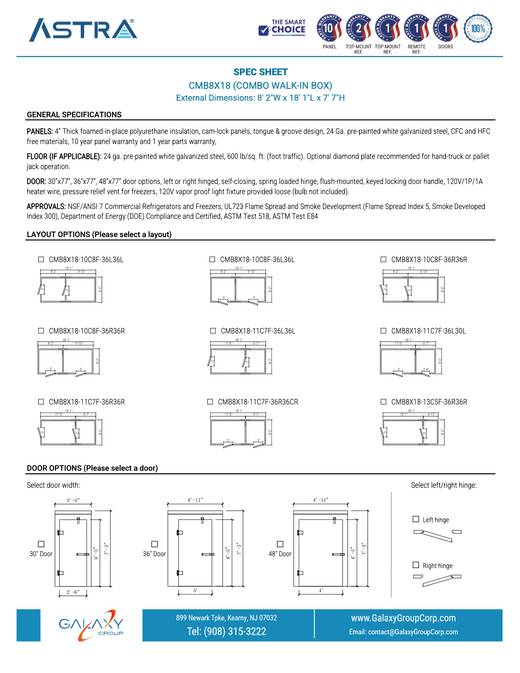

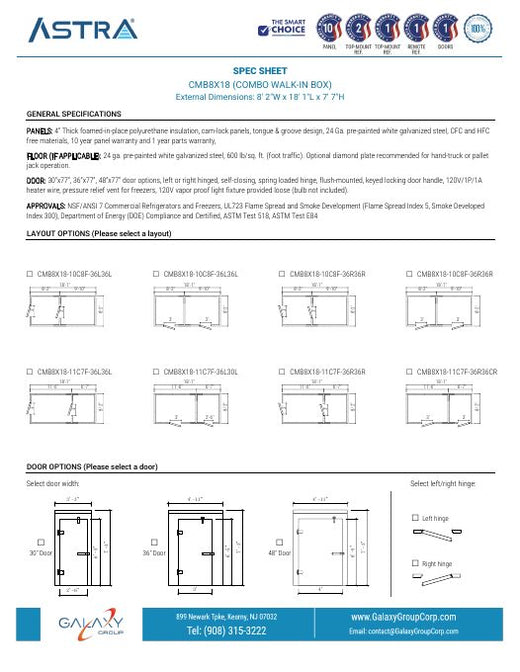

The Astra CMB8X18 is an 8' x 18' walk-in cooler/freezer combo box designed for commercial foodservice storage where both refrigerated and frozen holding need to be planned in one unit. As walk-in restaurant equipment, it fits back-of-house cold storage, supermarket refrigeration, deli refrigeration, and convenience store refrigeration applications that need a flexible walk-in refrigeration layout.
This walk-in box is built with Astra panel construction and is offered as a box only configuration, so buyers can pair it with the refrigeration setup that matches their operation. Selectable page options include door size choices of 30", 36", or 48" pallet size upgrade, indoor or outdoor placement with a rain roof cover option, and multiple layout choices to support different workflow and storage plans.
For operators comparing commercial refrigeration solutions, the CMB8X18 provides a practical way to plan mixed-temperature foodservice storage in a single footprint. It can be specified for a walk-in cooler box or walk-in freezer box arrangement depending on the configuration selected, making it useful for restaurant storage, prep kitchen storage, and retail foodservice environments.
If you are evaluating a walk-in cooler or walk-in freezer for your operation, contact Atlantic Restaurant & Supermarket Equipment for help selecting the right brand, model, and configuration for your storage needs.
LED Light
Exterior Ramp
Aluminum Diamond Plate
Kick Plate
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Model Number | External Dimensions | Spec Sheet |
|---|---|---|
| CNF5X6 | 4'11" L x 6'7" W x 7'3" H | |
| CNF5X8 | 4'11" L x 8'2" W x 7'3" H | |
| CNF5X10 | 4'11" L x 9'10" W x 7'3" H | |
| CNF6X6 | 6'7" L x 6'7" W x 7'3" H | |
| CNF6X8 | 6'7" L x 8'2" W x 7'3" H | |
| CNF6X10 | 6'7" L x 9'10" W x 7'3" H | |
| CNF6X12 | 6'7" L x 11'6" W x 7'3" H | |
| CNF8X8 | 8'2" L x 8'2" W x 7'3" H | |
| CNF8X10 | 8'2" L x 9'10" W x 7'3" H | |
| CNF8X12 | 8'2" L x 11'6" W x 7'3" H | |
| CNF8X13 | 8'2" L x 13'2" W x 7'3" H | |
| CNF8X15 | 8'2" L x 14'9" W x 7'3" H | |
| CNF8X17 | 8'2" L x 16'5" W x 7'3" H | |
| CNF8X18 | 8'2" L x 18'1" W x 7'3" H | |
| CNF8X20 | 8'2" L x 19'8" W x 7'3" H | |
| CNF10X10 | 9'10" L x 9'10" W x 7'3" H | |
| CNF10X12 | 9'10" L x 11'6" W x 7'3" H | |
| CNF10X13 | 9'10" L x 13'2" W x 7'3" H | |
| CNF10X15 | 9'10" L x 14'9" W x 7'3" H | |
| CNF10X17 | 9'10" L x 16'5" W x 7'3" H | |
| CNF10X18 | 9'10" L x 18'1" W x 7'3" H | |
| CNF10X20 | 9'10" L x 19'8" W x 7'3" H | |
| CWF5X6 | 4'11" L x 6'7" W x 7'7" H | |
| CWF5X8 | 4'11" L x 8'2" W x 7'7" H | |
| CWF5X10 | 4'11" L x 9'10" W x 7'7" H | |
| CWF6X6 | 6'7" L x 6'7" W x 7'7" H | |
| CWF6X8 | 6'7" L x 8'2" W x 7'7" H | |
| CWF6X10 | 6'7" L x 9'10" W x 7'7" H | |
| CWF6X12 | 6'7" L x 11'6" W x 7'7" H | |
| CWF8X8 | 8'2" L x 8'2" W x 7'7" H | |
| CWF8X10 | 8'2" L x 9'10" W x 7'7" H | |
| CWF8X12 | 8'2" L x 11'6" W x 7'7" H | |
| CWF8X13 | 8'2" L x 13'2" W x 7'7" H | |
| CWF8X15 | 8'2" L x 14'9" W x 7'7" H | |
| CWF8X17 | 8'2" L x 16'5" W x 7'7" H | |
| CWF8X18 | 8'2" L x 18'1" W x 7'7" H | |
| CWF8X20 | 8'2" L x 19'8" W x 7'7" H | |
| CWF10X10 | 9'10" L x 9'10" W x 7'7" H | |
| CWF10X12 | 9'10" L x 11'6" W x 7'7" H | |
| CWF10X13 | 9'10" L x 13'2" W x 7'7" H | |
| CWF10X15 | 9'10" L x 14'9" W x 7'7" H | |
| CWF10X17 | 9'10" L x 16'5" W x 7'7" H | |
| CWF10X18 | 9'10" L x 18'1" W x 7'7" H | |
| CWF10X20 | 9'10" L x 19'8" W x 7'7" H |
| Model Number | External Dimensions | Spec Sheet |
|---|---|---|
| FWF5X6 | 4'11" L x 6'7" W x 7'7" H | |
| FWF5X8 | 4'11" L x 8'2" W x 7'7" H | |
| FWF5X10 | 4'11" L x 9'10" W x 7'7" H | |
| FWF6X6 | 6'7" L x 6'7" W x 7'7" H | |
| FWF6X8 | 6'7" L x 8'2" W x 7'7" H | |
| FWF6X10 | 6'7" L x 9'10" W x 7'7" H | |
| FWF6X12 | 6'7" L x 11'6" W x 7'7" H | |
| FWF8X8 | 8'2" L x 8'2" W x 7'7" H | |
| FWF8X10 | 8'2" L x 9'10" W x 7'7" H | |
| FWF8X12 | 8'2" L x 11'6" W x 7'7" H | |
| FWF8X13 | 8'2" L x 13'2" W x 7'7" H | |
| FWF8X15 | 8'2" L x 14'9" W x 7'7" H | |
| FWF8X17 | 8'2" L x 16'5" W x 7'7" H | |
| FWF8X18 | 8'2" L x 18'1" W x 7'7" H | |
| FWF8X20 | 8'2" L x 19'8" W x 7'7" H | |
| FWF10X10 | 9'10" L x 9'10" W x 7'7" H | |
| FWF10X12 | 9'10" L x 11'6" W x 7'7" H | |
| FWF10X13 | 9'10" L x 13'2" W x 7'7" H | |
| FWF10X15 | 9'10" L x 14'9" W x 7'7" H | |
| FWF10X17 | 9'10" L x 16'5" W x 7'7" H | |
| FWF10X18 | 9'10" L x 18'1" W x 7'7" H | |
| FWF10X20 | 9'10" L x 19'8" W x 7'7" H |
| Model Number | External Dimensions | Spec Sheet |
|---|---|---|
| CMB5X12 | 4'11" L x 11'6" W x 7'7" H | |
| CMB5X13 | 4'11" L x 13'2" W x 7'7" H | |
| CMB5X15 | 4'11" L x 14'9" W x 7'7" H | |
| CMB6X8 | 6'7" L x 8'2" W x 7'7" H | |
| CMB6X10 | 6'7" L x 9'10" W x 7'7" H | |
| CMB6X12 | 6'7" L x 11'6" W x 7'7" H | |
| CMB6X13 | 6'7" L x 13'2" W x 7'7" H | |
| CMB6X15 | 6'7" L x 14'9" W x 7'7" H | |
| CMB6X17 | 6'7" L x 16'5" W x 7'7" H | |
| CMB6X18 | 6'7" L x 18'1" W x 7'7" H | |
| CMB6X20 | 6'7" L x 19'8" W x 7'7" H | |
| CMB8X8 | 8'2" L x 8'2" W x 7'7" H | |
| CMB8X10 | 8'2" L x 9'10" W x 7'7" H | |
| CMB8X12 | 8'2" L x 11'6" W x 7'7" H | |
| CMB8X13 | 8'2" L x 13'2" W x 7'7" H | |
| CMB8X15 | 8'2" L x 14'9" W x 7'7" H | |
| CMB8X17 | 8'2" L x 16'5" W x 7'7" H | |
| CMB8X18 | 8'2" L x 18'1" W x 7'7" H | |
| CMB8X20 | 8'2" L x 19'8" W x 7'7" H | |
| CMB10X10 | 9'10" L x 9'10" W x 7'7" H | |
| CMB10X12 | 9'10" L x 11'6" W x 7'7" H | |
| CMB10X13 | 9'10" L x 13'2" W x 7'7" H | |
| CMB10X15 | 9'10" L x 14'9" W x 7'7" H | |
| CMB10X17 | 9'10" L x 16'5" W x 7'7" H | |
| CMB10X18 | 9'10" L x 18'1" W x 7'7" H | |
| CMB10X20 | 9'10" L x 19'8" W x 7'7" H |
Astra QuickShip Walk-In Boxes
Review Astra QuickShip cooler, freezer, and combo models in one place. Use the tabs below to compare dimensions, spec sheets, and pricing as you plan your project.
