Panels
- 4" Thick Foamed-In-Place Polyurethane Insulation
- Cam-Lock Panels, Tongue & Groove Design
- 24 Gauge Pre-Painted White Galvanized Steel
- R27 for Coolers and R33 for Freezers
- CFC and HFC Free Materials
- 10 Year Panel Warranty
Skip to content
The Astra CMB8X8 is an 8 x 8 walk-in cooler/freezer combo designed for commercial kitchen equipment planning, back-of-house cold storage, and restaurant storage where both chilled and frozen foodservice storage are needed in one footprint. As a walk-in box, it supports commercial refrigeration planning for operations that need a compact mixed-temperature solution for prep areas, markets, and other foodservice environments.
This model is offered as a box only, with buyer-selectable configuration choices that include 30" or 36" door sizing, a 48" pallet size upgrade, indoor placement, or outdoor use with a rain roof cover. Floor type options include no floor, and layout options are available to help match the walk-in cooler or walk-in freezer combo to the workflow and storage layout of the space.
For buyers comparing walk-in cooler, walk-in freezer, supermarket refrigeration, deli refrigeration, and convenience store refrigeration solutions, the CMB8X8 provides a flexible starting point for planning cold storage around inventory, traffic flow, and available space. Contact Atlantic Restaurant & Supermarket Equipment for help selecting the right brand, model, and configuration for your storage needs.
LED Light
Exterior Ramp
Aluminum Diamond Plate
Kick Plate
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

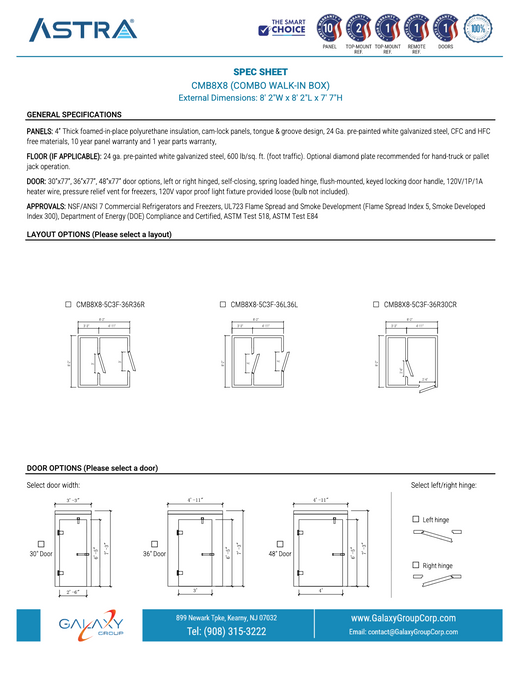

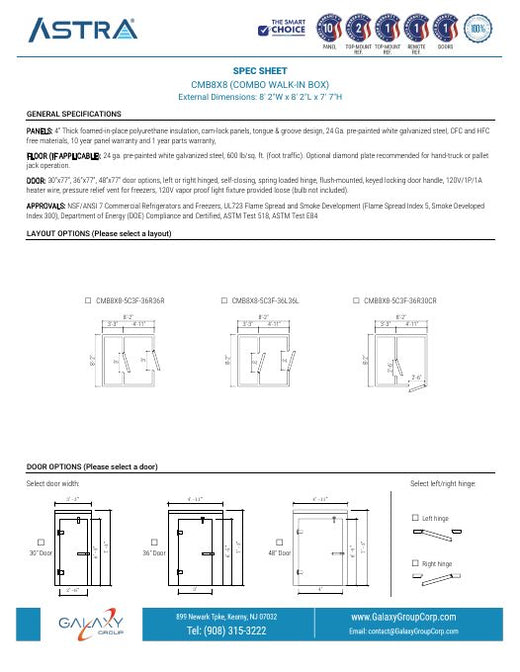

| Model Number | External Dimensions | Spec Sheet |
|---|---|---|
| CNF5X6 | 4'11" L x 6'7" W x 7'3" H | |
| CNF5X8 | 4'11" L x 8'2" W x 7'3" H | |
| CNF5X10 | 4'11" L x 9'10" W x 7'3" H | |
| CNF6X6 | 6'7" L x 6'7" W x 7'3" H | |
| CNF6X8 | 6'7" L x 8'2" W x 7'3" H | |
| CNF6X10 | 6'7" L x 9'10" W x 7'3" H | |
| CNF6X12 | 6'7" L x 11'6" W x 7'3" H | |
| CNF8X8 | 8'2" L x 8'2" W x 7'3" H | |
| CNF8X10 | 8'2" L x 9'10" W x 7'3" H | |
| CNF8X12 | 8'2" L x 11'6" W x 7'3" H | |
| CNF8X13 | 8'2" L x 13'2" W x 7'3" H | |
| CNF8X15 | 8'2" L x 14'9" W x 7'3" H | |
| CNF8X17 | 8'2" L x 16'5" W x 7'3" H | |
| CNF8X18 | 8'2" L x 18'1" W x 7'3" H | |
| CNF8X20 | 8'2" L x 19'8" W x 7'3" H | |
| CNF10X10 | 9'10" L x 9'10" W x 7'3" H | |
| CNF10X12 | 9'10" L x 11'6" W x 7'3" H | |
| CNF10X13 | 9'10" L x 13'2" W x 7'3" H | |
| CNF10X15 | 9'10" L x 14'9" W x 7'3" H | |
| CNF10X17 | 9'10" L x 16'5" W x 7'3" H | |
| CNF10X18 | 9'10" L x 18'1" W x 7'3" H | |
| CNF10X20 | 9'10" L x 19'8" W x 7'3" H | |
| CWF5X6 | 4'11" L x 6'7" W x 7'7" H | |
| CWF5X8 | 4'11" L x 8'2" W x 7'7" H | |
| CWF5X10 | 4'11" L x 9'10" W x 7'7" H | |
| CWF6X6 | 6'7" L x 6'7" W x 7'7" H | |
| CWF6X8 | 6'7" L x 8'2" W x 7'7" H | |
| CWF6X10 | 6'7" L x 9'10" W x 7'7" H | |
| CWF6X12 | 6'7" L x 11'6" W x 7'7" H | |
| CWF8X8 | 8'2" L x 8'2" W x 7'7" H | |
| CWF8X10 | 8'2" L x 9'10" W x 7'7" H | |
| CWF8X12 | 8'2" L x 11'6" W x 7'7" H | |
| CWF8X13 | 8'2" L x 13'2" W x 7'7" H | |
| CWF8X15 | 8'2" L x 14'9" W x 7'7" H | |
| CWF8X17 | 8'2" L x 16'5" W x 7'7" H | |
| CWF8X18 | 8'2" L x 18'1" W x 7'7" H | |
| CWF8X20 | 8'2" L x 19'8" W x 7'7" H | |
| CWF10X10 | 9'10" L x 9'10" W x 7'7" H | |
| CWF10X12 | 9'10" L x 11'6" W x 7'7" H | |
| CWF10X13 | 9'10" L x 13'2" W x 7'7" H | |
| CWF10X15 | 9'10" L x 14'9" W x 7'7" H | |
| CWF10X17 | 9'10" L x 16'5" W x 7'7" H | |
| CWF10X18 | 9'10" L x 18'1" W x 7'7" H | |
| CWF10X20 | 9'10" L x 19'8" W x 7'7" H |
| Model Number | External Dimensions | Spec Sheet |
|---|---|---|
| FWF5X6 | 4'11" L x 6'7" W x 7'7" H | |
| FWF5X8 | 4'11" L x 8'2" W x 7'7" H | |
| FWF5X10 | 4'11" L x 9'10" W x 7'7" H | |
| FWF6X6 | 6'7" L x 6'7" W x 7'7" H | |
| FWF6X8 | 6'7" L x 8'2" W x 7'7" H | |
| FWF6X10 | 6'7" L x 9'10" W x 7'7" H | |
| FWF6X12 | 6'7" L x 11'6" W x 7'7" H | |
| FWF8X8 | 8'2" L x 8'2" W x 7'7" H | |
| FWF8X10 | 8'2" L x 9'10" W x 7'7" H | |
| FWF8X12 | 8'2" L x 11'6" W x 7'7" H | |
| FWF8X13 | 8'2" L x 13'2" W x 7'7" H | |
| FWF8X15 | 8'2" L x 14'9" W x 7'7" H | |
| FWF8X17 | 8'2" L x 16'5" W x 7'7" H | |
| FWF8X18 | 8'2" L x 18'1" W x 7'7" H | |
| FWF8X20 | 8'2" L x 19'8" W x 7'7" H | |
| FWF10X10 | 9'10" L x 9'10" W x 7'7" H | |
| FWF10X12 | 9'10" L x 11'6" W x 7'7" H | |
| FWF10X13 | 9'10" L x 13'2" W x 7'7" H | |
| FWF10X15 | 9'10" L x 14'9" W x 7'7" H | |
| FWF10X17 | 9'10" L x 16'5" W x 7'7" H | |
| FWF10X18 | 9'10" L x 18'1" W x 7'7" H | |
| FWF10X20 | 9'10" L x 19'8" W x 7'7" H |
| Model Number | External Dimensions | Spec Sheet |
|---|---|---|
| CMB5X12 | 4'11" L x 11'6" W x 7'7" H | |
| CMB5X13 | 4'11" L x 13'2" W x 7'7" H | |
| CMB5X15 | 4'11" L x 14'9" W x 7'7" H | |
| CMB6X8 | 6'7" L x 8'2" W x 7'7" H | |
| CMB6X10 | 6'7" L x 9'10" W x 7'7" H | |
| CMB6X12 | 6'7" L x 11'6" W x 7'7" H | |
| CMB6X13 | 6'7" L x 13'2" W x 7'7" H | |
| CMB6X15 | 6'7" L x 14'9" W x 7'7" H | |
| CMB6X17 | 6'7" L x 16'5" W x 7'7" H | |
| CMB6X18 | 6'7" L x 18'1" W x 7'7" H | |
| CMB6X20 | 6'7" L x 19'8" W x 7'7" H | |
| CMB8X8 | 8'2" L x 8'2" W x 7'7" H | |
| CMB8X10 | 8'2" L x 9'10" W x 7'7" H | |
| CMB8X12 | 8'2" L x 11'6" W x 7'7" H | |
| CMB8X13 | 8'2" L x 13'2" W x 7'7" H | |
| CMB8X15 | 8'2" L x 14'9" W x 7'7" H | |
| CMB8X17 | 8'2" L x 16'5" W x 7'7" H | |
| CMB8X18 | 8'2" L x 18'1" W x 7'7" H | |
| CMB8X20 | 8'2" L x 19'8" W x 7'7" H | |
| CMB10X10 | 9'10" L x 9'10" W x 7'7" H | |
| CMB10X12 | 9'10" L x 11'6" W x 7'7" H | |
| CMB10X13 | 9'10" L x 13'2" W x 7'7" H | |
| CMB10X15 | 9'10" L x 14'9" W x 7'7" H | |
| CMB10X17 | 9'10" L x 16'5" W x 7'7" H | |
| CMB10X18 | 9'10" L x 18'1" W x 7'7" H | |
| CMB10X20 | 9'10" L x 19'8" W x 7'7" H |
Astra QuickShip Walk-In Boxes
Review Astra QuickShip cooler, freezer, and combo models in one place. Use the tabs below to compare dimensions, spec sheets, and pricing as you plan your project.
