Panels
- 4" Thick Foamed-In-Place Polyurethane Insulation
- Cam-Lock Panels, Tongue & Groove Design
- 24 Gauge Pre-Painted White Galvanized Steel
- R27 for Coolers and R33 for Freezers
- CFC and HFC Free Materials
- 10 Year Panel Warranty
Skip to content

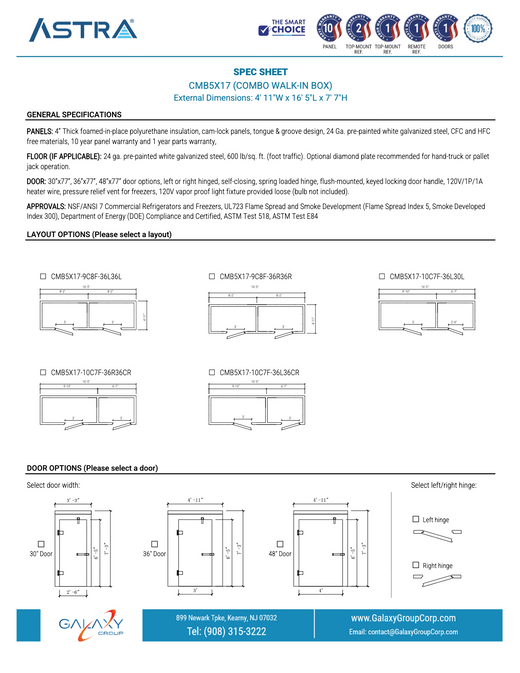

The Astra CMB5X17 is a 5' x 17' walk-in cooler/freezer combo box designed for commercial foodservice storage where both chilled and frozen inventory need to be organized in one footprint. Built as a walk-in cooler/freezer combo with floor, it suits restaurant equipment plans, supermarket refrigeration projects, deli refrigeration storage, and convenience store refrigeration layouts that need a single walk-in solution for back-of-house refrigeration.
Buyers can configure this walk-in box with available page options such as 30", 36", or 48" pallet size upgrade door options, indoor placement, or outdoor use with a rain roof cover. The product page also offers box-only selection, along with multiple layout options, so operators can match the walk-in cooler box or walk-in freezer box to the space and workflow they are planning.
For restaurants, bakeries, prep kitchens, and grocery operations, a combo walk-in can support foodservice storage and restaurant storage by helping separate temperature zones within a compact commercial refrigeration format. It is a practical fit for buyers comparing walk-in cooler and walk-in freezer solutions for commissaries, ghost kitchens, and supermarket back rooms that need flexible cold storage planning.
If you are comparing walk-in cooler/freezer options for your operation, Atlantic Restaurant & Supermarket Equipment can help you review the Astra CMB5X17 and available configuration choices for your storage needs.
LED Light
Exterior Ramp
Aluminum Diamond Plate
Kick Plate
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Model Number | External Dimensions | Spec Sheet |
|---|---|---|
| CNF5X6 | 4'11" L x 6'7" W x 7'3" H | |
| CNF5X8 | 4'11" L x 8'2" W x 7'3" H | |
| CNF5X10 | 4'11" L x 9'10" W x 7'3" H | |
| CNF6X6 | 6'7" L x 6'7" W x 7'3" H | |
| CNF6X8 | 6'7" L x 8'2" W x 7'3" H | |
| CNF6X10 | 6'7" L x 9'10" W x 7'3" H | |
| CNF6X12 | 6'7" L x 11'6" W x 7'3" H | |
| CNF8X8 | 8'2" L x 8'2" W x 7'3" H | |
| CNF8X10 | 8'2" L x 9'10" W x 7'3" H | |
| CNF8X12 | 8'2" L x 11'6" W x 7'3" H | |
| CNF8X13 | 8'2" L x 13'2" W x 7'3" H | |
| CNF8X15 | 8'2" L x 14'9" W x 7'3" H | |
| CNF8X17 | 8'2" L x 16'5" W x 7'3" H | |
| CNF8X18 | 8'2" L x 18'1" W x 7'3" H | |
| CNF8X20 | 8'2" L x 19'8" W x 7'3" H | |
| CNF10X10 | 9'10" L x 9'10" W x 7'3" H | |
| CNF10X12 | 9'10" L x 11'6" W x 7'3" H | |
| CNF10X13 | 9'10" L x 13'2" W x 7'3" H | |
| CNF10X15 | 9'10" L x 14'9" W x 7'3" H | |
| CNF10X17 | 9'10" L x 16'5" W x 7'3" H | |
| CNF10X18 | 9'10" L x 18'1" W x 7'3" H | |
| CNF10X20 | 9'10" L x 19'8" W x 7'3" H | |
| CWF5X6 | 4'11" L x 6'7" W x 7'7" H | |
| CWF5X8 | 4'11" L x 8'2" W x 7'7" H | |
| CWF5X10 | 4'11" L x 9'10" W x 7'7" H | |
| CWF6X6 | 6'7" L x 6'7" W x 7'7" H | |
| CWF6X8 | 6'7" L x 8'2" W x 7'7" H | |
| CWF6X10 | 6'7" L x 9'10" W x 7'7" H | |
| CWF6X12 | 6'7" L x 11'6" W x 7'7" H | |
| CWF8X8 | 8'2" L x 8'2" W x 7'7" H | |
| CWF8X10 | 8'2" L x 9'10" W x 7'7" H | |
| CWF8X12 | 8'2" L x 11'6" W x 7'7" H | |
| CWF8X13 | 8'2" L x 13'2" W x 7'7" H | |
| CWF8X15 | 8'2" L x 14'9" W x 7'7" H | |
| CWF8X17 | 8'2" L x 16'5" W x 7'7" H | |
| CWF8X18 | 8'2" L x 18'1" W x 7'7" H | |
| CWF8X20 | 8'2" L x 19'8" W x 7'7" H | |
| CWF10X10 | 9'10" L x 9'10" W x 7'7" H | |
| CWF10X12 | 9'10" L x 11'6" W x 7'7" H | |
| CWF10X13 | 9'10" L x 13'2" W x 7'7" H | |
| CWF10X15 | 9'10" L x 14'9" W x 7'7" H | |
| CWF10X17 | 9'10" L x 16'5" W x 7'7" H | |
| CWF10X18 | 9'10" L x 18'1" W x 7'7" H | |
| CWF10X20 | 9'10" L x 19'8" W x 7'7" H |
| Model Number | External Dimensions | Spec Sheet |
|---|---|---|
| FWF5X6 | 4'11" L x 6'7" W x 7'7" H | |
| FWF5X8 | 4'11" L x 8'2" W x 7'7" H | |
| FWF5X10 | 4'11" L x 9'10" W x 7'7" H | |
| FWF6X6 | 6'7" L x 6'7" W x 7'7" H | |
| FWF6X8 | 6'7" L x 8'2" W x 7'7" H | |
| FWF6X10 | 6'7" L x 9'10" W x 7'7" H | |
| FWF6X12 | 6'7" L x 11'6" W x 7'7" H | |
| FWF8X8 | 8'2" L x 8'2" W x 7'7" H | |
| FWF8X10 | 8'2" L x 9'10" W x 7'7" H | |
| FWF8X12 | 8'2" L x 11'6" W x 7'7" H | |
| FWF8X13 | 8'2" L x 13'2" W x 7'7" H | |
| FWF8X15 | 8'2" L x 14'9" W x 7'7" H | |
| FWF8X17 | 8'2" L x 16'5" W x 7'7" H | |
| FWF8X18 | 8'2" L x 18'1" W x 7'7" H | |
| FWF8X20 | 8'2" L x 19'8" W x 7'7" H | |
| FWF10X10 | 9'10" L x 9'10" W x 7'7" H | |
| FWF10X12 | 9'10" L x 11'6" W x 7'7" H | |
| FWF10X13 | 9'10" L x 13'2" W x 7'7" H | |
| FWF10X15 | 9'10" L x 14'9" W x 7'7" H | |
| FWF10X17 | 9'10" L x 16'5" W x 7'7" H | |
| FWF10X18 | 9'10" L x 18'1" W x 7'7" H | |
| FWF10X20 | 9'10" L x 19'8" W x 7'7" H |
| Model Number | External Dimensions | Spec Sheet |
|---|---|---|
| CMB5X12 | 4'11" L x 11'6" W x 7'7" H | |
| CMB5X13 | 4'11" L x 13'2" W x 7'7" H | |
| CMB5X15 | 4'11" L x 14'9" W x 7'7" H | |
| CMB6X8 | 6'7" L x 8'2" W x 7'7" H | |
| CMB6X10 | 6'7" L x 9'10" W x 7'7" H | |
| CMB6X12 | 6'7" L x 11'6" W x 7'7" H | |
| CMB6X13 | 6'7" L x 13'2" W x 7'7" H | |
| CMB6X15 | 6'7" L x 14'9" W x 7'7" H | |
| CMB6X17 | 6'7" L x 16'5" W x 7'7" H | |
| CMB6X18 | 6'7" L x 18'1" W x 7'7" H | |
| CMB6X20 | 6'7" L x 19'8" W x 7'7" H | |
| CMB8X8 | 8'2" L x 8'2" W x 7'7" H | |
| CMB8X10 | 8'2" L x 9'10" W x 7'7" H | |
| CMB8X12 | 8'2" L x 11'6" W x 7'7" H | |
| CMB8X13 | 8'2" L x 13'2" W x 7'7" H | |
| CMB8X15 | 8'2" L x 14'9" W x 7'7" H | |
| CMB8X17 | 8'2" L x 16'5" W x 7'7" H | |
| CMB8X18 | 8'2" L x 18'1" W x 7'7" H | |
| CMB8X20 | 8'2" L x 19'8" W x 7'7" H | |
| CMB10X10 | 9'10" L x 9'10" W x 7'7" H | |
| CMB10X12 | 9'10" L x 11'6" W x 7'7" H | |
| CMB10X13 | 9'10" L x 13'2" W x 7'7" H | |
| CMB10X15 | 9'10" L x 14'9" W x 7'7" H | |
| CMB10X17 | 9'10" L x 16'5" W x 7'7" H | |
| CMB10X18 | 9'10" L x 18'1" W x 7'7" H | |
| CMB10X20 | 9'10" L x 19'8" W x 7'7" H |
Astra QuickShip Walk-In Boxes
Review Astra QuickShip cooler, freezer, and combo models in one place. Use the tabs below to compare dimensions, spec sheets, and pricing as you plan your project.
