Description
A 10' x 14' walk-in with a freezer and a cooler in one box, refrigeration mounted on top.

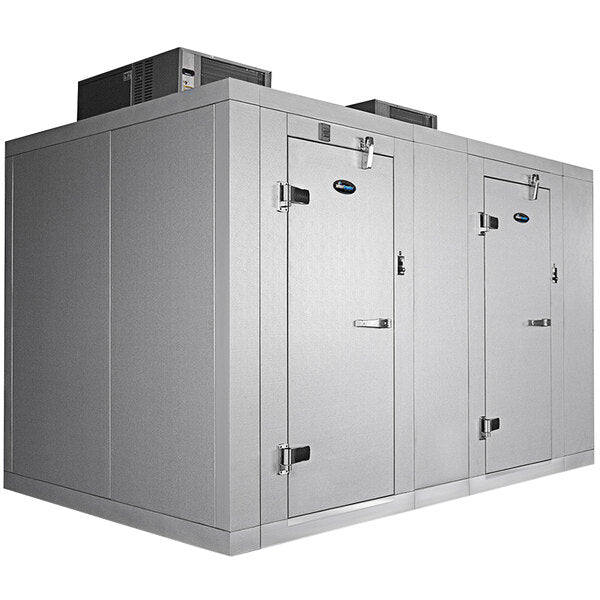

The Amerikooler DW101477N-7/7-SC is an indoor combination walk-in: a freezer compartment and a cooler compartment built together in one 10' x 14' x 7' 7" box. It is floorless, so the walls stand on your existing finished floor on NSF vinyl screed, and it uses top mounted self-contained refrigeration. Walls and ceiling are 4" AK-XPS4 panels (R-32 freezer, R-29 cooler) that lock together on site with cam-locks. Inside height is 86-3/4".
Will it fit · Will it hook up
- Outside size
- 10' W x 14' L x 7' 7" H (120" x 168" x 91")
- Inside height
- 86-3/4" floorless, per Amerikooler combination drawings
- Cooler door
- 30" or 36" wide x 76" high; left or right hinge; on the front, back or width side (choose above)
- Clearance
- 2" from building walls; 24" above the walk-in for the top mount refrigeration
- Floor
- Floorless; NSF vinyl screed lag-fastened to a level tile or concrete floor
- Refrigeration
- Top mounted self-contained; ask us for the electrical requirements of this model before wiring
Sizes are exterior. Amerikooler does not print interior width, length or compartment sizes for this model; the installation drawing for your order shows the compartment layout.
Freezer and cooler in one walk-in
Two compartments share one set of panels: a freezer that holds -10°F and a cooler that holds 35°F. Amerikooler calls these Combo Units.
4" XPS insulated panels
Walls and ceiling use 4" AK-XPS4 extruded polystyrene: R-32 in the freezer, R-29 in the cooler. DuPont backs the insulation with a 50-year thermal warranty.
Stucco embossed Galvalume
Panels are acrylic coated (Acrylume) stucco embossed Galvalume inside and out, a corrosion resistant finish.
Door hardware built in
Flush door with 2 Kason Performer spring-assisted cam-rise hinges, spring door closer, Safeguard deadbolt keyed latch and a glow-in-the-dark inside safety release. Freezer doors add a heated pressure relief vent.
Light and thermometer
A vapor-proof LED light on the door jamb and a digital LED thermometer with an on/off pilot light switch come standard.
Floorless: uses your floor
Walls stand on 1/2" radius NSF vinyl screeds that sit flat on a finished tile or concrete floor and lag down. The coved screed makes the joint easy to clean.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Ships as flat modular panels. Amerikooler includes the installation materials (hex wrench for the cam-locks, cam-lock hole plugs, screws).
- Inspect every crate at delivery and note any damage on the receipt; transit damage is a claim with the carrier.
- Leave at least 2" between the walk-in and building walls and 24" above it for the top mount refrigeration.
- Mark the footprint, then lag the NSF vinyl screeds to a clean, level floor. Amerikooler recommends an insulated concrete slab under a floorless freezer.
- Amerikooler's labor warranty requires installation by a licensed equipment installer or a certified, licensed mechanical contractor.
Questions buyers ask
Will it fit in my space?
The outside is 10' x 14' and 7' 7" tall. Add 2" clearance from walls and 24" above for the top mount refrigeration. Inside height is 86-3/4" since there is no floor panel.
Are the freezer and cooler separate rooms?
Yes. This is a combination unit with a freezer compartment and a cooler compartment in one box. The -7/7 in the model is Amerikooler's section code; the installation drawing for your order shows the exact compartment layout.
Do I need a floor?
This model is floorless: the walls sit on NSF vinyl screed on your finished floor. Amerikooler recommends a floorless freezer go over an insulated concrete slab. If you do not have one, the DW101477F-7/7-SC is the same size with a floor.
What door choices do I have?
Pick the cooler door hinge (left or right), its location (front or back on the length side, or the width side) and its width (30" or 36"). The door is 76" high.
Can it go outdoors?
This is the indoor version. Amerikooler outdoor walk-ins add a rain roof membrane, exterior floor angles and a door hood.
What warranty does it have?
15 years on wall and ceiling panels, 5 years on floor panels and doors, 1 year on panel labor and original parts, and a 50-year DuPont thermal warranty on the insulation. The refrigeration is covered by its manufacturer's warranty.
Do you match lower prices?
Yes. Amerikooler walk-ins carry our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Walk-In Coolers and Freezers
A walk-in cooler or freezer is a large, refrigerated room designed to store perishable items like food or beverages at consistent temperatures. They are commonly used in restaurants, supermarkets, and warehouses.
Walk-in coolers come in various sizes, ranging from compact units for small kitchens to large-scale units for warehouses. Common sizes include 5’x6’, 6’x8’, and 10’x12’. Custom sizes are also available.
Walk-in coolers help maintain consistent temperatures, reduce food spoilage, and provide ample storage for bulk goods. They also improve operational efficiency in commercial kitchens.
Regular maintenance includes cleaning the condenser coils, checking door seals, and monitoring temperature settings. Proper upkeep extends the lifespan and efficiency of your unit.
Modern walk-in coolers are designed with energy-efficient components, such as insulated panels and energy-saving compressors, to reduce operating costs.
